Description

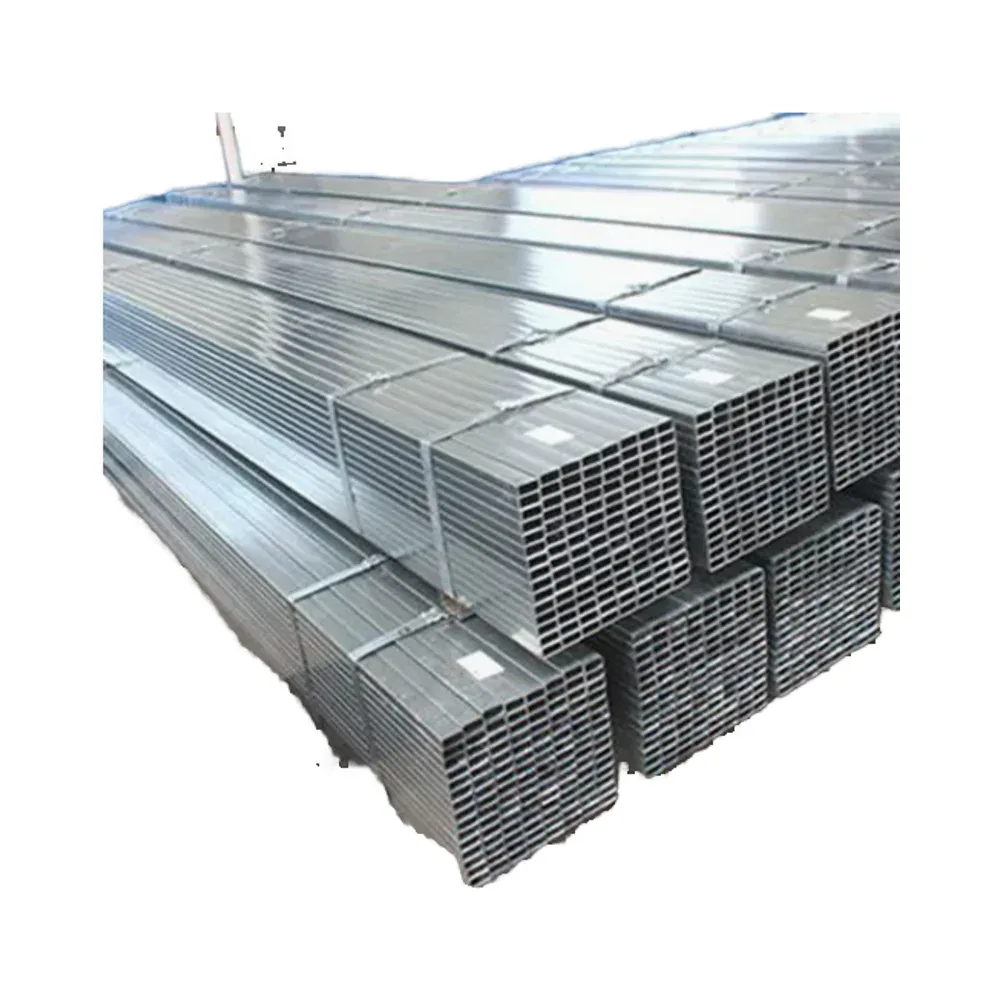

Factory-Direct Galvanized Tubes — Hot-dip galvanized square and rectangular steel tubes produced on dedicated lines with in-house laboratory testing, shipped without trading markup.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Q345 A53 Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | Q195, Q235, Q345, ASTM A53, S235, S275, SS400, 20# |
| Standard | JIS, ASTM A53, EN 10219, EN 10210 |
| Section Shape | Square / Rectangular |
| Size Range | Customized outer diameter or side length |
| Wall Thickness | Up to 40 mm |
| Length | 6 m, 12 m (customizable) |
| Technique | Welded (ERW), Hot-dip Galvanized |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain, Beveled, Threaded, Grooved |
| Application | Steel structures, Construction frames, Machinery parts, Fluid transport, Scaffolding, Furniture |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Structural frames for warehouses, scaffolding systems, high-rise building supports |
| Machinery Manufacturers | Equipment frames, conveyor structures, hydraulic cylinder housings |
| Infrastructure & Industrial | Greenhouse framing, fencing posts, fluid transport lines for non-corrosive media |
| Steel Distributors | Stock inventory for regional resale, cut-to-length blanks for fabricators |
What Wall-Thickness Tolerance Costs on a Galvanized Square and Rectangular Steel Tube Order
±1% tolerance on wall thickness determines whether your order passes structural inspection or gets rejected on site.
Procurement teams often focus on unit price per ton, but tolerance drift on galvanized square and rectangular steel tubes creates compounding costs. When wall thickness falls below the specified minimum, load-bearing calculations become invalid — the engineer must redesign or the inspector must reject. On a recent Middle East solar mounting project, a batch of galvanized tubes arrived with inconsistent zinc coating distribution. The third-party inspector flagged it, and the entire lot required re-galvanizing locally. Two months of delay. That is the kind of hidden cost no price comparison sheet captures. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements]
How Galvanized Square and Rectangular Steel Tubes Match Structural Frame Requirements
Galvanized square and rectangular steel tubes in Q235, Q345, and ASTM A53 grades provide the corrosion resistance needed for outdoor structural applications. The hot-dip galvanizing process coats both exterior and interior surfaces, protecting hollow sections from internal condensation — a failure point painted tubes cannot address. For EPC contractors building industrial frames in coastal or high-humidity zones, this zinc barrier extends service life without maintenance cycles. Our ERW welding technique combined with ±1% tolerance ensures consistent load distribution across connection points.
Engineering Compliance and Certification Pathways
Structural projects in the EU require CE certification under EN 10210 or EN 10219 — without it, customs clearance fails and the material cannot be legally installed. [NEED_CITE: CE marking requirements for structural steel hollow sections under EU Construction Products Regulation] North American projects specify ASTM A53 or A500 grades, and mill test certificates must trace each batch to its heat number. Singapore FPC certification opens doors to government infrastructure tenders in Southeast Asia. We produce galvanized square and rectangular steel tubes across all these standards, with documentation packages prepared for each destination market. The steel grade selection — Q235 for general structures, Q345 for higher load requirements, ASTM A53 for fluid transport — must align with the engineer’s calculation sheet before production begins.
Steel Grade Selection and Hot-Dip Galvanizing Process
Q235 and Q345 represent China’s GB/T 700 and GB/T 1591 structural steel systems, where the number indicates minimum yield strength in MPa. Q235 suits general construction frames, while Q345 provides higher load capacity for bridges and heavy industrial structures. ASTM A53 covers seamless and welded black and hot-dipped galvanized steel pipes, commonly specified for fluid transport and structural applications in North America. S235 and S275 are European EN 10025 grades, with S275 offering improved strength for demanding structural connections. SS400, Japan’s JIS G3101 general structural steel, appears frequently in Southeast Asian projects. The hot-dip galvanizing process immerses fabricated tubes in molten zinc at approximately 450°C, forming metallurgical zinc-iron alloy layers bonded to the steel substrate. This coating provides sacrificial anode protection — even if scratched, the zinc corrodes preferentially to shield the base steel.
Hidden Costs of Incorrect Steel Grade or Missing Certification
Ordering Q235 when the engineer specified Q345 means the structure cannot carry the designed load — a safety risk that requires complete replacement, not just a price adjustment. Missing CE certificates for EU shipments result in customs holds, demurrage charges, and potential rejection at the port. [NEED_CITE: consequences of non-compliant steel certificates in EU construction projects] Galvanized tubes with insufficient zinc coating thickness fail corrosion resistance tests, forcing re-galvanizing at destination — a process that costs more than the original galvanizing and delays project timelines by weeks. Material traceability gaps mean you cannot prove compliance during structural audits, exposing the contractor to liability.
Why Procurement Teams Choose Our Galvanized Square and Rectangular Steel Tubes
We operate three dedicated production lines covering over 2,800 specifications, including wall thicknesses up to 40 mm — eliminating the need to source from multiple suppliers for different size ranges. Our in-house physical and chemical laboratory tests every heat before release, generating mill test certificates with full chemical composition and mechanical property data. The proprietary sharp-corner rectangular tube technology, backed by 41 patents, fills a gap in the global market where standard radii cannot meet tight architectural tolerances. CE certification under EN 10210 and EN 10219, Singapore FPC, ISO 9001:2015, and third-party verification by SGS and BV ensure documentation matches destination requirements. We export to over 50 countries across the EU, North America, India, Southeast Asia, and the Middle East, with professional loading plans that optimize container weight distribution for heavy galvanized tubes.
Documentation & Compliance
- Mill Test Certificate documenting Q235, Q345, or ASTM A53 chemical composition and mechanical properties per EN 10219 or ASTM A53, traceable to heat number
- CE certificate under EN 10210 or EN 10219 for EU market compliance, covering structural hollow section requirements
- ISO 9001:2015 quality management system certificate covering production and testing processes
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional accuracy upon request
- Material traceability documentation linking each bundle to its production heat and test results
- Customs documents including packing list, Bill of Lading, and certificate of origin prepared for destination port requirements
Packaging, Loading & Delivery

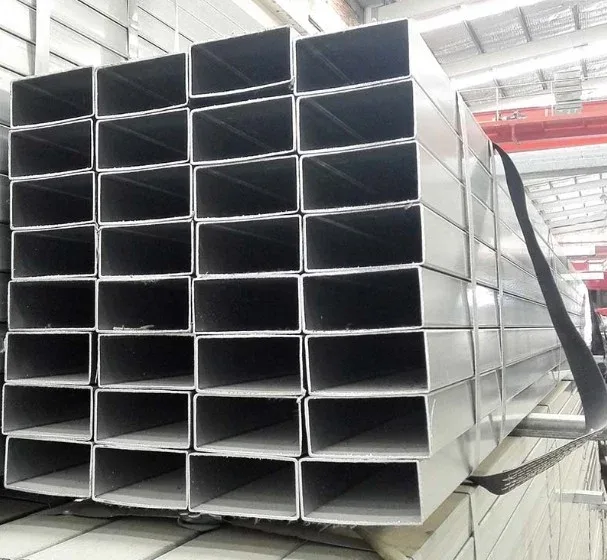

- Hot-dip galvanized square and rectangular steel tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Surface protection maintained through proper stacking separation, preventing zinc damage from friction between tubes
- Container loading optimized for 6 m and 12 m lengths, with weight distribution calculated to maximize payload while meeting port handling limits
- Custom cut-to-length service available for galvanized tubes, reducing on-site waste and labor for construction teams
- Heat number and steel grade marked on each tube end, with bundle tags matching mill test certificate references
- FOB, CIF, and DDP shipping options with door-to-door logistics coordination for galvanized square and rectangular steel tube orders
Start Your Galvanized Square and Rectangular Steel Tube Inquiry
Submit your specifications — steel grade, dimensions, wall thickness, quantity, and destination port — to receive a detailed quotation with production lead time and applicable certification documentation. For non-standard sizes or sharp-corner rectangular tubes, our technical team provides custom solutions within the 2,800+ specification range. Confirm mill test certificate requirements and third-party inspection needs before production begins.
Request Quotation and Mill Test Certificate
Send your inquiry via email to admin@sdxjysteel.com or contact us at +86 188 5315 7756 (WhatsApp/WeChat available). Our team responds within 12 hours with pricing, certification options, and delivery schedules.
Frequently Asked Questions
Q: How do Q235, Q345, S235, and ASTM A53 grades compare across different standards?
A: Q235 and S235 both indicate minimum yield strength of approximately 235 MPa, representing China’s GB/T 700 and Europe’s EN 10025 systems respectively. Q345 provides higher yield strength around 345 MPa for demanding structural applications. ASTM A53 covers seamless and welded galvanized steel pipes commonly used in North America for structural and fluid transport purposes. We produce galvanized square and rectangular steel tubes across all these grades with full chemical composition documentation.
Q: What zinc coating thickness standards do your hot-dip galvanized tubes meet?
A: Our hot-dip galvanizing process produces zinc coatings meeting international standards for corrosion protection. Each batch undergoes coating thickness testing in our in-house laboratory, with results documented in the mill test certificate. Third-party verification by SGS or BV is available upon request to confirm coating quality before shipment.
Q: Can you produce non-standard dimensions for galvanized square and rectangular steel tubes?
A: Yes, our production lines cover over 2,800 specifications including custom non-standard sizes beyond typical catalog ranges. Wall thickness reaches up to 40 mm, and our proprietary sharp-corner rectangular tube technology addresses architectural requirements where standard radii are insufficient. Minimum order quantity is 1 Ton, with custom lengths available beyond standard 6 m and 12 m options.
Q: Do you provide CE certificates for EU import clearance?
A: Yes, our galvanized square and rectangular steel tubes carry CE certification under EN 10210 for hot-finished hollow sections and EN 10219 for cold-formed hollow sections. These certificates accompany each shipment to EU destinations, ensuring customs clearance and legal installation compliance. Singapore FPC certification is also available for Southeast Asian government projects.
Q: How do you optimize container loading for heavy galvanized tubes?
A: Our logistics team calculates weight distribution for 6 m and 12 m galvanized square and rectangular steel tube orders, maximizing container payload while meeting port handling equipment limits. Professional loading plans prevent zinc coating damage during transit, and we coordinate FOB, CIF, or DDP shipping based on your project requirements.
