Description
Factory-Direct Galvanized Tubes — 2,800+ specifications from a single certified mill.
Technical Specifications
| Parameter | Value |
|---|---|

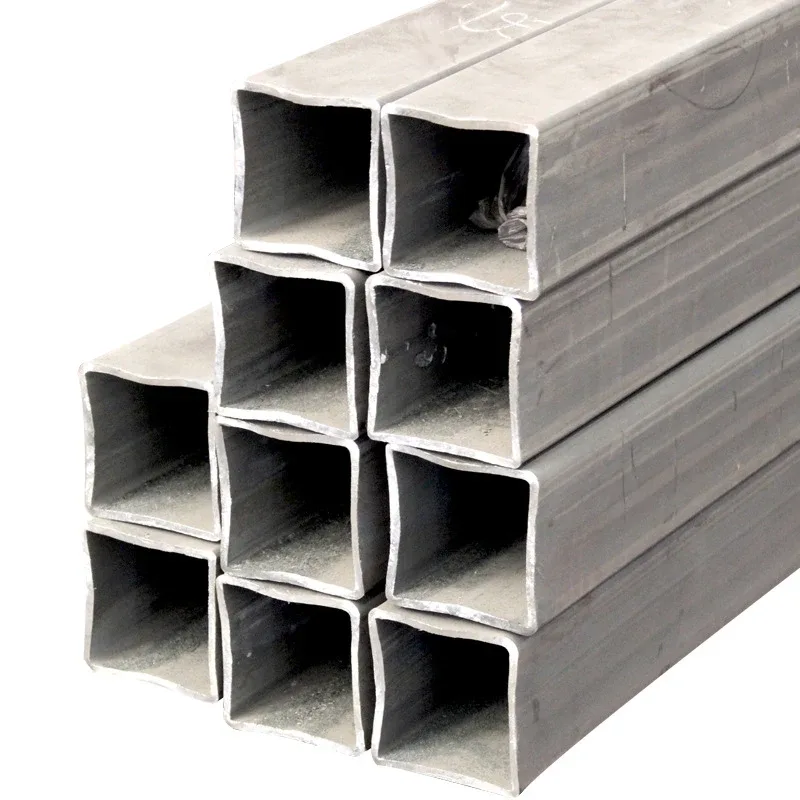

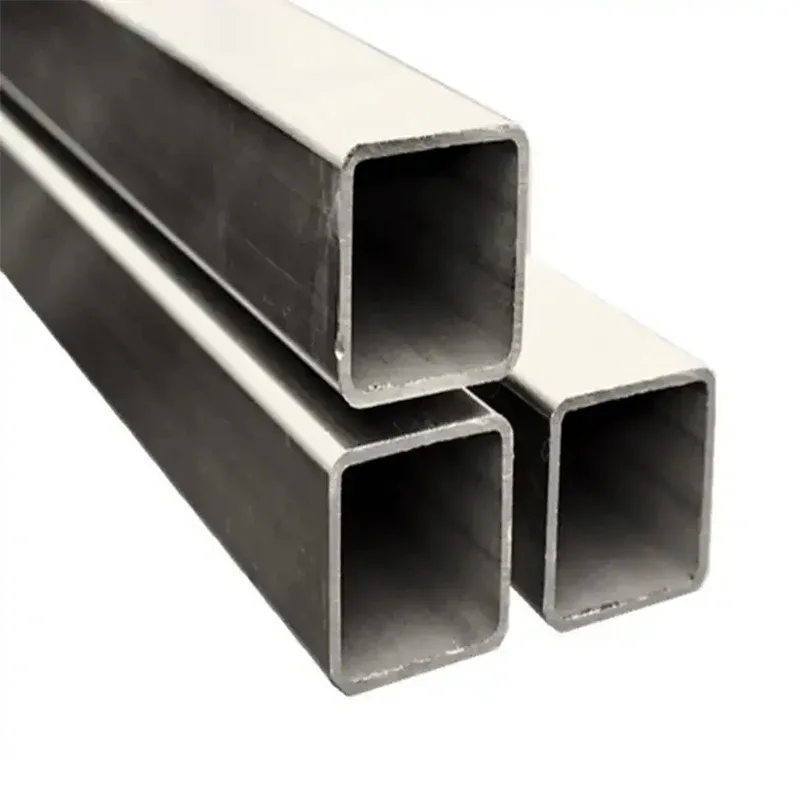

| Designation | Q235 Q345 Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube (ERW) |
| Steel Grade | Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, Q255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C, Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E, S185, S235JR, S275JR, S355JR, S420NL, S460NL, S500Q, S550Q, S620Q, S690Q, ASTM Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade 42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80, SS330, SPHC, SS400, SPFC, SPHD, SPHE |
| Standard | AISI, ASTM, DIN, JIS, GB, EN |
| Section Shape | Square / Rectangular |
| Size Range | 20mm–500mm (side length) |
| Wall Thickness | 0.3mm–100mm |
| Length | 5.8m–12m |
| Technique | Hot Rolled / Cold Rolled / ERW |
| Surface Treatment | Hot Dip Galvanized (Zinc Coating 30g–275g), PVC Coated, Black Painting, Color Painting, Transparent Oil, Anti-rust Oil |
| Tolerance | ±1% |
| Ends | Plain / with or without end caps |
| Processing Service | Welding, Punching, Cutting, Bending |
| Application | Steel structures / Construction frames / Machinery / Scaffolding / Furniture / Industrial fabrication |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial building frames, warehouse structures, solar mounting systems |
| Construction Companies | Scaffolding systems, high-rise structural supports, bridge railings |
| Machinery Manufacturers | Equipment frames, conveyor structures, hydraulic cylinder housings |
| Infrastructure Developers | Highway guardrails, sound barrier posts, utility pole bases |
| System Integrators | Automation frames, material handling racks, modular industrial platforms |
Where Zinc Coating Thickness Decides Project Acceptance
Edge zinc coverage below 45μm triggers batch rejection at port inspection.
I learned this the hard way when a 100×100 galvanized square tube shipment to the Middle East passed our factory zinc thickness test at 80μm, only to fail third-party inspection at destination with edge readings at 45μm. The entire batch returned for rework. Since then, we monitor galvanizing bath temperature, immersion time, and drainage angles for every Q235 Q345 galvanized square rectangular steel tube supplier order. Edge buildup and corner thinning remain the silent killers in hot dip galvanizing — most suppliers only measure flat surface readings, ignoring the geometry that actually corrodes first. [NEED_CITE: hot dip galvanized coating thickness requirements for structural steel]
How Wall Thickness Tolerance Affects Structural Load Calculations
When engineers specify Q345B rectangular tubes for load-bearing frames, they calculate based on nominal wall thickness. But ±1% tolerance means a 10mm wall could arrive at 9.9mm — reducing section modulus and moment capacity. For a Q235 Q345 galvanized square rectangular steel tube supplier serving EPC contractors, this tolerance chain matters more than yield strength certificates. We maintain in-house physical and chemical laboratories that verify every heat number against EN 10219 dimensional requirements before shipment, ensuring the tubes you receive match the structural assumptions in your design software.
Meeting EN 10219 and ASTM A500 for Global Project Compliance
European projects demand CE certification under EN 10210/EN 10219, while North American specifications reference ASTM A500 Grade B/C. The Q235 Q345 galvanized square rectangular steel tube supplier you choose must provide mill test certificates that trace chemical composition and mechanical properties to specific heat numbers. Our products carry CE marking for EU customs clearance, Singapore FPC certification for Southeast Asian infrastructure, and ISO 9001:2015 quality management documentation. Third-party inspection through SGS or BV is available for projects requiring independent verification. [NEED_CITE: EN 10219 cold-formed hollow section requirements]
Understanding Steel Grade Equivalence Across International Standards
Q235B in Chinese GB standards corresponds roughly to S235JR in EN standards and ASTM A36 in American specifications. Q345B aligns with S355JR and ASTM A572 Grade 50. These equivalences are not exact — slight differences in carbon content, manganese ranges, and impact testing requirements exist. When you order a Q235 Q345 galvanized square rectangular steel tube supplier shipment for a project in Dubai, specifying “S355JR equivalent” without confirming the exact chemical composition can lead to material rejection. We provide cross-reference documentation showing how our Q-series grades meet EN and ASTM requirements, backed by original mill test certificates for every heat. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
The Hidden Cost of Unverified Galvanized Coatings
Specifying 275g/m² zinc coating sounds straightforward, but without independent thickness verification, you risk receiving tubes with 180g/m² average and 120g/m² minimum — adequate for indoor furniture, inadequate for coastal scaffolding. The Q235 Q345 galvanized square rectangular steel tube supplier who cannot provide coating weight certificates leaves you vulnerable to premature corrosion, structural inspection failures, and warranty disputes. Our hot dip galvanizing process maintains zinc bath composition within EN ISO 1461 requirements, with coating weight verified by magnetic induction gauges at multiple points per tube. [NEED_CITE: hot dip galvanized coating weight measurement standards]
Why Procurement Teams Choose Our Mill Direct
We operate three dedicated production lines covering 2,800+ specifications with wall thickness up to 100mm, eliminating the markup and communication delays of trading companies. Our 41 invention patents include proprietary sharp-corner rectangular tube technology that fills gaps in global markets — critical for architectural applications where 90-degree internal corners matter for connection detailing. Every Q235 Q345 galvanized square rectangular steel tube supplier order ships with original mill test certificates, CE documentation for EU clearance, and professional loading plans optimized for container utilization. We export to 50+ countries including EU, North America, India, Southeast Asia, and Middle East, with door-to-door logistics coordination.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition and mechanical properties per GB/T 6728
- CE certificate confirming EN 10219 compliance for European structural applications
- ISO 9001:2015 quality management certificate covering production and inspection processes
- SGS third-party inspection report verifying zinc coating thickness and dimensional tolerance
- Material traceability by heat number linking each tube to specific steelmaking batch
- Customs documents including packing list, bill of lading, and certificate of origin

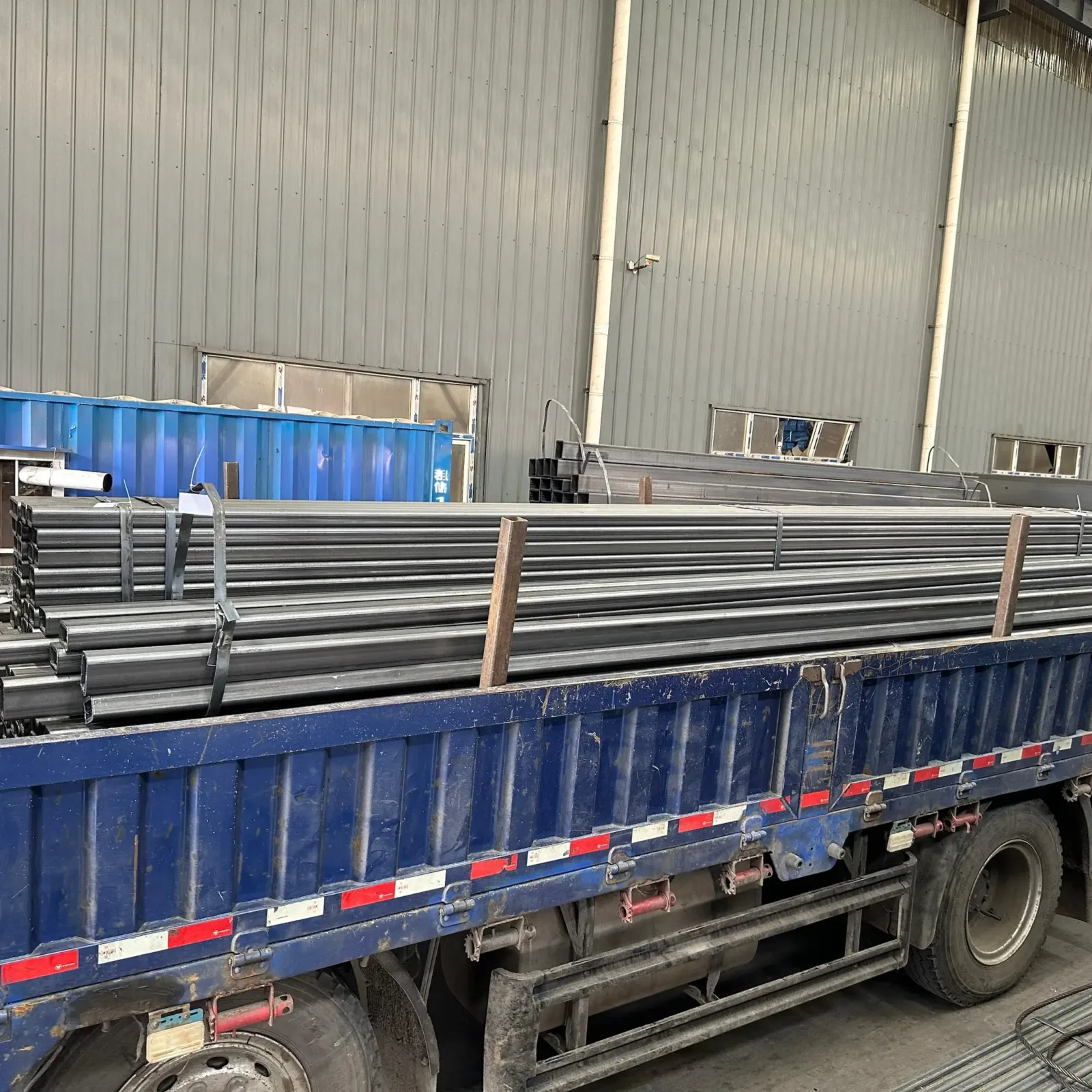

Packaging, Loading & Delivery

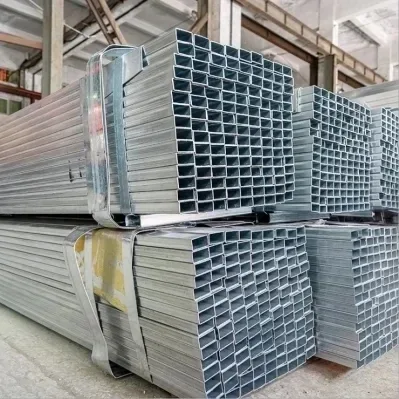

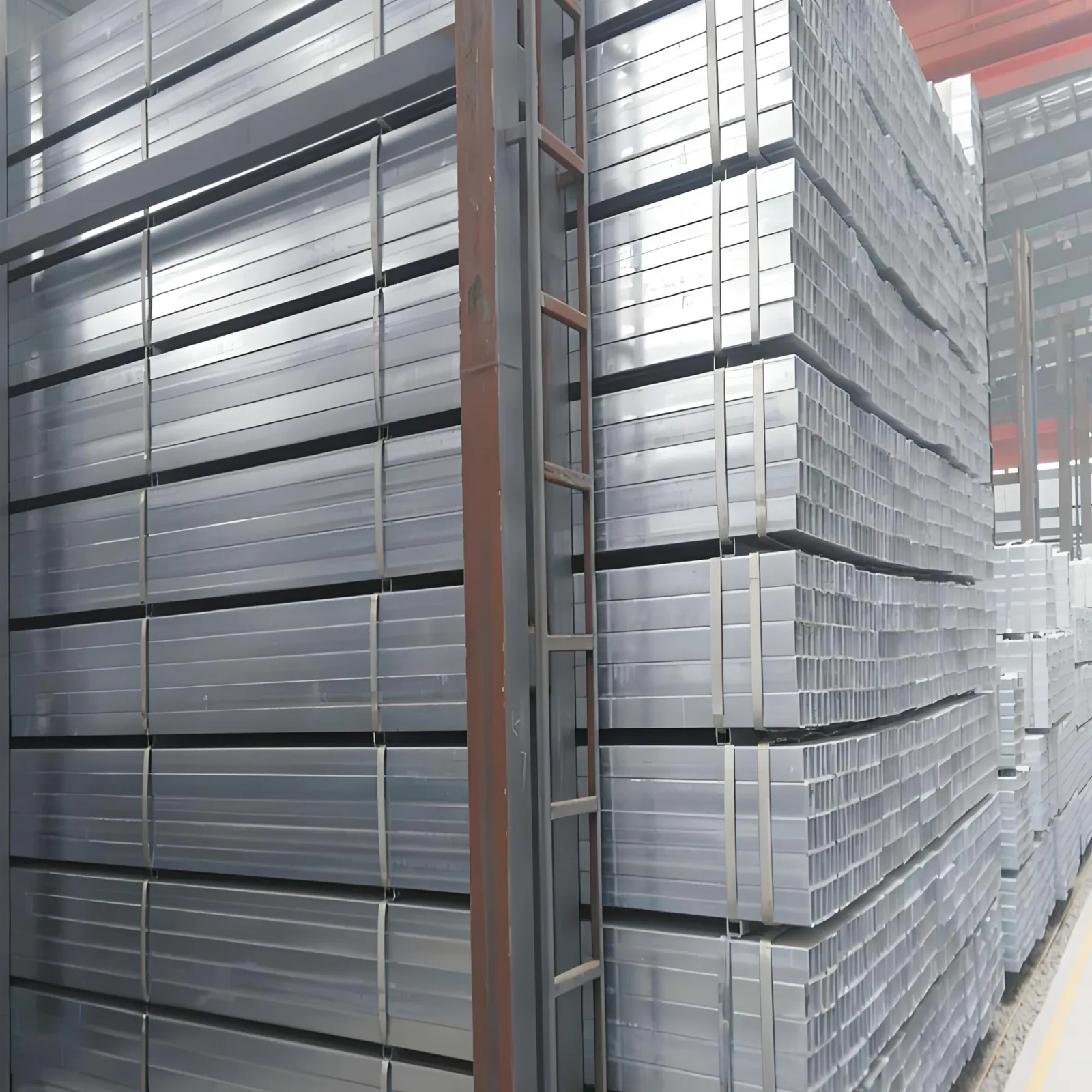

- Hot dip galvanized Q345B tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- 12-meter length tubes loaded in 40ft containers with optimized stacking to maximize payload while preventing deformation
- PVC coated rectangular tubes wrapped in waterproof paper with plastic caps on ends to prevent surface damage
- Custom cut-to-length service available for 5.8m and 6m lengths to reduce on-site waste for scaffolding projects

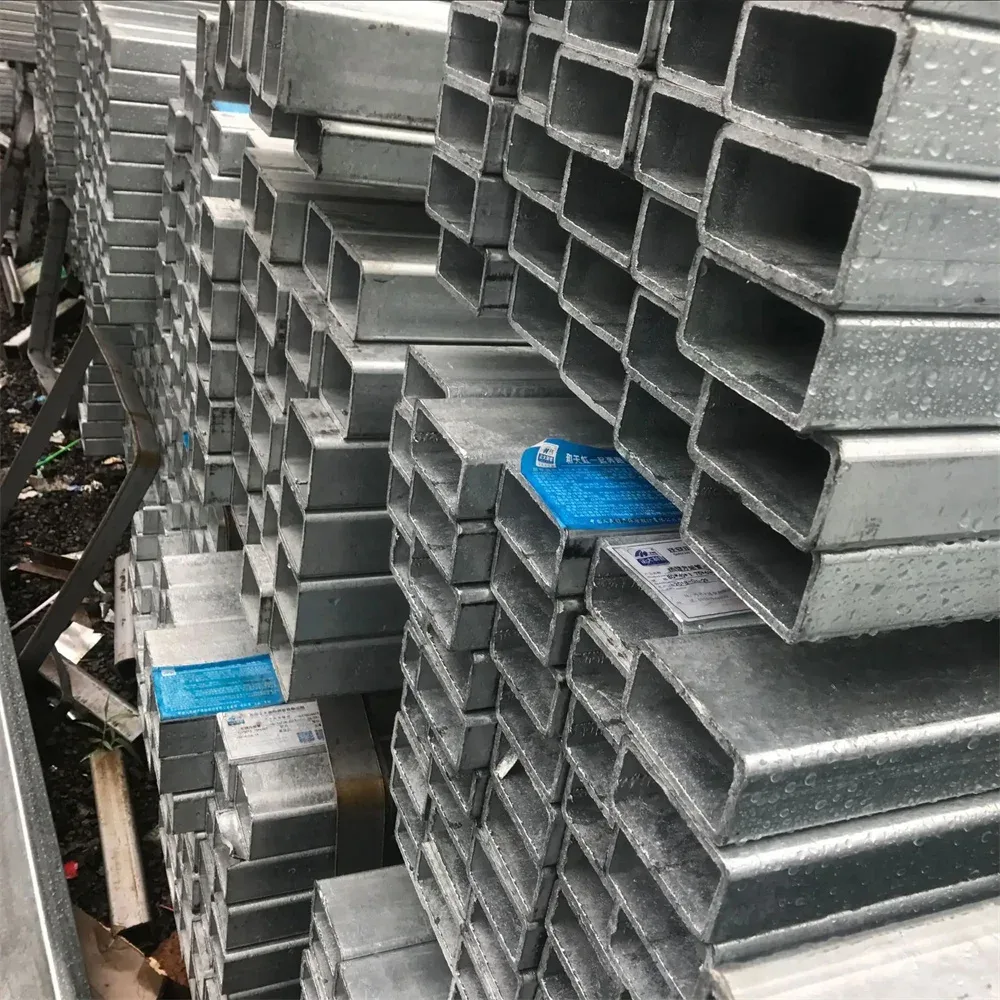

- Heat number and steel grade marked on each tube with stenciled identification for site traceability
- FOB, CIF, and DDP shipping terms available with real-time tracking for global destinations
Getting Your Quote with Complete Technical Documentation
Submit your specifications including side length, wall thickness, steel grade, quantity, and destination port to receive a detailed quotation within 12 hours. We provide original mill test certificates, CE documentation, and third-party inspection options tailored to your project requirements. For non-standard sizes or custom lengths outside our 20mm–500mm range, our engineering team will confirm feasibility and lead time.
Request Your Galvanized Tube Quotation with Mill Test Certificates
Send your specifications via email to admin@sdxjysteel.com or contact us on WhatsApp at +86 188 5315 7756 to receive pricing, delivery schedule, and complete quality documentation for your Q235 Q345 galvanized square rectangular steel tube supplier order.
Frequently Asked Questions
Q: How do Q235 and Q345 steel grades compare to S235JR and S355JR in EN standards?
A: Q235B corresponds closely to S235JR with similar yield strength and chemical composition, while Q345B aligns with S355JR for structural applications. We provide cross-reference documentation showing exact chemical composition and mechanical property comparisons, backed by original mill test certificates for each heat number.
Q: Can you provide third-party inspection for galvanized coating thickness verification?
A: Yes, we arrange SGS or BV third-party inspection to verify zinc coating weight, thickness uniformity, and adhesion properties before shipment. Inspection reports document coating measurements at multiple points per tube, ensuring compliance with EN ISO 1461 or your project specifications.
Q: What is the minimum order quantity for non-standard sizes outside your standard range?
A: We produce custom non-standard sizes with side lengths from 20mm to 500mm and wall thickness up to 100mm. Minimum order quantities depend on specification complexity and production setup requirements — submit your drawings for exact MOQ confirmation.
Q: Do your products meet CE requirements for European Union import clearance?
A: Yes, our galvanized square and rectangular tubes carry CE certification under EN 10210 and EN 10219 standards, with complete technical documentation including Declaration of Performance, mill test certificates, and factory production control certificates required for EU customs clearance.
Q: How do you ensure zinc coating uniformity on sharp-corner rectangular tubes?
A: Our proprietary sharp-corner rectangular tube technology includes optimized galvanizing drainage angles and bath temperature control to prevent corner thinning. We verify coating thickness at corners, edges, and flat surfaces using magnetic induction gauges, ensuring uniform protection across all geometries.
