Description

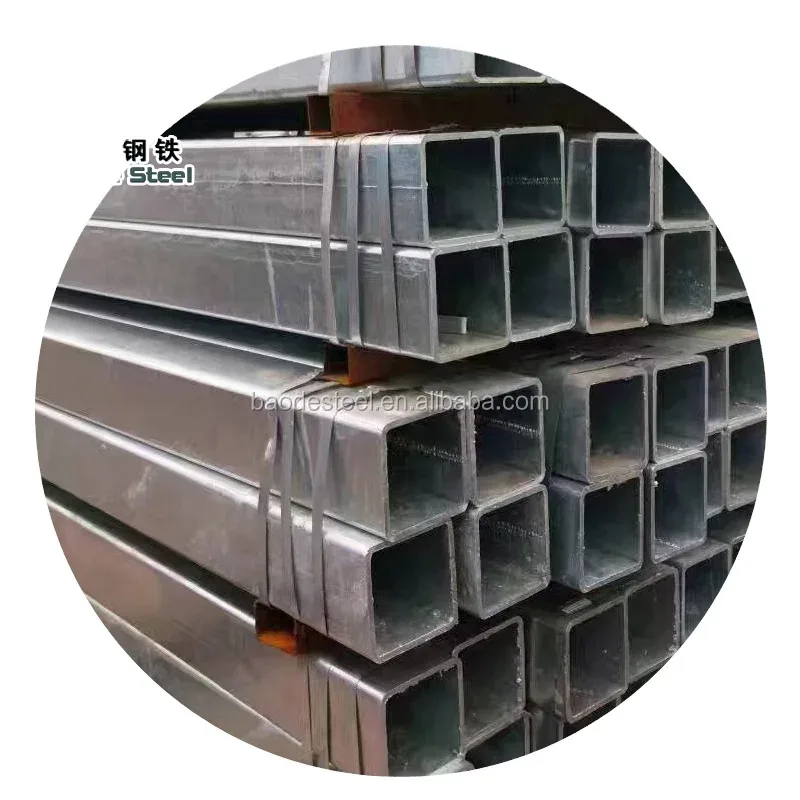

Factory-Direct Galvanized Tubes with Full Certification — Every ASTM A500 Gr.B galvanized rectangular steel tube we ship carries original mill test certificates and CE marking under EN 10210/10219, verified by in-house lab testing before loading.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A500 Gr.B Galvanized Rectangular Steel Tube |
| Product Type | Galvanized Rectangular Hollow Section |
| Steel Grade | Gr.B / S235 / S275 / S355 / STK400 |
| Standard | ASTM A500 / ASTM A53 / GB/T 3091 |
| Section Shape | Rectangular |
| Size Range | 15mm×20mm – 700mm×800mm |
| Wall Thickness | 1 – 30 mm |
| Length | 5.8m / 6m / 11.8m / 12m / Random Length |
| Technique | ERW (Welded) / Seamless |
| Surface Treatment | Hot-Dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Steel structures / Construction frames / Curtain wall systems / Support tubes / Machinery frames |
| MOQ | 10 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Steel structure frameworks for industrial plants and commercial buildings |
| Construction Companies | Curtain wall support systems and high-rise building column frames |
| Machinery Manufacturers | Equipment base frames and conveyor support structures |
| Infrastructure Developers | Bridge handrail posts and solar mounting frame members |
Where Certification Gaps Turn a Shipment into a Customs Hold
Missing or incomplete EN 10210/EN 10219 documentation is the single most common reason galvanized hollow sections get delayed at EU and Middle East ports.
I’ve watched containers sit at destination ports for weeks because the mill test certificate listed the wrong steel grade designation, or the CE declaration referenced an outdated standard revision. For an ASTM A500 Gr.B galvanized rectangular steel tube supplier shipping to regulated markets, the paperwork has to match the physical product exactly — heat numbers traceable to chemical composition, coating thickness documented per ASTM A123 or EN ISO 1461, and dimensional reports reflecting actual measurements rather than theoretical calculations. When buyers source from multiple vendors to piece together a project bill of materials, these documentation inconsistencies multiply with every supplier added [NEED_CITE: EN 10219 cold-formed structural hollow section certification requirements for EU construction products regulation].
Matching Section Geometry to Structural Frame Demands
Rectangular hollow sections carry bending loads more efficiently than round pipes on flat mounting surfaces, which is why ASTM A500 Gr.B galvanized rectangular steel tube suppliers see growing demand from curtain wall and steel frame contractors. The flat faces of a 50×100mm or 100×200mm section bolt directly to gusset plates and connection brackets without the shimming required for circular profiles. Hot-dip galvanizing adds a metallurgically bonded zinc layer that protects both external faces and the internal hollow from corrosion — critical for outdoor structural frames exposed to humidity and industrial atmospheres. Our production lines cover the full dimensional range from 15mm×20mm light-gauge sections for non-load-bearing partitions up to 700mm×800mm heavy structural members, with wall thickness from 1mm to 30mm, all verified against ±1% dimensional tolerance before dispatch.
Structural Compliance and Corrosion Protection Standards
Engineering specifications for galvanized rectangular hollow sections typically reference EN 1993-1-1 for structural design verification and EN ISO 1461 for hot-dip galvanized coating requirements. The Gr.B grade under ASTM A500 provides a defined minimum yield point suitable for primary structural members in building frames and industrial structures. For projects entering the EU market, CE certification under EN 10210 (hot-finished) or EN 10219 (cold-formed) is mandatory under the Construction Products Regulation, and the galvanizing process must comply with EN ISO 1461 minimum coating mass requirements [NEED_CITE: ASTM A500 to EN 10210 steel grade equivalence for structural hollow sections]. Plain ends on these tubes allow on-site welding and mechanical connection without additional end-preparation costs, while the ±1% tolerance ensures that nested connections and pre-fabricated assemblies fit within standard engineering allowances.
Understanding Grade Selection and Galvanizing for Rectangular Hollow Sections
The ASTM A500 Gr.B designation specifies a cold-formed welded structural tube with defined chemical and mechanical requirements under the ASTM framework. For buyers working across multiple standard systems, Gr.B roughly corresponds to S235 in the EN system and STK400 in JIS, though exact equivalence depends on the specific product form and testing conditions — confirming grade substitution with the mill test certificate avoids compliance disputes during project handover [NEED_CITE: steel grade equivalence mapping between ASTM A500 and EN 10219 standards]. ERW welded production dominates the rectangular hollow section market because the forming and welding process handles the flat-to-flat geometry of rectangular profiles more economically than seamless methods, while still delivering consistent weld integrity verified by in-line ultrasonic testing. Hot-dip galvanizing immerses the formed and welded tube in molten zinc, creating a series of zinc-iron alloy layers bonded to the steel substrate — this metallurgical bond provides cathodic protection that outperforms paint systems in outdoor and high-humidity environments. Wall thickness selection directly affects both load-bearing capacity and galvanized coating uniformity; thinner walls in the 1-3mm range require controlled immersion timing to prevent zinc buildup at corners, while heavier sections above 10mm benefit from the full alloy layer development that hot-dip provides.
The Hidden Cost of Accepting Substandard Coating and Tolerance
A galvanized rectangular tube with zinc coating below specification will show white rust or bare spots within months in outdoor service, triggering costly field re-coating or full member replacement. When wall thickness falls below the ordered specification due to unchecked negative tolerance, the structural member carries less load than the engineer calculated — a condition that may not surface until a building inspector requests ultrasonic thickness verification on-site [NEED_CITE: consequences of negative wall thickness tolerance in structural steel hollow sections]. Certification gaps compound the problem: a shipment arriving without traceable heat numbers or with mill test certificates that do not match the delivered steel grade will fail customs inspection in regulated markets, generating demurrage charges and project schedule delays that far exceed the original price difference between a verified ASTM A500 Gr.B galvanized rectangular steel tube supplier and an uncertified source.
Procurement Confidence Built on Factory-Level Verification
Every ASTM A500 Gr.B galvanized rectangular steel tube supplier can claim quality — the difference lies in verifiable proof at each production stage. Our facility operates three dedicated production lines with in-house physical and chemical laboratories that test incoming raw material coils, monitor weld integrity during ERW forming, and verify zinc coating thickness on every galvanized batch before release. We hold 41 patented technologies including proprietary sharp-corner rectangular tube manufacturing that produces tight corner radii for cleaner connections and improved load transfer at joints. The product range spans over 2,800 specifications across square tubes, rectangular tubes, round pipes, plates, and section steel, meaning a single purchase order can consolidate structural frames, curtain wall members, and machinery supports without splitting shipments across multiple vendors. CE certification under EN 10210/EN 10219, ISO 9001:2015 registration, and pre-shipment inspection by SGS or BV provide the documentation chain that EU, North American, and Middle East importers require for customs clearance and project compliance.
Documentation & Compliance
- Mill test certificate documenting Gr.B chemical composition and mechanical test results per ASTM A500, with heat number traceability to each production batch
- CE Declaration of Performance conforming to EN 10219 for cold-formed galvanized rectangular hollow sections exported to EU member states
- ISO 9001:2015 quality management system certificate covering the full production process from raw material inspection through final galvanizing
- SGS or BV third-party inspection report verifying dimensional tolerance, coating thickness per EN ISO 1461, and visual surface quality before container loading
- Material traceability report linking each bundle to its heat number, steel grade certification, and galvanizing bath record
- Full customs documentation package including packing list, ocean bill of lading, and certificate of origin for the destination country
Packaging, Loading & Delivery

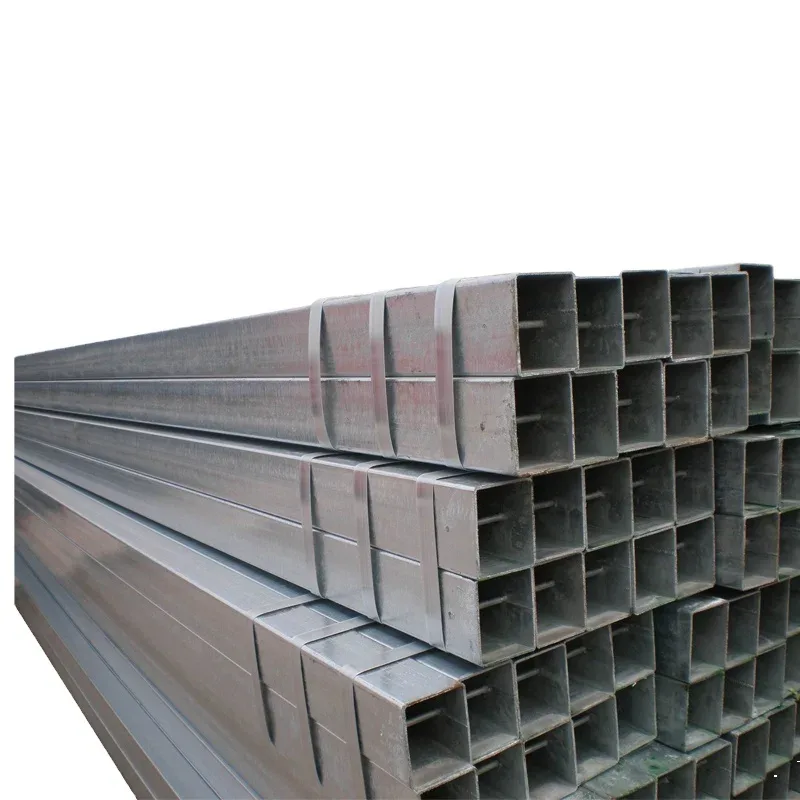

- Galvanized rectangular tubes bundled with steel strips and separated by rubber edge protectors to prevent zinc coating abrasion during ocean transit
- Hot-dip galvanized surface inspected and passivated before bundling to minimize white rust formation during extended container shipping
- Container loading plans optimized for rectangular section geometry, nesting smaller 15mm×20mm sections inside larger 200mm×300mm profiles to maximize 20GP and 40HC payload
- Random length and cut-to-order options available across 5.8m, 6m, 11.8m, and 12m to match project framing modules and reduce on-site waste
- Each bundle marked with heat number, steel grade Gr.B, dimensional specification, and gross/net weight for receiving-yard identification
- Shipping terms available as FOB, CIF, or DDP with professional container loading supervision and real-time shipment tracking to 50+ countries
Starting Your Procurement with Complete Specification Data
Submit your required section dimensions, wall thickness, steel grade, total tonnage, and destination port to receive a detailed quotation including unit pricing, production lead time, applicable certification scope, and mill test certificate format confirmation. For non-standard dimensions outside the 15mm×20mm to 700mm×800mm range, our engineering team reviews custom feasibility and provides a technical proposal within the same response cycle.
Request Your Quotation and Mill Test Certificate
Send your specifications via email to admin@sdxjysteel.com or contact our international team at +86 188 5315 7756 (WhatsApp/WeChat available) to begin your procurement process with full documentation support.
Frequently Asked Questions
Q: How does ASTM A500 Gr.B compare to European steel grades like S235 or S355?
A: ASTM A500 Gr.B falls within the general yield range of S235 in the EN system, though exact equivalence depends on product form, testing method, and the specific edition of each standard. We provide mill test certificates showing actual chemical composition and mechanical test results so your structural engineer can verify compliance with the project specification regardless of which standard system governs the design.
Q: Can you arrange third-party inspection before shipment?
A: Yes. We coordinate SGS or BV inspection at our facility before container loading. The inspection covers dimensional verification, visual surface quality of the galvanized coating, coating thickness measurement per EN ISO 1461, and review of mill test certificates against the ordered steel grade and specification.
Q: What is the minimum order quantity for custom non-standard rectangular sizes?
A: Our standard MOQ is 10 tons. For non-standard dimensions outside the regular 15mm×20mm to 700mm×800mm range, we review production feasibility based on the specific cross-section and wall thickness requested and provide a tailored quotation including any additional tooling or setup requirements.
Q: Do your galvanized rectangular tubes carry CE marking for EU import?
A: Yes. Our cold-formed rectangular hollow sections are CE certified under EN 10219, and hot-finished options are certified under EN 10210. Each shipment includes the CE Declaration of Performance along with mill test certificates, enabling customs clearance and compliance with the EU Construction Products Regulation.
Q: What galvanizing standard do you follow for coating thickness?
A: Our hot-dip galvanizing process follows EN ISO 1461 for exports to European and Middle East markets and ASTM A123 for shipments to North America. Coating thickness is tested on every production batch in our in-house laboratory, and results are documented in the mill test certificate provided with each shipment.
