Description
Factory-Direct EN 10210 S355J2H Sharp Corner Supply — Every S355J2H sharp corner square rectangular steel tube supplier order ships with verified EN 10210 mill test certificates and CE documentation, eliminating customs holds at EU ports.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | EN 10210 S355J2H Sharp Corner Square/Rectangular Steel Tube |
| Product Type | Sharp Corner Square and Rectangular Steel Tube (SHS/RHS) |
| Steel Grade | S355J2H |
| Standard | EN 10210, EN 10219 |
| Section Shape | Square / Rectangular (Sharp Corner) |
| Technique | Hot Finished / ERW (Cold Formed then Heat Treated per EN 10210) |
| Surface Treatment | Hot Finished, Smooth Surface, Non-oiled |
| Tolerance | ±1% |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Delivery Time | 15–21 days |
| Invoicing | By Theoretical Weight |
| Packing | Standard Seaworthy Steel Strip Packing; Custom Packing Available |
| MOQ | 10 Tons |
| Payment Terms | T/T 30% Deposit, L/C at Sight; Flexible Terms Negotiable |
| Inspection | Full Factory Self-inspection; Third-Party Inspection Acceptable |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Glass curtain wall framing, building facade systems, steel structure engineering |
| Construction Companies | High-rise building frames, prefabricated and modular structures |
| Infrastructure Developers | Bridge construction, heavy-duty engineering supports |
Where EN 10210 Certification Decides Customs Clearance for Your SHS RHS Order
Hot finished S355J2H documentation must match EN 10210 format exactly — GB-format mill test certificates will not clear EU customs.
I watched a São Paulo facade contractor’s curtain wall installation stall for three weeks because the mill test certs followed GB format instead of EN 10210. Santos customs held the entire S355J2H sharp corner square rectangular steel tube supplier shipment. The corner radius was perfect, the surface finish was smooth, but the paperwork format mismatch triggered a compliance review. For European-spec hot finished tubes, the docs have to be as precise as the geometry. Every EN 10210 S355J2H sharp corner square rectangular steel tube supplier order we ship carries verified EN 10210 compliance certificates before the container gets sealed [NEED_CITE: EN 10210 hot finished hollow section documentation requirements for EU customs].
How Sharp Corner Geometry Matches Curtain Wall Framing Requirements

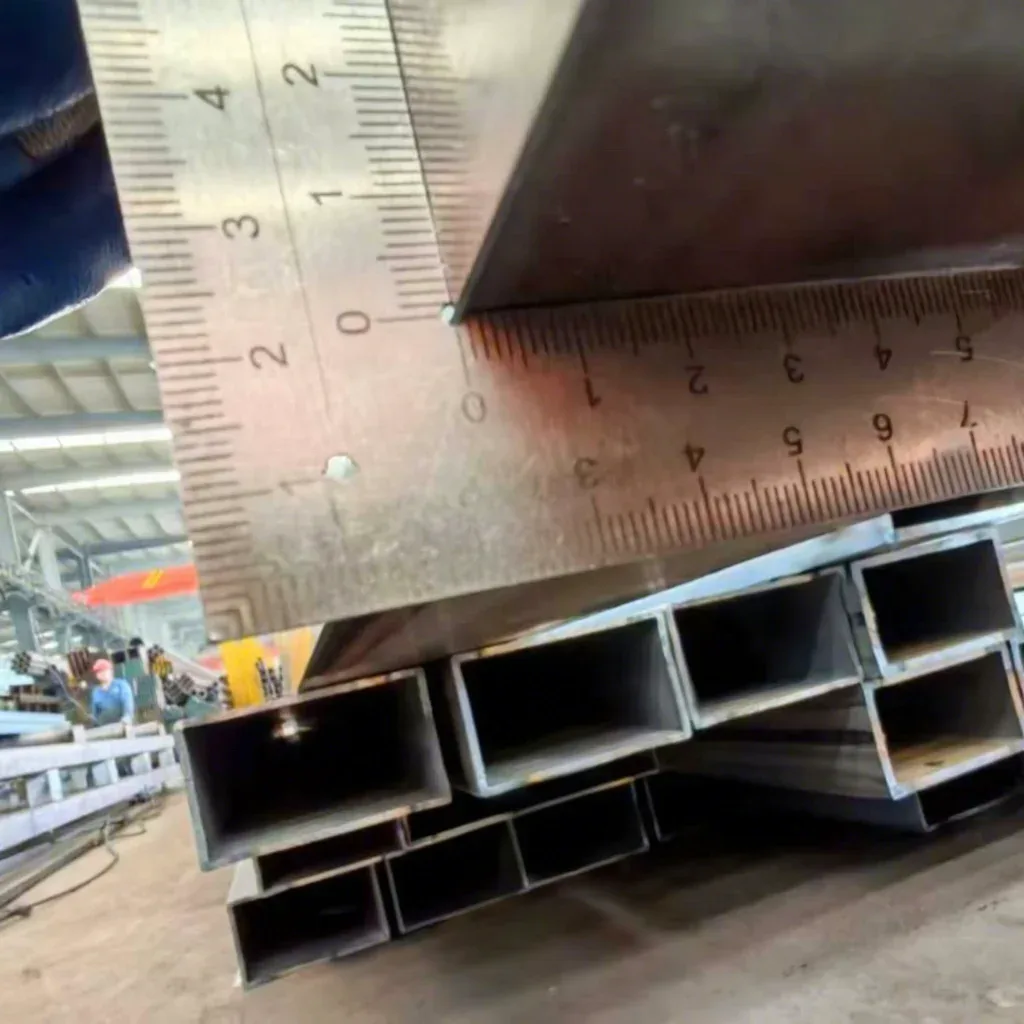

The proprietary sharp-corner forming process delivers true 90-degree internal angles with ±1% dimensional tolerance, eliminating the rounded corners typical of standard cold-formed RHS. For glass curtain wall framing and building facade systems, this means direct contact between tube faces without filler plates or shims. The hot finished smooth surface accepts powder coating or direct painting without secondary grinding. Every EN 10210 S355J2H sharp corner square rectangular steel tube supplier order undergoes in-house physical and chemical laboratory verification before shipment, ensuring corner radius consistency across the full batch.
Structural Compliance and Engineering Standards for S355J2H Hollow Sections
S355J2H per EN 10210 meets the requirements of EN 1993-1-1 (Eurocode 3) for structural steel applications, with guaranteed Charpy impact toughness at -20°C for seismic and low-temperature environments. The hot finished (normalized) heat treatment eliminates residual stresses from cold forming, ensuring uniform mechanical properties and weldability across the full cross-section. For projects requiring CE marking under the Construction Products Regulation, our EN 10210/EN 10219 certification with Factory Production Control (FPC) verification satisfies EU market access requirements [NEED_CITE: CE marking requirements for structural hollow sections under EU Construction Products Regulation]. Custom cut-to-length and pre-punched delivery reduces on-site secondary processing, supporting prefabricated and modular construction schedules.
S355J2H Steel Grade and Hot Finished Process Explained
S355J2H is a non-alloy structural steel grade with minimum yield strength of 355 MPa for thicknesses up to 16mm, designated by the “J2” suffix indicating Charpy impact testing at -20°C and “H” for hollow section application. The hot finished process per EN 10210 involves forming the tube at elevated temperatures followed by normalizing heat treatment, which refines the grain structure and eliminates residual stresses inherent in cold-formed sections. This results in superior weldability, more uniform mechanical properties throughout the cross-section, and better dimensional stability compared to cold-formed alternatives. The sharp corner geometry is achieved through proprietary forming technology that maintains true right-angle internal corners without the springback issues typical of cold forming. The smooth hot finished surface requires no additional machining for architectural exposure applications.
Hidden Costs of Incorrect Steel Grade Documentation on Facade Projects
Specifying S355J2H but receiving material certified only to EN 10219 (cold formed) creates structural compliance gaps — the residual stresses in cold-formed sections affect load-bearing calculations for high-rise building frames. Missing or incorrectly formatted mill test certificates trigger customs holds, delaying curtain wall installation and triggering liquidated damages clauses. Material traceability failures — heat numbers not matching certificates — force costly re-inspection or complete rejection at the project site. An EN 10210 S355J2H sharp corner square rectangular steel tube supplier order without proper CE documentation cannot be legally installed in EU-regulated construction projects, regardless of actual material quality [NEED_CITE: structural hollow section material traceability requirements under EN 10204].
Why Global EPC Contractors Source S355J2H Sharp Corner Tubes from Jinan
Our in-house physical and chemical laboratory performs incoming, in-process, and final inspection on every EN 10210 S355J2H sharp corner square rectangular steel tube supplier order, with full mill test certificates issued per heat number. The proprietary sharp-corner rectangular tube technology — covered by 41 invention patents — fills specification gaps that standard catalogs cannot address, delivering true 90-degree corners in non-standard sizes with wall thickness up to 40mm. Factory-direct pricing eliminates trading company markups, while CE EN 10210/10219 certification with Singapore FPC and SGS/BV third-party verification ensures customs clearance across 50+ export destinations. Professional loading plans optimize container utilization for mixed-size orders, and door-to-door logistics coordination handles the complexity of heavy cargo shipping to project sites.
Documentation & Compliance
- Mill test certificate documenting S355J2H chemical composition and mechanical properties per EN 10210, issued per heat number with Charpy impact test results at -20°C
- CE certificate under EN 10210/EN 10219 with Factory Production Control (FPC) verification for EU Construction Products Regulation compliance
- ISO 9001:2015 quality management system certificate covering design, production, and inspection of hot finished sharp corner hollow sections
- SGS or BV third-party inspection report available at buyer’s request, covering dimensional tolerance, surface finish, and mechanical property verification
- Full material traceability from raw material coil to finished tube, with heat number marking on every piece
- Customs documentation package including packing list, bill of lading, and certificate of origin formatted for EU port clearance
Packaging, Loading & Delivery
- Hot finished S355J2H sharp corner tubes bundled with steel strips and edge protectors to preserve smooth surface finish during ocean transit
- Non-oiled surface treatment requires moisture barrier wrapping for long-distance sea freight to prevent surface oxidation

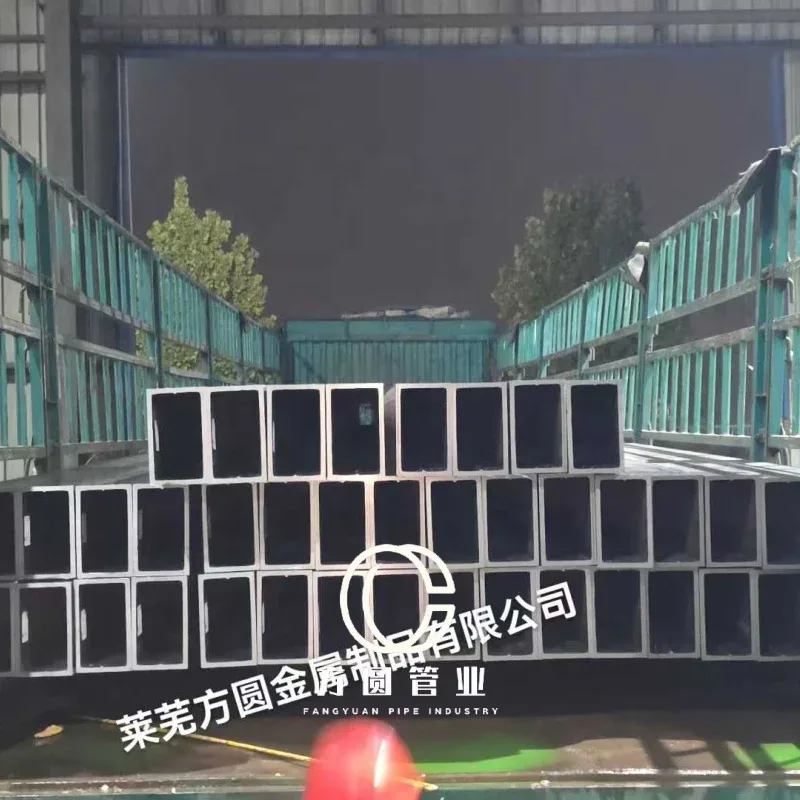

- Mixed-size container loading plans optimize space utilization for curtain wall framing orders combining multiple SHS/RHS dimensions
- Custom cut-to-length service delivers tubes ready for installation, reducing on-site cutting waste for prefabricated facade systems
- Heat number and steel grade marking on every tube ensures material traceability verification at project site
- FOB, CIF, and DDP shipping terms available with real-time tracking for 15–21 day production lead times
Submit Specifications for EN 10210 S355J2H Sharp Corner Quotation
Provide your sharp corner SHS/RHS dimensions, steel grade requirements, quantity, and destination port to receive detailed pricing with mill test certificate confirmation. Our engineering team reviews non-standard specifications within 12 hours and provides custom fabrication options including cutting, punching, and bending services.
Request Your EN 10210 S355J2H Sharp Corner Quote with Full Certification
Submit your specifications via email at admin@sdxjysteel.com or contact us at +86 188 5315 7756 (WhatsApp/WeChat) for pricing, mill test certificate samples, and delivery confirmation.
Frequently Asked Questions
Q: What is the difference between EN 10210 (hot finished) and EN 10219 (cold formed) sharp corner tubes for facade projects?
A: EN 10210 hot finished tubes undergo normalizing heat treatment after forming, eliminating residual stresses and ensuring uniform mechanical properties throughout the cross-section. EN 10219 cold formed tubes retain residual stresses from the forming process, which affects weldability and dimensional stability. For visible architectural applications like curtain wall framing, EN 10210 hot finished S355J2H sharp corner square rectangular steel tube supplier products provide superior surface quality and structural compliance.
Q: Can you provide mill test certificates and CE documentation for EU customs clearance?
A: Yes, every EN 10210 S355J2H sharp corner square rectangular steel tube supplier order ships with EN 10204 3.1/3.2 mill test certificates documenting chemical composition and mechanical properties per heat number. CE certification under EN 10210/EN 10219 with Factory Production Control verification is standard for EU market shipments, ensuring customs clearance without documentation delays.
Q: What is the minimum order quantity for custom non-standard sharp corner sizes?
A: The standard MOQ is 10 Tons for EN 10210 S355J2H sharp corner square rectangular steel tube supplier orders. Custom non-standard sizes outside our 2,800+ specification range are available through our proprietary sharp-corner forming technology, with typical production lead times of 15–21 days depending on complexity and quantity.
Q: How do you ensure corner radius and dimensional tolerance consistency across large batch orders?
A: Our in-house physical and chemical laboratory performs dimensional inspection on every EN 10210 S355J2H sharp corner square rectangular steel tube supplier order, verifying ±1% tolerance compliance and true 90-degree corner geometry. The proprietary forming process maintains consistent corner radius across production runs, with full inspection reports provided before shipment.
Q: Do you offer deep processing services so tubes arrive ready for installation?
A: Yes, we provide cutting, punching, bending, and welding services for EN 10210 S355J2H sharp corner square rectangular steel tube supplier orders. Custom fabrication delivers tubes ready for direct installation in curtain wall framing and facade systems, eliminating secondary processing at the project site and reducing installation time.
