Description
Factory-Direct Galvanized SHS Supply — Every Q235B and Q345B square tube rolls from our own mill with full zinc coating verification before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | Q235B, Q345B, SS400, A36 |
| Standard | GB Standard |
| Section Shape | Square |
| Size Range | Customized |
| Wall Thickness | Customized |
| Length | Customized |
| Technique | Galvanized |
| Surface Treatment | Zinc Coated / Galvanized |
| Application | Concrete reinforcement, Scaffolding, Structural construction support |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial plant steel frames, pipe rack supports, equipment platform structures |
| Construction Companies | Scaffolding uprights, concrete reinforcement cages, structural column frames |
| Machinery Manufacturers | Equipment base frames, conveyor support structures, corrosion-resistant machine guards |
Zinc Coating Consistency Decides Whether Your BS EN Standard Pre Galvanized Square Steel Tube Clears Customs
Uniform zinc thickness is the single most rejected item in third-party port inspections.
I have watched entire container loads of galvanized square tubes get held at destination because the zinc coating measured 45μm against an 80μm contract requirement. The buyer had no choice but to air-freight replacement material while the original cargo sat in a bonded warehouse accumulating demurrage. Inconsistent coating happens when the galvanizing line speed is not matched to the bath temperature, or when the steel surface retains mill scale before zinc immersion. For any BS EN Standard Pre Galvanized Square Steel Tube shipped to EU or Middle East markets, coating uniformity is not a quality preference — it is a customs compliance baseline [NEED_CITE: hot-dip and pre-galvanized zinc coating thickness standards for structural hollow sections].
Matching Galvanized SHS to Scaffold and Structural Frame Demands
Scaffolding uprights and structural columns require square tubes that hold dimensional accuracy under repeated clamping and load cycling. The BS EN Standard Pre Galvanized Square Steel Tube in Q235B and Q345B grades delivers flat face geometry that seats flush against scaffold couplers and base plates, reducing point-load stress concentrations. Our proprietary sharp-corner technology produces corner radii tight enough for clean welded connections while maintaining the zinc coating integrity at the corner zones — a failure point where conventional forming processes often cause coating micro-cracking.
Structural Compliance and Certification Pathways
Engineering specifications for scaffolding and structural frames typically reference EN 1993 design codes or local equivalents that demand traceable material certification. The Q345B grade conforms to Chinese GB standards and is widely accepted across Southeast Asian and Middle Eastern infrastructure projects as a direct substitute for S355-class material in non-critical load paths. For EU-bound shipments, our BS EN Standard Pre Galvanized Square Steel Tube carries CE marking under EN 10210 and EN 10219, which satisfies the Construction Products Regulation requirement for factory production control documentation [NEED_CITE: CE marking requirements for structural hollow sections under EN 10210 and EN 10219]. Wall thickness tolerance and sectional dimension verification are documented in every mill test certificate, ensuring that the as-delivered profile matches the structural engineer’s load calculation assumptions.
Steel Grade Selection and Galvanizing Process Fundamentals
Q235B and Q345B represent the two most widely specified carbon structural grades in the Chinese steel system. Q235B offers adequate strength for scaffolding, light structural frames, and non-load-bearing applications, while Q345B provides higher yield capacity for primary structural members, equipment supports, and bridge handrails. Both grades respond well to the galvanizing process because their silicon content falls within the range that produces a metallurgically bonded zinc-iron alloy layer rather than a brittle pure-zinc overlay. SS400 and A36 serve as international equivalents for projects where the engineering specification references JIS or ASTM standards. The galvanized coating forms a barrier that isolates the base steel from atmospheric moisture and chloride exposure, extending service life in outdoor and industrial environments without ongoing maintenance.
The Hidden Cost of Coating Thickness Shortfalls
Ordering galvanized square tubes based on price alone while ignoring coating verification protocols creates downstream risk that far exceeds the initial savings. A coating that measures below specification at random points will corrode prematurely at those locations, leading to rust staining, structural section loss, and eventual rejection during project handover inspection. Missing or incomplete mill test certificates trigger customs holds that delay site delivery by weeks. Material substitution — receiving Q235B when Q345B was specified — may pass visual inspection but fails load testing, forcing complete frame replacement at a cost many times the original tube price [NEED_CITE: consequences of non-conforming zinc coating on structural steel service life].
Procurement Confidence from Mill to Job Site
Our Jinan facility operates three dedicated production lines covering over 2,800 specifications in square and rectangular hollow sections, with wall thickness capability up to 40mm. Every BS EN Standard Pre Galvanized Square Steel Tube leaving the mill passes through our in-house physical and chemical laboratory, where zinc coating thickness is measured by magnetic induction at multiple points per piece before bundling. We hold 41 invention patents including proprietary sharp-corner rectangular tube technology that eliminates the rounded-corner problem common in cold-formed sections. CE certification under EN 10210/EN 10219, ISO 9001:2015 registration, and third-party verification by SGS and BV provide the documentation chain that EU, North American, and Middle Eastern customs authorities require. Custom non-standard sizes and cut-to-length service eliminate the need for secondary processing at the job site.
Documentation & Compliance
- Mill Test Certificate documenting Q235B and Q345B chemical composition, yield strength, and tensile properties per GB standards for each production heat
- CE Certificate of Conformity under EN 10210 and EN 10219 for structural hollow sections exported to European Union member states
- ISO 9001:2015 quality management system certificate covering the full galvanizing and cold-forming production process
- SGS or BV third-party inspection report verifying zinc coating thickness, dimensional tolerance, and surface quality prior to shipment
- Heat number traceability linking every bundled BS EN Standard Pre Galvanized Square Steel Tube to its original steelmaking batch and galvanizing run
- Customs documentation package including packing list, bill of lading, and certificate of origin formatted for destination country import requirements
Packaging, Loading & Delivery

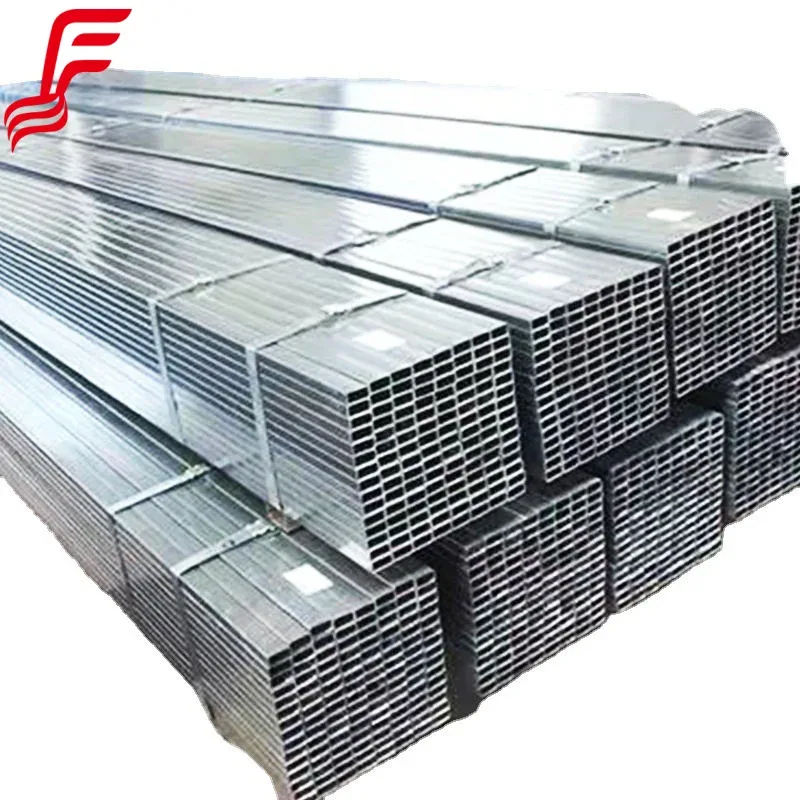

- Galvanized square tubes bundled with high-tensile steel strips and separated by rubber edge protectors to prevent zinc coating abrasion during ocean transit
- Zinc-coated surfaces wrapped in waterproof kraft paper at bundle ends to guard against condensation damage inside shipping containers
- Container loading plans optimized for customized length square tubes to maximize payload per 20ft and 40ft containers while maintaining weight distribution
- Cut-to-length service available for customized lengths, eliminating on-site cutting waste and reducing scaffolding assembly time
- Each bundle marked with heat number, steel grade (Q235B or Q345B), dimensional specification, and zinc coating class for site identification
- Shipment terms available as FOB, CIF, or DDP with professional logistics coordination to ports across EU, North America, Southeast Asia, and the Middle East
Initiating Your Galvanized SHS Procurement
Submit your specification requirements — including steel grade (Q235B, Q345B, SS400, or A36), sectional dimensions, wall thickness, length, quantity, and destination port — and receive a detailed quotation with unit pricing, production lead time, and applicable certification documentation within twelve hours. Non-standard size requests and sharp-corner rectangular tube requirements are reviewed by our technical team for feasibility and tooling confirmation before contract finalization.
Frequently Asked Questions
Q: What is the difference between pre-galvanized and hot-dip galvanized square tubes?
A: Pre-galvanized tubes are manufactured from steel coil that has been continuously galvanized before forming, resulting in a thinner but more uniform zinc coating. Hot-dip galvanized tubes are formed first and then immersed in a molten zinc bath, producing a thicker coating with a characteristic spangled surface. Both methods provide corrosion protection, and the choice depends on the project specification and environmental exposure conditions.
Q: Can you provide CE EN 10210/10219 certification for European customs clearance?
A: Yes. Our galvanized square steel tubes carry CE marking under EN 10210 for hot-finished hollow sections and EN 10219 for cold-formed hollow sections. The CE documentation includes Declaration of Performance, factory production control certificates, and third-party notified body assessment, which satisfies EU Construction Products Regulation requirements for customs clearance and project compliance.
Q: What is the minimum order quantity for customized non-standard sizes?
A: The standard minimum order quantity is 5 Tons. For customized non-standard sectional dimensions or special wall thickness requirements, the minimum order depends on the specific tooling and production run setup. Our technical team will confirm the feasible MOQ after reviewing your dimensional requirements.
Q: How do you ensure zinc coating uniformity and adhesion quality?
A: Every galvanized square tube passes through our in-house physical and chemical laboratory where zinc coating thickness is measured by magnetic induction at multiple points per piece. Coating adhesion is verified through bend testing and quench testing procedures. The galvanizing process parameters — bath temperature, immersion time, and withdrawal speed — are monitored in real time to maintain consistent coating quality across the full production run.
Q: What documentation package is included for international shipment?
A: Each shipment includes original Mill Test Certificates with chemical composition and mechanical properties, CE certificates for EU destinations, ISO 9001 quality certificates, packing list, bill of lading, certificate of origin, and third-party inspection reports from SGS or BV when requested. All documents are provided in English and formatted for destination country customs requirements.
Request Your BS EN Standard Pre Galvanized Square Steel Tube Quotation
Send your specification details — steel grade, dimensions, wall thickness, quantity, and destination — to receive pricing, certification confirmation, and production scheduling within twelve hours.
