Description
Full-Range Seamless Square Tube Procurement — Over 2,800 specifications from a single factory with in-house laboratory verification for every heat.
Technical Specifications
| Parameter | Value |
|---|---|

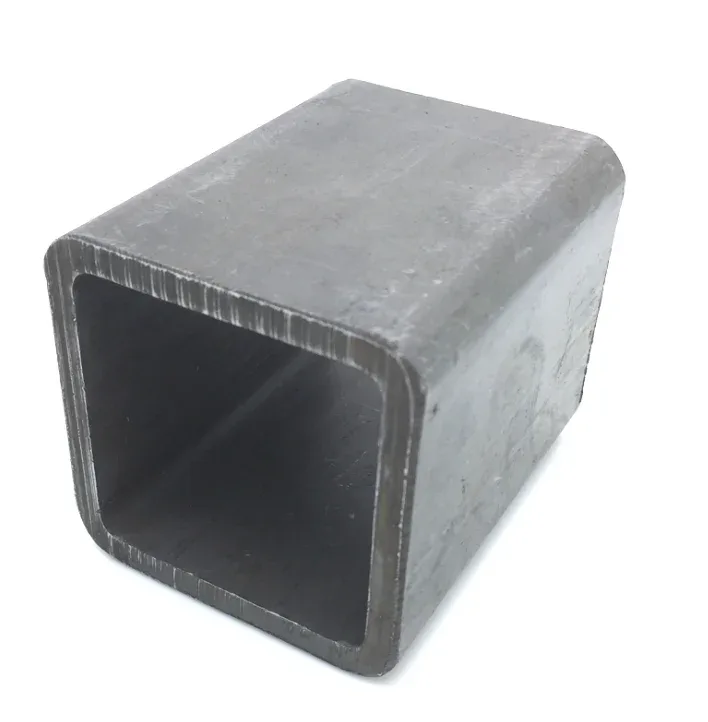

| Designation | Q235B Q355B Seamless Square Steel Tube |
| Product Type | Seamless Square and Rectangular Hollow Section |
| Steel Grade | Q235B, Q345B (Q355B), Q195, 20#, S235JR, S275JR, S355JR, ASTM A500 |
| Standard | GB, ASTM A213, DIN EN 10217-1, ASTM A500, EN 10219 / EN 10210 |
| Section Shape | Square / Rectangular |
| Size Range | 15×15 mm – 500×500 mm (Square); 20×30 mm – 800×1200 mm (Rectangular) |
| Wall Thickness | 0.5 mm – 12 mm |
| Length | 5.8 m – 12 m (or as required) |
| Technique | Seamless (Cold-Drawn / Expansion Sleeve) |
| Surface Treatment | Black, Galvanized (40–500 g/m²), Painted |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Steel structures / Construction frames / Machinery / Scaffolding / Industrial equipment fabrication |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Structural frames for industrial plants and infrastructure projects |
| Construction Companies | High-rise building columns, bridge support structures |
| Machinery Manufacturers | Precision hollow sections for conveyor systems and equipment bases |
| System Integrators | Automation framework and scaffolding assemblies |
What Negative Tolerance Costs on a Structural Frame Order
A 0.3 mm wall deviation on a 500×500 Q355B column can shift load-bearing capacity enough to fail structural inspection.
I have watched EPC contractors receive seamless square tubes at site only to find wall thickness falling below the specified minimum. The material looked correct on paper, but caliper readings told a different story. When negative tolerance exceeds acceptable limits, the theoretical weight invoiced no longer matches actual structural performance. This is not a pricing dispute — it is a safety compliance failure that halts construction and triggers re-procurement. [NEED_CITE: EN 10219 dimensional tolerance requirements for cold-formed hollow sections]
How Seamless Cold-Drawn Process Meets Precision Structural Demands
The cold-drawn seamless method produces Q235B Q355B seamless square steel tube with uniform wall distribution across all four sides, critical for load-bearing columns where stress concentrates at corners. The expansion sleeve technique allows non-standard dimensions beyond conventional die sizes, covering the full range from 15×15 mm small-format tubes to 500×500 mm heavy structural sections. For machinery manufacturers requiring tight dimensional control on equipment bases, this process delivers ±1% tolerance consistently across production runs.
Structural Compliance and Surface Protection for Harsh Environments
Engineering specifications for steel structures typically reference EN 1993 or AISC frameworks, requiring documented material properties and traceable heat numbers. [NEED_CITE: ASTM A500 structural tubing grade requirements] The Q355B grade provides higher yield strength than Q235B, making it suitable for bridge supports and high-rise columns where load calculations demand increased capacity. For outdoor or marine environments, hot-dip galvanizing at 40–500 g/m² coating weight extends service life significantly compared to black finish. Black tubes suit indoor machinery frames where painting occurs after fabrication, while galvanized finish eliminates on-site coating work for scaffolding and conveyor structures.
Steel Grade Selection Across International Standards
Q235B and Q355B follow the Chinese GB standard system, where the number indicates nominal yield strength class. S235JR and S355JR represent the European EN equivalent series, with the JR suffix denoting room-temperature impact testing requirements. ASTM A500 Grades B and C serve the North American market with different chemical composition limits. When sourcing Q235B Q355B seamless square steel tube for international projects, cross-referencing these standards ensures material substitution acceptance by local inspectors. The seamless cold-drawn process maintains consistent mechanical properties across all grades, unlike welded alternatives where the weld seam creates a potential weak point under cyclic loading.
The Hidden Cost of Unverified Material Claims
Purchasing based on price alone without mill test certificate verification creates downstream risk. Material that fails to meet declared steel grade specifications triggers customs holds, third-party inspection rejection, or structural engineer refusal to approve installation. [NEED_CITE: steel grade equivalence verification between EN and ASTM standards] Re-procurement delays compound with demurrage charges and project schedule penalties. The initial savings from unverified sourcing disappear within the first failed inspection.
Why Project Procurement Teams Specify Our Factory
Every Q235B Q355B seamless square steel tube passes through our in-house physical and chemical laboratory before release, with test results documented in the mill test certificate. Our three dedicated production lines cover over 2,800 specifications including non-standard dimensions that conventional mills cannot produce. The proprietary sharp-corner rectangular tube technology, holding 41 invention patents, fills specification gaps for architectural applications requiring tight corner radii. Factory-direct pricing eliminates trading company margins while maintaining full certification packages — CE under EN 10210/EN 10219 for European projects, ISO 9001:2015 quality management, and third-party inspection by SGS or BV upon request. Professional loading plans optimize container utilization for mixed-size orders, reducing freight cost per ton for overseas buyers across 50+ countries.
Documentation & Compliance
- Mill test certificate documenting Q235B and Q355B chemical composition and mechanical properties per GB standard with heat number traceability
- CE certificate confirming compliance with EN 10210 and EN 10219 for European market structural applications
- ISO 9001:2015 quality management system certificate covering seamless square tube production processes
- SGS or BV third-party inspection report available for pre-shipment verification of dimensions and surface treatment
- Material traceability documentation linking each bundle to specific heat numbers and production batch records
- Customs clearance package including packing list, bill of lading, and certificate of origin for destination port requirements
Packaging, Loading & Delivery
- Seamless square tubes bundled with steel strips and edge protectors to prevent surface damage during ocean transit, critical for galvanized finish preservation
- Black finish tubes receive anti-rust oil coating before bundling to prevent corrosion during extended shipping periods to Southeast Asia and Middle East destinations
- Container loading plans optimized for 5.8 m and 12 m lengths, maximizing payload within 20ft and 40ft standard shipping containers
- Heat number stenciled on each tube end for on-site identification and traceability verification against mill test certificates
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for project sites in 50+ countries
- Custom cutting to specific lengths available for construction projects requiring exact member sizes without on-site sawing
Start Your Procurement With Verified Specifications
Submit your Q235B Q355B seamless square steel tube requirements including section dimensions, wall thickness, steel grade, quantity, and destination port to receive detailed pricing with mill test certificate confirmation. Our technical team responds within 12 hours with quotation covering unit price, production timeline, certification documentation, and shipping options.
Request Quotation With Mill Test Certificate
Send specifications to admin@sdxjysteel.com or contact via WhatsApp at +86 188 5315 7756 for pricing and material documentation.
Frequently Asked Questions
Q: What is the difference between Q235B and Q355B seamless square tubes for structural applications?
A: Q235B provides standard yield strength suitable for general construction frames and scaffolding, while Q355B offers higher yield strength for heavy-load columns, bridge supports, and industrial structures requiring increased load-bearing capacity. Both grades are available in the same dimension range from 15×15 mm to 500×500 mm with 0.5–12 mm wall thickness.
Q: Can you provide mill test certificates for customs clearance in European countries?
A: Yes, every shipment includes mill test certificates documenting chemical composition and mechanical properties per the specified standard. For European projects, our CE certification under EN 10210 and EN 10219 ensures compliance with EU construction product regulations, and third-party inspection by SGS or BV is available upon request.
Q: What surface treatment options are available for different corrosion environments?
A: We offer black finish with anti-rust oil for indoor applications or post-fabrication painting, hot-dip galvanized coating at 40–500 g/m² for outdoor and marine environments, and painted finish for specific color requirements. Galvanized tubes are recommended for scaffolding, conveyor structures, and coastal construction projects.
Q: Do you produce non-standard dimensions beyond your catalog specifications?
A: Yes, our three production lines with proprietary technology can manufacture custom non-standard sizes within the overall range of 15×15 mm to 800×1200 mm and wall thickness up to 12 mm. Our sharp-corner rectangular tube patent enables tight corner radii for architectural applications. MOQ for custom dimensions is 1 ton.
Q: How do you ensure wall thickness tolerance meets ±1% specification?
A: Every production batch undergoes dimensional inspection in our in-house physical laboratory using calibrated measurement equipment. Wall thickness is verified at multiple points along each tube, and results are documented in the mill test certificate. Third-party inspection by SGS or BV can be arranged for pre-shipment verification.
