Description

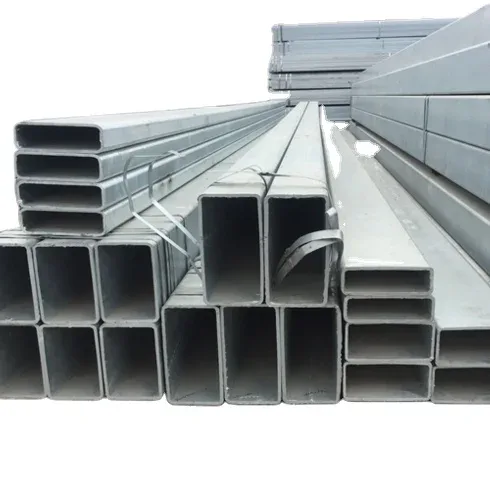

Factory-Direct Galvanized Tubes — Every Q195–Q345 batch inspected in-house before shipment, eliminating middleman markups on your Galvanized Square Rectangular Steel Tube orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square / Rectangular Steel Tube |
| Product Type | Square / Rectangular Steel Tube (Galvanized) |
| Steel Grade | Q195, Q215, Q235, Q345, GR.A, GR.B, S235, S355 |
| Standard | ASTM A213, DIN EN 10217-1 |
| Section Shape | Square / Rectangular |
| Size Range | Customized (e.g., 50×50mm) |
| Wall Thickness | 0.8mm–20mm |
| Length | 500mm / 1000mm / 4000mm / 5800mm / 11800mm or customized |
| Technique | Welded (ERW) / Seamless |
| Surface Treatment | Pre-galvanized / Hot-dip galvanized / Bare / Oiled / Black original |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Packing | Standard Seaworthy Packing |
| Application | Structure pipe, Steel fence, Steel post, Steel construction, Warehouse construction, Building construction |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & Industrial Construction | Warehouse steel frames, portal rafters, column bracing systems |
| Infrastructure & Fencing | Highway guardrail posts, perimeter security fencing, solar panel mounting structures |
| Machinery Fabrication | Conveyor frame assemblies, equipment base supports, material handling structures |
| Building Construction | Scaffolding uprights, structural purlins, mezzanine floor beams |
Zinc Coating Thickness Variance: The Real Cost Behind Cheap Galvanized Square Rectangular Steel Tube Quotes
A 30μm shortfall on hot-dip coating means salt-spray failure in half the expected service life.
I once shipped a container of 50×50 galvanized tubes to Dubai — the contract specified 65μm minimum zinc, our lab measured 35μm on arrival. The entire lot was rejected at port re-inspection, and re-galvanizing cost thousands in rework. That kind of inconsistency doesn’t just waste money; it destroys project timelines and client trust. When sourcing a Galvanized Square Rectangular Steel Tube supplier, coating weight certification and independent lab verification are non-negotiable. [NEED_CITE: hot-dip galvanizing coating thickness standards per ASTM A123 / ISO 1461]
Structural Frame Performance in Corrosive Environments
Galvanized Square Rectangular Steel Tube sections in Q235 and Q345 grades provide the yield strength needed for portal frame construction while the zinc layer shields against atmospheric corrosion in industrial and coastal zones. Hot-dip galvanizing delivers 60–80μm coating for long-term exposure, while pre-galvanized (gi) tubes suit indoor or sheltered applications where cost matters more than decades of outdoor durability. Our proprietary sharp-corner rectangular tube technology ensures flat bearing surfaces at welded connections — critical when frame joints must transfer load without gap fillers.
Engineering Compliance Across Export Markets
Structural hollow sections for EU projects must conform to EN 10219 (cold-formed) or EN 10210 (hot-finished) with CE marking; North American buyers typically require ASTM A500 Grade B or C compliance. Steel grade equivalence between Q-series and S-series designations needs proper documentation — a Q345 tube cannot simply be labeled S355 without verified mechanical test data. [NEED_CITE: steel grade equivalence mapping between GB/T, EN, and ASTM standards] Cut-to-length service at the mill eliminates on-site welding for non-critical connections, reducing field labor costs and maintaining coating integrity at cut edges when properly treated.
Steel Grade Selection and Galvanizing Process Fundamentals
The Q-series grades (Q195–Q345) follow Chinese GB/T standards where the number indicates minimum yield strength in MPa; S235 and S355 follow European EN designations with similar yield hierarchy. For structural frames carrying moderate loads, Q235 / S235 offers adequate strength at lower cost; heavy-load columns and crane beams benefit from Q345 / S355’s higher yield point. ERW welded tubes dominate the square-rectangular market for cost efficiency in sizes up to 400mm, while seamless options serve higher-pressure or critical-load applications. Surface treatment choice directly dictates service life: hot-dip galvanizing bonds metallurgically with the steel substrate for 25+ year protection in rural atmospheres, whereas pre-galvanized (sheet-coil coated then formed) tubes offer thinner zinc suited for indoor use. [NEED_CITE: corrosion protection life expectancy for hot-dip vs pre-galvanized coatings in different atmospheric categories] Wall thickness tolerance under EN 10219 allows controlled negative deviation, but excessive thin-wall production compromises both load capacity and zinc coverage at corners.
Hidden Costs of Unverified Galvanized Square Rectangular Steel Tube Procurement
Material substitution, missing certificates, and coating shortfalls create expenses that dwarf initial price savings.
Pricing that seems attractive often reflects unverified steel grade, sub-spec zinc coating, or undocumented tolerance abuse. The consequences surface at the worst moments: customs rejection due to missing CE or MTC documents, structural inspection failure when yield strength falls below design assumptions, or premature corrosion when actual zinc thickness cannot meet the environment’s demand. [NEED_CITE: project delay costs from material non-compliance in international construction] Every Galvanized Square Rectangular Steel Tube supplier should provide heat-number traceability from slab to finished tube — anything less transfers risk entirely to the buyer.
Procurement Confidence Built on Verifiable Factory Capability
As a factory-direct Galvanized Square Rectangular Steel Tube supplier since 2013, we control every production step across three dedicated lines covering 2,800+ specifications. Our in-house physical and chemical laboratory tests every heat for composition and mechanical properties before release — no batch ships without verified data. The 41 invention patents include our sharp-corner rectangular tube process that eliminates the rounded-corner problem common in cold-formed sections, delivering true 90° angles for cleaner structural connections. CE certification under EN 10210/10219, ISO 9001:2015 registration, and SGS/BV third-party verification ensure documentation satisfies customs and project inspectors across 50+ export markets. Custom non-standard sizes and cut-to-length service reduce on-site waste, while professional loading plans maximize container utilization for 5.8m and 11.8m lengths.
Documentation & Compliance
- Mill Test Certificate documenting Q235B / Q345B chemical composition and yield strength per GB/T 6728 or EN 10219
- CE certificate confirming EN 10210 / EN 10219 compliance for EU market structural hollow sections
- ISO 9001:2015 quality management certificate covering galvanizing and tube forming processes

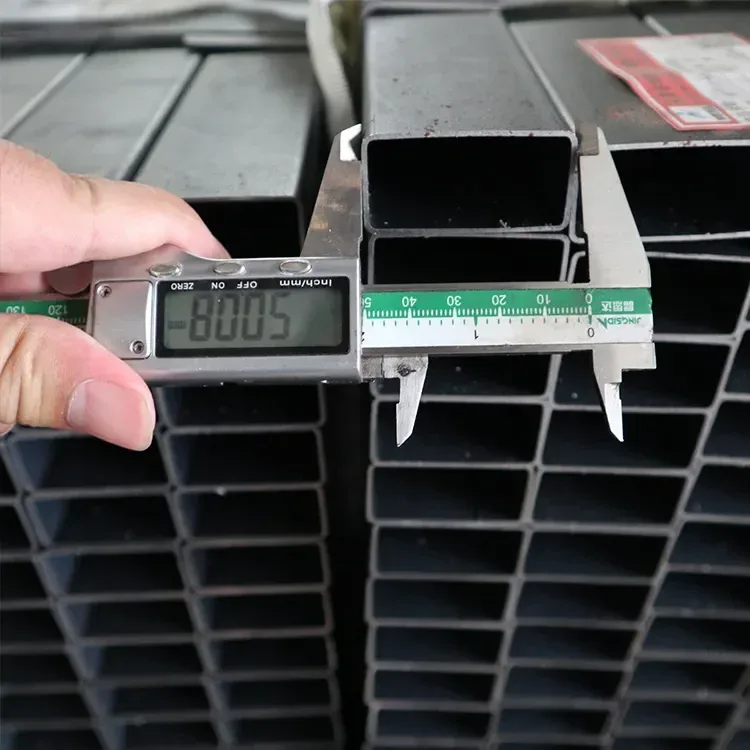

- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerance
- Material traceability by heat number from steel coil to finished galvanized square rectangular tube
- Customs documents including packing list, Bill of Lading, and Certificate of Origin for import clearance
Packaging, Loading & Delivery

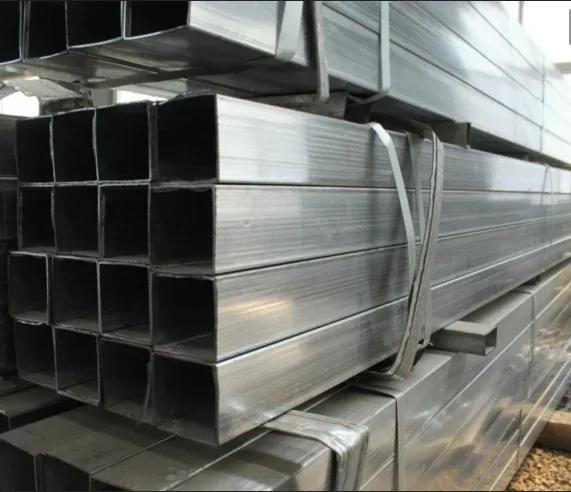

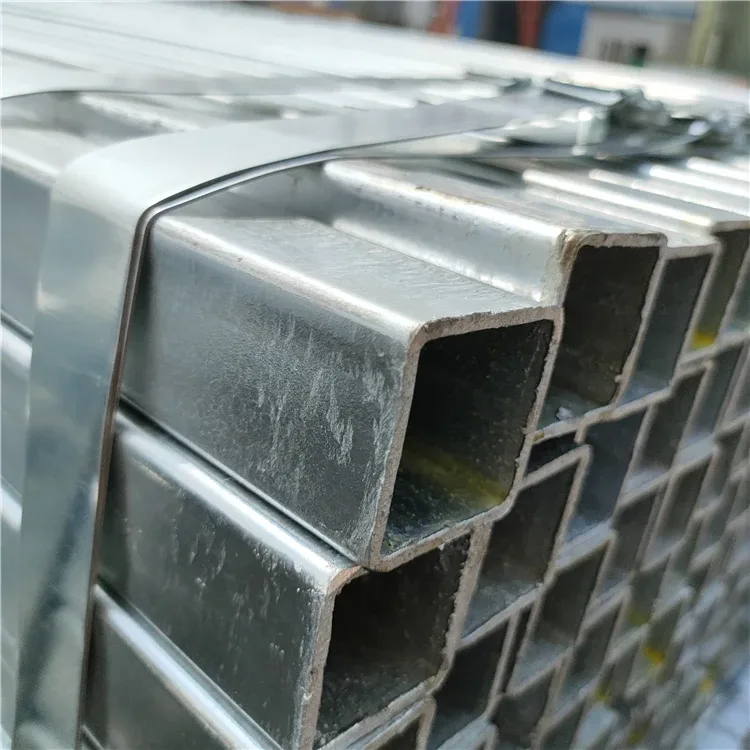

- Galvanized Square Rectangular Steel Tube bundles secured with steel strips and edge protectors to prevent zinc coating damage during handling
- Hot-dip galvanized surfaces wrapped with waterproof paper and plastic film to avoid white rust formation during ocean transit
- Container loading plans optimized for 5800mm / 11800mm lengths to maximize 20ft and 40ft GP utilization
- Cut-to-length service available for 500mm–4000mm pieces, bundled separately with size labels for site identification
- Heat number and steel grade stenciled on each bundle for traceability verification at destination
- FOB / CIF / DDP shipping terms with professional port coordination and real-time container tracking
Start Your Galvanized Square Rectangular Steel Tube Inquiry
Submit your specification sheet — section dimensions, wall thickness, steel grade, surface treatment preference, quantity, and destination port — and receive a detailed quotation with production lead time and applicable certification documents within 12 hours. For non-standard sizes or custom lengths outside the catalog range, our engineering team provides feasibility confirmation and tooling requirements.
Request Quotation with Mill Test Certificate
Send specifications via email to admin@sdxjysteel.com or contact us at +86 188 5315 7756 (WhatsApp/WeChat available) for immediate pricing and technical documentation.
Frequently Asked Questions
Q: What is the difference between pre-galvanized and hot-dip galvanized steel tubes?
A: Pre-galvanized tubes are formed from already-coated steel coil, offering a thinner zinc layer (typically 20–30μm) suitable for indoor applications. Hot-dip galvanized tubes are immersed in molten zinc after forming, achieving 60–80μm coating for outdoor and corrosive environment protection with metallurgical bonding to the steel substrate.
Q: Can you provide custom non-standard sizes with low MOQ?
A: Yes, our 2,800+ specification range includes custom non-standard dimensions beyond catalog sizes. The MOQ is 10 Tons per order, which can be mixed across different sizes and steel grades to meet project requirements.
Q: How do you ensure material traceability and compliance with EN/ASTM standards?
A: Every production batch carries a unique heat number traceable from raw material to finished tube. Our in-house laboratory conducts chemical and mechanical testing per the applicable standard, and Mill Test Certificates document actual test results rather than specification minimums.
Q: What certifications are included for EU/US customs clearance?
A: EU shipments include CE marking per EN 10210/10219 with Declaration of Performance. US-bound orders reference ASTM A500 / A213 compliance. All shipments include ISO 9001:2015 certificate, Mill Test Certificate, packing list, Bill of Lading, and Certificate of Origin. Third-party SGS/BV inspection is available upon request.
Q: What is the typical production lead time and shipping options?
A: Standard specifications ship within typical production lead times after deposit confirmation. We offer FOB, CIF, and DDP shipping terms with professional container loading optimization and real-time tracking for destinations across 50+ countries.
