Description

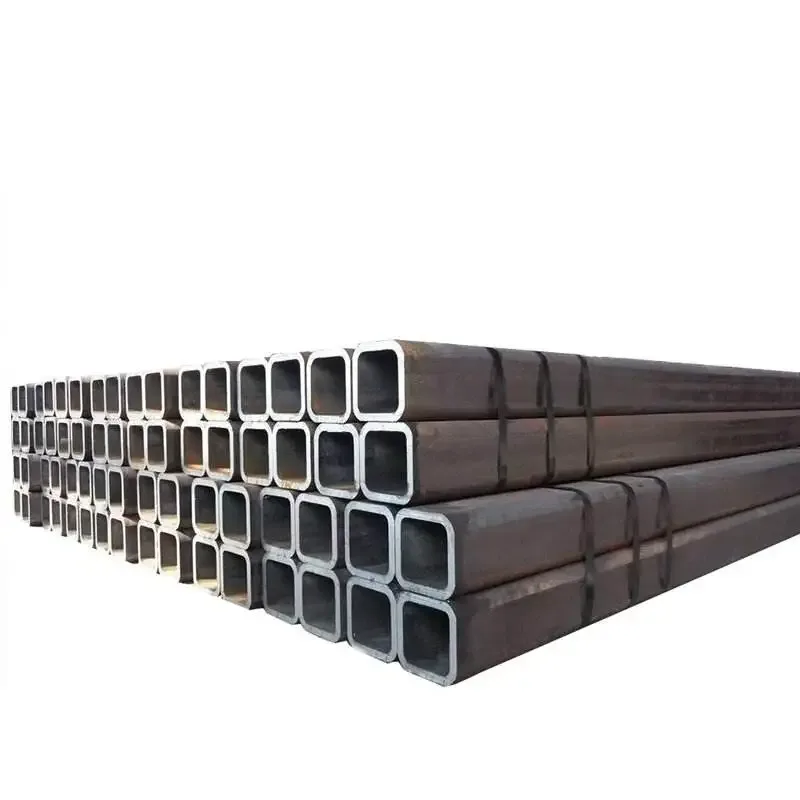

Factory-Direct ASTM A572 Gr 50 SHS/RHS — 2,800+ seamless hollow section sizes with full mill traceability
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q355 / ASTM A572 Gr 50 Seamless Square & Rectangular Hollow Section |
| Product Type | Seamless Square and Rectangular Steel Tube / Hollow Section (SHS / RHS) |
| Steel Grade | Q195, Q235, Q345 (Q355), S235JR, S275JR, S355JR, ASTM A572 Gr 50, ASTM A500, SS400, A283 GR.B/D, 040A10, 080A15 |
| Standard | ASTM A572, ASTM A500, ASTM A213, ASTM A283, ASTM A737, DIN EN 10217-1, GB, JIS G3466 (SS400), EN 10210 / EN 10219 |
| Section Shape | Square / Rectangular |
| Size Range | Square: 15×15 mm – 500×500 mm; Rectangular: 20×30 mm – 800×1200 mm |
| Wall Thickness | 0.5 mm – 12 mm (extended up to 40 mm upon request) |
| Length | 5.8 m – 12 m (or as required) |
| Technique | Seamless / Cold Drawn |
| Surface Treatment | Black, Bright, Galvanized (40–500 g/m²), Painted, Slightly Oiled, Hot Rolled |
| Tolerance | ±1% / ±5% |
| Ends | Plain / Beveled (per request) |
| Processing Service | Cutting, Welding, Punching |
| Invoicing | By Actual Weight |
| Application | Steel structures / Construction frames / Machinery / Fluid pipe / Drill pipe / Hydraulic pipe / Scaffolding / Industrial equipment |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Load-bearing columns and trusses for industrial warehouses, power plant support frames, oil & gas platform secondary structures |
| Construction Companies | High-rise building core frames, bridge pier bracing, heavy-duty scaffolding systems |
| Machinery Manufacturers | Hydraulic cylinder barrels, crane boom sections, conveyor support structures |
| Infrastructure Developers | Sound barrier posts, highway gantry frames, solar mounting structures |
| System Integrators | Automated storage rack uprights, material handling gantries, equipment enclosure frames |
Why ASTM A572 Gr 50 Seamless Hollow Sections Fail at Customs — and How to Prevent It
Missing or mismatched mill test certificates remain the single largest cause of shipment holds for structural steel tubes entering the EU and North American markets.
When procurement teams source ASTM A572 Gr 50 seamless square and rectangular hollow sections from multiple suppliers, the chemical composition reports often arrive in different formats — or worse, without heat number traceability linking each tube back to its original slab. Customs authorities in Rotterdam, Los Angeles, and Singapore have tightened document verification under EN 10210 and ASTM A500 frameworks, meaning a missing CE declaration or an untraceable MTC can stall a container for weeks. [NEED_CITE: EN 10219 cold-formed hollow section documentation requirements for EU customs] Beyond paperwork, inconsistent wall thickness tolerance across mixed-source orders creates on-site fitting problems that delay erection schedules and force costly rework.
Matching Seamless SHS/RHS to Structural Load Paths and Corrosive Environments
The seamless cold-drawn process behind this ASTM A572 Gr 50 seamless square rectangular hollow section supplier range delivers uniform grain flow around the entire perimeter — critical when tubes serve as compression members in braced frames or as hydraulic cylinders subject to internal pressure. For projects in coastal or industrial atmospheres, the hot-dip galvanized option (40–500 g/m² zinc coating) provides long-term corrosion protection without field painting, while the black or oiled finish suits indoor structural applications where appearance is secondary. Our in-house physical and chemical laboratory tests every heat before release, ensuring that the mechanical properties documented on the mill test certificate match what arrives on your job site.
Engineering Compliance Across ASTM, EN, and JIS Frameworks
Structural engineers specifying ASTM A572 Gr 50 seamless square rectangular hollow section supplier products must verify compliance with the governing design code — whether that is AISC 360 for North American projects, EN 1993 (Eurocode 3) for European builds, or JIS G3466 for Japanese-spec industrial plants. The dimensional tolerance of ±1% on our seamless sections supports tight connection details in moment frames, while the availability of beveled ends facilitates full-penetration groove welding per AWS D1.1 or EN ISO 15614 standards. [NEED_CITE: steel grade equivalence between ASTM A572 Gr 50 and EN S355JR] For projects requiring third-party verification, we coordinate SGS or BV inspection at our facility before shipment, delivering reports that satisfy both the general contractor and the project owner’s QA team.
Understanding the Seamless Cold-Drawn Process and Grade Selection
Seamless hollow sections are produced by piercing a solid billet and then cold drawing it through a die and mandrel — a method that eliminates the weld seam present in ERW tubes and produces tighter dimensional tolerance across the full cross-section. This makes ASTM A572 Gr 50 seamless square rectangular hollow section supplier products particularly suitable for high-pressure hydraulic applications and structural members where stress concentration at a weld line is unacceptable. The ASTM A572 Gr 50 grade itself is a high-strength low-alloy steel with niobium-vanadium microalloying, offering higher yield strength than standard carbon grades while maintaining good weldability. [NEED_CITE: ASTM A572 Gr 50 chemical composition and mechanical property requirements] When comparing the Q355 (Chinese GB standard), S355JR (European EN standard), and ASTM A572 Gr 50 (American standard) designations, the underlying chemistry and mechanical targets are closely aligned — but the certification path differs, and using the wrong standard designation on a mill test certificate can trigger rejection at site inspection.
The Hidden Cost of Accepting Negative Tolerance Beyond Standard Limits
Purchasing ASTM A572 Gr 50 seamless square rectangular hollow section supplier tubes at the lowest unit price often means accepting wall thickness at the lower end of the tolerance band — or worse, below the standard’s permitted negative deviation. When a 10 mm nominal wall tube arrives at 8.5 mm actual, the section modulus drops, the load-bearing capacity decreases, and the structural engineer’s original calculation no longer holds. [NEED_CITE: EN 10210 dimensional tolerance requirements for hot-finished structural hollow sections] Beyond the structural risk, mismatched certificates — where the MTC reports one heat number but the physical tubes carry a different stamp — create traceability gaps that can void project insurance and delay handover certification. The cost of re-inspection, re-certification, or outright replacement far exceeds the initial price difference between a verified supplier and an unverified one.
Procurement Confidence Built on Factory Control and Certification Depth
As a factory-direct ASTM A572 Gr 50 seamless square rectangular hollow section supplier, we eliminate the markup and documentation opacity that come with trading intermediaries. Our three dedicated production lines cover over 2,800 specifications in square, rectangular, and round profiles, with wall thickness capability extending to 40 mm for heavy structural demands. Every order is tested in our on-site physical and chemical laboratory, and the resulting mill test certificate carries full heat number traceability from raw slab to finished tube. We hold CE certification under EN 10210 and EN 10219, ISO 9001:2015 registration, and Singapore FPC approval — documents that have cleared shipments into over 50 countries across the EU, North America, the Middle East, and Southeast Asia. Our proprietary sharp-corner rectangular tube technology, backed by 41 invention patents, delivers tight radius corners that improve connection fit-up and aesthetic finish for exposed architectural structures. Custom non-standard sizes, cut-to-length processing, and professional container loading plans are handled in-house, reducing your coordination overhead and transit risk.
Documentation & Compliance
- Mill test certificate documenting ASTM A572 Gr 50 chemical composition (C, Mn, Si, P, S, Nb, V) and mechanical properties per ASTM A572/A572M, with heat number traceability
- CE certificate confirming compliance with EN 10210 (hot-finished) or EN 10219 (cold-formed) for structural hollow sections destined for EU member states
- ISO 9001:2015 quality management system certificate covering the full production and inspection process at our Jinan facility
- SGS or BV third-party inspection report verifying dimensional accuracy, surface treatment thickness, and material grade upon client request
- Material traceability sheet linking each bundle to its original heat number, production date, and test results
- Full customs documentation package including commercial invoice, packing list, bill of lading, and certificate of origin formatted for the destination country’s import requirements
Packaging, Loading & Delivery
- ASTM A572 Gr 50 seamless square rectangular hollow section supplier tubes are bundled with high-tensile steel strips and fitted with edge protectors to prevent zinc coating damage on galvanized orders during ocean transit
- Black and oiled finishes receive an additional anti-rust wrapping layer suitable for extended storage at coastal project sites before installation
- Container loading plans are optimized by our logistics team to maximize payload within 20ft and 40ft open-top or standard containers, based on the 5.8 m to 12 m length range of your order
- Cut-to-length and bevel-end processing is completed at our facility before shipment, reducing on-site cutting labor and material waste for EPC contractors
- Each bundle carries a weather-resistant tag displaying the steel grade (ASTM A572 Gr 50), heat number, size, and length for rapid site identification and traceability verification
- Shipping terms include FOB, CIF, and DDP options with door-to-door logistics coordination to ports and project sites across the EU, North America, Southeast Asia, and the Middle East
Requesting a Quote with Full Technical Documentation
Submit your required section dimensions, wall thickness, steel grade (ASTM A572 Gr 50 or equivalent), total tonnage, and destination port — we respond within 12 hours with unit pricing, production lead time, and the applicable mill test certificate format. For non-standard sizes outside the 15×15 mm to 800×1200 mm range or wall thickness beyond 12 mm, our engineering team provides a custom feasibility assessment and lead time estimate. Confirm your certification requirements (CE, SGS, BV) and end-treatment preferences at the inquiry stage to ensure the documentation package aligns with your project’s compliance and installation schedule.
Frequently Asked Questions
Q: What is the difference between ASTM A572 Gr 50 and Q355 in terms of chemical composition and application?
A: Both ASTM A572 Gr 50 and Q355 are high-strength low-alloy structural steels with similar yield strength targets. ASTM A572 Gr 50 follows the American standard system and is widely specified for North American and international EPC projects, while Q355 follows the Chinese GB standard and is common in domestic and Belt & Road projects. The chemical composition ranges overlap closely, but the certification and mill test certificate formats differ — we supply both grades with full traceability and can provide equivalence documentation upon request.
Q: Can you provide third-party inspection for ASTM A572 Gr 50 seamless hollow sections before shipment?
A: Yes. We coordinate SGS, BV, or other internationally recognized inspection agencies at our Jinan facility to verify dimensional accuracy, wall thickness, surface treatment quality, and material grade. The inspection report is issued before container loading and included in your customs documentation package.
Q: What is the maximum wall thickness available for seamless square and rectangular hollow sections?
A: Our standard production range covers wall thickness from 0.5 mm to 12 mm. For heavy structural applications requiring thicker walls, we can produce up to 40 mm through extended processing — please submit your specific size and thickness requirements for a custom feasibility check.
Q: How do you ensure the galvanized coating thickness meets project specifications?
A: For galvanized ASTM A572 Gr 50 seamless square rectangular hollow section supplier orders, we control the zinc coating within the 40–500 g/m² range per your specification. Each batch is tested with a coating thickness gauge before dispatch, and the results are documented in the inspection report. Hot-dip galvanizing provides long-term corrosion resistance suitable for outdoor and coastal environments.
Q: What certifications do your seamless hollow sections carry for EU market entry?
A: Our structural hollow sections are CE certified under EN 10210 (hot-finished structural hollow sections) and EN 10219 (cold-formed welded and seamless structural hollow sections). We also hold ISO 9001:2015, Singapore FPC, and can arrange SGS or BV third-party verification to satisfy project-specific QA requirements.
Contact Xin Jiyuan for ASTM A572 Gr 50 Seamless Hollow Section Pricing
Send your specifications, quantity, and destination to receive a detailed quotation with mill test certificate preview and production schedule.
Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@sdxjysteel.com | Website: www.sdxjysteel.com
