Description
Factory-direct pricing with no middlemen — every A500 galvanized square steel tube rolls off our own ERW lines and goes straight into the hot-dip bath, cutting the markup typical of trading intermediaries.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Square / Rectangular Steel Tube (Galvanized Hollow Section) |
| Steel Grade | A53 Grade B, A500 Grade A/B/C, STK400, SS400, ST42.2, S355JR, Q195–Q690 |
| Standard | ASTM A53, A500, A36, A795; BS1387; EN10255; ISO65; ANSI C80; DIN2440; JIS G3444; GB/T3091, GB/T13793 |
| Section Shape | Square, Rectangular |
| Size Range | 21.3 mm – 660 mm (1/2″ – 26″) |
| Wall Thickness | 6 mm (customizable) |
| Length | 5.8 m / 6 m / 11 m / 12 m or customized |
| Technique | Hot-dip Galvanized / Pre-galvanized (ERW base pipe) |
| Surface Treatment | Hot-dip Galvanizing |

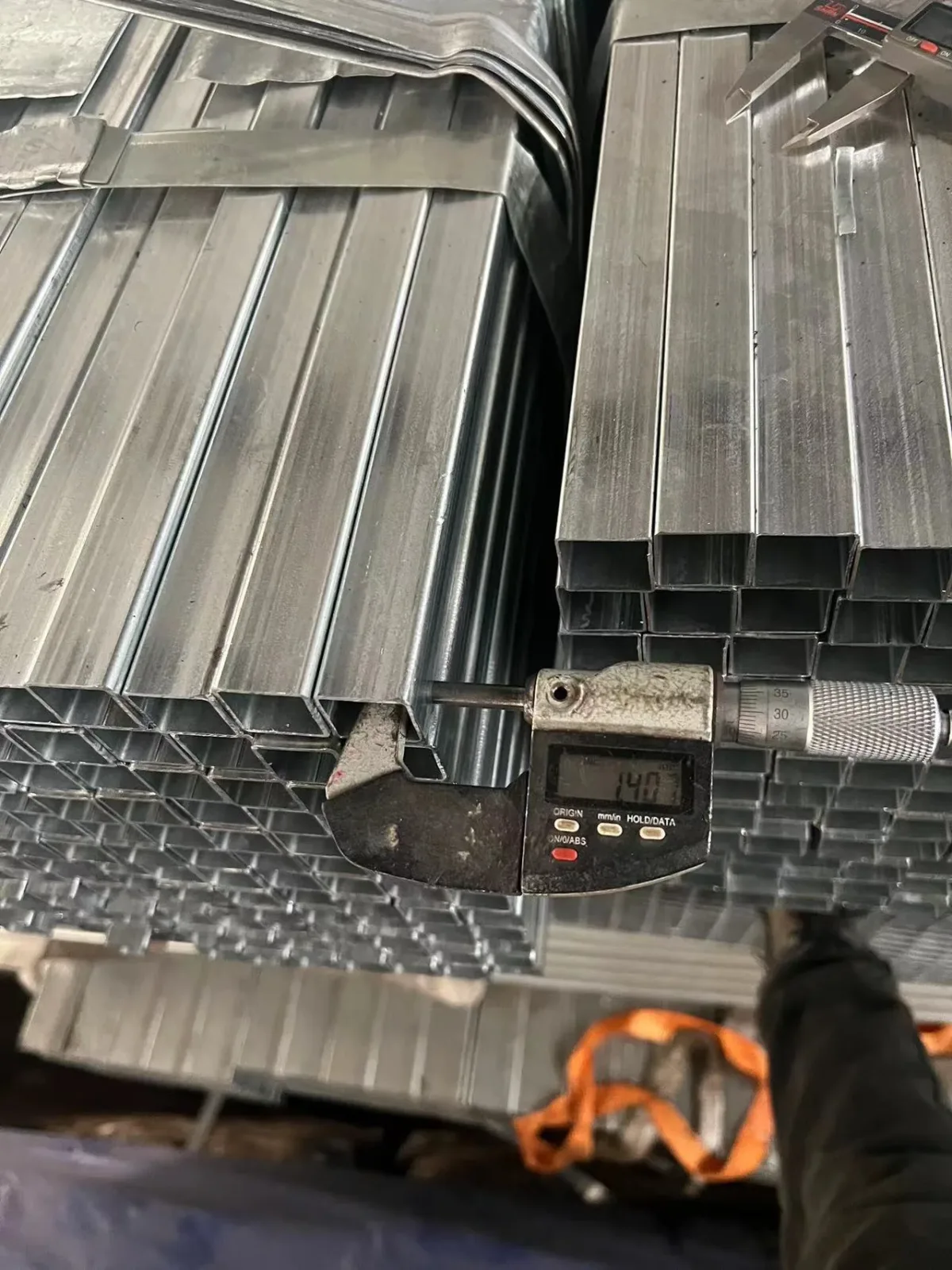

| Tolerance | ±1% |
| Ends | Plain ends, Beveled ends, Threaded ends, Grooved ends |
| Processing Service | Punching, Cutting, Bending |
| Application | Steel structures, Construction frames, Gate & post systems, Fencing, Machinery parts, Fluid transport, Scaffolding, Infrastructure |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Gate and post systems, structural frames for industrial plants, conveyor support structures |
| Construction Companies | Perimeter fencing, scaffolding uprights, building column frames requiring long-term corrosion protection |
| Machinery Manufacturers | Precision structural brackets, equipment base frames with custom-punched mounting holes |
| Infrastructure Developers | Highway guardrail posts, bridge handrail supports, utility pole bases |
Where Zinc Coating Thickness Decides Whether Your Shipment Clears Site Inspection
A 35-micron shortfall on a hot-dip galvanized square steel tube means on-site respraying, three-week delays, and a budget that no longer balances.
I learned this the hard way on a Philippines highway guardrail project: a container of galvanized sections arrived in Manila with zinc measured at just 45 microns against an 80-micron spec. The cargo could not be returned, so we resprayed every piece on-site while the paving crew waited. Now I personally sign off on zinc-thickness lab reports before any batch of galvanized tubes leaves the mill. Inconsistent coating thickness, missing mill certificates, and fragmented sourcing from multiple vendors remain the most frequent causes of customs holds and acceptance failures on international steel procurement. [NEED_CITE: hot-dip galvanizing coating thickness requirements per ASTM A123]
Matching A500 and S355JR Grades to Structural Load Paths and Corrosion Zones
Hot-dip galvanized square steel tubes in A500 Grade B and S355JR cover the majority of load-bearing frames in industrial construction, where yield strength must resist both static column loads and dynamic wind forces. The hot-dip zinc layer — typically 60 to 80 microns on structural sections — provides sacrificial corrosion protection that outlasts paint systems in coastal, industrial, and high-humidity environments. For EPC contractors building gate and post systems or conveyor structures, the combination of high-strength steel and full zinc coverage eliminates the need for secondary surface treatment after fabrication. Our ERW base pipes are galvanized in-house, so coating adhesion and thickness remain consistent across all 2,800+ specifications we produce.
Structural Codes, Galvanizing Standards, and Customs Documentation
Load-bearing galvanized square steel tube frames must comply with EN 1993 (Eurocode 3) or AISC 360 in North America, which reference material standards such as EN 10210 for hot-finished or EN 10219 for cold-formed hollow sections. Galvanizing quality is governed by ASTM A123 or ISO 1461, specifying minimum coating mass and adhesion tests. For EU-bound shipments, CE marking under EN 10210/EN 10219 is mandatory for structural steel; missing this certification triggers customs rejection regardless of physical quality. [NEED_CITE: EN 10219 cold-formed welded structural hollow sections certification requirements] Our in-house physical and chemical laboratory tests every heat for composition and mechanical properties before galvanizing, and third-party inspectors from SGS or BV verify coating thickness and adhesion prior to container sealing.
Understanding Steel Grade Selection and Galvanizing Process for Hollow Sections
A500 Grade B and S355JR represent the workhorse grades for structural galvanized square steel tube: A500 is the dominant ASTM specification in North American construction, while S355JR is the standard EN grade across Europe and many Middle Eastern projects. Both deliver reliable weldability and formability for on-site cutting, punching, and bending. Hot-dip galvanizing immerses the fabricated ERW tube in molten zinc at approximately 450°C, forming a metallurgical bond that covers external and internal surfaces — critical for hollow sections where internal corrosion is otherwise inaccessible. Pre-galvanized tubes, coated from zinc-coated strip before forming, offer lower cost but thinner coating suitable only for mild environments. The ±1% tolerance on wall thickness ensures that theoretical weight calculations match actual delivered weight, preventing budget overruns on large-volume infrastructure orders. [NEED_CITE: steel grade equivalence between ASTM A500 and EN 10219 standards]
The Hidden Cost of Accepting Sub-Spec Zinc or Unverified Mill Certificates
Procuring galvanized square steel tube without independent coating verification or traceable mill test certificates creates compounding risks: customs authorities in the EU and Middle East increasingly reject shipments lacking proper CE documentation or EN 10204 3.1/3.2 certificates. Coating thickness below specification forces costly on-site remediation or outright rejection, while unverified steel grades can fail structural load testing during project handover. Negative tolerance abuse — where actual wall thickness falls below the ordered dimension — reduces load capacity and triggers engineering re-approval delays. [NEED_CITE: ASTM A123 zinc coating thickness testing methods]
Procurement Confidence Backed by Vertical Integration and Certification
Every galvanized square steel tube we supply rolls through three dedicated production lines with in-house physical and chemical laboratories conducting incoming, in-process, and final inspections. We hold 41 invention patents — including proprietary sharp-corner rectangular tube technology — and produce over 2,800 specifications with wall thickness up to 40 mm, eliminating the need to source from multiple vendors. Our products carry CE certification under EN 10210/EN 10219, ISO 9001:2015 registration, and Singapore FPC approval, with verification reports from SGS and BV available for every shipment. We export to 50+ countries including the EU, North America, India, Southeast Asia, and the Middle East, with professional loading plans that optimize container utilization for 6 m and 12 m lengths.
Documentation & Compliance
- Mill test certificate documenting A500 Grade B chemical composition and mechanical properties per ASTM A500, traceable by heat number
- CE certificate confirming compliance with EN 10210/EN 10219 for structural hollow sections destined for EU markets
- ISO 9001:2015 quality management certificate covering the full production and galvanizing process
- SGS or BV third-party inspection report verifying hot-dip zinc coating thickness and adhesion per ASTM A123 or ISO 1461
- Material traceability report linking each bundle to its heat number, steel grade, and galvanizing batch
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

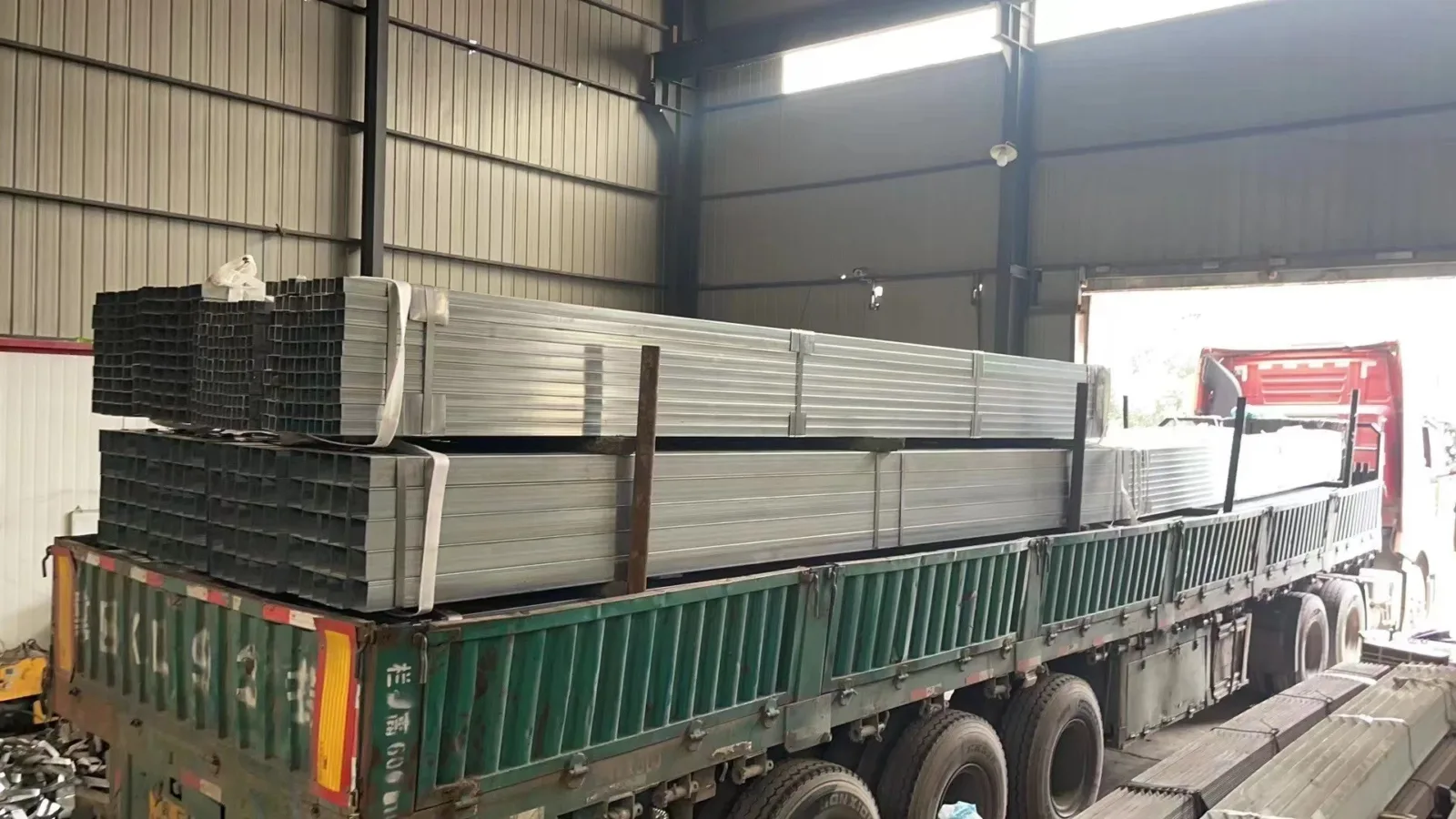

- Galvanized square steel tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit
- Hot-dip galvanized surfaces wrapped with waterproof paper at both ends to prevent white rust formation during container shipping
- Container loading optimized for 6 m and 12 m lengths of 21.3 mm to 660 mm sections, maximizing weight utilization per 20ft and 40ft containers
- Custom cut-to-length service available for 5.8 m, 6 m, 11 m, or 12 m requirements, with punched or beveled ends prepared per drawing
- Heat number and steel grade stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping options available to 50+ countries with real-time tracking from mill to project site
Requesting a Quotation with Full Technical Documentation
Submit your required specifications — including steel grade (A500, S355JR, or equivalent), section dimensions, wall thickness, quantity, and destination port — via email or WhatsApp to receive a detailed quotation within 12 hours. We provide original mill test certificates, CE documentation, and third-party inspection reports as standard with every order. For non-standard dimensions or custom processing such as punching, cutting, or bending, our engineering team will confirm feasibility and lead time before production begins.
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square steel tubes?
A: Hot-dip galvanizing immerses the finished tube in molten zinc, producing a 60–80 micron coating that covers both external and internal surfaces with metallurgical bonding — ideal for structural and outdoor applications. Pre-galvanized tubes are formed from zinc-coated strip, resulting in thinner coating (typically 20–30 microns) suitable only for indoor or mild corrosion environments.
Q: Can you provide CE certification for galvanized square steel tubes shipped to the European Union?
A: Yes. All our structural hollow sections carry CE marking under EN 10210 for hot-finished or EN 10219 for cold-formed sections, which is mandatory for customs clearance and structural compliance in EU member states.
Q: What is the minimum order quantity for custom non-standard sizes?
A: Our MOQ is 1 Ton. We produce over 2,800 specifications including custom non-standard dimensions, with wall thickness up to 40 mm available across square and rectangular sections.
Q: How do you ensure zinc coating thickness meets project specifications?
A: Every batch undergoes coating thickness testing in our in-house laboratory using magnetic induction gauges per ASTM A123 or ISO 2178. Third-party inspection by SGS or BV is available before shipment to verify compliance with your project requirements.
Q: Do you offer custom processing such as punching, cutting, or bending?
A: Yes. We provide punching, cutting, and bending services for galvanized square and rectangular tubes, with plain, beveled, threaded, or grooved end finishes available per your fabrication drawings.
Get Your Galvanized Square Steel Tube Quotation with Mill Test Certificate
Send your specifications — steel grade, dimensions, wall thickness, quantity, and destination — to receive a detailed quotation and sample mill test certificate within 12 hours.
