Description
Factory-Direct Seamless Square & Rectangular Steel Tube — We manufacture Q235, Q345, S235JR, S275JR, and S355JR seamless hollow sections in-house, eliminating middlemen markups while maintaining full traceability from billet to finished tube.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345/S235JR/S275JR/S355JR Seamless Square and Rectangular Steel Tube |
| Product Type | Seamless Square and Rectangular Steel Tube / Hollow Section |
| Steel Grade | Q195, Q235, Q345, S235JR, S275JR, S355JR, ASTM A53, ASTM A106 |
| Standard | ASTM A53, ASTM A106 |
| Section Shape | Square / Rectangular / Round |
| Length | 6 m / 12 m |
| Technique | Seamless (Hot Rolled / Cold Rolled) |
| Surface Treatment | Hot Rolled / Galvanized |
| Tolerance | ±1% |
| Oiled or Non-oiled | Non-oiled |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Invoicing | By Theoretical Weight |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, Oil Pipe, Chemical Fertilizer Pipe, Structure Pipe, Steel Structures, Construction Frames, Machinery |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial plant pipe racks, pressure vessel supports, boiler frameworks |
| Construction Companies | High-rise building columns, bridge handrails, infrastructure foundation piles |
| Machinery Manufacturers | Hydraulic cylinder barrels, drill rod casings, conveyor roller frames |
| Oil & Gas | Gas transmission lines, chemical fertilizer feed pipes, oil well casing |
Where Material Traceability Decides Whether Your Shipment Clears Customs
Missing heat numbers on mill test certificates delay EU and North American customs clearance by weeks.
Procurement teams often discover too late that their supplier’s material certificates lack traceable heat numbers, forcing re-inspection at the port or outright rejection by customs authorities. When steel grade equivalence between EN and ASTM standards is not properly documented, engineers cannot verify that Q345 meets S355JR requirements, creating compliance gaps that halt project timelines. [NEED_CITE: steel grade equivalence between EN and ASTM standards] Fragmented sourcing from multiple suppliers compounds this problem—each batch arrives with inconsistent documentation, making quality verification nearly impossible before installation begins.
How Wall Thickness Tolerance Affects Structural Load Calculations
Our seamless square and rectangular steel tube maintains ±1% wall thickness tolerance across all Q235, Q345, and S355JR grades, ensuring that structural engineers can rely on consistent load-bearing capacity without safety factor overcompensation. When we supply 12-meter lengths for boiler pipe applications, each tube undergoes ultrasonic testing to verify internal integrity before leaving the mill. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements]
Meeting Pressure and Structural Code Requirements
Seamless manufacturing eliminates the weld seam vulnerability that limits ERW tubes in high-pressure applications like hydraulic systems and gas transmission. For structural frames in high-rise construction, S355JR grade provides higher yield strength than S235JR, allowing engineers to reduce section sizes while maintaining load capacity—critical when every kilogram affects foundation design. Our in-house physical and chemical laboratories test every heat for composition and mechanical properties, generating mill test certificates that satisfy both EN 10210 and ASTM A53 compliance requirements. [NEED_CITE: ASTM A53 seamless pipe pressure rating calculations]
Understanding Steel Grade Selection for Pressure vs. Structural Applications
Q235 and Q345 represent Chinese GB standards where the number indicates minimum yield strength in MPa, while S235JR, S275JR, and S355JR follow European EN standards with JR denoting room-temperature impact testing requirements. ASTM A53 and A106 cover seamless pipe for high-temperature service, with Grade B being the most common for pressure applications. The choice between hot rolled and cold rolled seamless affects surface finish and dimensional accuracy—cold rolled provides tighter tolerances for precision machinery components, while hot rolled suits structural applications where surface appearance is secondary. Galvanized surface treatment adds corrosion resistance for outdoor infrastructure projects, though the zinc coating must be accounted for in welding procedures.
The Hidden Cost of Accepting Negative Tolerance Beyond Specification
When suppliers deliver seamless tubes with wall thickness below the ±1% tolerance range, the theoretical weight invoicing means you pay for material that isn’t there—yet structural calculations assumed full specification compliance. Pressure vessels and hydraulic systems face catastrophic failure risk when actual wall thickness cannot sustain design pressure, while structural frames may pass initial inspection but fail under dynamic loading conditions. Customs authorities in the EU routinely reject shipments lacking proper CE EN 10210/10219 certification, forcing costly re-export or local sourcing at premium prices. [NEED_CITE: consequences of steel material non-compliance in structural engineering]
Why Project Engineers Specify Our Seamless Hollow Sections
We operate three dedicated seamless production lines with in-house laboratories that test chemical composition and mechanical properties for every heat, providing mill test certificates with full traceability. Our proprietary sharp-corner rectangular tube technology—covered by 41 invention patents—fills gaps in global specifications where standard dies cannot achieve tight corner radii required for architectural applications. With over 2,800 specifications in inventory, we consolidate square tubes, rectangular tubes, and round pipes into single shipments, reducing your procurement coordination from multiple suppliers to one factory-direct source. CE EN 10210/10219 and ISO 9001:2015 certifications ensure compliance across EU, North American, and Middle Eastern markets, while SGS and BV third-party inspections provide independent verification for critical projects. We customize non-standard sizes and lengths beyond catalog offerings, and our professional loading team optimizes container stowage to minimize freight costs while preventing transit damage.
Documentation & Compliance
- Mill test certificate documenting Q345 chemical composition and yield strength per ASTM A106, including heat number traceability
- CE certificate confirming EN 10210/10219 compliance for S355JR seamless hollow sections exported to EU markets
- ISO 9001:2015 quality management system certificate covering seamless tube manufacturing processes
- SGS or BV third-party inspection report verifying dimensional tolerance and surface treatment quality upon request
- Material traceability documentation linking each tube to its original heat number and test results
- Customs clearance package including packing list, bill of lading, and certificate of origin for destination country requirements
Packaging, Loading & Delivery
- Seamless square and rectangular tubes bundled with steel strips and edge protectors to prevent surface damage during ocean transit
- Galvanized surface treatment preserved through separation materials that prevent zinc coating abrasion between nested tubes
- Container loading optimized for 6-meter and 12-meter lengths to maximize payload while maintaining weight distribution for 20-foot and 40-foot shipments

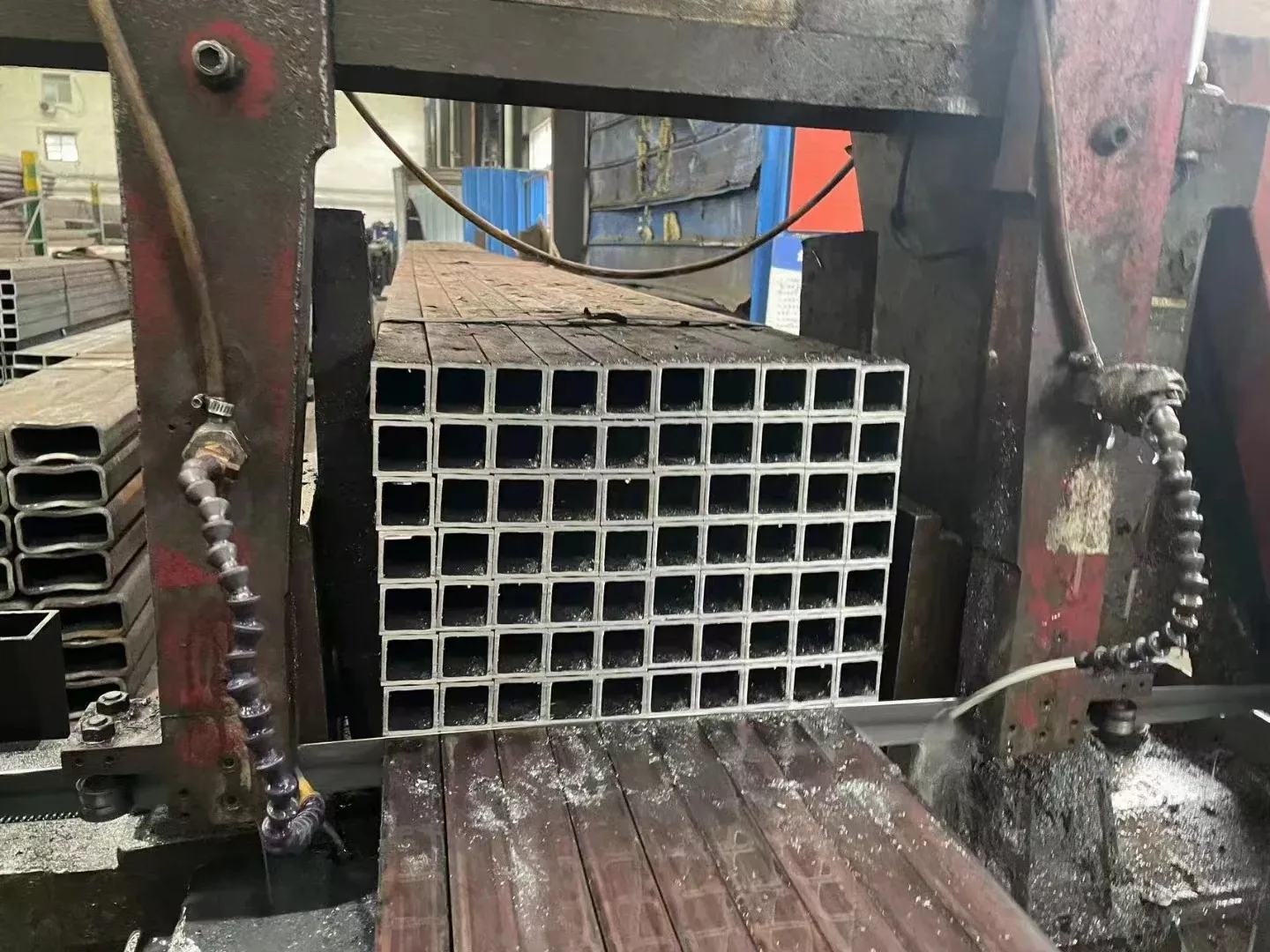

- Custom cutting service available to deliver precise lengths for boiler pipe and hydraulic applications, reducing on-site waste
- Heat number and steel grade stenciled on each tube end for immediate identification during installation
- FOB, CIF, and DDP shipping terms available with professional logistics coordination to 50+ countries
Start Your Procurement With Complete Technical Documentation
Submit your seamless square and rectangular steel tube requirements including steel grade, dimensions, quantity, and destination port to receive a detailed quotation with mill test certificate samples. We provide non-standard size customization options and confirm CE/ASTM certification availability for your specific market within 12 hours of inquiry.
