Description

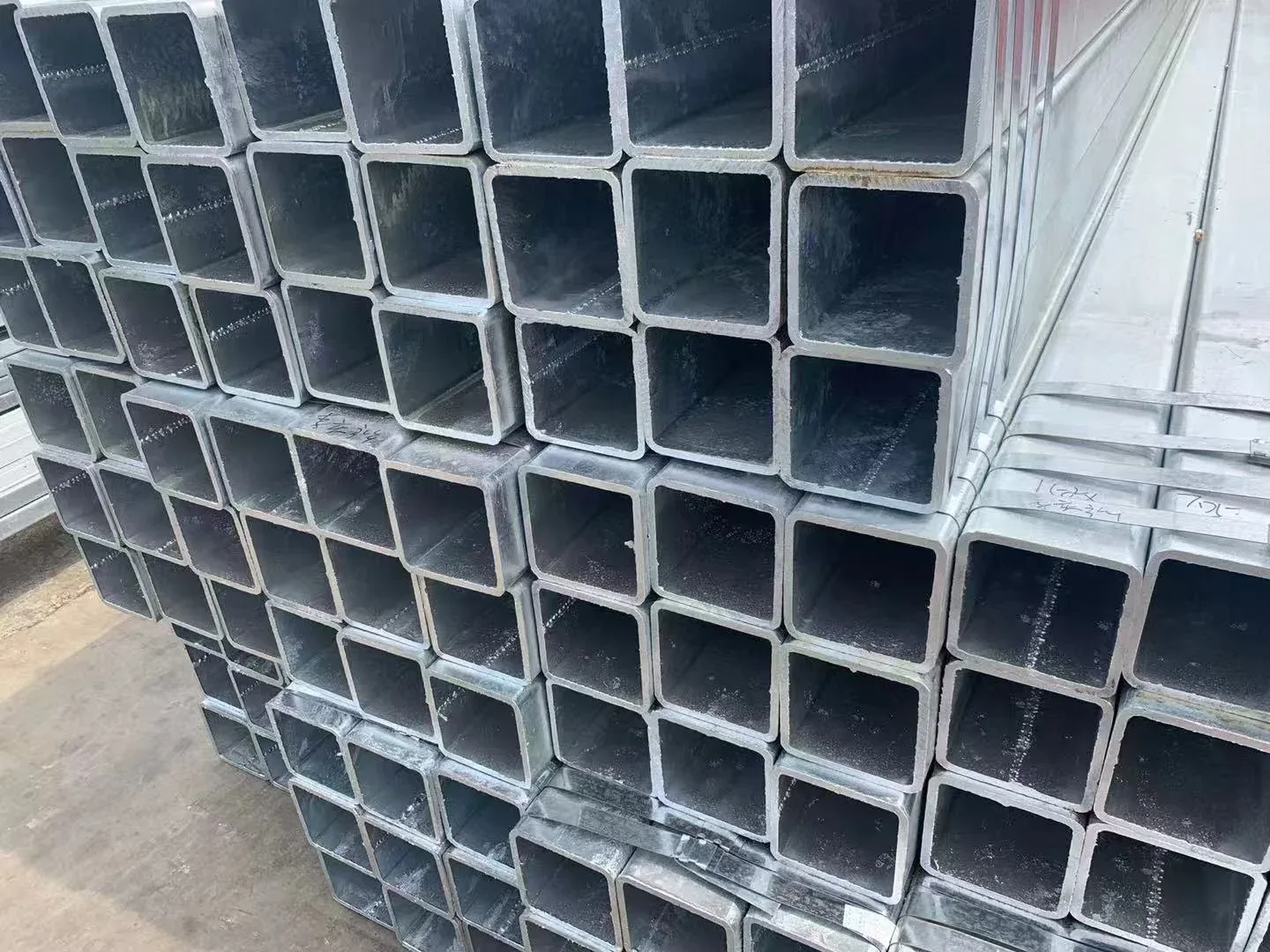

Factory-direct galvanized square steel tube — every batch inspected in our in-house physical and chemical lab, with original mill test certificates traceable to heat number before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | 20#, S235, S275 |
| Standard | JIS, ASTM A106, ASTM A53 |
| Section Shape | Square |
| Length | 6 m, 12 m (customizable) |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain, Beveled, Threaded, Grooved |
| Processing Service | Welding, Punching, Cutting, Bending |
| Application | Hydraulic systems / Fluid transport / Machine parts / Structural frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial pipeline supports, structural frames for plant expansions |
| Construction Companies | Scaffolding systems, building frames, load-bearing columns |
| Machinery Manufacturers | Hydraulic cylinder housings, machine base frames, conveyor structures |
| Infrastructure Developers | Bridge handrails, solar panel mounting structures, utility pole bases |
What Zinc Coating Thickness Decides on a Galvanized Square Steel Tube Order
A 25-micron gap between contract spec and actual coating can reject an entire container at destination port.
Global buyers sourcing galvanized square steel tube often discover coating discrepancies only after arrival — when a handheld gauge reads 40 microns against a contracted 65 microns. The result: full-container rejection, re-galvanizing costs, return freight, and lost project timelines. Beyond coating, inconsistent wall thickness tolerance and missing mill test certificates create compounding risks — customs holds, structural non-compliance, and re-procurement delays that dwarf the original unit price savings. [NEED_CITE: hot-dip galvanizing coating thickness standards per ASTM A123]
Matching Galvanized Square Steel Tube to Structural and Corrosive Environments
Hot-dip galvanizing deposits a metallurgically bonded zinc-iron alloy layer that outperforms electroplated coatings in outdoor and high-humidity environments. For structural frames and scaffolding exposed to coastal or industrial atmospheres, the galvanized square steel tube in S235 or S275 grade provides both load-bearing capacity and long-term corrosion protection without secondary painting. The ±1% dimensional tolerance ensures predictable connection fit-up during on-site assembly, while customizable end treatments — plain, beveled, threaded, or grooved — accommodate welded, bolted, or mechanical joint configurations across EPC and construction applications.
Engineering Compliance and Certification Requirements
Structural applications governed by EN 1993 or AISC frameworks require verified material properties and traceable documentation. Galvanized square steel tube conforming to ASTM A53 or JIS standards must carry original mill test certificates documenting chemical composition and dimensional compliance. For EU market projects, CE certification under EN 10210 or EN 10219 is mandatory for customs clearance and structural acceptance — missing paperwork triggers port holds regardless of physical product quality. [NEED_CITE: CE marking requirements for structural hollow sections under EN 10219] Custom lengths at 6 m or 12 m reduce on-site cutting waste, while pre-cut, punched, or bent processing services minimize secondary fabrication at the project location.
Steel Grade Selection and Hot-Dip Galvanizing Process
The 20# carbon steel grade offers moderate strength with excellent weldability for general structural and fluid transport applications. S235 provides higher yield strength for load-bearing frames where deflection limits are critical, while S275 serves heavier structural demands in industrial and infrastructure projects. Hot-dip galvanizing immerses formed steel tubes in molten zinc at approximately 450°C, creating a metallurgically bonded coating with superior adhesion compared to electro-galvanized alternatives. The zinc-iron alloy layers formed during this process provide cathodic protection — even if the coating is scratched, zinc corrodes preferentially to shield the base steel. Wall thickness tolerance of ±1% ensures theoretical weight calculations remain reliable for structural design, avoiding the hidden cost of negative tolerance deviations that reduce actual load capacity. [NEED_CITE: steel grade equivalence between Chinese GB, European EN, and American ASTM standards]
Hidden Costs of Procuring Non-Compliant Galvanized Tubes
Undersized zinc coating fails corrosion protection specifications, forcing costly re-galvanizing or premature structural replacement. Wall thickness below declared tolerance reduces actual load-bearing capacity — a structural frame designed for S275 performance may fail inspection if delivered tubes carry excessive negative tolerance. Missing or falsified mill test certificates trigger customs rejection in regulated markets, stranding cargo at port while project schedules collapse. Certification gaps — no CE marking for EU destinations, no SGS or BV verification for government tenders — disqualify otherwise physically compliant product from project acceptance, turning unit price savings into total loss. [NEED_CITE: consequences of non-compliant steel imports in construction projects]
Why Source Galvanized Square Steel Tube From Xin Jiyuan
As a manufacturer holding 41 invention patents — including proprietary sharp-corner rectangular tube technology — we produce galvanized square steel tube across 2,800+ specifications with wall thickness up to 40 mm, eliminating middleman markups. Our in-house physical and chemical laboratory conducts incoming material, in-process, and final inspection on every batch, generating original mill test certificates before shipment. Third-party verification through SGS and BV confirms coating thickness, dimensional accuracy, and material properties for buyers requiring independent validation. CE certification under EN 10210 and EN 10219, combined with ISO 9001:2015 quality management, ensures compliance across EU, North American, and Middle Eastern markets. Custom non-standard sizes, specialized end treatments, and processing services — welding, punching, cutting, bending — consolidate procurement that would otherwise fragment across multiple suppliers. Professional loading plans optimize container utilization for 6 m and 12 m lengths, with door-to-door logistics covering 50+ countries under FOB, CIF, or DDP terms.
Documentation & Compliance
- Mill test certificate documenting 20#, S235, or S275 chemical composition and dimensional compliance per ASTM A53 or JIS standards
- CE certificate confirming EN 10210 or EN 10219 conformity for EU market structural acceptance
- ISO 9001:2015 quality management certificate covering hot-dip galvanizing process control
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerance
- Material traceability by heat number linking each galvanized square steel tube to original mill test data
- Customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Galvanized square steel tube bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Seaworthy packaging with waterproof wrapping prevents surface damage to hot-dip galvanized finish in humid container environments
- Container loading optimized for 6 m and 12 m lengths maximizes payload while protecting galvanized surface from abrasion
- Heat number and steel grade markings on each bundle enable site identification and traceability verification
- FOB, CIF, and DDP shipping options with professional port coordination for delivery to 50+ countries
Securing Your Galvanized Square Steel Tube Quotation
Submit specifications — steel grade, section dimensions, wall thickness, length, quantity, and destination port — to receive a detailed quotation including unit price, delivery timeline, and applicable certification documents. Request original mill test certificates and third-party inspection options for quality confirmation before production commitment. Confirm custom end treatments, processing services, and non-standard dimensions for project-specific requirements.
Start Your Galvanized Square Steel Tube Procurement
Send your specifications, steel grade requirements, and destination details to receive a comprehensive quotation with mill test certificate options and delivery timeline.
