Description
Factory-Direct Galvanized Tubes — Every Q235B galvanized square steel tube leaves our Jinan mill with an in-house lab report and SGS zinc-coating verification, cutting out trading-company markups.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Galvanized Square / Rectangular Steel Tube |
| Product Type | Galvanized Square / Rectangular Steel Tube |
| Steel Grade | Q195, Q215, Q235, Q345, GR.A, GR.B, S235, S355 |
| Standard | ASTM A213, DIN EN 10217-1 |
| Section Shape | Square / Rectangular |
| Size Range | Customized outer diameter or side length |
| Wall Thickness | 0.8–30 mm |
| Length | 500 mm / 1,000 mm / 4,000 mm / 5,800 mm / 11,800 mm (or customized) |
| Technique | Welded (ERW) / Seamless |
| Surface Treatment | Pre-galvanized / Hot-dipped galvanized / Bare / Oiled / Black original steel |
| Tolerance | ±1% |
| Ends | Plain / Beveled (per processing service) |
| Application | Structure pipe, Steel fence, Steel post, Steel construction, Warehouse construction, Building construction |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Structural frames for industrial warehouses and plant buildings |
| Construction Companies | Steel fencing posts, guardrail supports, and perimeter security systems |
| Machinery Manufacturers | Equipment base frames and conveyor support structures requiring dimensional precision |
| Infrastructure Developers | Bridge handrail posts and utility pole foundations |
Why Galvanizing Thickness Still Causes Customs Rejections on Q235B Galvanized Square Steel Tube Orders
A 45-micron zinc layer on an 80-micron contract is the single most expensive mistake in Middle East steel procurement.
I watched an entire container of square tubes get rejected at a Riyadh project site because the zinc coating fell short of spec. Three weeks of re-galvanizing, idle cranes, and a furious EPC project manager. The root cause was never the steel grade — it was a supplier who skipped third-party verification. When you source a Q235B galvanized square steel tube without an EN 10204 3.1 mill test certificate or SGS coating-thickness report, you are gambling with customs officers who measure microns, not trust your invoice. [NEED_CITE: hot-dip galvanized coating thickness requirements per ISO 1461]
Matching Wall Thickness and Steel Grade to Structural Frame Loads
A Q235B galvanized square steel tube in 0.8–30 mm wall thickness covers everything from lightweight fence posts to heavy-duty warehouse portal frames. For corrosion-exposed environments — coastal sites, chemical plant perimeters, agricultural buildings — hot-dipped galvanizing provides sacrificial zinc protection that pre-galvanized sheet-formed tubes simply cannot match at cut edges. Our in-house physical and chemical lab tests every heat before galvanizing, so the coating bond and thickness stay consistent across the full 11,800 mm length.
Engineering Compliance and Certification for Galvanized Hollow Sections
Structural engineers specifying galvanized square and rectangular tubes for load-bearing frames need documentation that satisfies EN 1993 and local building codes. A Q235B galvanized square steel tube produced under DIN EN 10217-1 with CE marking under EN 10210/EN 10219 clears EU customs without supplementary testing. For North American projects, ASTM A213 compliance and SGS-verified mill certificates prevent port holds. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional tolerances] Dimensional accuracy at ±1% tolerance ensures that on-site welding and bolted connections fit without reaming or re-cutting — a detail that matters when you are erecting 11,800 mm columns in a warehouse bay.
Steel Grade Selection and Galvanizing Process Explained
The Q-series grades (Q195 through Q345) follow the Chinese GB/T standard system where the number indicates minimum yield strength in MPa. Q235 remains the default structural grade for general construction across the Middle East, Southeast Asia, and Africa because it balances weldability, formability, and cost. The S-series (S235, S355) maps to European EN standards and is required for projects engineered to Eurocode. GR.A and GR.B are shipbuilding grades under classification society rules. Hot-dipped galvanizing immerses the formed tube in molten zinc at approximately 450°C, creating a metallurgical bond with the steel substrate that resists chipping during transport and installation. Pre-galvanized tubes, formed from already-coated coil, offer lower cost but expose bare steel at weld seams and cut edges — acceptable for indoor applications, risky for outdoor structural use. [NEED_CITE: steel grade equivalence between Chinese GB and European EN standards]
The Hidden Cost of Wrong-Grade and Under-Coated Galvanized Tubes
Ordering Q195 when the engineer specified Q345 means the structure fails load testing — and replacement means demolishing erected frames, not just swapping tubes. Missing CE certificates on a Q235B galvanized square steel tube destined for Europe triggers customs holds that cost more in demurrage than the steel itself. Under-coated galvanizing looks acceptable on arrival but corrodes within months in humid or saline environments, voiding project warranties and forcing expensive remedial painting. [NEED_CITE: consequences of non-compliant steel grade substitution in structural engineering]
Why Project Procurement Teams Choose Our Mill for Galvanized Tubes
We run three dedicated production lines covering over 2,800 specifications in square, rectangular, and round profiles — meaning your Q235B galvanized square steel tube in a non-standard side length does not require a separate supplier. Our 41 patented technologies include a proprietary sharp-corner rectangular tube process that eliminates the rounded-radius gap at internal corners, giving bolted and welded connections full bearing contact. Every batch passes through our in-house physical and chemical laboratory before galvanizing, and we ship with original mill test certificates plus optional SGS or BV third-party inspection. We hold CE certification under EN 10210/EN 10219, ISO 9001:2015, and Singapore FPC — covering EU, Southeast Asian, and Middle Eastern project compliance in one supplier. Exports to over 50 countries mean our loading team knows how to optimize container weight for 11,800 mm galvanized tubes without damaging the zinc coating.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition and mechanical properties per DIN EN 10217-1, traceable by heat number
- CE certificate under EN 10210 / EN 10219 for hot-dipped galvanized structural hollow sections exported to EU markets
- ISO 9001:2015 quality management certificate covering the full production and galvanizing process
- SGS or BV third-party inspection report verifying zinc coating thickness and adhesion per ISO 1461
- Material traceability linking each bundle to its heat number, steel grade, and galvanizing batch
- Customs documentation package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

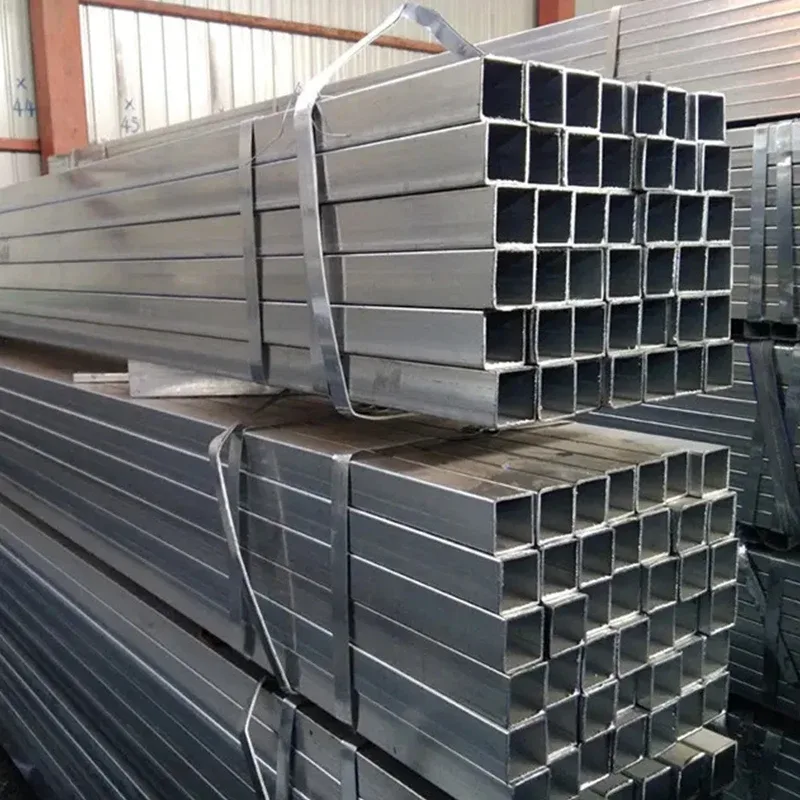

- Hot-dipped galvanized Q235B square and rectangular tubes bundled with steel straps and edge protectors to prevent zinc coating abrasion during ocean transit
- Pre-galvanized tubes wrapped in waterproof paper and bundled by fixed length (5,800 mm or 11,800 mm) to maximize 40ft container payload
- Custom cut-to-length service available for 500 mm to 4,000 mm pieces, bundled separately with heat-number stenciling on each bundle
- Container loading plans optimized for galvanized surface protection — no bare steel contact, no over-tightening that cracks the zinc layer
- Heat number, steel grade (Q235B / Q345 / S355), and dimensional markings stenciled on each bundle for site identification
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination to ports across the EU, Middle East, Southeast Asia, and Americas
Getting Your Galvanized Tube Quote with Full Certification
Send your specification sheet — side dimensions, wall thickness, steel grade, total tonnage, and destination port — and we return a detailed quotation within 12 hours, including unit price, production lead time, applicable certifications, and shipping terms. For non-standard sizes outside our 2,800+ specification range, we confirm custom tooling feasibility and MOQ before you commit.
Frequently Asked Questions
Q: What is the difference between pre-galvanized and hot-dipped galvanized square steel tubes?
A: Pre-galvanized tubes are formed from steel coil that was already galvanized before rolling, resulting in a thinner zinc layer and exposed bare steel at weld seams. Hot-dipped galvanized tubes are formed first, then immersed in molten zinc, creating a thicker metallurgical coating that covers all surfaces including welds and edges — the correct choice for outdoor structural and corrosion-exposed applications.
Q: Can you provide EN 10204 3.1 mill test certificates for customs clearance?
A: Yes. Every shipment of Q235B galvanized square steel tube includes an original EN 10204 3.1 mill test certificate documenting chemical composition and mechanical properties, traceable to the specific heat number. Third-party inspection by SGS or BV is available upon request for projects requiring independent verification.
Q: What is the MOQ for non-standard customized sizes?
A: The standard MOQ is 10 tons. For non-standard side lengths or wall thicknesses outside our regular range, we evaluate custom tooling requirements and confirm the specific MOQ based on the profile complexity and order volume.
Q: How do you ensure galvanizing coating thickness meets contract requirements?
A: Our in-house physical and chemical laboratory tests zinc coating thickness on every production batch using magnetic induction gauges, with results documented in the mill test certificate. We also offer SGS or BV third-party inspection for clients who require independent verification before shipment.
Q: What are the delivery terms and production lead time for bulk orders?
A: We accept FOB, CIF, and DDP terms. Typical production lead times depend on order volume and specification complexity — standard sizes in Q235B ship faster than custom non-standard profiles. We provide real-time production tracking and container loading updates throughout the process.
Request Your Q235B Galvanized Square Steel Tube Quotation Today
Submit your dimensions, wall thickness, steel grade, quantity, and destination port — we respond within 12 hours with pricing, mill test certificates, and shipping options.
