Description

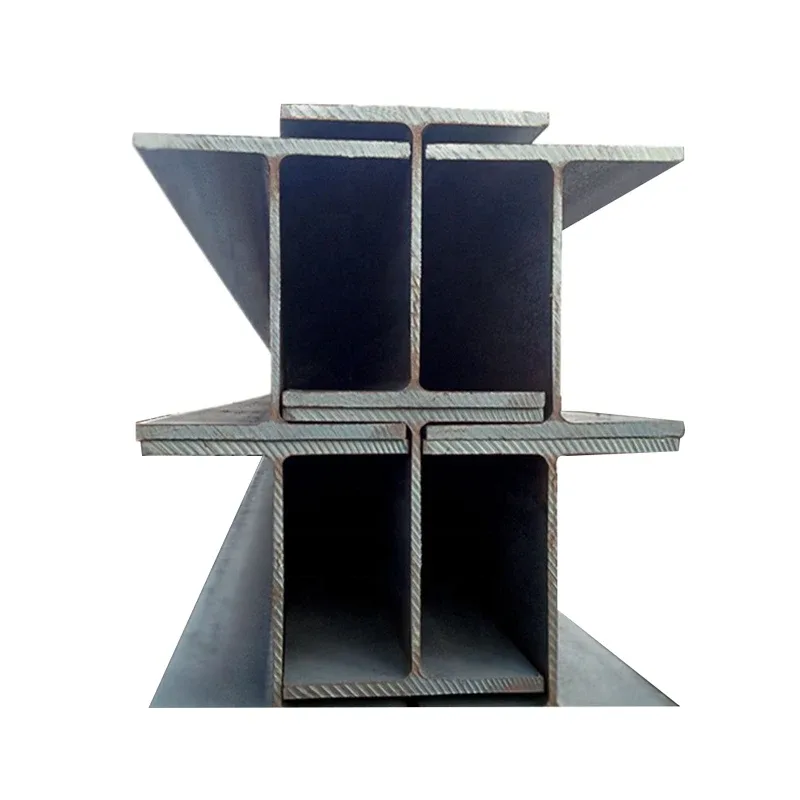

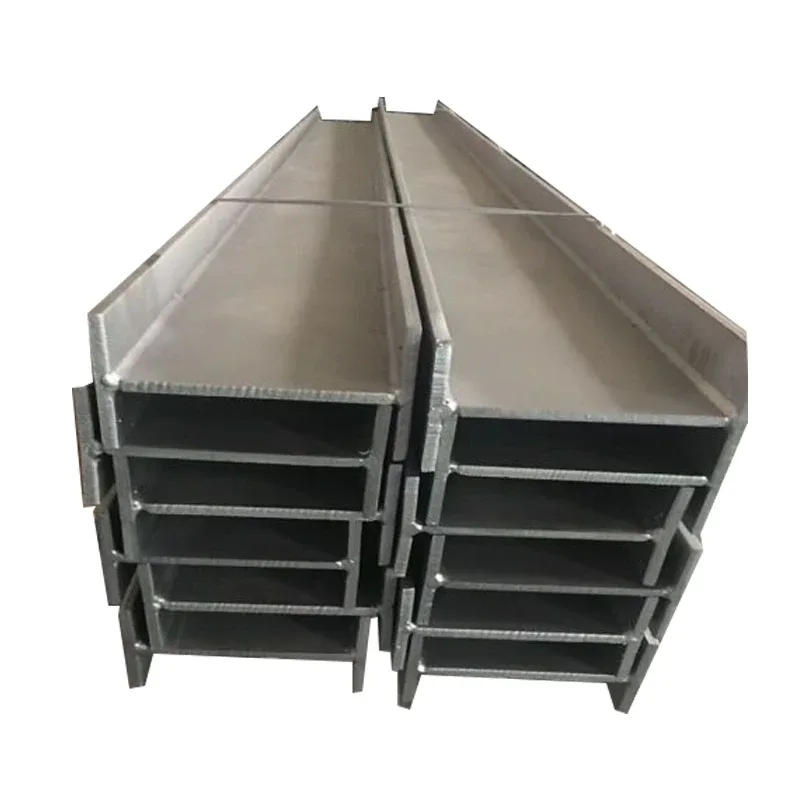

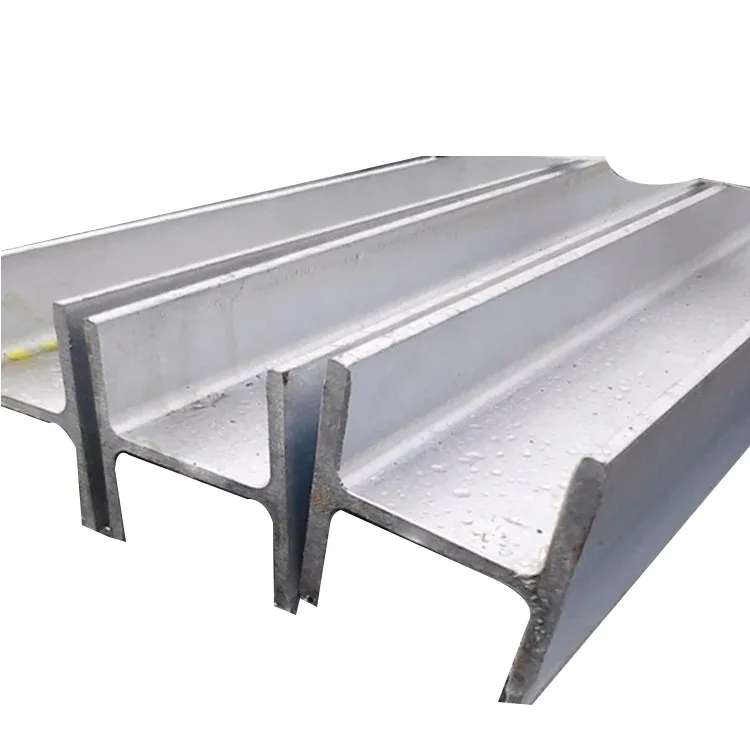

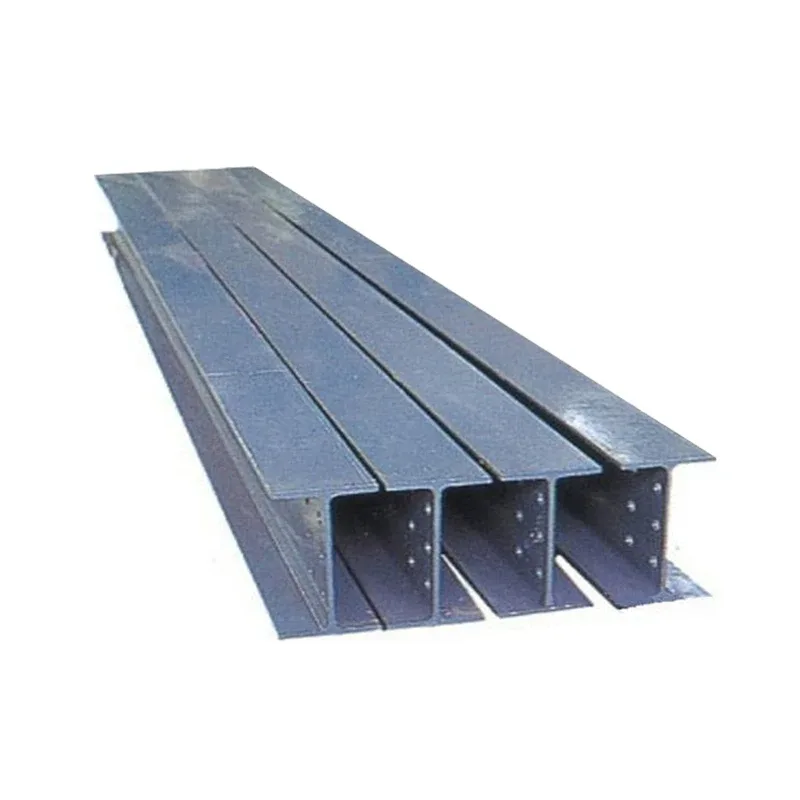

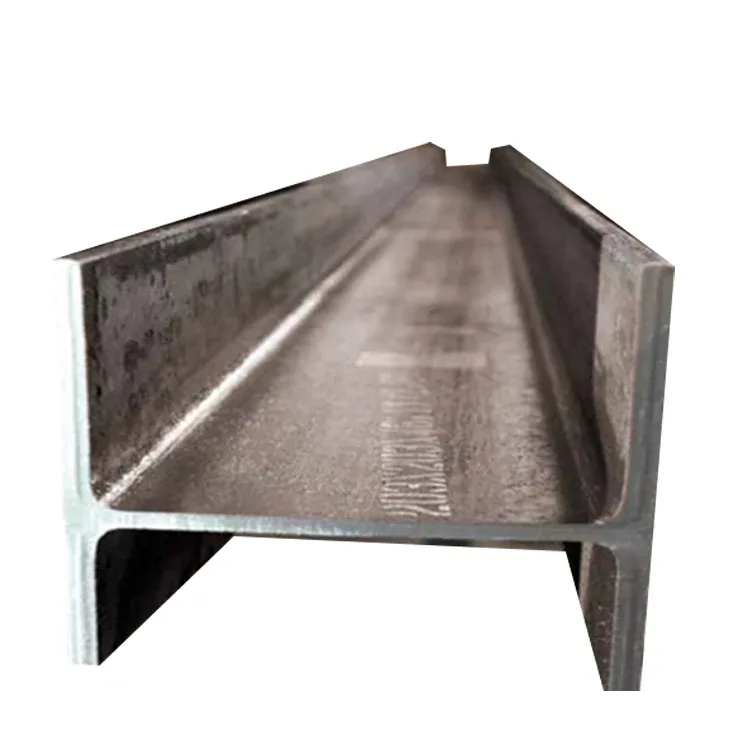

Factory-Direct Galvanized H-Beams — Hot rolled sections galvanized in-house, shipped from Jinan with full mill test documentation and CE certification for EU and global projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Q355 Hot Rolled Galvanized H-Beam |
| Product Type | H-Beam (I-Beam) |
| Steel Grade | Q235, Q355, ASTM A36, ASTM A572, S355JR, S355J0, SS400 |
| Standard | GB, ASTM A36, ASTM A572, EN 10025, JIS G3101, BS, DIN, AISI |
| Section Shape | H-Beam |
| Size Range | 100×100 – 1000×300 |
| Flange Thickness | 8mm – 64mm |
| Web Thickness | 4.5mm – 36.5mm |
| Web Width | 100mm – 900mm |
| Length | 6m / 9m / 12m or as required |
| Technique | Hot Rolled |
| Surface Treatment | Hot Dip Galvanized / Black |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Packing | Seaworthy |
| Application | Steel building frames, bridges, retaining wall posts, industrial platforms, support rails, movable prefab cabins |
| Origin | Shandong, China |

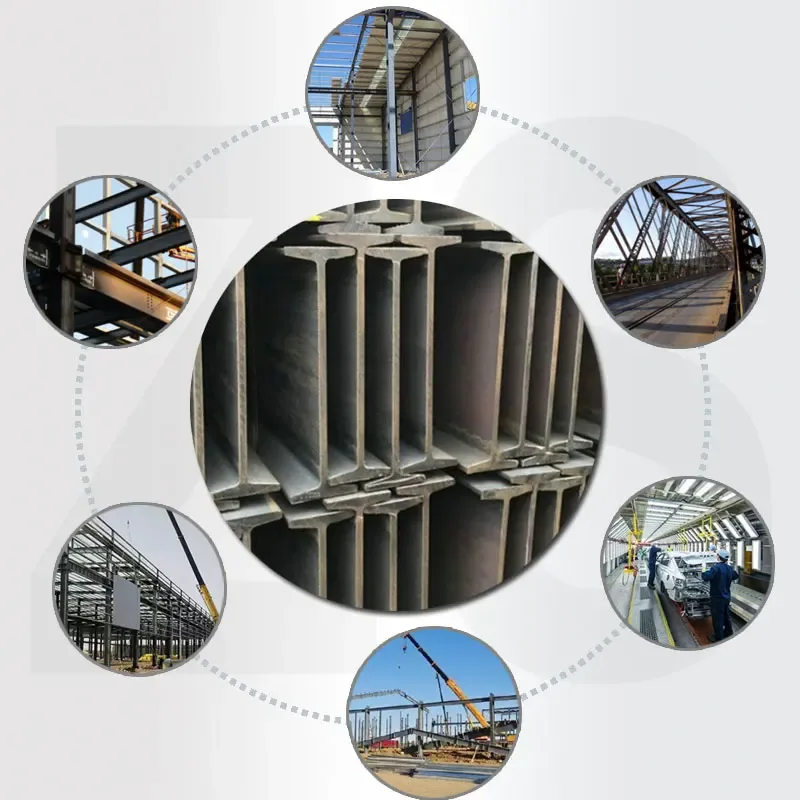

Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Steel structure building frames, industrial plant support columns |
| Construction Companies | Bridge girders, infrastructure retaining wall posts |
| System Integrators | Conveyor support rails, movable prefab cabin frameworks |
| Machinery Manufacturers | Industrial platform beams, equipment support structures |
When Zinc Coating Thickness Determines Whether Your H-Beams Pass Site Inspection
A galvanized H-beam that arrives with stripped coating is not a cosmetic problem — it is a compliance failure that halts the entire structural erection schedule.
Global EPC contractors sourcing Hot Rolled Galvanized H-Beam sections from fragmented suppliers frequently encounter inconsistent zinc layer thickness across batches, leading to accelerated corrosion at weld zones and connection points within months of installation. Without in-house galvanizing control and independent lab verification, buyers cannot confirm whether the coating meets the minimum 85μm threshold required for outdoor structural applications [NEED_CITE: hot dip galvanizing coating thickness requirements for structural steel]. Missing mill test certificates then compound the problem — customs authorities in the EU and Middle East routinely hold shipments lacking proper EN or ASTM documentation, turning a straightforward delivery into weeks of demurrage costs.
Matching Galvanized H-Beam Specifications to Structural Load Requirements
Hot Rolled Galvanized H-Beam sections in Q235 and Q355 grades cover the full spectrum of light-to-heavy structural framing, from prefab cabin uprights to bridge girder supports. The hot dip galvanizing process ensures uniform zinc coverage across flanges and web, providing corrosion resistance suitable for outdoor exposure in coastal and industrial environments. With flange thickness ranging from 8mm to 64mm and web width spanning 100mm to 900mm, these sections accommodate both standard engineering designs and custom non-standard configurations. Our in-house bending, welding, and cutting services deliver project-ready lengths, eliminating secondary processing delays at the construction site.
Structural Compliance and Certification for Global Project Delivery
Hot Rolled Galvanized H-Beam procurement for international projects requires alignment between steel grade designation and regional engineering codes — Q235 maps to ASTM A36 for North American specifications, while Q355 corresponds to S355JR under EN 10025 for European structural design [NEED_CITE: steel grade equivalence between Chinese GB and international EN standards]. CE certification under EN 10210/10219 is mandatory for EU market entry, and third-party inspection via SGS or BV provides independent verification of chemical composition and mechanical properties. Hot dip galvanizing extends service life in corrosive environments, but the coating must be verified per batch — our physical and chemical laboratories conduct incoming, in-process, and final inspections with full documentation traceable to heat numbers.
Understanding Steel Grade Selection and Hot Dip Galvanizing for H-Beams
The Q-series (Q235, Q355) follows Chinese GB standards where the number indicates minimum yield strength in MPa, making Q355 the direct equivalent of S355JR under EN 10025 and comparable to ASTM A572 Grade 50 for higher-load applications. ASTM A36 remains the baseline structural grade for North American projects, while SS400 under JIS G3101 serves Japanese-specification infrastructure. Hot dip galvanizing immerses the rolled H-beam in molten zinc, forming a metallurgical bond that provides cathodic protection — superior to paint or powder coating for long-term outdoor exposure. The ±1% dimensional tolerance ensures predictable load calculations, while the 8mm to 64mm flange thickness range covers everything from light mezzanine frames to heavy industrial column sections. Wall thickness from 4.5mm to 36.5mm allows engineers to optimize weight-to-strength ratios without compromising structural integrity.
The Hidden Costs of Procuring Galvanized H-Beams Without Proper Documentation
Specifying Hot Rolled Galvanized H-Beam sections without verified mill test certificates creates a cascade of downstream failures: material traceability gaps trigger rejection during structural audits, missing CE markings block customs clearance in EU member states, and unverified zinc coating thickness leads to premature corrosion at connection points [NEED_CITE: structural steel certification requirements for international construction projects]. Negative tolerance abuse — where actual wall thickness falls below the specified minimum — reduces load-bearing capacity while maintaining theoretical weight calculations, creating safety liabilities that only surface during final inspection. Replacing rejected beams after delivery means double freight costs, project delays, and potential structural redesign — expenses that far exceed the initial price difference between certified and uncertified suppliers.
Why EPC Contractors Source Hot Rolled Galvanized H-Beams from Shandong Xin Jiyuan
Our three dedicated production lines manufacture Hot Rolled Galvanized H-Beam sections across the full 100×100 to 1000×300 model range, eliminating the need to coordinate multiple suppliers for different size segments. The in-house physical and chemical laboratories conduct real-time quality control at every production stage, generating original mill test certificates that document chemical composition and mechanical properties per heat number — documentation that satisfies EU customs, Middle East project inspectors, and Southeast Asian port authorities alike. CE certification under EN 10210/10219 and ISO 9001:2015 quality management ensure compliance across 50+ export markets, while our 41 patented technologies include proprietary processes that maintain dimensional precision across the full flange thickness range. Custom non-standard sizes and project-specific cutting services reduce on-site waste and secondary processing costs. Professional loading plans optimize container utilization for 6m, 9m, and 12m lengths, with door-to-door logistics coordination handling FOB, CIF, and DDP terms to final destination.
Documentation & Compliance
- Mill test certificate documenting Q235/Q355 chemical composition and yield strength per GB standards, with ASTM A36/A572 equivalence verification for North American projects
- CE certificate under EN 10210/10219 confirming compliance for Hot Rolled Galvanized H-Beam sections entering EU and European standard markets
- ISO 9001:2015 quality management certification covering the full production process from raw material inspection to final galvanizing
- SGS or BV third-party inspection report available per shipment, verifying zinc coating thickness and dimensional tolerance
- Material traceability by heat number linking each Hot Rolled Galvanized H-Beam bundle to its original mill test certificate
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for seamless port clearance
Packaging, Loading & Delivery
- Hot dip galvanized H-beams bundled with timber separators and edge protectors to preserve zinc coating integrity during ocean transit and prevent coating abrasion
- Seaworthy packaging with steel strip binding, sized to accommodate 6m, 9m, and 12m lengths while maximizing 40ft container payload
- Custom loading plans for Q235 and Q355 grade sections, optimizing weight distribution and container utilization for 100×100 to 1000×300 model ranges
- Project-specific cutting and processing services delivering Hot Rolled Galvanized H-Beam sections to exact site dimensions, reducing on-site waste
- Heat number and steel grade markings stenciled on each bundle for immediate site identification and traceability verification
- Flexible shipping terms including FOB, CIF, and DDP with professional logistics coordination to ports across the EU, North America, Middle East, and Southeast Asia
Initiating Your Hot Rolled Galvanized H-Beam Procurement
Submit your project specifications including model range, steel grade preference, quantity, and destination port to receive a detailed quotation with unit pricing, production timeline, and applicable certification documentation. Our technical team provides mill test certificate samples and galvanizing coating verification reports for quality confirmation before contract execution. Custom cutting, bending, and non-standard sizing requests are accommodated with dedicated production scheduling to match your project timeline.
Request Your Galvanized H-Beam Quotation with Mill Test Documentation
Send your specifications via email to admin@sdxjysteel.com or contact us at +86 188 5315 7756 (WhatsApp/WeChat) to initiate procurement with full technical documentation.
Frequently Asked Questions
Q: What is the difference between Q235 and Q355 steel grades for Hot Rolled Galvanized H-Beams?
A: Q235 and Q355 are Chinese GB standard designations where the number indicates minimum yield strength in MPa. Q355 offers higher yield strength suitable for heavier structural loads, while Q235 serves standard framing applications. Both grades are available with hot dip galvanizing for corrosion protection.
Q: Can you provide Hot Rolled Galvanized H-Beams with ASTM A36 or S355JR certification for international projects?
A: Yes, our Q235 grade corresponds to ASTM A36 for North American specifications, and Q355 meets S355JR requirements under EN 10025 for European projects. We provide mill test certificates documenting chemical composition and mechanical properties with international standard equivalence verification.
Q: What documentation is included with each Hot Rolled Galvanized H-Beam shipment?
A: Each shipment includes original mill test certificates documenting chemical composition and mechanical properties per heat number, CE certification for EU compliance, packing list, bill of lading, and certificate of origin. Third-party inspection reports from SGS or BV are available upon request.
Q: Do you offer custom cutting and processing for Hot Rolled Galvanized H-Beams?
A: Yes, we provide bending, welding, punching, and cutting services to deliver project-ready lengths. Custom non-standard sizes outside the 100×100 to 1000×300 range are available based on your engineering specifications.
Q: How do you ensure zinc coating quality on galvanized H-Beams?
A: Our in-house physical and chemical laboratories conduct incoming, in-process, and final inspections verifying zinc coating thickness and adhesion. Each Hot Rolled Galvanized H-Beam batch is tested against hot dip galvanizing standards with results documented in the mill test certificate.
