Description

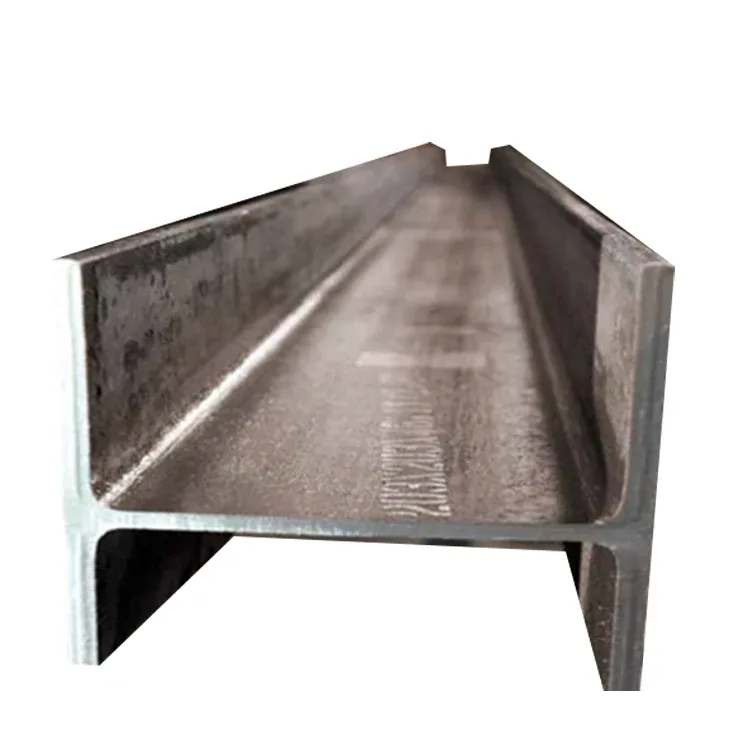

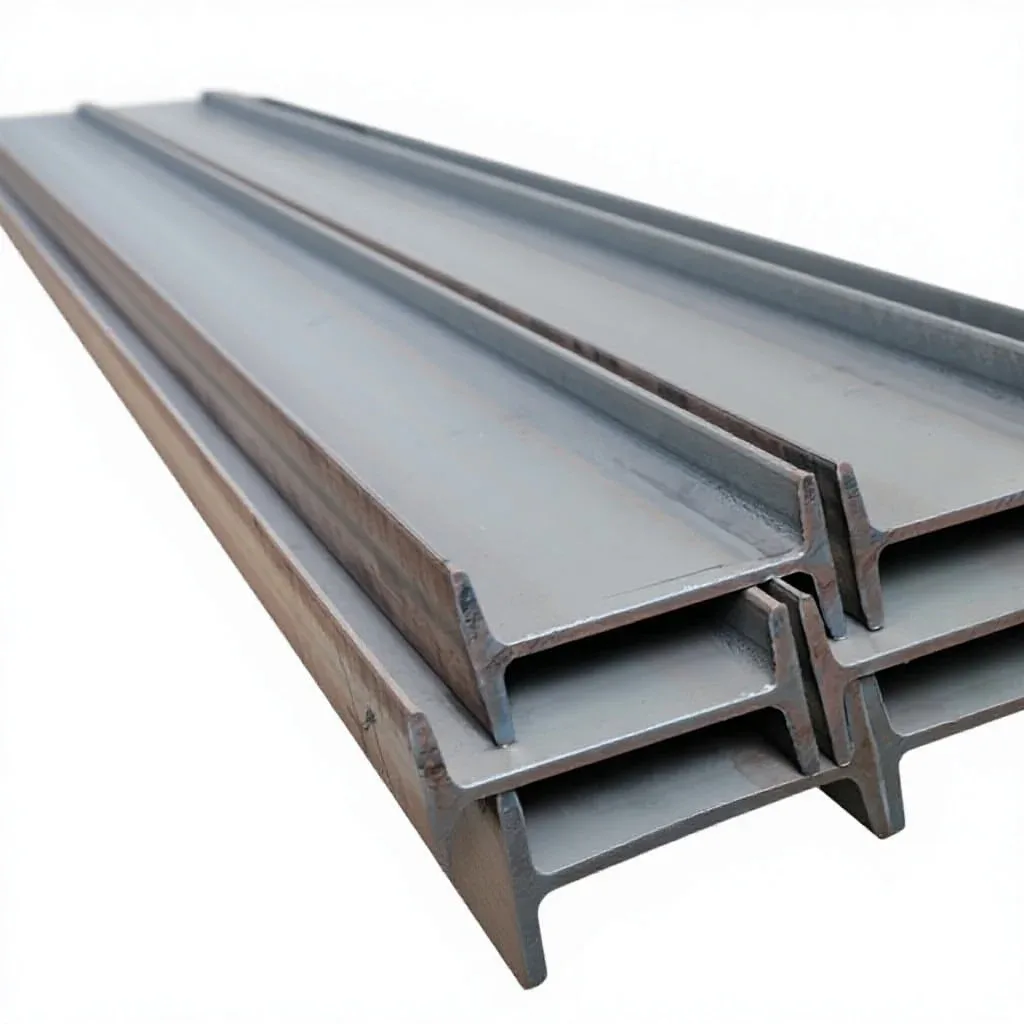

Factory-direct structural H-beams — ASTM A572 Grade 50 H-beams hot rolled in-house with full mill test certificates and CE compliance for EU and North American project procurement.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A572 Grade 50 H-Beam |
| Product Type | H-Beam / Wide Flange |
| Steel Grade | ASTM A572 Grade 50, Q235B, Q355B, S355JR, S355J0 |
| Standard | ASTM A572, ASTM A36, ASTM A992, EN 10025, GB/T 11263, JIS G3192 |
| Section Shape | H-Beam / Wide Flange |
| Size Range | 100×100 – 1000×300 |
| Flange Thickness | 8mm – 64mm |
| Web Thickness | 4.5mm – 36.5mm |
| Web Width | 100mm – 900mm |
| Length | As per customer request |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled / Hot Dip Galvanized / Customized |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Invoicing | By Actual Weight |
| Packing | Seaworthy |
| Delivery Term | FOB, EXW, CIF, CFR |
| Payment | T/T, L/C |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Steel structure frames for warehouses, factories, and industrial plants |
| Construction Companies | High-rise building columns and beams, bridge engineering girders |
| System Integrators | Industrial platforms, conveyor support structures, equipment bases |
| Infrastructure Developers | Foundation piling supports, portal frame structures for logistics hubs |
When Flange Thickness Tolerance Decides Whether a Container Gets Rejected
A ±1% tolerance on a 64mm flange sounds tight on paper — but on a 20-ton structural frame order, even minor deviations compound into rejection at third-party inspection.
I have seen entire shipments of ASTM A572 Grade 50 H-beams turned away at the destination port because the flange thickness fell below the minimum specified in the purchase order, even though the mill test certificate looked clean. The problem is not always the mill — it is that fragmented suppliers ship mixed batches with inconsistent rolling passes, and buyers only discover the gap when a surveyor measures every piece on the dock. For an ASTM A572 Grade 50 H-Beam supplier running dedicated production lines, controlling tolerance from the first heat to the last bundle is what separates a delivery that clears inspection from one that sits in a yard for weeks. [NEED_CITE: dimensional tolerance requirements for hot rolled structural sections per ASTM A6]
Matching Beam Dimensions to Structural Load Paths
An ASTM A572 Grade 50 H-Beam with a web width of 900mm and flange thickness up to 64mm covers the heavy-load range that EPC contractors specify for warehouse portal frames and bridge girders. The wide dimension range — from 100×100 light columns to 1000×300 main beams — means a single procurement order can cover an entire bill of materials without splitting across multiple vendors. Our in-house physical and chemical laboratory tests every heat against the ASTM A572 standard before release, so the mill test certificate you receive matches the steel that arrives on site.
Structural Code Compliance and Surface Protection for Field Conditions
Hot rolled ASTM A572 Grade 50 H-beams conform to ASTM A572 for North American projects and can be cross-referenced to EN 10025 S355JR for European specifications, simplifying multi-region procurement for international EPC contractors. For projects in coastal or industrial corrosion environments, hot dip galvanized H-beams provide long-term protection without field painting — a choice that affects both unit cost and installation timeline. Each batch carries a heat-number traceable mill test certificate, and third-party inspection by SGS or BV can be arranged before loading to satisfy project owner requirements. [NEED_CITE: steel grade equivalence between ASTM A572 and EN 10025 standards]
How Hot Rolling and Grade Selection Shape Structural Performance
ASTM A572 Grade 50 is a high-strength low-alloy columbium-vanadium steel that delivers higher yield strength than standard carbon grades like A36 or Q235B, allowing engineers to reduce section weight while maintaining load capacity. The hot rolling process produces a uniform grain structure across the full flange and web thickness, which matters when flange thickness reaches 64mm — uneven cooling in poorly controlled mills creates internal stress zones that show up only during welding or cutting on site. Our three dedicated production lines cover flange thickness from 8mm to 64mm and web width from 100mm to 900mm, with custom non-standard sizes available for projects that fall outside published catalogs. For corrosion-prone environments, hot dip galvanizing adds a zinc coating that bonds metallurgically to the steel surface, outperforming paint systems in long-term exposure without maintenance.
The Real Cost of Buying H-Beams Without Verified Mill Certificates
A mill test certificate that lists ASTM A572 Grade 50 chemistry but comes from a trader rather than the producing mill is a customs and compliance risk — EU importers need CE documentation under EN 10025, and North American projects require traceability to the original heat number. When material does not match the certified grade, the consequences are not just a price adjustment: structural engineers cannot sign off on load calculations, customs authorities can hold the shipment, and project timelines slip while replacement steel is sourced. An ASTM A572 Grade 50 H-Beam supplier that controls production from melting to final inspection eliminates the gap between what the certificate says and what the surveyor measures. [NEED_CITE: CE marking requirements for structural steel under EN 1090]
Procurement Confidence Built on Production Control and Certification
As a national high-tech enterprise that participated in drafting China’s cold-formed steel industry standards, we operate three dedicated production lines with in-house physical and chemical laboratories for real-time quality control on every ASTM A572 Grade 50 H-Beam order. Our factory-direct model means no trading markup and no middleman between your specification and the rolling mill — you deal with the same technical team that monitors tolerance and chemistry on the floor. We hold CE certification under EN 10210/10219, ISO 9001:2015, and Singapore FPC, with SGS and BV verification available for third-party validation. Custom non-standard sizes, cut-to-length processing, and professional container loading plans are handled in-house, reducing the coordination burden on global EPC contractors who need a single source for pipes, plates, beams, and fabrication across 50+ export markets.
Documentation & Compliance
- Mill test certificate documenting ASTM A572 Grade 50 chemical composition and mechanical properties per heat number, issued from our in-house laboratory
- CE certificate under EN 10025 for structural steel products entering EU markets, with Declaration of Performance included
- ISO 9001:2015 quality management certificate covering the full production process from raw material incoming inspection to final dimensional check
- SGS or BV third-party inspection report available upon request, covering dimensional tolerance, surface quality, and material verification
- Material traceability by heat number stamped on each H-beam, matching the mill test certificate and packing list
- Full customs documentation package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery
- Hot rolled ASTM A572 Grade 50 H-beams bundled with steel strips and edge protectors to prevent surface damage during ocean transit, with seaworthy packaging for galvanized finishes to preserve zinc coating integrity
- Custom cut-to-length service available for H-beams ordered in specific lengths, reducing on-site cutting waste and welding time for EPC contractors
- Container loading plans optimized by our logistics team based on H-beam dimensions — web width up to 900mm and flange thickness up to 64mm are factored into weight distribution and stacking for 20ft and 40ft containers
- Heat number and steel grade markings clearly stamped on each piece for site identification and traceability verification during installation
- Delivery terms include FOB, EXW, CIF, and CFR with door-to-door logistics coordination to ports across EU, North America, Southeast Asia, Middle East, and 50+ countries
Start Your ASTM A572 Grade 50 H-Beam Inquiry
Submit your specification sheet — including section size, steel grade, surface treatment, quantity, and destination port — and our technical team responds within 12 hours with a detailed quotation, production lead time, and applicable certification documents. For non-standard dimensions or project-specific processing requirements, we provide custom engineering review before quotation.
Request a Quote with Mill Test Certificate
Send your ASTM A572 Grade 50 H-Beam specifications to admin@sdxjysteel.com or contact us via WhatsApp at +86 188 5315 7756 to receive pricing, certification documents, and container loading confirmation.
Frequently Asked Questions
Q: How does ASTM A572 Grade 50 compare to EN S355JR and GB Q355B in terms of grade equivalence?
A: ASTM A572 Grade 50, EN S355JR, and GB Q355B are all high-strength low-alloy structural steels with similar yield strength levels, though exact chemical composition and testing requirements differ by standard. We supply all three grades from the same production lines and can provide cross-reference documentation for multi-standard projects.
Q: Can you produce ASTM A572 Grade 50 H-beams in non-standard dimensions outside published catalogs?
A: Yes. With three dedicated production lines covering over 2,800 specifications, we manufacture custom non-standard H-beam sizes based on project drawings. MOQ and lead time depend on the specific dimension and quantity requested.
Q: What documentation is provided to verify material grade and ensure customs clearance?
A: Every shipment includes an original mill test certificate with chemical composition and mechanical properties traceable by heat number. For EU markets, CE certification under EN 10025 is provided. Third-party inspection reports from SGS or BV are available upon request.
Q: What is the difference between hot rolled and hot dip galvanized ASTM A572 Grade 50 H-beams in terms of application?
A: Hot rolled H-beams are suitable for indoor or protected structural applications where painting or coating will be applied on site. Hot dip galvanized H-beams are specified for outdoor, coastal, or industrial corrosion environments where long-term zinc protection is required without field maintenance.
Q: How do you ensure dimensional tolerance on thick-flange H-beams?
A: Our in-house physical and chemical laboratory conducts incoming, in-process, and final inspections on every production batch. Dimensional tolerance is maintained at ±1%, and full inspection reports are provided before shipment. Third-party re-inspection by SGS or BV can be arranged at the factory prior to loading.
