Description
Factory-Direct H-Beam Supply — Hot rolled Q235 and S235JR sections produced in-house with full mill test traceability, shipped without trading markup.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 H-Beam |
| Product Type | H-beam |
| Steel Grade | Q235, S235JR, S275JR, SS400, A36 |
| Standard | GB, JIS G3192 |
| Section Shape | H / I (wide flange) |
| Flange Width | 50–300 mm |
| Flange Thickness | 5–30 mm |
| Web Width | 100–800 mm |
| Web Thickness | 5–25 mm |
| Length | 6–19 m |
| Technique | Hot Rolled |
| Surface Treatment | Natural surface; optional hot-dip galvanizing or spray coating |
| Tolerance | ±1% |
| Model Series | HW / HM / HN / HT |
| Processing Service | Bending, Cutting |
| Application | Steel structure frames, construction works, industrial platforms |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Portal frames for warehouses, industrial plant columns, mezzanine beams |
| Construction Companies | High-rise building core columns, bridge pier supports, concrete formwork joists |
| System Integrators | Conveyor gantry legs, automation line support frames, equipment skid bases |
| Commercial Builders | Multi-story retail structure grids, parking garage beam-and-column systems |
Why Grade Equivalence Between Q235, S235JR and A36 Still Triggers Customs Queries
A mill certificate that names the wrong standard code can hold an entire container at the destination port.
I have watched shipments of hot rolled H-beam get flagged because the MTC referenced GB/T 706 while the project spec demanded EN 10210 notation — the chemistry was identical, but the paperwork did not speak the inspector’s language. When you source a Q235 S235JR hot rolled H-beam steel supplier, the steel itself may meet both Chinese and European grade tables, yet the certification format decides whether customs releases the cargo or sends it back for re-documentation [NEED_CITE: steel grade equivalence mapping between GB, EN and ASTM systems].
Fragmented sourcing makes this worse: buying beams from one yard and plates from another means mismatched heat numbers, inconsistent surface conditions, and a documentation pile that no single forwarder will stamp. A single certified mill eliminates that gap.
Matching Section Series to Load Paths in Structural Frames
HW series sections carry the highest moment of inertia per metre and sit naturally in column positions where axial compression dominates. HM profiles balance flange width and web depth for beam spans in warehouse portals, while HN sections — with their narrower flanges — slot into secondary framing and mezzanine grids where clearance matters. The HT series, with thicker webs, handles concentrated point loads from crane rails or heavy equipment bases. When specifying a Q235 S235JR hot rolled H-beam steel supplier for an EPC warehouse project, matching the series to the load path avoids over-ordering tonnage and keeps connection details clean.
Engineering Compliance, Surface Choice and Certification Pathways
Hot rolled H-beams used in primary structures must satisfy deflection limits and buckling checks under EN 1993 or the local equivalent code; the ±1% dimensional tolerance on these sections keeps fabrication fit-up within acceptable weld root gaps [NEED_CITE: EN 1993 structural steel design tolerance requirements]. For coastal or chemical-plant environments, the natural mill scale left after hot rolling offers limited protection — specifying hot-dip galvanizing extends salt-spray resistance significantly, while spray coating provides a mid-cost option for indoor industrial frames. CE marking under EN 10210 / EN 10219 is mandatory for EU-bound structural steel, and project owners increasingly ask for third-party SGS or BV inspection before the container is sealed. On-site, fixed-length delivery of 6–19 m reduces cutting waste, while in-house bending and cutting services let fabricators receive near-net-shape pieces rather than raw stock.
Reading the Grade Table: Q235, S235JR, S275JR, SS400 and A36
These five designations span three national systems but overlap heavily in chemistry and yield behaviour. Q235 (GB) and A36 (ASTM) sit at the lower yield tier and suit general construction framing; S235JR (EN 10025-2) is the European counterpart with guaranteed 20 °C Charpy impact energy; S275JR steps up the yield floor for heavier spans; SS400 (JIS G3101) is the Japanese general-structural grade widely accepted across Southeast Asian projects. The “JR” suffix indicates room-temperature impact testing — a detail that matters when the same section moves from a Dubai warehouse to a Scandinavian bridge site. Hot rolling aligns the grain flow along the length, giving consistent bending performance, while the optional galvanizing layer adds corrosion resistance without altering the section modulus. Tolerance of ±1% on flange and web thickness means the actual weight per metre stays close to the theoretical value in the JIS G3192 or GB/T 11263 tables — a point that matters when tonnage-based pricing meets theoretical-weight billing.
The Hidden Cost of Accepting Sub-Tolerance or Unverified Grade
When a buyer accepts H-beams priced on theoretical weight but delivered at the negative edge of tolerance, the structure may still pass visual inspection — until the engineer recalculates deflection and finds the section modulus is below the design value. Material substitution without updated MTCs creates a worse problem: a beam stamped S235JR but actually rolled from off-grade billet can fail impact testing at the temperatures specified in the contract, forcing costly replacement after erection has begun [NEED_CITE: consequences of sub-standard structural steel in construction projects]. Certification gaps compound the risk: without CE documentation, EU customs can reject the shipment; without heat-number traceability, the project auditor cannot close the quality file.
Why Procurement Teams Return for Repeat Orders
Every H-beam leaving this mill passes through an in-house physical and chemical laboratory — tensile, impact, and spectrographic analysis are recorded per heat number and printed on the MTC that travels with the cargo. The factory holds 41 invention patents and produces across 2,800+ specifications, meaning a single purchase order can combine HW columns, HM beams and HN purlins without splitting the enquiry across three vendors. CE certification under EN 10210 / EN 10219, ISO 9001:2015 registration, and SGS / BV third-party inspection availability remove the certification guesswork for EU, Middle East and Southeast Asian destinations. Custom non-standard lengths, in-house bending and cutting, and professional container loading plans — developed after years of watching beams shift during ocean transit — keep the cargo intact from Jinan to the job site. Exports now reach 50+ countries, and the logistics team coordinates FOB, CIF and DDP terms with real-time vessel tracking.
Documentation & Compliance
- Mill Test Certificate documenting Q235 / S235JR chemical composition and mechanical properties per GB/T 706 or EN 10025-2, indexed by heat number
- CE certificate confirming compliance with EN 10210 / EN 10219 for structural steel sections destined for EU member states
- ISO 9001:2015 quality management certificate covering the full hot rolling and inspection process
- SGS or BV third-party inspection report available upon request, covering dimensional checks and surface condition before container sealing
- Material traceability sheet linking each bundle to its heat number, chemical analysis and mechanical test results
- Customs document package including packing list, ocean Bill of Lading, and certificate of origin for preferential tariff claims
Packaging, Loading & Delivery

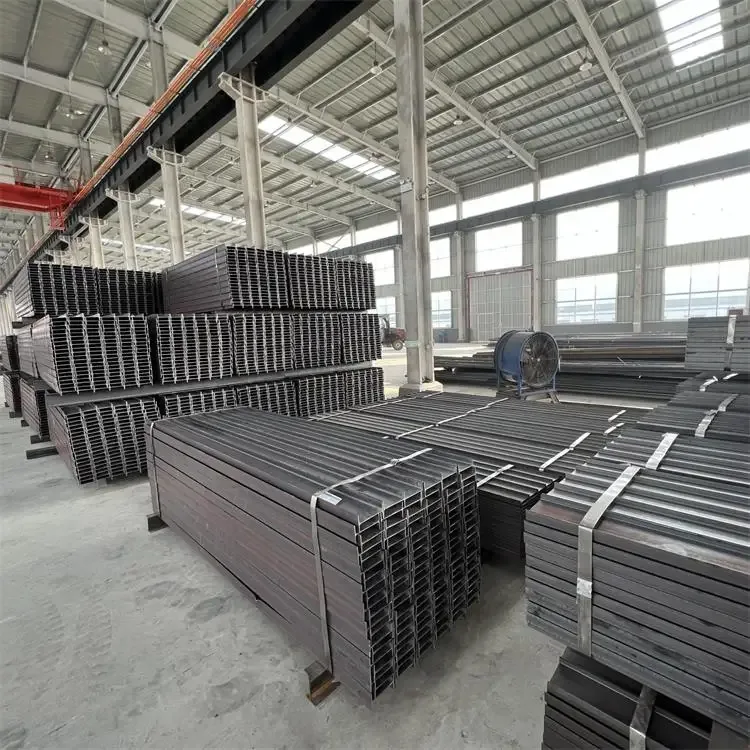

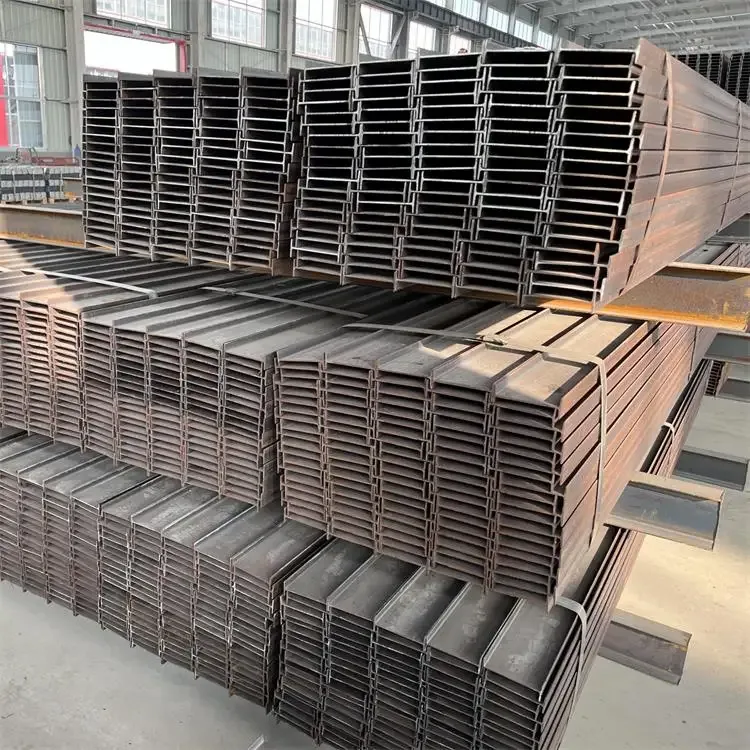

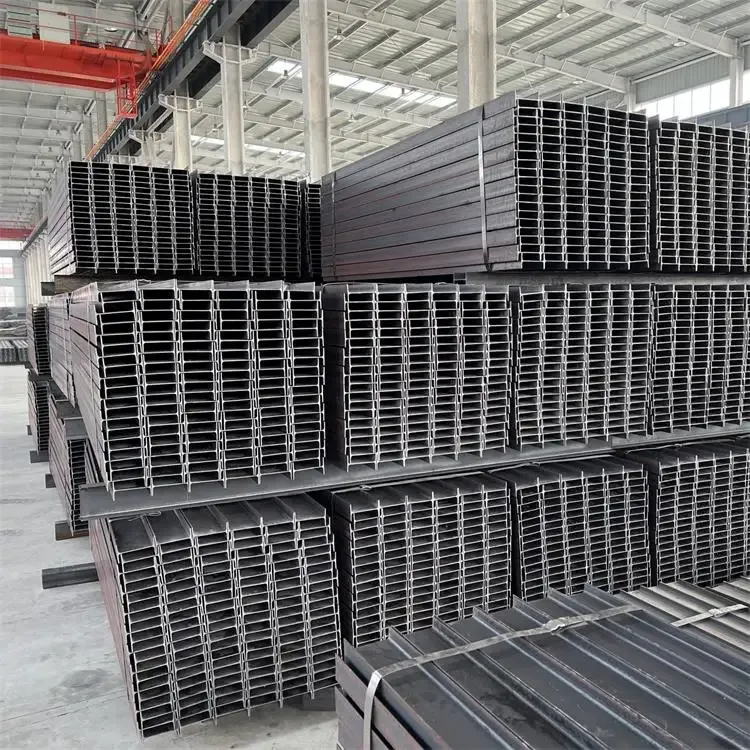

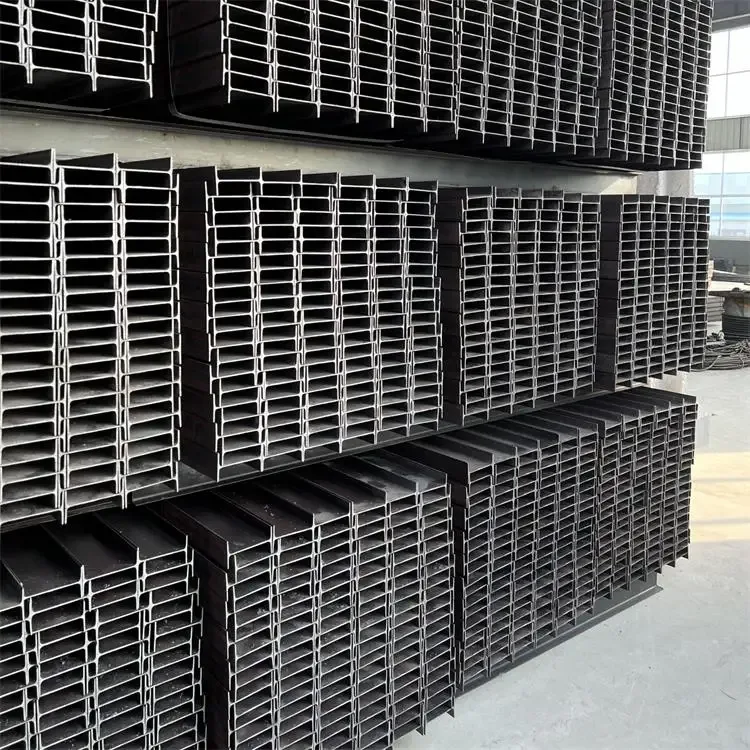

- H-beams bundled with high-tensile steel strips at four to six points along the length, with timber or rubber edge protectors preventing flange damage during handling
- Hot-dip galvanized sections wrapped in waterproof PE sheeting to preserve the zinc coating from condensation and salt spray during ocean transit
- Container loading plans optimized for 6 m, 9 m and 12 m lengths, with weight distributed to keep the centre of gravity below mid-height and prevent flange buckling under braking forces
- Custom cut-to-length service available within the 6–19 m range, with cut ends deburred and marked with heat number, steel grade and purchase order reference
- FOB Jinan / Qingdao, CIF destination port, or DDP door-to-door terms coordinated with forwarders experienced in heavy-structure cargo
Starting Your Procurement Enquiry
Send the section series (HW / HM / HN / HT), steel grade, quantity in tonnes or metres, total length, and destination port — the engineering team returns a detailed quotation including unit price, production lead time, applicable certification, and loading plan within hours. Non-standard dimensions, bending radii, and cutting lists are reviewed alongside the standard catalogue to find the most material-efficient solution. Certification requirements (CE, SGS, BV) and surface treatment preferences are confirmed before the proforma invoice is issued, so there are no surprises at customs or on site.
Frequently Asked Questions
Q: Can Q235 H-beams be used as a direct substitute for S235JR on European projects?
A: The chemical composition and yield strength of Q235 and S235JR are closely aligned, and many EU engineers accept Q235 when supported by a mill test certificate showing equivalent results. However, the CE marking and EN 10210 / EN 10219 documentation are what satisfy customs and project auditors — the steel grade alone is not enough.
Q: What is the minimum order quantity for custom-cut H-beam lengths?
A: Standard stock lengths run from 6 m to 19 m. Custom cutting is available within this range, and the minimum order depends on the section series and total tonnage — the sales team confirms the exact MOQ after reviewing the cutting list.
Q: Is hot-dip galvanizing available for all HW, HM and HN series?
A: Yes. Hot-dip galvanizing can be applied to any section in the HW, HM, HN and HT series, with the zinc coating thickness adjusted to match the exposure environment — standard industrial atmospheres receive a lighter coat, while coastal or chemical-plant installations specify a heavier build.
Q: How do you ensure the H-beams arrive without flange deformation?
A: Each container is loaded according to a engineered plan that distributes weight symmetrically, uses timber dunnage at bearing points, and secures the bundles with steel wire lashings rated for ocean transit. The loading supervisor inspects every container before the doors are sealed.
Q: Can third-party inspection be arranged before shipment?
A: SGS and BV inspections are coordinated on request. The inspector verifies dimensions, surface condition, marking, and documentation against the purchase order, and the report is issued before the container leaves the mill yard.
Secure Your H-Beam Supply with Verified Certification
Submit your section list, steel grade, and destination port to receive a quotation backed by mill test certificates and CE documentation — no intermediaries, no documentation gaps.
