Description
Factory-Direct Pricing, No Broker Markup — Every Q235 and Q345 galvanized square and rectangular steel tube rolls off our own production lines, eliminating middleman margins before the first container is booked.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 / Q345 Galvanized Square & Rectangular Steel Tube |
| Product Type | Galvanized Square / Rectangular Steel Tube |
| Steel Grade | Q195, Q215, Q235, Q345, GR.A, GR.B, S235, S355 |
| Standard | ASTM A213, DIN EN 10217-1, EN 10219, EN 10210 |
| Section Shape | Square / Rectangular |
| Size Range | Customized size as drawing (80mm × 80mm available) |
| Wall Thickness | 0.8 – 30 mm |
| Length | 100mm / 500mm / 1000mm / 2000mm / 4000mm / 5800mm / 11800mm (customizable) |
| Technique | Welded (from galvanized steel sheet/coil/strap) |
| Surface Treatment | Pre-galvanized / Hot-dip galvanized / Bare / Oiled |
| Tolerance | ±1% |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Invoicing | By theoretical weight |
| Packing | Standard seaworthy packing |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Structural frames, steel posts, warehouse and building construction |
| Infrastructure & Fencing | Steel fences, posts, and support structures for industrial and civil projects |
| Machinery & Equipment | Custom profiles and precision-cut tubes for system integrators and equipment builders |
Where Zinc Coating Thickness Decides Site Acceptance or Rejection
A 20μm gap between contract spec and actual galvanization can trigger full-container rejection at the destination port.
I watched an entire shipment of 80×80×3mm galvanized square tubes get refused at a Vietnamese construction site because the zinc layer measured 40μm against a contracted 60μm. The third-party inspector on-site pulled out his coating thickness gauge, and that was the end of it. Since then, galvanization thickness, wall tolerance, and mill test certificates have become the three checkpoints I verify before any container doors close. For a Galvanized square and rectangular steel tube supplier, this is not a theoretical risk — it is a recurring procurement failure across Southeast Asia, the Middle East, and Africa [NEED_CITE: hot-dip galvanizing coating thickness standards ASTM A123].
Matching Load-Bearing Demands Across Structural and Fencing Applications
When EPC contractors specify Q235 or Q345 grades for warehouse frames and steel posts, the galvanized square and rectangular steel tube must deliver consistent section modulus under sustained load while resisting corrosion in outdoor or marine-adjacent environments. Our welded production lines cover wall thicknesses from 0.8mm to 30mm, meaning the same supplier can furnish light-duty fence posts at 1.2mm and heavy structural columns at 20mm without splitting the order across multiple vendors. The proprietary sharp-corner rectangular tube technology ensures tight joint fit-up during welding, reducing on-site rework for system integrators building conveyor frames and industrial structures.
Engineering Compliance and Certification Requirements
Structural steel procurement for EU-bound projects demands CE certification under EN 10219 for welded hollow sections, and customs authorities routinely hold containers lacking proper documentation [NEED_CITE: EN 10219 cold-formed structural hollow sections compliance requirements]. For North American infrastructure, ASTM equivalence must be clearly stated on the mill test certificate. Our in-house physical and chemical laboratory tests every heat before release, and third-party inspection by SGS or BV is available before loading — ensuring that Q345 tubes arrive with traceable chemistry and mechanical data that satisfy both project engineers and port authorities.
Steel Grade Selection and Galvanization Process Explained
The Q-series grades (Q195 through Q345) follow the Chinese GB standard system, where the number indicates minimum yield strength in MPa. For projects specifying European or American standards, S235 and S355 map to the EN system, while GR.A and GR.B align with ASTM and shipbuilding classification requirements [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series]. On the galvanization side, pre-galvanized tubes use zinc-coated strip as the raw material, offering uniform coating at lower cost for indoor or sheltered applications. Hot-dip galvanizing immerses the finished welded tube in molten zinc, producing a thicker metallurgically bonded layer suited for outdoor exposure, coastal environments, and buried structural posts. Wall thickness tolerance of ±1% ensures that theoretical weight invoicing matches actual delivered mass within acceptable engineering margins.
Hidden Costs of Procuring Without Verified Certification
Ordering galvanized square and rectangular steel tube from unverified suppliers often surfaces as project-level failures: customs detention due to missing CE or EN 10219 certificates, structural rejection when mill test certificates cannot trace back to heat numbers, and rework delays when wall thickness falls outside tolerance under negative偏差. A Galvanized square and rectangular steel tube supplier without in-house lab capability cannot guarantee coating uniformity across long production runs, leaving the buyer exposed to field rejection and schedule overrun [NEED_CITE: consequences of non-compliant steel imports in international construction projects].
Why Global Buyers Source Galvanized Tubes From Our Factory
Our three dedicated production lines cover over 2,800 specifications in square, rectangular, and round profiles, with wall thickness reaching 40mm — eliminating the need to coordinate multiple vendors for pipes, plates, and sections. The proprietary sharp-corner rectangular tube technology, backed by 41 invention patents, fills a gap that standard roll-forming cannot achieve, delivering tight-radius corners for architectural and structural applications. Every order passes through our in-house laboratory for real-time chemistry and mechanical testing, with full mill test certificates issued per shipment. CE certification under EN 10210 and EN 10219, ISO 9001:2015, Singapore FPC, and SGS/BV verification ensure customs clearance across EU, North America, and Southeast Asian ports. We export to over 50 countries with professional container loading optimization and door-to-door logistics coordination.
Documentation & Compliance
- Mill test certificate documenting Q235 and Q345 chemical composition and yield strength per EN 10219, traceable to individual heat numbers
- CE certificate covering EN 10210 for seamless and EN 10219 for welded hollow sections, required for EU project compliance and customs clearance
- ISO 9001:2015 quality management system certificate validating production process control and inspection protocols
- SGS or BV third-party inspection report available upon request, covering dimensional tolerance, zinc coating thickness, and surface quality before loading
- Material traceability documentation linking each bundle to heat number, steel grade, and production batch
- Full customs document package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery

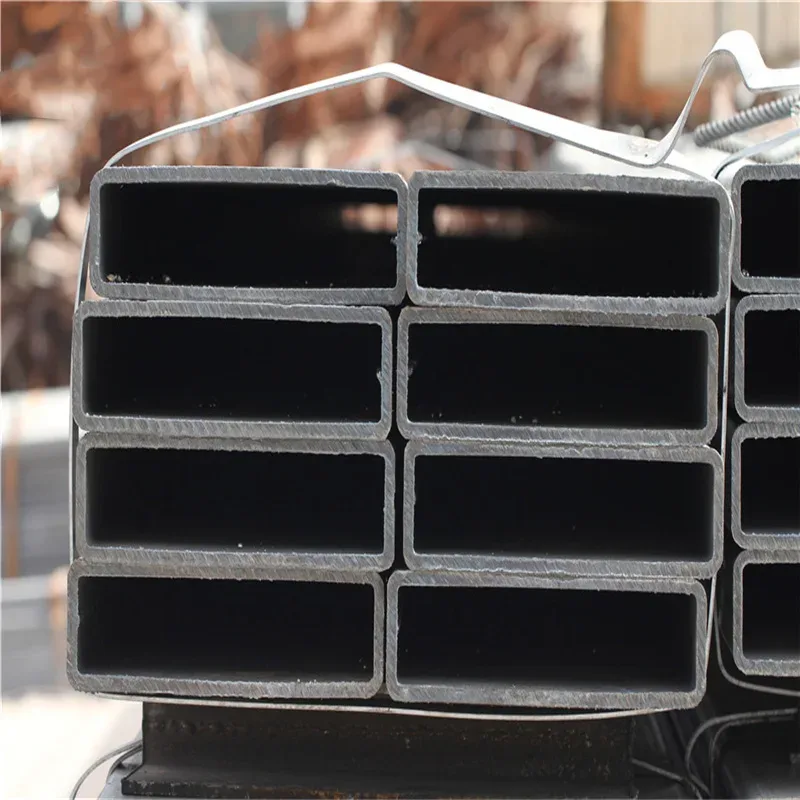

- Galvanized tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and prevent mechanical damage
- Hot-dip galvanized surfaces separated by rubber spacers within bundles to avoid contact marks and coating abrasion on 0.8–5mm wall thickness products
- Container loading optimized for 5800mm and 11800mm standard lengths, maximizing payload per 20ft and 40ft containers with professional lashing plans
- Custom cut-to-length service available for 100mm to 4000mm pieces, reducing on-site waste for fencing and machinery frame applications
- Heat number and steel grade stenciled on each bundle tag, with QR code linking to digital mill test certificate for site verification
- FOB, CIF, and DDP shipping terms supported, with door-to-door logistics coordination to over 50 countries including EU, North America, and Southeast Asia
Start Your Procurement With Verified Specifications
Submit your required steel grade, section dimensions, wall thickness, quantity, and destination port — our team responds within 12 hours with a detailed quotation including unit price, delivery timeline, payment terms, and applicable certification. Non-standard sizes and sharp-corner rectangular tube requirements are reviewed by our technical team for feasibility and lead time confirmation.
Request a Quote With Mill Test Certificate
Send your specifications via email or WhatsApp to receive pricing and quality documentation within 12 hours.
Email: admin@sdxjysteel.com
WhatsApp: +86 188 5315 7756
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square tubes for outdoor projects?
A: Hot-dip galvanized tubes undergo immersion in molten zinc after welding, producing a thicker metallurgically bonded coating suitable for outdoor, coastal, and buried applications. Pre-galvanized tubes are manufactured from zinc-coated strip, offering uniform but thinner protection ideal for indoor or sheltered environments at lower cost.
Q: Can you produce non-standard sizes and sharp-corner rectangular tubes?
A: Yes, our proprietary sharp-corner rectangular tube technology covers custom dimensions beyond standard catalogs, with a minimum order quantity of 10 tons. Technical drawings are reviewed for feasibility before quotation.
Q: How do Q235 and Q345 steel grades compare to European S235 and S355?
A: Q235 and S235 share similar yield strength levels under their respective GB and EN standard systems, as do Q345 and S355. Mill test certificates clearly state the applicable standard and chemical composition for customs and engineering compliance.
Q: What certifications do you provide for EU and international customs clearance?
A: We supply CE certification under EN 10210 and EN 10219, ISO 9001:2015, Singapore FPC, and mill test certificates per shipment. Third-party inspection by SGS or BV is available before loading for destination-specific requirements.
Q: How do you handle loading optimization for heavy steel tube shipments?
A: Our logistics team prepares professional loading plans based on tube length, wall thickness, and destination port, optimizing container payload for 20ft and 40ft units. FOB, CIF, and DDP terms are supported with real-time shipment tracking.
