Description

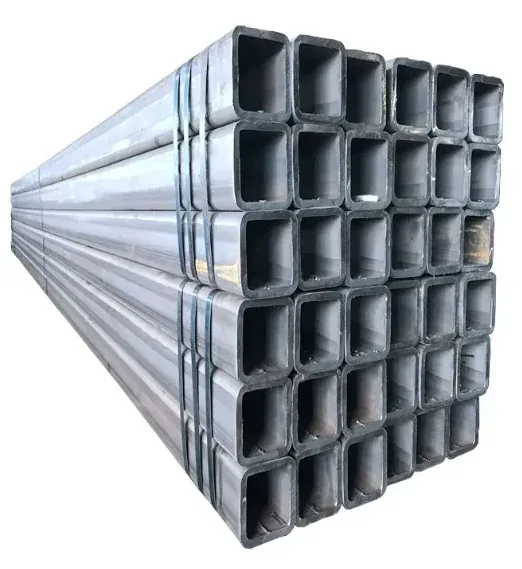

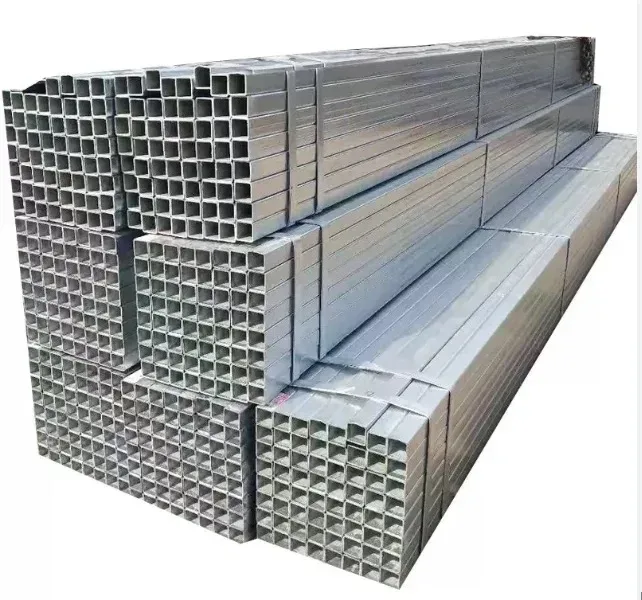

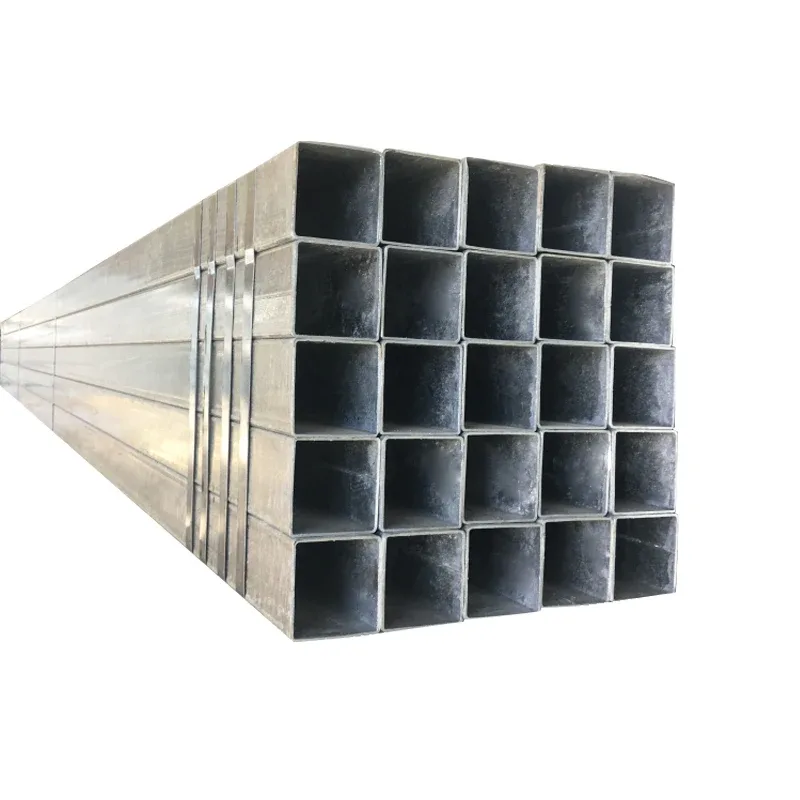

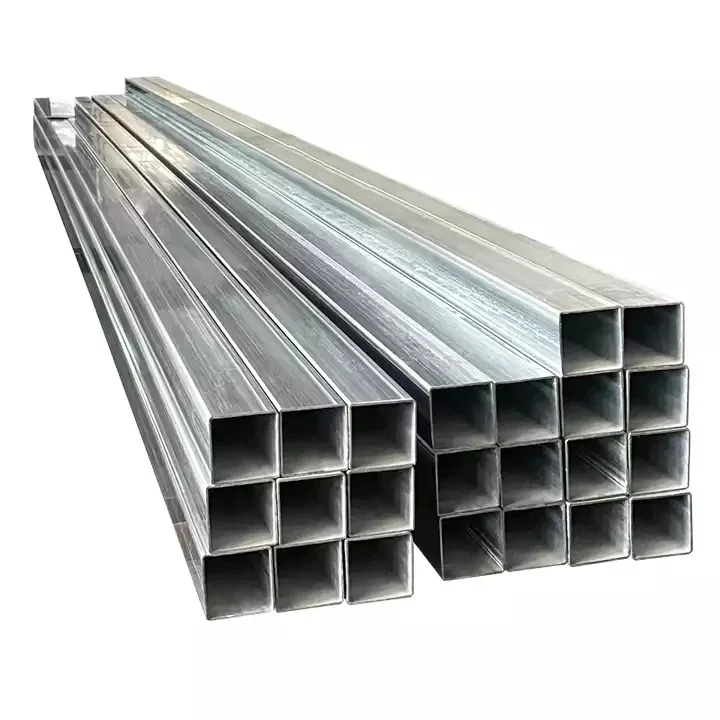

Factory-Direct ERW Galvanized Tubes — Shandong Xin Jiyuan Special Steel Tube Co., Ltd operates 3 dedicated ERW lines producing Q195–Q345 hot dipped galvanized square and rectangular steel tubes with in-house laboratory verification on every heat.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square / Rectangular Steel Tube |
| Product Type | Square / Rectangular / Round Steel Tube (Hot Dipped Galvanized) |
| Steel Grade | Q195, Q215, Q235, Q345, SS330, SS400, SS500, S235JR, S235JO, S235J2, ST52, SGCC, SGCD, SGCH, ASTM A792 |
| Standard | JIS, GB, DIN, BS, ASTM |
| Section Shape | Square / Rectangular / Round |
| Size Range | 0.6–28 mm wall thickness, 6 m / 6.4 m / 12 m length or customized |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot Dipped Galvanized / Pre-galvanized / Black |
| Tolerance | ±1% |
| Ends | Plain |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Steel structures, Construction, Greenhouse, Fluid transportation, Machinery parts, Automobile/tractor parts, Fencing, Scaffolding |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Building frames, scaffolding systems, fencing structures, structural columns |
| Agriculture & Greenhouse | Greenhouse skeleton frames, irrigation support structures, humid environment roofing |
| Machinery & Industrial Equipment | Conveyor system frames, automation equipment supports, tractor and automobile parts |
| Infrastructure & Civil Engineering | Bridge handrails, fluid transportation pipelines, industrial plant structures |
Where Galvanized Coating Thickness Decides Project Acceptance
Inconsistent zinc layer adhesion causes field rejection — every batch must pass lab verification before shipment.
Global buyers of hot dipped galvanized square and rectangular steel tubes face three persistent headaches: zinc coating thickness failing site抽检, non-standard sizes unavailable from standard catalogs, and fragmented sourcing across multiple suppliers increasing coordination risk. A greenhouse project in Southeast Asia once nearly rejected an entire container because galvanized coating thickness fell below specification — the supplier had skipped incoming inspection. [NEED_CITE: hot dipped galvanized coating thickness testing methods per ASTM A123] That is why Shandong Xin Jiyuan Special Steel Tube Co., Ltd runs every heat through its in-house physical and chemical laboratory, verifying zinc layer thickness and adhesion before release.
Matching ERW Galvanized Tubes to Structural and Corrosive Environments
Hot dipped galvanized square and rectangular steel tubes in Q195–Q345 grades deliver corrosion resistance suited for outdoor structural applications where humidity and weather exposure are constant factors. The zinc coating formed through hot dipping provides sacrificial protection that outperforms pre-galvanized alternatives in aggressive environments — critical for greenhouse frames, scaffolding, and fencing systems. ERW welding technique ensures dimensional accuracy with ±1% tolerance across wall thicknesses from 0.6 mm to 28 mm, meeting the precision requirements of machinery manufacturers and EPC contractors alike. With 2,800+ specifications available from a single source, procurement teams eliminate the coordination burden of sourcing pipes, plates, and beams from separate vendors.
Engineering Compliance and Certification Requirements
Structural hollow sections destined for European markets must conform to EN 10219 cold-formed welded structural hollow section requirements, while North American projects typically reference ASTM A500 or A53 standards. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerances] Hot dipped galvanized square and rectangular steel tubes produced to these standards carry CE marking under EN 10210/EN 10219, ensuring smooth customs clearance across EU member states. Steel grade selection directly impacts load-bearing capacity — Q345 offers higher yield strength than Q235 for structural frames, while S235JR through S235J2 provide progressively improved low-temperature impact properties for cold climate installations. Third-party inspection via SGS or BV validates mill test certificates, giving project owners independent quality assurance. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series]
Steel Grade Selection and ERW Welding Process
The Q-series (Q195, Q215, Q235, Q345) follows Chinese GB standards where the number indicates minimum yield strength in MPa — Q345 delivers substantially higher load capacity than Q195 for structural applications. European S-series grades (S235JR, S235JO, S235J2) and Japanese JIS grades (SS330, SS400, SS500) serve similar functions within their respective standard systems, allowing engineers to specify equivalent materials across international projects. ERW welding produces longitudinal seams through electric resistance heating without filler metal, resulting in consistent weld quality suitable for structural hollow sections up to 28 mm wall thickness. Hot dipped galvanizing immerses formed tubes in molten zinc, creating a metallurgical bond that provides superior corrosion protection compared to electro-galvanized or pre-galvanized alternatives — essential for greenhouse structures and outdoor fencing exposed to moisture.
Hidden Costs of Incorrect Material Specification
Specifying the wrong steel grade or accepting galvanized coating below minimum thickness creates downstream costs that far exceed initial purchase price differences. Material mismatch leads to engineering rejection during structural verification, while inadequate zinc coating accelerates corrosion in humid environments, triggering premature replacement and project delays. Missing or incomplete CE certification causes customs holds at EU ports, demurrage charges accumulating while documentation gaps are resolved. [NEED_CITE: consequences of non-compliant steel imports in EU construction projects] Negative tolerance abuse — where actual wall thickness falls below specified minimum — reduces load capacity and violates structural codes, exposing contractors to liability claims. Sourcing from suppliers without in-house laboratory capability means relying on paper certificates rather than verified test data, increasing the risk of receiving material that fails field inspection.
Why Procurement Teams Choose Shandong Xin Jiyuan
Three dedicated ERW production lines cover 2,800+ specifications with wall thicknesses reaching 28 mm, eliminating the need to coordinate multiple suppliers for different size ranges. In-house physical and chemical laboratories test every heat for chemical composition and mechanical properties, with original mill test certificates traceable to heat number provided with each shipment. Proprietary sharp-corner rectangular tube technology — holding 41 invention patents — fills market gaps where standard catalog sizes cannot meet architectural design requirements. Complete certification portfolio including ISO 9001:2015, Lloyd’s Register EU CE (EN 10210/EN 10219), Singapore FPC, and third-party verification through SGS and BV ensures compliance across 50+ export destinations. Professional loading optimization and door-to-door logistics coordination handle the complexity of heavy cargo shipping, with FOB, CIF, and DDP trade terms available based on project requirements.
Documentation & Compliance
- Mill test certificate documenting Q195–Q345 chemical composition and mechanical properties per GB standard, traceable to specific heat number
- CE certificate confirming compliance with EN 10210/EN 10219 for hot dipped galvanized structural hollow sections exported to European markets
- ISO 9001:2015 quality management system certificate covering ERW welding and hot dipped galvanizing processes
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerances upon client request
- Material traceability documentation linking each tube bundle to incoming raw material test reports and in-process quality records
- Complete customs document package including packing list, bill of lading, and certificate of origin for smooth import clearance
Packaging, Loading & Delivery

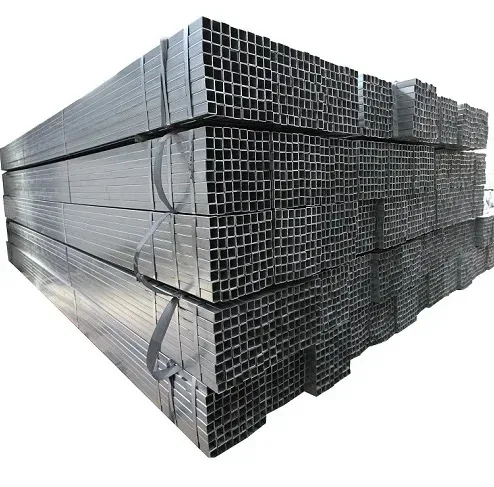

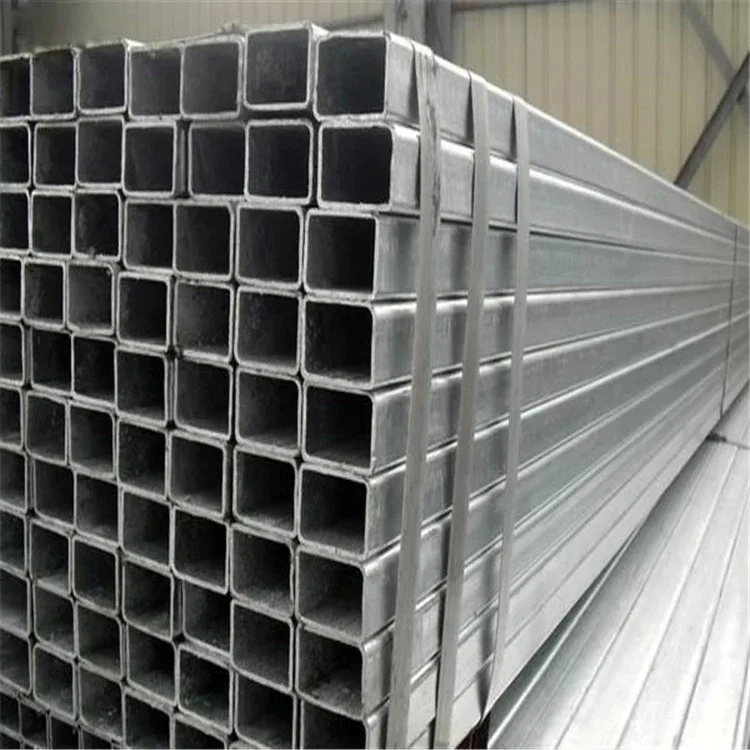

- Hot dipped galvanized tubes bundled with steel strips and edge protectors to preserve zinc coating integrity during ocean transit and handling
- Surface protection maintained through proper stacking separation and moisture barriers, preventing white rust formation on galvanized finish during storage and shipping
- Container loading optimized for 6 m / 6.4 m / 12 m lengths, maximizing payload while respecting weight distribution limits for 20ft and 40ft containers
- Custom cutting service available to produce non-standard lengths per project drawings, reducing on-site waste and secondary processing
- Heat number and steel grade marked on each tube bundle, enabling site identification and traceability verification during installation
- Flexible trade terms including FOB, CIF, and DDP with professional logistics coordination for door-to-door delivery to 50+ countries
Submit Specifications for Factory-Direct Quotation
Engineering procurement teams can initiate the quotation process by submitting detailed requirements including section shape, dimensions, wall thickness, steel grade, quantity, and destination port. Shandong Xin Jiyuan Special Steel Tube Co., Ltd responds within 12 hours with pricing, delivery timeline, payment terms, and applicable certification documentation. Non-standard size inquiries and custom processing requirements receive technical evaluation from the engineering team, with mill test certificate samples available for quality confirmation before contract signing.
Request Your Hot Dipped Galvanized Tube Quotation
Submit your specifications via email at admin@sdxjysteel.com or contact our international business team through WhatsApp at +86 188 5315 7756 to receive factory-direct pricing and complete technical documentation for your project.
Frequently Asked Questions
Q: How do Q235, S235JR, and SS400 compare across GB, EN, and JIS standards?
A: These grades represent equivalent material specifications across different standard systems — Q235 (Chinese GB), S235JR (European EN), and SS400 (Japanese JIS) all provide similar yield strength levels suitable for general structural applications. Shandong Xin Jiyuan produces hot dipped galvanized square and rectangular steel tubes to all three standards, allowing engineers to specify materials based on project location requirements while maintaining consistent mechanical properties.
Q: What is the zinc coating thickness for hot dipped versus pre-galvanized tubes?
A: Hot dipped galvanized tubes undergo immersion in molten zinc, creating a metallurgical bond with coating thickness typically exceeding pre-galvanized alternatives. The in-house laboratory tests every batch for coating weight and adhesion per applicable standards, ensuring corrosion resistance suitable for outdoor applications like greenhouse structures and fencing systems exposed to humid environments.
Q: Can you produce square and rectangular tubes outside standard catalog sizes?
A: Yes, with 2,800+ specifications available and proprietary sharp-corner rectangular tube technology holding 41 invention patents, non-standard sizes and custom profiles are produced regularly. The MOQ remains 1 Ton for custom orders, with technical evaluation provided to confirm feasibility based on section shape, wall thickness, and length requirements.
Q: Do your CE and EN 10210/10219 certificates ensure smooth customs clearance in the EU?
A: Lloyd’s Register EU CE certification under EN 10210/EN 10219 confirms compliance with European structural hollow section standards, providing the documentation required for customs clearance across EU member states. Complete document packages including mill test certificates, packing lists, and certificates of origin accompany each shipment to prevent delays at port.
Q: How do you optimize container loading for heavy steel tubes?
A: Professional loading plans maximize container payload while respecting weight distribution limits for 6 m, 6.4 m, and 12 m lengths. The logistics team coordinates with shipping lines for FOB, CIF, or DDP terms, providing real-time tracking and door-to-door delivery coordination to 50+ countries including EU, North America, Southeast Asia, and Middle East destinations.
