Description

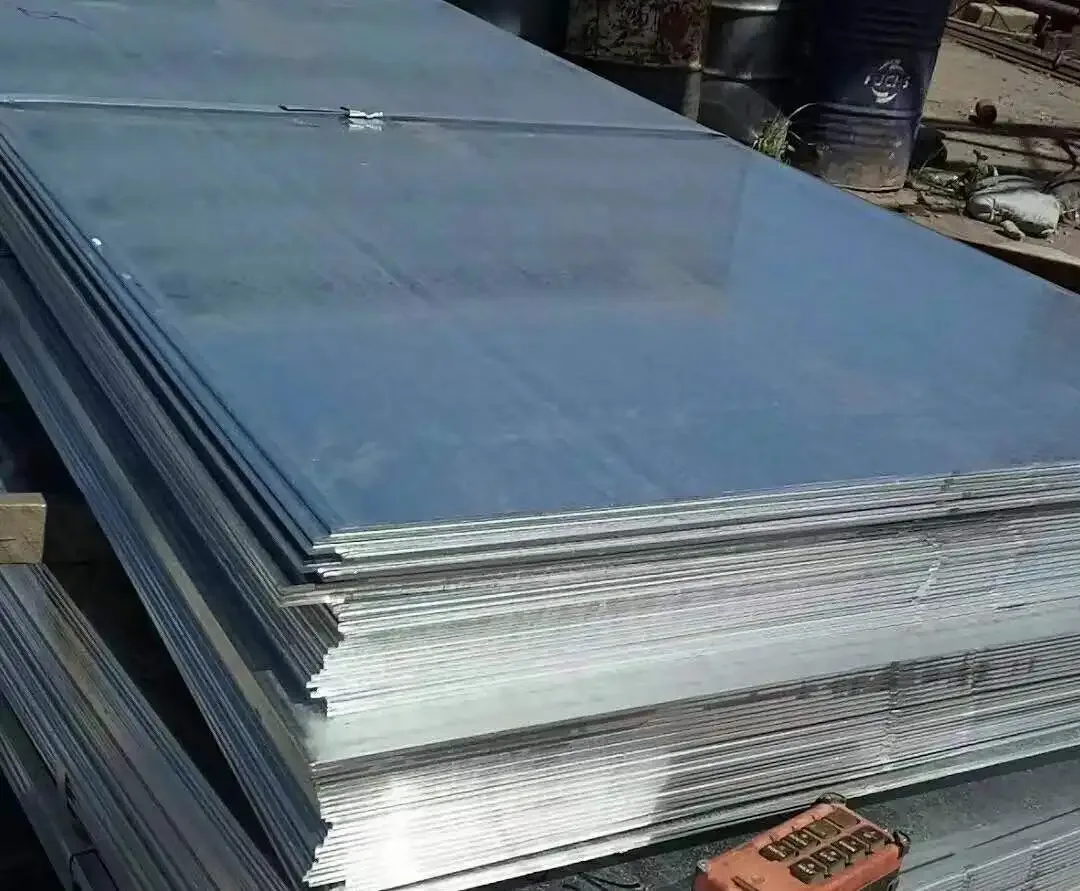

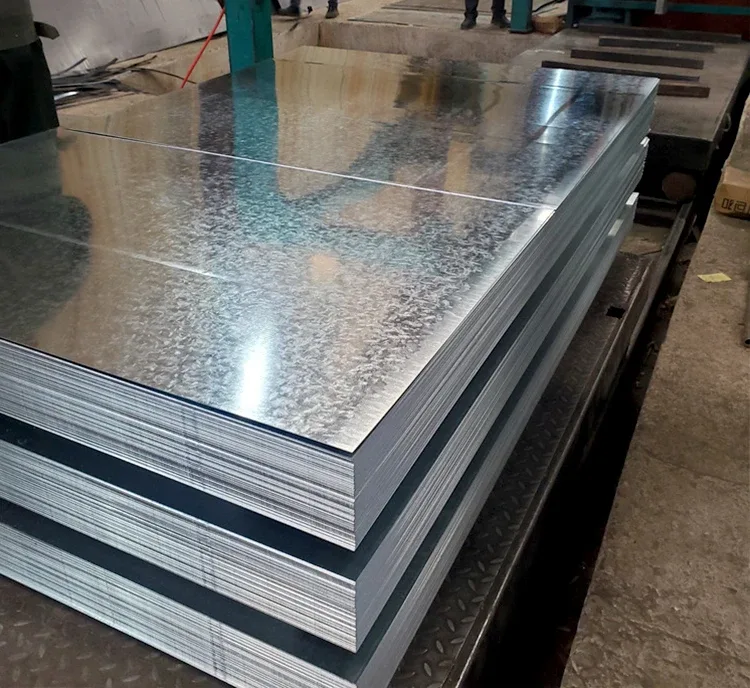

Factory-Direct Galvanized Steel Plate — In-house lab testing per batch with full mill test certificates
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SGHC/SGCC/DX51D/Q195 Galvanized Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | SGHC, SGCC, DX51D, Q195 |
| Standard | JIS G3302, ASTM A653M/A924M |
| Section Shape | Flat Plate |
| Thickness | 0.12mm–4.0mm |
| Length | 5.8m / 6m (customizable) |
| Technique | Hot Dipped Galvanized |
| Surface Treatment | Hot Dipped Galvanized |
| Coating Weight | 30–275g/m² (double side) |
| Spangle | Big spangle / Normal spangle / Small spangle / Non-spangle |
| Edge | Mill edge / Cut edge |
| Application | Fabrication / Construction / Roofing / Cladding / General structural use |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction | Roofing sheets, wall cladding panels, ceiling panels for industrial and commercial buildings |
| EPC Projects | Pre-fabricated steel structure enclosures, equipment shelters, modular site cabins |
| Machinery | Equipment housings, control box enclosures, conveyor covers with corrosion-resistant finish |
| Infrastructure | Sound barrier panels, drainage channel linings, utility enclosures |
Coating Weight Mismatch: The Silent Budget Killer on Galvanized Steel Plate Orders
Specifying 275g/m² but receiving 80g/m² means premature rust-through on a tropical roofing project.
Galvanized steel plate supplier factory direct sourcing often falls apart at the coating weight checkpoint. Suppliers quote one zinc layer thickness and ship another — no lab verification, no heat number traceability, just a stamp on the packing list. When the material reaches a coastal EPC site in Southeast Asia or a humid warehouse in Brazil, white rust appears within weeks. The replacement cost dwarfs the original savings from choosing the cheapest bid. [NEED_CITE: hot-dip galvanized coating weight classification per ASTM A653]
Matching Zinc Coating to Corrosion Environments
A 30g/m² coating suits indoor, dry environments where the galvanized steel plate serves as a temporary protective skin during fabrication and assembly. For outdoor roofing and cladding in tropical or coastal zones, 120–275g/m² becomes the minimum threshold — the zinc layer must withstand continuous humidity, salt spray, and UV exposure without breaking down. Our in-house physical and chemical laboratory tests every batch for coating weight uniformity before release, so the spec on the certificate matches what arrives at your port. This is how a Galvanized steel plate supplier factory direct operation should work: verify first, ship second.
Engineering Compliance and Surface Finish Requirements
Hot-dipped galvanized plates conforming to JIS G3302 and ASTM A653M cover the majority of construction and light structural applications across EU, North American, and Asian markets. The choice between big spangle and non-spangle finish is not cosmetic alone — non-spangle surfaces accept paint adhesion more reliably for pre-painted roofing systems, while big spangle remains the standard for exposed industrial cladding where appearance is secondary. Cut edge versus mill edge selection affects fabrication waste and on-site cutting behavior. For projects requiring CE documentation or third-party inspection, the Galvanized steel plate supplier factory direct must provide traceable certificates tied to specific heat numbers — not generic templates. [NEED_CITE: JIS G3302 hot-dip galvanized steel sheet requirements]
Steel Grade Selection: SGCC vs DX51D vs Q195
SGCC and DX51D are essentially equivalent commercial-quality grades under JIS and ASTM systems respectively — both suit general forming, roll-forming for roofing, and light structural fabrication where extreme deep drawing is not required. Q195, a Chinese standard grade, offers comparable formability with slightly different chemical composition boundaries, widely accepted across Southeast Asian and Middle Eastern markets. SGHC serves as the hard-quality variant for applications requiring higher tensile strength with minimal forming. The hot-dip galvanizing process bonds the zinc coating metallurgically to the steel substrate, creating a layered structure where the outer pure zinc layer provides sacrificial protection while the inner zinc-iron alloy layers deliver mechanical abrasion resistance. Coating weight from 30g/m² to 275g/m² allows precise matching to the corrosion environment — specifying correctly at inquiry stage prevents costly over- or under-specification.
The Hidden Cost of Unverified Galvanized Steel Plate Procurement
Ordering galvanized steel plate without independent coating weight verification creates a chain of hidden expenses. Material that fails to meet the specified zinc thickness gets rejected at project inspection, triggering re-procurement and schedule delays. Missing or mismatched mill test certificates cause customs holds — we have seen shipments detained for weeks because the certificate listed the wrong grade designation. Edge quality issues from improper slitting lead to coating peeling during roll-forming, generating scrap that the buyer absorbs. A Galvanized steel plate supplier factory direct with in-house testing eliminates these variables at source rather than leaving discovery to the destination port. [NEED_CITE: consequences of non-conforming galvanized coating in construction applications]
Procurement Confidence from a Verified Source
Every Galvanized steel plate we produce runs through our own physical and chemical laboratory — coating weight, adhesion test, and chemical composition are verified before any material leaves the floor. We hold ISO 9001:2015 certification and CE marking under EN 10210/10219, with SGS and BV third-party inspection available per shipment. Our production lines cover 2,800+ specifications across the full product range, meaning you source roofing gauge through medium plate from a single point rather than coordinating multiple vendors. As a factory-direct operation, there is no trading margin layered into the price — what you see in the quotation is what the mill produces. We have exported to over 50 countries including EU, North America, India, Southeast Asia, and the Middle East, with professional loading plans that maximize container utilization for flat plate shipments.
Documentation & Compliance
- Mill Test Certificate documenting SGCC/DX51D/Q195 chemical composition, coating weight, and mechanical properties per JIS G3302 or ASTM A653M
- CE certificate under EN 10210/10219 for projects requiring European market compliance on galvanized flat products
- ISO 9001:2015 quality management system certificate covering the full hot-dip galvanizing production process
- SGS or BV third-party inspection report verifying coating weight, surface quality, and dimensional tolerance before shipment
- Full material traceability by heat number linking each plate to its production batch and laboratory test results
- Customs documentation package including packing list, Bill of Lading, and Certificate of Origin for smooth port clearance
Packaging, Loading & Delivery
- Galvanized steel plates bundled with steel strips and edge protectors to preserve the zinc coating from friction damage during ocean transit
- Interleaved with moisture-resistant paper and wrapped in waterproof film to prevent white rust formation caused by condensation inside containers
- Container loading plans optimized for 5.8m and 6m plate lengths to maximize payload per 20ft or 40ft container, reducing per-ton freight cost
- Custom cut-to-length available per project drawing, with cut edges deburred and recoated to maintain corrosion protection at trimmed boundaries
- Each bundle marked with heat number, steel grade (SGCC/DX51D/Q195), thickness, and coating weight for immediate site identification
- Shipping terms available as FOB, CIF, or DDP with professional coordination for heavy flat-product cargo to 50+ countries
Start Your Galvanized Steel Plate Inquiry
Submit your required thickness, coating weight, steel grade, quantity, and destination port — we respond within 12 hours with a detailed quotation including unit price, production lead time, and applicable certification options. For non-standard thickness or custom coating weight requirements, our engineering team provides feasibility confirmation and lead time assessment. All inquiries include the option to request original mill test certificates and third-party inspection reports before contract signing.
Frequently Asked Questions
Q: What is the difference between SGCC, DX51D, and Q195 grades for galvanized plates?
A: SGCC (JIS G3302) and DX51D (ASTM A653M) are equivalent commercial-quality grades suited for general forming and roofing applications. Q195 is a Chinese standard grade with comparable formability, widely accepted in Southeast Asian and Middle Eastern markets. All three are suitable for hot-dip galvanizing with coating weights from 30–275g/m².
Q: Can you provide third-party inspection reports before shipment?
A: Yes. SGS and BV third-party inspections are available for every shipment. The inspection covers coating weight verification, surface quality assessment, dimensional measurement, and chemical composition validation against the mill test certificate.
Q: What coating weight options are available for different corrosion environments?
A: We offer 30–275g/m² double-side coating. For indoor or temporary applications, 30–60g/m² is sufficient. For outdoor roofing and cladding in moderate environments, 100–180g/m² is standard. For coastal or heavy industrial atmospheres, 200–275g/m² provides maximum corrosion resistance.
Q: How do you ensure coating adhesion and uniformity during hot-dip galvanizing?
A: Our in-house physical and chemical laboratory conducts adhesion testing and coating weight measurement on every production batch. The hot-dip process creates a metallurgical bond between zinc and steel substrate, and our process controls ensure consistent coating thickness across the full plate width and length.
Q: What are your standard packing methods for ocean freight to prevent white rust?
A: Plates are bundled with steel strips, interleaved with moisture-resistant paper, edge-protected, and wrapped in waterproof film. Container loading includes desiccant placement and ventilation planning to minimize condensation risk during transit.
Get Your Galvanized Steel Plate Quote with Full Certification
Send your specifications — thickness, coating weight, grade, quantity, and destination — to receive a factory-direct quotation with mill test certificates within 12 hours.
