Description

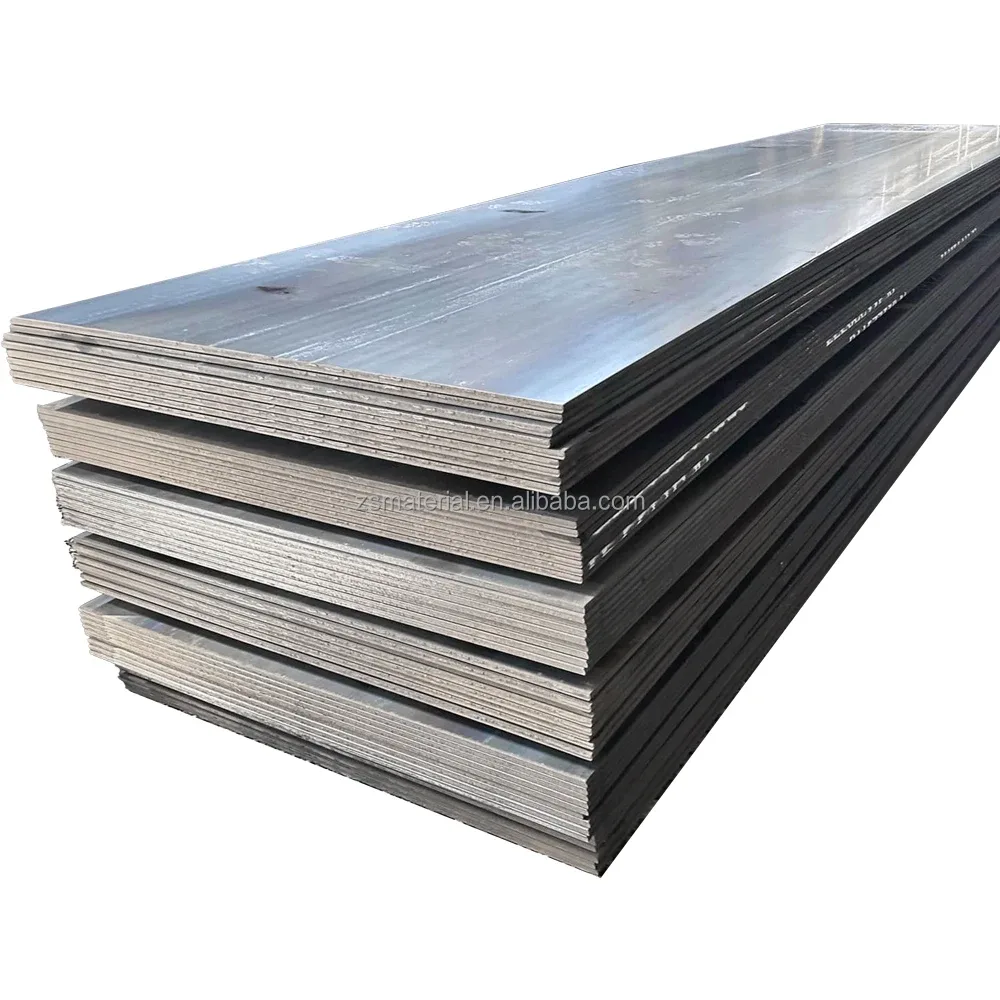

Mill-Direct ASTM A36 Hot Rolled Carbon Steel Plate — In-house physical and chemical laboratory testing on every heat, with original mill test certificates shipped alongside the cargo.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A36 Hot Rolled Carbon Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q195, Q235, Q235B, Q345, A36, SS400 |
| Standard | ASTM A36, EN, GB (Q195/Q235/Q345), JIS (SS400) |
| Thickness | 0.75–200 mm |
| Technique | Hot Rolled |
| Surface Treatment | Black Surface (Hot Rolled) |

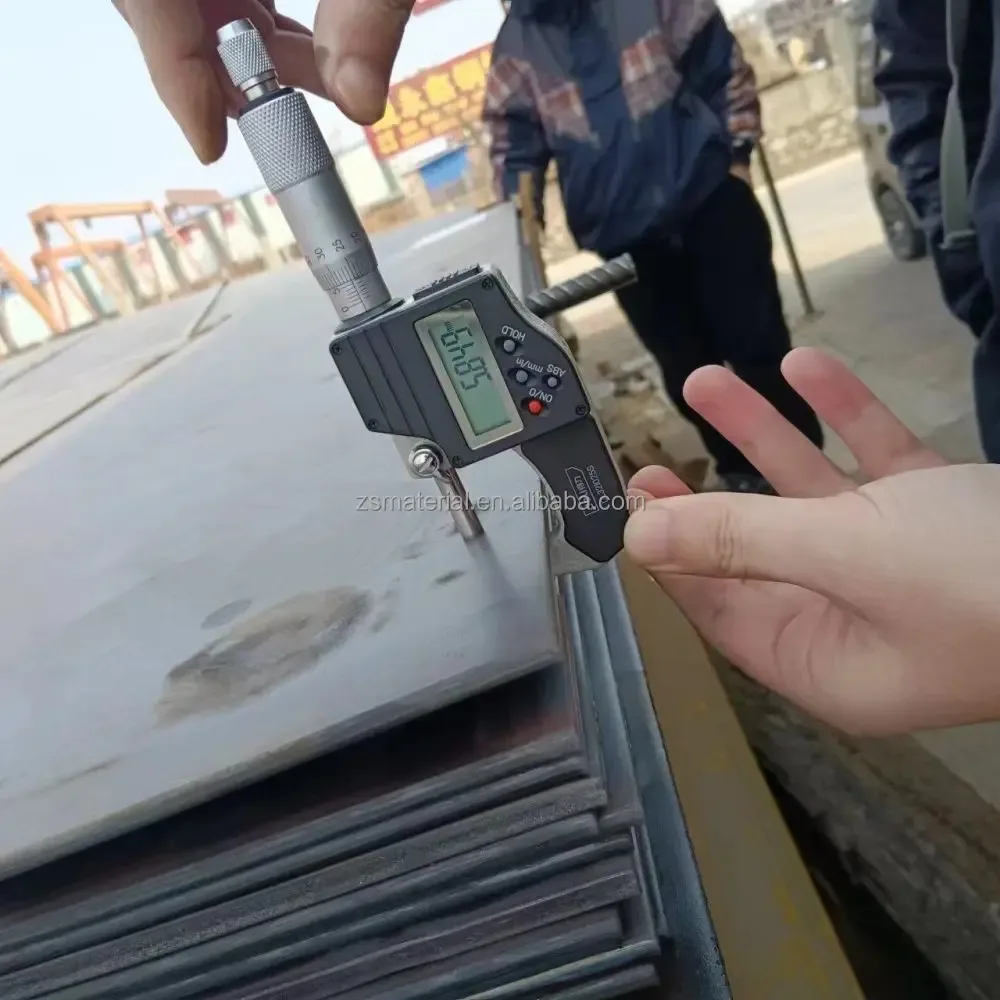

| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Package | Standard Seaworthy Packing |
| Application | Shipbuilding, Boiler & Pressure Vessels, Container Manufacturing, Pipe Making, Construction, Machinery, Automotive, Bridges |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Structural frames for industrial buildings, bridge deck plates, foundation base plates |
| Machinery Manufacturers | Equipment base plates, pressure vessel shells, boiler end caps |
| Shipbuilding & Container | Hull plate sections, container floor frames, deck stiffeners |
| Infrastructure & Civil Engineering | Embedded plates for precast concrete, anchor plates for retaining walls |
What Certification Gaps Cost on a Carbon Steel Plate Order
Missing mechanical property data on an ASTM A36 mill test certificate can hold an entire container at port for weeks.
Global buyers sourcing ASTM A36 hot rolled carbon steel plate often encounter inconsistent material documentation — chemical composition listed but yield strength and elongation columns left blank. Importing countries with strict project compliance requirements will reject shipments lacking complete test reports, turning a straightforward delivery into a demurrage nightmare. Fragmented sourcing from multiple suppliers compounds the risk: plates arrive without traceable heat numbers, making third-party re-inspection impossible to verify against original mill records. [NEED_CITE: ASTM A36 mechanical property testing requirements for structural steel]
How Thickness Range Meets Structural Fabrication Demands
The 0.75–200 mm thickness span of this ASTM A36 hot rolled carbon steel plate covers both light-gauge framing and heavy-load base plate applications in a single procurement cycle. Thin plates below 6 mm serve container floor frames and machinery guards where weight matters; mid-range 10–40 mm plates handle structural beam connections and bridge gussets; heavy plates above 50 mm anchor pressure vessel heads and crane runway beams. Hot rolled black surface accepts welding and primer coating directly without additional surface prep, reducing fabrication time on EPC job sites. Custom cutting to exact dimensions eliminates secondary sawing costs at destination.
Engineering Compliance and Grade Selection for Load-Bearing Structures
ASTM A36 conforms to the minimum 250 MPa yield strength tier widely specified in AISC-designated building frames and bridge components across North America and Southeast Asia. [NEED_CITE: ASTM A36 yield strength classification in structural design codes] For projects requiring European conformity, Q235B and Q345 grades under GB standards offer equivalent or higher performance with CE EN 10210/10219 documentation available. Corrosion-prone environments such as marine platforms or chemical processing facilities may require post-fabrication galvanizing or epoxy coating over the hot rolled black finish. Dimensional tolerance of ±1% ensures flat plates arrive within acceptable deviation for direct welding without edge planing.
Understanding the Carbon Steel Grade Spectrum Across Standards
ASTM A36, Q235B, and SS400 all sit in the mild carbon steel category with yield strength around 235–250 MPa, making them interchangeable for general structural use across American, Chinese, and Japanese specification systems. Q345 steps up to the 345 MPa class, serving heavier load paths where ASTM A572 Grade 50 would apply in the US system. The hot rolling process produces a scaled black surface that seals against atmospheric corrosion better than pickled-and-oiled finishes for outdoor storage, while remaining fully weldable without pre-heating on thicknesses below 25 mm. Multi-grade availability means a single purchase order can cover A36 for American-spec structures and Q235B for local-code buildings on the same EPC project. [NEED_CITE: steel grade equivalence mapping between ASTM, GB, and JIS standards]
Hidden Costs of Wrong-Grade Procurement on Structural Projects
Ordering Q235B when the drawing calls for ASTM A36 may seem like a minor substitution, but differing elongation and impact requirements can fail structural acceptance testing at the engineer’s discretion. Plates arriving without heat-number traceability force costly re-testing or outright rejection, delaying crane schedules and foundation pours. Negative tolerance abuse — where actual thickness falls below the nominal minus allowable deviation — reduces load capacity and violates EN 10219 or ASTM dimensional standards. [NEED_CITE: dimensional tolerance compliance for hot rolled steel plates in structural applications] Certification gaps at customs mean weeks of container detention fees that erase any per-ton savings from choosing an unverified supplier.
Procurement Confidence Backed by Factory Capability
Every ASTM A36 hot rolled carbon steel plate ships with original mill test certificates generated from our in-house physical and chemical laboratory, covering chemical composition and mechanical properties per heat number. Our 41 patented technologies include proprietary processes that maintain consistent plate flatness and edge quality across the full 0.75–200 mm range. With 2,800+ specifications in stock across six product categories, we consolidate plate, pipe, and section steel orders into single-vessel shipments — eliminating the coordination overhead of managing five separate suppliers. CE EN 10210/10219, ISO 9001:2015, and third-party SGS/BV inspection reports clear EU and international customs without supplementary documentation requests. Professional loading plans optimize container weight distribution for 20 mm and heavier plates, preventing transit damage and port-side rehandling.
Documentation & Compliance
- Mill Test Certificate documenting ASTM A36 chemical composition (C ≤0.25%, Mn 0.80–1.20%) and mechanical properties (yield strength, tensile strength, elongation) per heat number
- CE certificate under EN 10210/10219 for hot rolled structural plates entering European Union markets
- ISO 9001:2015 quality management system certificate covering the full production and inspection workflow
- SGS or BV third-party inspection report available upon request for project-specific material verification
- Full customs documentation package including packing list, ocean Bill of Lading, and Certificate of Origin for destination clearance
Packaging, Loading & Delivery

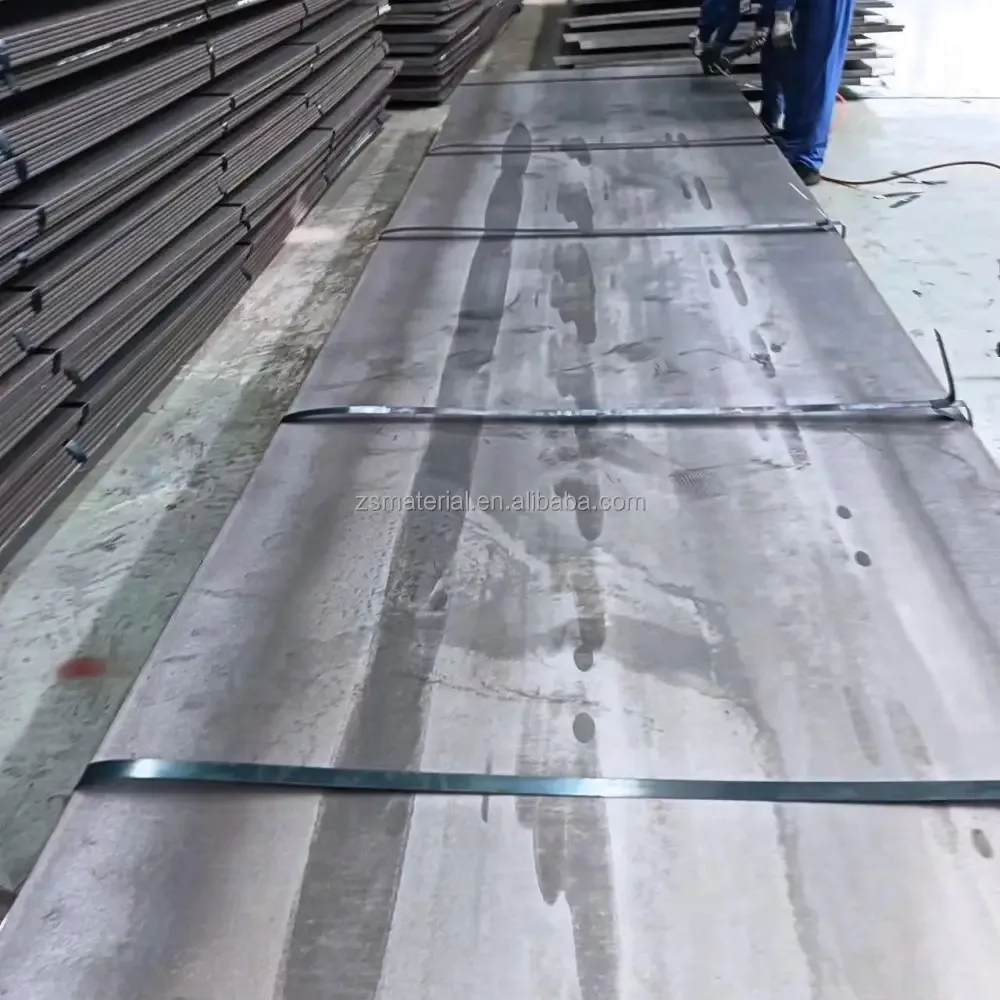

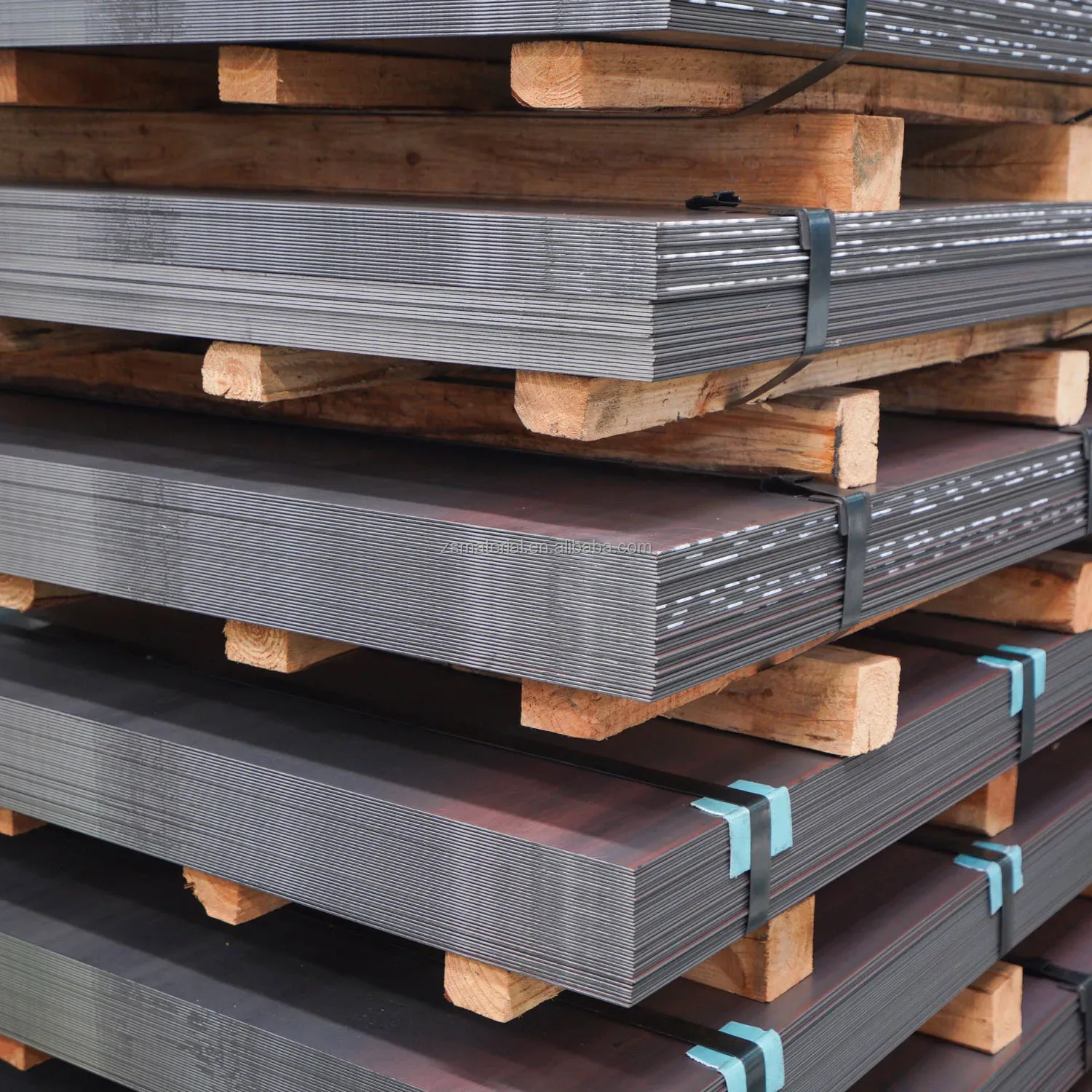

- Hot rolled black surface plates bundled with galvanized steel straps and edge protectors to prevent coating damage during ocean transit
- Standard seaworthy packaging with waterproof paper interleave for plates under 10 mm to avoid surface scratching and moisture staining
- Container loading plans optimized by our logistics team to maximize payload for 20–50 mm plates while maintaining weight distribution across the chassis
- Custom cutting to project-specified lengths available before shipment, reducing on-site waste and secondary processing at destination
- Heat number and ASTM A36 grade stenciled on each plate edge for traceability during fabrication and inspection
- FOB, CIF, and DDP terms available with door-to-door logistics coordination to 50+ countries across Africa, Southeast Asia, and the Middle East
Start Your ASTM A36 Plate Procurement
Submit your plate specifications including thickness, width, length, steel grade, and destination port to receive a detailed quotation with delivery timeline and applicable certification documents. Our team responds within 12 hours with pricing, mill test certificate samples, and container loading recommendations for your project volume.
Request Your ASTM A36 Hot Rolled Carbon Steel Plate Quote Today
Send your specifications via email or WhatsApp to receive pricing, mill test certificates, and delivery schedules within 12 hours.
