Description

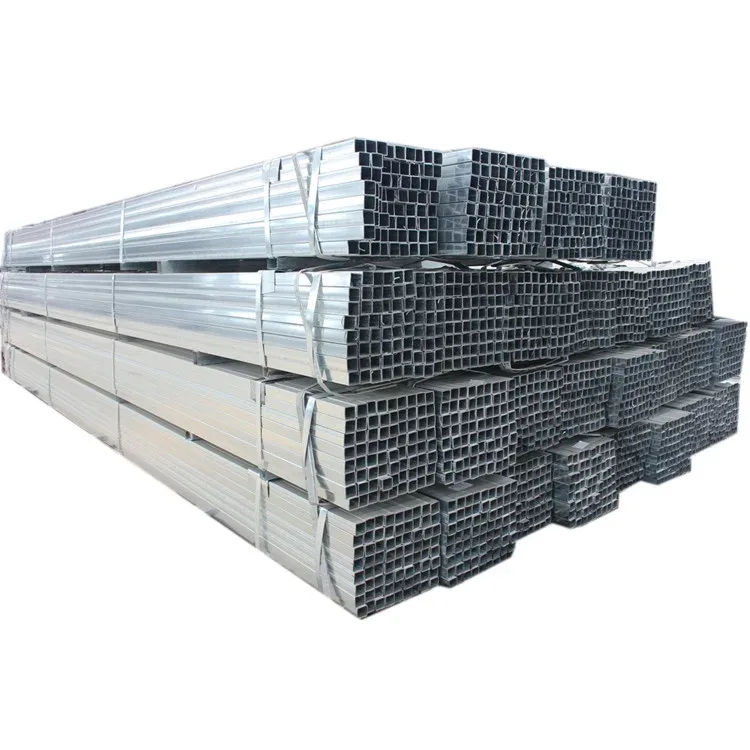

Factory-Direct Q235B GI Tubes — 3 dedicated ERW lines producing 10–1000 mm sections with in-house lab verification on every heat.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube (SHS/RHS) |
| Steel Grade | Q195, Q215, Q235, Q345, 10#, 20#, 45#, 16Mn, A53 (Grade A/B), St37, St42, St52.4, ST35 |
| Standard | BS, EN, GB, AISI, ASTM, DIN, JIS |
| Section Shape | Square / Rectangular |
| Size Range | 10 mm – 1000 mm (side length or outer diameter) |
| Wall Thickness | 0.6 – 28 mm |
| Length | 1 – 12 m |
| Technique | ERW (Hot Rolled / Cold Rolled) |
| Surface Treatment | Galvanized (Zinc Coating 30–275 g/m²); also Bare, Oiled, Color Paint, 3PE, PVC |
| Tolerance | ±1% |
| Ends | Plain, Beveled, Threaded with Couplings or Sockets |
| Application | Building structures, industrial frameworks, bridges, ships, boilers, pressure vessels, cars, general engineering structures |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Structural frames, scaffolding uprights, building column supports, roof truss members |
| Machinery Manufacturers | Equipment base frames, conveyor system rails, precision hollow sections for automated lines |
| Infrastructure & Industrial Projects | Bridge handrails, pressure vessel support legs, industrial platform grating frames |
| Steel Distributors | Stock inventory for local fabrication shops, cut-to-length supply for workshops |
Where Galvanized Coating Weight Decides Whether Your Structure Survives the First Rain
A 30 g/m² zinc layer protects warehouse purlins; a 275 g/m² layer keeps offshore platform supports rust-free for decades — specifying the wrong one costs far more than the coating itself.
When buyers request a Q235B galvanized square steel tube supplier without clarifying the zinc coating class, they often receive pre-galvanized strip-welded tubes on a project that actually demands hot-dip immersion coating. The visual difference is minimal on arrival. Six months later, white rust blooms along weld seams and cut edges. For projects exposed to marine atmospheres or industrial pollutants, the corrosion timeline compresses dramatically [NEED_CITE: zinc coating thickness classification per ISO 1461 vs EN 10219 delivery conditions].
Fragmented sourcing compounds this risk. One supplier ships the tubes, another provides the plates, a third handles fabrication — and nobody cross-checks whether the galvanized coating weight on the tubes matches the corrosion category specified in the structural drawings. Missing or inconsistent mill test certificates then stall customs clearance at the destination port, turning a straightforward delivery into a weeks-long paperwork dispute [NEED_CITE: EN 10219 cold-formed hollow section certification requirements for EU customs].
How Wall-Thickness Tolerance Aligns with Structural Load Calculations
Engineers design frames assuming the nominal wall thickness stated in the specification. When a Q235B galvanized square steel tube arrives with actual walls consistently at the lower edge of the ±1% tolerance band, the section modulus drops, and the load-bearing capacity shifts below the safety margin. On a 200 × 200 × 8 mm SHS column, even a half-millimeter deficit across a 12-meter length changes the buckling resistance enough to fail a third-party site inspection. Our production lines run real-time ultrasonic thickness gauging at every welding station, and the in-house physical laboratory pulls samples per heat for dimensional verification before any bundle leaves the yard. This is how we keep tolerance drift from becoming a structural liability on your project.
Corrosion Environment, Steel Grade Selection, and Code Compliance
A Q235B galvanized square steel tube destined for a warehouse in São Paulo faces a different corrosion challenge than the same section installed on a bridge in Rotterdam. EN 10219 governs cold-formed welded hollow sections for structural use across Europe, defining dimensional tolerances, chemical composition limits, and mechanical property ranges for non-alloy and fine-grain steels [NEED_CITE: EN 10219 cold-formed welded hollow section requirements]. For EU-bound shipments, CE marking under EN 10210 or EN 10219 is not optional — it determines whether the container clears customs or sits at the port pending Factory Production Control documentation. In North America, ASTM A500 Grade B or C governs the same product category, and the steel grade cross-reference between Q235B and S235JR or A53 requires documented equivalence. Our technical team provides grade mapping sheets with every quotation so that your structural engineer can verify compliance without guessing.
Steel Grade Equivalence and ERW Weld Integrity Across the Q-Series Range
Q235B remains the workhorse grade for general structural frames across China, Southeast Asia, and the Middle East. Its yield behavior maps closely to S235JR under EN 10219 and A53 Grade A under ASTM standards, making it a familiar specification for international procurement teams. When projects demand higher strength, Q345 (equivalent to S355JR/J2 under EN standards) provides the step up without switching material families. The ERW welding process used across our three production lines creates a longitudinal seam that, after online annealing and cold-sizing, delivers weld-zone mechanical properties consistent with the parent metal. For galvanized tubes, the zinc coating — applied at 30 to 275 g/m² depending on the environment — seals both the base metal and the weld line against atmospheric corrosion. Wall thicknesses from 0.6 mm to 28 mm cover everything from light-gauge purlin sections to heavy-duty column members, and the ±1% dimensional tolerance holds across this full range.
The Hidden Cost of Accepting Off-Spec Coating or Unverified Grades
When a shipment of galvanized tubes arrives at site with zinc coating below the specified class, the re-galvanizing cost exceeds the original material price — and the schedule delay often matters more. When the mill test certificate lists a heat number that does not match the stencil on the tube, the inspector rejects the entire batch regardless of actual quality. When steel grade documentation cannot cross-reference to EN 10219 or ASTM A500, the structural engineer cannot sign off, and the project stalls. These are not theoretical scenarios. They are the routine consequences of sourcing from traders who cannot provide traceable chemistry, or from mills that mix coating classes within the same bundle [NEED_CITE: steel grade equivalence between EN and ASTM standards for structural hollow sections].
Why Engineering Procurement Teams Source Q235B Galvanized Tubes Through Us
We operate three dedicated ERW production lines covering over 2,800 specification combinations — from 10 mm miniature sections to 1,000 mm heavy structural tubes — all under one roof, with no trading intermediaries between your purchase order and our mill floor. Every heat undergoes chemical analysis and mechanical testing in our on-site physical and chemical laboratory before the mill test certificate is issued. Our 41 patented technologies include a proprietary sharp-corner rectangular tube process that delivers tight corner radii for cleaner welded connections and more efficient section utilization — a capability that has filled gaps in the global market for architectural and structural applications. CE certification under EN 10210/EN 10219, Lloyd’s Register approval, Singapore FPC, and third-party verification by SGS and BV mean your customs documentation is complete before the container is sealed. We have exported to over 50 countries across the EU, North America, the Middle East, India, and Southeast Asia, and our loading teams plan every container for weight distribution and coating protection — because a crushed galvanized surface is a rejected shipment, no matter how good the mill certificate reads.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition (C, Mn, Si, S, P) and yield/tensile properties per GB/T 6728 and EN 10219 cross-reference
- CE certificate covering EN 10210/EN 10219 cold-formed welded structural hollow sections for EU market customs clearance
- ISO 9001:2015 quality management system certificate covering full production and inspection workflow
- SGS or BV third-party inspection report available per client request, covering dimensional checks, coating thickness measurement, and visual weld inspection
- Full material traceability by heat number from slab receipt through final galvanizing, stenciled on every tube end
- Customs document package including packing list, bill of lading, and certificate of origin aligned with destination port requirements
Packaging, Loading & Delivery

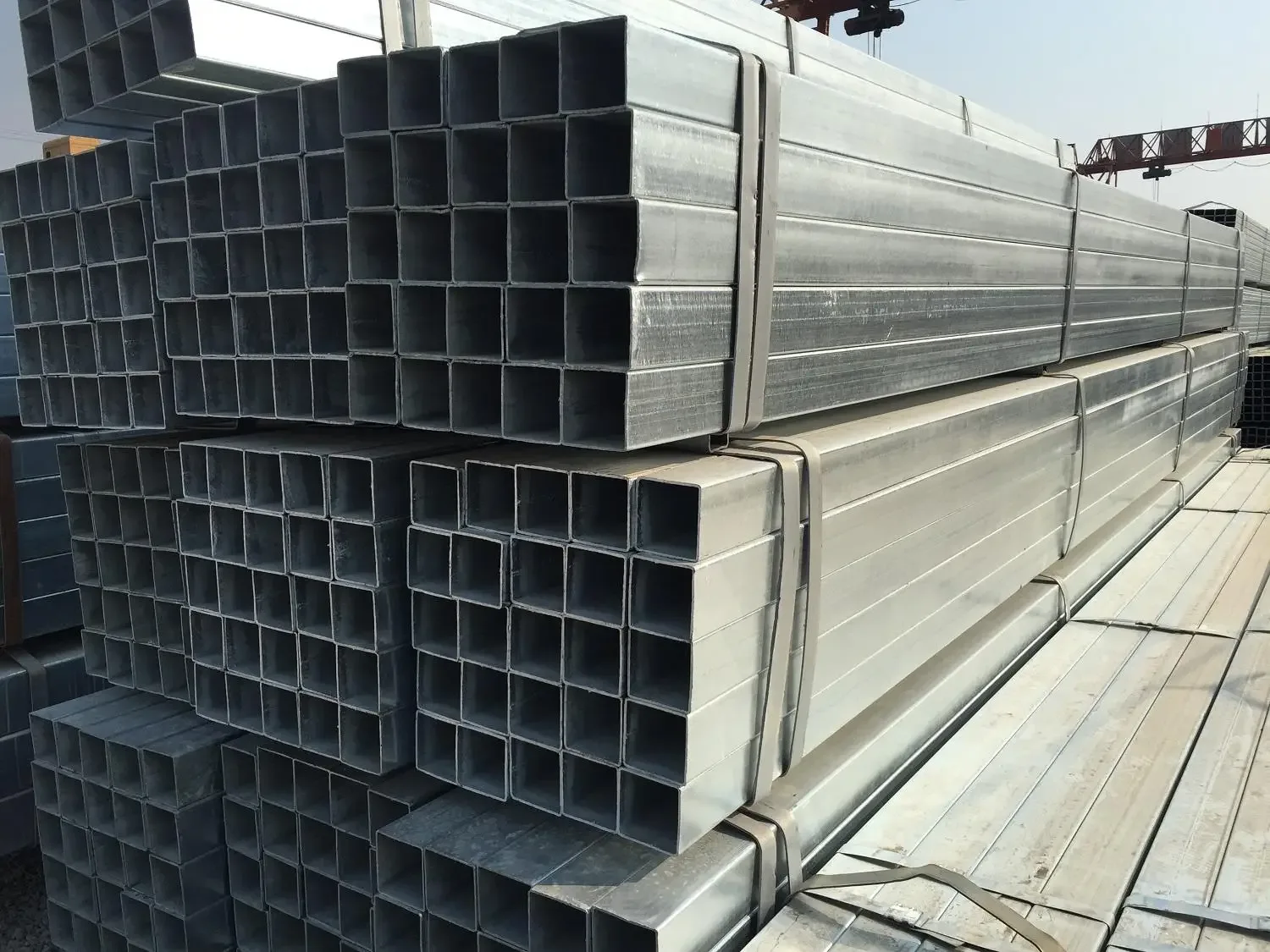

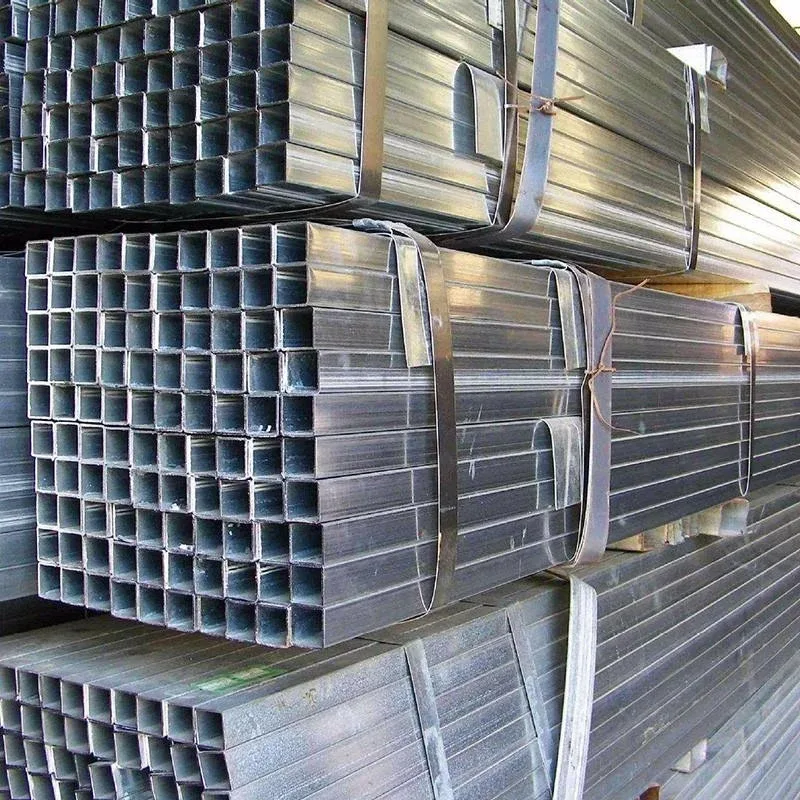

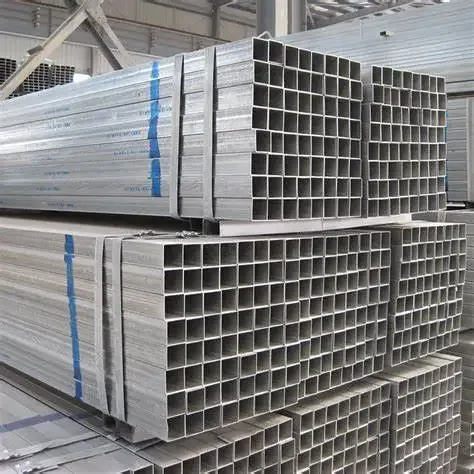

- Q235B galvanized square and rectangular tubes bundled with high-tensile steel strips and padded edge protectors to prevent zinc coating abrasion during transit
- Seaworthy packaging with waterproof wrapping and desiccant inserts for containers crossing equatorial routes where condensation threatens the galvanized surface
- Container loading plans optimized for 1–12 m tube lengths, maximizing weight utilization while maintaining weight distribution across axles for port-side handling safety
- Cut-to-length service available for 10–1000 mm sections, with deburred ends and dimensional reports included per bundle
- Heat number, steel grade, and size stenciled on every tube end for on-site traceability and inspector verification
- FOB, CIF, and DDP terms supported with door-to-door logistics coordination to over 50 countries
Ready to Lock In Your Q235B Galvanized Tube Specification
Submit your section dimensions, wall thickness, steel grade, zinc coating requirement, and destination port — our team returns a detailed quotation with unit pricing, production lead time, applicable certification package, and mill test certificate scope within 12 hours. For non-standard sizes outside the 10–1,000 mm range or custom coating weights, we provide a technical feasibility review before you commit.
Request Your Quotation and Mill Test Certificate Today
Send your specification sheet to admin@sdxjysteel.com or reach us on WhatsApp at +86 188 5315 7756 with your section size, quantity, and destination — we respond within 12 hours with pricing, certification scope, and delivery terms.
