Description
Factory-Direct Galvanized Square Steel Tube — Every batch verified by in-house physical and chemical laboratory before shipment, eliminating middlemen markups on Q235/S235/SS400 structural sections.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 / S235 / SS400 Galvanized Square Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | Q195, Q215, Q235, Q345, S235, SS400 |
| Standard | GB |
| Section Shape | Square / Rectangular / Round |
| Wall Thickness | 0.5–80 mm |
| Length | 6 m (standard), customizable |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Galvanized (Hot-dip / Electro-galvanized) |
| Zn Coating Thickness | 30–650 g/m² |
| Tolerance | ±5% |
| Invoicing | By Theoretical Weight |
| Packing | Customized / Export standard packing |
| Application | Construction frames / Scaffolding / Steel structures / Machinery / Bridge / Car manufacturing / Electrical installation / Mining |
| MOQ | 25 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Scaffolding systems, building frames, steel structure columns for commercial and industrial projects |
| Machinery Manufacturing | Equipment bases, conveyor support frames, hydraulic machinery housings |
| Infrastructure & Civil Engineering | Bridge handrails, electrical installation conduits, mining structural supports |
| Steel Fabricators | Welded assemblies for warehouses, workshops, and modular construction units |
When Zinc Coating Weight Decides Scaffold Acceptance on Site
Hot-dip galvanizing at 650 g/m² versus electro-galvanized at 30 g/m² is not a pricing detail — it is the difference between passing inspector measurement and having an entire container rejected at the gate.
I watched a Lagos site supervisor pull out a coating thickness gauge and check scaffold tubes one by one. The mill certificate said 65μm; the gauge read below 40μm. The entire lot failed acceptance, and the project lost two months waiting for replacement material. That is the hidden cost of buying galvanized square steel tube without verified zinc coating data. [NEED_CITE: hot-dip galvanized coating thickness requirements for structural steel] When procurement teams source from multiple suppliers to chase unit price, zinc consistency becomes the first variable to fail — and the last one caught before shipment. A Galvanized Square Steel Tube Supplier who provides third-party inspection reports alongside mill test certificates removes that uncertainty from the equation.
Matching Wall Thickness to Scaffold and Frame Load Requirements
Scaffolding and structural frame applications demand consistent load-bearing capacity across every member. The 0.5–80 mm wall thickness range of this Galvanized Square Steel Tube covers light-duty electrical installation conduits at the lower end and heavy-duty mining support structures at the upper end. ERW welding ensures uniform seam strength, while the ±5% tolerance keeps theoretical weight calculations reliable for structural engineering load tables. Our in-house laboratory tests each production batch against GB standards, so EPC contractors receive verified data rather than catalog assumptions.
Structural Code Compliance and Certification Pathways
Engineering projects in the EU require CE certification under EN 10210 or EN 10219 for structural hollow sections, while North American infrastructure specifiers reference ASTM A500. [NEED_CITE: EN 10219 cold-formed welded structural hollow sections compliance] The Q235 grade meets GB requirements for general construction, while S235 and SS400 provide equivalence for European and Japanese standard projects respectively. Hot-dip galvanizing with zinc coating up to 650 g/m² addresses corrosion protection for outdoor scaffolding and bridge components in coastal or industrial environments. Standard 6 m lengths reduce on-site cutting waste, though custom cut-to-length service accommodates specific frame dimensions without secondary processing delays.
Understanding Steel Grade Equivalence Across Standards
Q235, S235, and SS400 represent the same yield strength class across Chinese, European, and Japanese standard systems respectively. [NEED_CITE: steel grade equivalence between GB, EN, and JIS standards] Selecting the correct designation depends on the project specification document — specifying S235 for an EU-designed structure ensures compliance with EN standards, while Q235 satisfies GB requirements for domestic Chinese projects. The ERW welding process produces square and rectangular sections with consistent mechanical properties across the weld seam, making these grades suitable for both welded fabrication and bolted connections. Hot-dip galvanizing at higher coating weights (275–650 g/m²) provides long-term corrosion resistance for outdoor structural applications, while electro-galvanized options at 30–120 g/m² serve indoor machinery housings where appearance matters more than weathering resistance.
The Real Cost of Unverified Material Certificates
Ordering Galvanized Square Steel Tube based on price alone without third-party verification creates three failure points: zinc coating below specification triggers site rejection, missing mill test certificates delay customs clearance, and negative tolerance beyond ±5% reduces actual load capacity below engineering calculations. [NEED_CITE: structural steel quality verification requirements for construction projects] A shipment arriving without proper CE documentation faces port holds in EU markets, while inconsistent steel grade delivery forces fabricators to requalify material before welding — both scenarios convert unit price savings into project delays and rework costs.
Why Procurement Teams Choose Xin Jiyuan for Galvanized Sections
We operate three dedicated production lines covering 2,800+ specifications, allowing EPC contractors to source square tubes, rectangular sections, and round pipes from a single factory without coordinating multiple suppliers. Our in-house physical and chemical laboratory issues mill test certificates for every heat number, providing full chemical composition and mechanical property data before shipment. The 41 patented technologies include proprietary sharp-corner rectangular tube manufacturing that meets tight tolerance requirements for architectural exposed structures. CE certification under EN 10210/EN 10219, ISO 9001:2015 quality management, and SGS/BV third-party inspection reports ensure compliance across EU, North American, and Middle Eastern markets. Professional loading plans optimize container utilization for 6 m standard lengths, while DDP logistics service handles door-to-door delivery to 50+ countries.
Documentation & Compliance
- Mill test certificate documenting Q235/S235/SS400 chemical composition and mechanical properties per GB standard for each production batch
- CE certificate under EN 10210/EN 10219 for structural hollow sections exported to EU member states
- ISO 9001:2015 quality management system certificate covering the full production process from raw material to finished galvanized tube
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerance upon client request
- Material traceability by heat number linking each bundle to its production batch and laboratory test results
- Complete customs documentation including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery

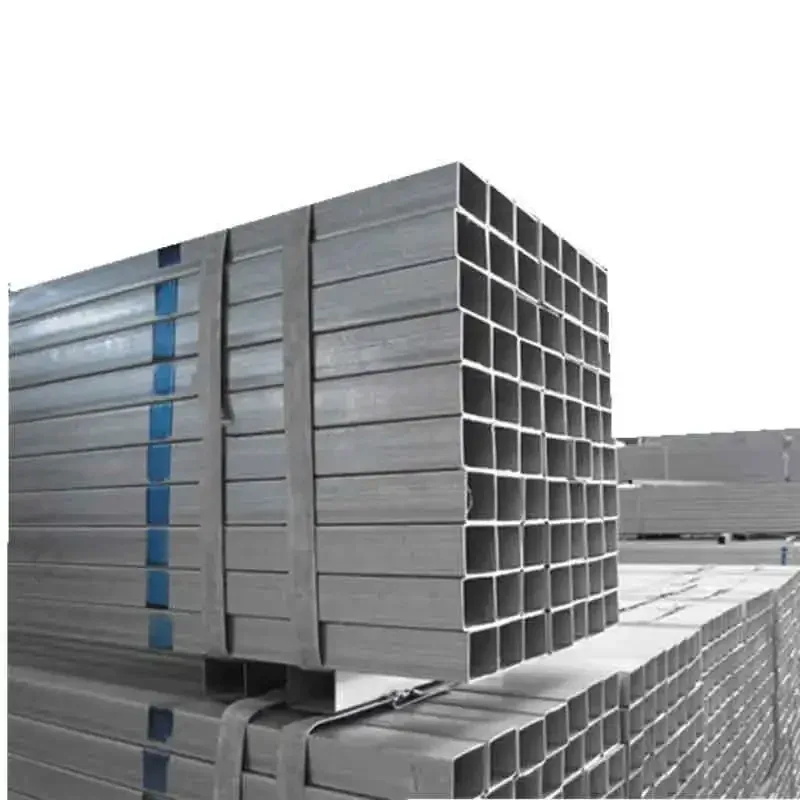

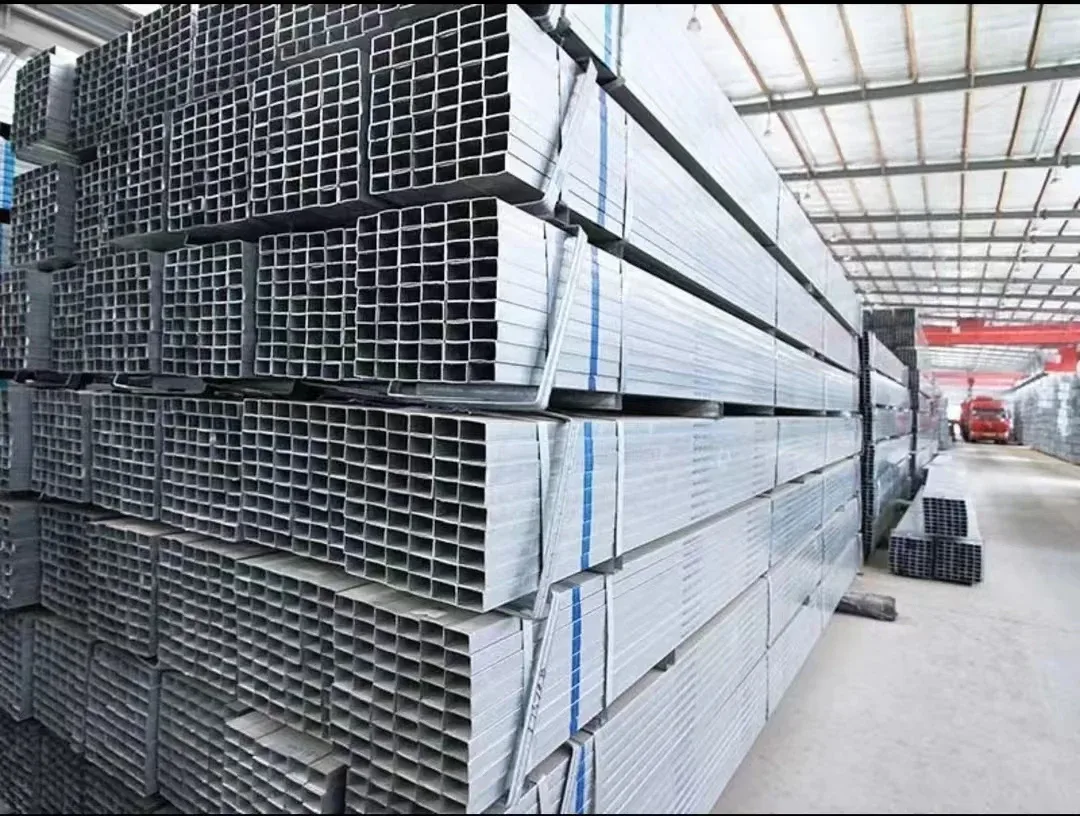

- Galvanized square steel tubes bundled with steel strips and edge protectors to preserve zinc coating integrity during ocean transit
- Seaworthy packaging with waterproof wrapping for hot-dip galvanized surfaces preventing white rust formation in humid container environments
- Container loading optimization for 6 m standard lengths maximizing 20ft and 40ft GP utilization for scaffolding and structural frame orders
- Custom cut-to-length service available for projects requiring specific dimensions beyond standard 6 m, reducing on-site cutting waste
- Heat number and steel grade marked on each tube end for site identification and traceability verification during installation
- FOB, CIF, and DDP logistics options with real-time shipment tracking to major ports across EU, North America, Southeast Asia, and Middle East
Getting Your Galvanized Square Steel Tube Quote
Submit your specification requirements including section dimensions, wall thickness, steel grade preference, zinc coating weight, and destination port to receive a detailed quotation within 12 hours. Our technical team provides mill test certificate samples and third-party inspection options for quality verification before production begins. Custom non-standard sizes and cut-to-length services are available for projects requiring specific dimensions beyond catalog offerings.
Request Factory-Direct Pricing with Full Certification Package
Send your Galvanized Square Steel Tube specifications via email or WhatsApp to receive quotation, mill test certificate preview, and delivery schedule.
