Description

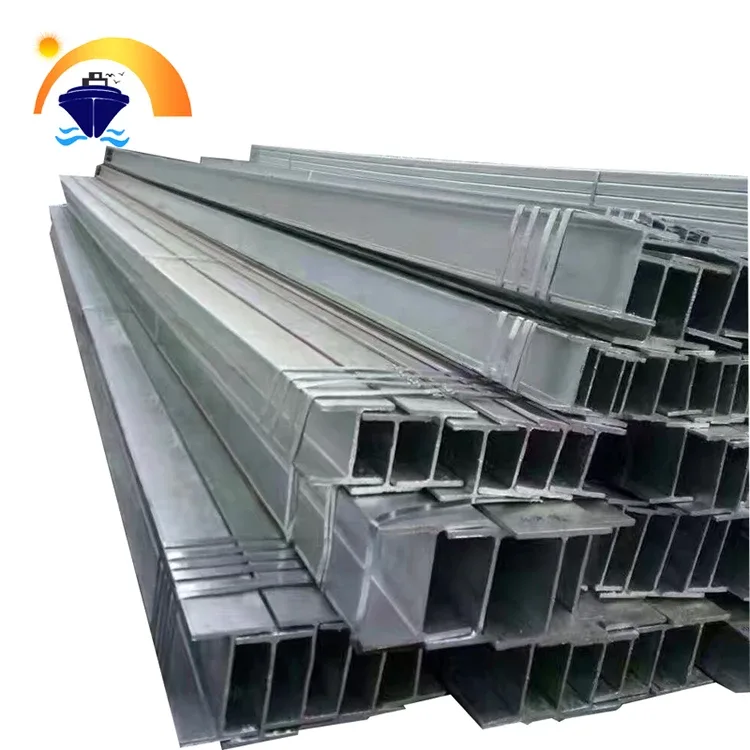

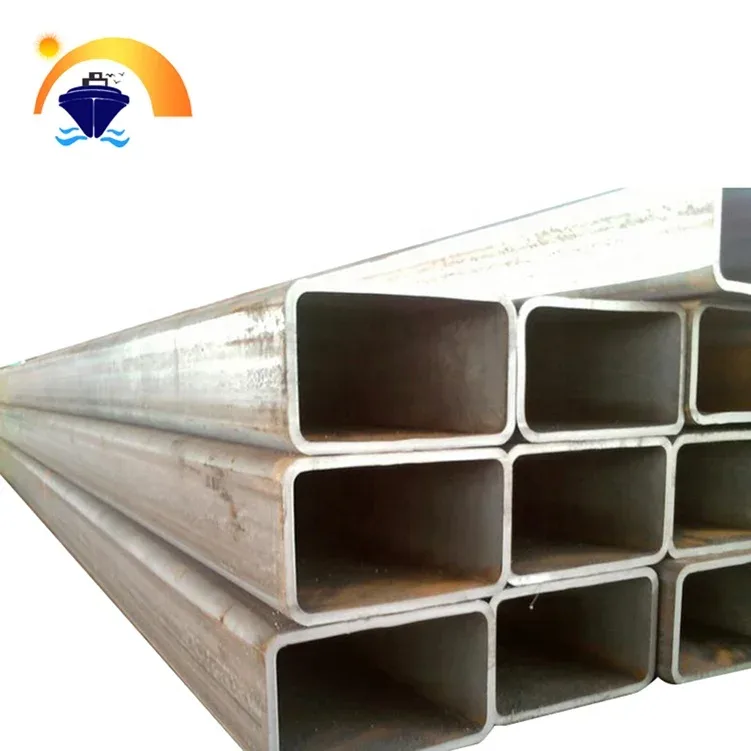

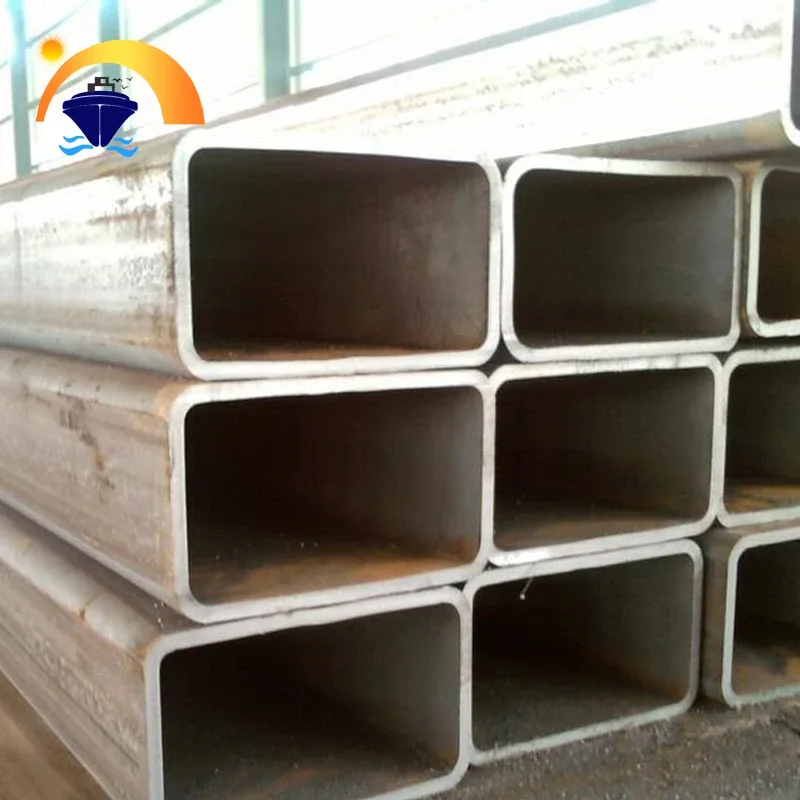

Factory-Direct Galvanized Rectangular Tubes — Hot-dip galvanized rectangular steel tubes produced in-house with full quality control from raw coil to finished coating, shipped directly to your project site without intermediary markups.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Galvanized Rectangular Steel Tube |
| Product Type | Galvanized Rectangular Steel Tube |
| Steel Grade | Q195, Q215, Q235, Q345 |
| Standard | GB, API, SNI, BIS, JIS |
| Section Shape | Rectangular |
| Size Range | 10–914 mm (side length) |
| Technique | Welded (ERW) |
| Surface Treatment | Hot-Dip Galvanized |
| Tolerance | ±5% |
| Length | Customizable |
| Packing | Customized Packing |
| Application | Steel structures / Construction frames / Scaffolding / Furniture / Machinery |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Building frames, industrial plant structures, equipment support platforms |
| Construction Companies | Scaffolding systems, curtain wall frames, safety barriers |
| Machinery Manufacturers | Conveyor frames, machine bases, hydraulic support columns |
| Infrastructure Developers | Bridge railings, sound barrier posts, solar panel mounting structures |
Where Coating Uniformity Decides Site Acceptance for Hot-Dip Galvanized Rectangular Steel Tube
Inconsistent zinc thickness is the single most common reason galvanized tubes fail third-party inspection at destination.
Buyers ordering galvanized rectangular tubes for overseas projects often discover coating problems only after the container arrives. Some corners show bare steel. Edge zones have thin spots where zinc drained unevenly. The site inspector pulls out a coating thickness gauge, and entire batches get flagged for rework or rejection. Beyond the coating itself, missing mill test certificates or unclear steel grade markings create customs delays that stall crane schedules and delay project handover. [NEED_CITE: hot-dip galvanizing coating thickness standards per ISO 1461]
Matching Structural Load Requirements Across Frame and Scaffolding Applications
Hot-dip galvanized rectangular steel tubes in Q235 and Q345 grades serve load-bearing frames where both strength and corrosion resistance matter. The rectangular cross-section provides flat contact surfaces for bolted or welded connections, reducing the need for custom gusset plates. For scaffolding systems exposed to coastal humidity or chemical plant environments, the hot-dip zinc coating acts as a sacrificial layer that protects the base steel even if the surface gets scratched during transport or installation. Our production lines cover side lengths from 10 mm to 914 mm, allowing specifiers to source both small furniture-grade sections and large structural members from a single order.
Engineering Compliance and Certification for Global Procurement
Structural projects in the EU require CE marking under EN 10210 or EN 10219, while Middle East and Southeast Asian tenders often reference GB or JIS standards. Hot-dip galvanized rectangular steel tubes must carry proper documentation proving both mechanical compliance and coating quality. The Q235 grade maps closely to S235JR in European specifications, and Q345 corresponds to S355 series — but equivalence requires official mill test certificates, not verbal assurance. Customs authorities in destination countries increasingly demand traceable heat numbers linking each tube to its original coil chemistry. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerances]
Understanding Steel Grade Selection and Hot-Dip Galvanizing Process
The Q-series steel grades follow the Chinese GB standard system. Q195 and Q215 offer lower yield strength suitable for non-structural applications like furniture frames and decorative barriers. Q235 serves as the workhorse grade for general construction frames and scaffolding, providing adequate strength-to-cost ratio. Q345 delivers higher yield strength for load-bearing columns and heavy machinery bases where deflection limits matter. The ERW welding technique produces a continuous longitudinal seam, suitable for rectangular sections where torsional loads remain moderate. Hot-dip galvanizing immerses the fabricated tube in molten zinc bath, creating a metallurgical bond that covers all surfaces including internal corners — unlike electro-galvanizing which only coats exterior faces with thinner zinc layers. The ±5% tolerance on dimensions accounts for normal variation in cold-forming and galvanizing processes, though critical structural connections may require tighter negotiation. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series]
Hidden Costs of Procuring the Wrong Grade or Missing Documentation
Ordering Q235 when the structural engineer specified Q345 means the frame may pass visual inspection but fail load testing — requiring complete dismantling and replacement. Shipping tubes without proper mill test certificates means customs holds the cargo until the importer provides substitute documentation, incurring port storage fees and missing construction deadlines. Accepting negative tolerance beyond standard limits reduces actual wall thickness, compromising load capacity and creating safety liability that no amount of cost savings can justify. [NEED_CITE: structural steel acceptance criteria per ASTM A500]
Why Project Procurement Teams Source Hot-Dip Galvanized Rectangular Steel Tube From Us
We operate three dedicated production lines with in-house physical and chemical laboratories that test every heat before release. Our facility holds 41 invention patents including proprietary sharp-corner rectangular tube technology that eliminates the rounded radii typical of standard roll-forming. We maintain inventory across 2,800+ specifications with wall thickness up to 40mm, reducing lead time for urgent site requirements. Every shipment includes original mill test certificates traceable to coil heat numbers, and we arrange SGS or BV third-party inspection for buyers who require independent verification. Our professional loading team designs container stacking plans with proper separators and bracing — because we learned from early mistakes that galvanized coatings get damaged when tubes shift during ocean transit. We export to 50+ countries with door-to-door logistics coordination handling customs documentation, port clearance, and final delivery.
Documentation & Compliance
- Mill test certificate documenting Q235/Q345 chemical composition and mechanical properties per GB standard, traceable to original heat number
- CE certificate (EN 10210/EN 10219) available for EU market compliance on structural hollow sections
- ISO 9001:2015 quality management certificate covering full production and testing process
- SGS or BV third-party inspection report verifying coating thickness and dimensional accuracy before shipment
- Material traceability sheet linking each bundle to heat number, coil origin, and galvanizing batch
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

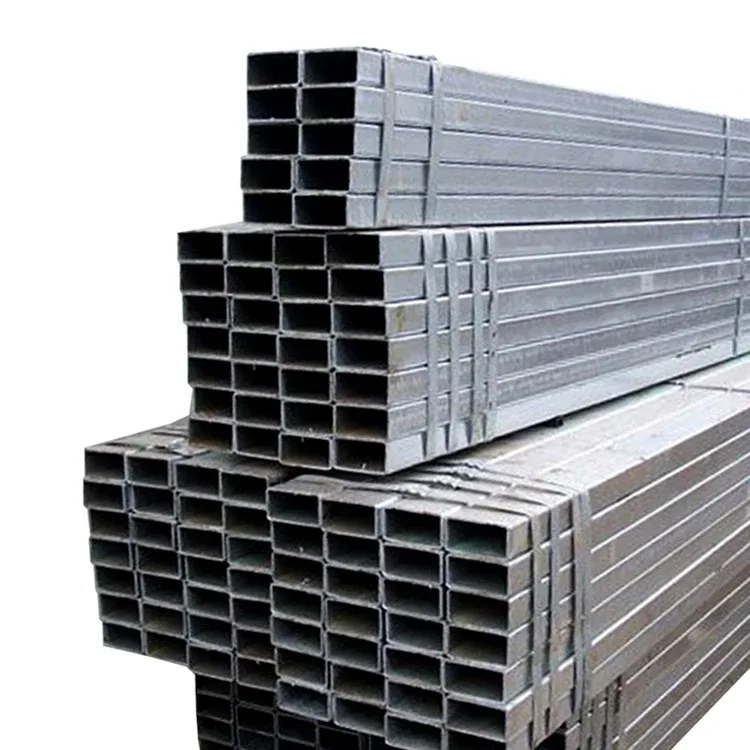

- Hot-dip galvanized rectangular tubes bundled with steel strips and edge protectors to preserve zinc coating during handling and ocean transit
- Customized packing with wooden pallets or steel frames for long-length tubes exceeding 6 meters, preventing bending deformation
- Professional container loading plan with stacking diagram showing dunnage placement and bracing points, sent to client for approval before sealing
- Customizable cut-to-length service available, with ends deburred and capped to prevent moisture accumulation inside tubes during storage
- Heat number and steel grade stenciled on each tube end for on-site identification and traceability verification
- Multiple shipping terms supported including FOB, CIF, and DDP with real-time tracking and port coordination
Getting Your Quotation Started for Hot-Dip Galvanized Rectangular Steel Tube
Submit your project specifications including side length, wall thickness, steel grade, total quantity, and destination port. We respond within 12 hours with detailed pricing, production lead time, and applicable certification options. For non-standard dimensions or custom lengths outside typical inventory, we provide fabrication drawings and confirm feasibility before order placement.
Request Your Hot-Dip Galvanized Rectangular Steel Tube Quote Today
Send your specifications via email or WhatsApp to receive pricing, mill test certificate samples, and delivery schedule within one business day.
