Description
Factory-Direct Galvanized Tubes — Hot dip galvanized square and rectangular steel tubes produced on 3 dedicated lines with in-house lab testing, shipped without middleman markups.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | Q195, Q235B, Q345B, Q460E, Q690E, S235JR, S355JR, S420NL, S460NL, S500Q, S690Q, A36, Grade 50, Grade 65, SS400, SPHC |
| Standard | AISI, ASTM, DIN, JIS, GB, EN |
| Section Shape | Square / Rectangular |
| Size Range | 20 mm – 500 mm |
| Wall Thickness | 0.3 mm – 100 mm |
| Length | 5.8 m – 12 m |
| Technique | Hot Rolled / Cold Rolled / ERW |
| Surface Treatment | Hot Dip Galvanized (Zinc Coating 30 g – 275 g), PVC Coating, Black/Color Painting, Transparent Oil, Anti-rust Oil |
| Tolerance | ±1% |
| Ends | With or without end caps |
| Application | Steel structures / Construction frames / Machinery / Scaffolding / Furniture / Industrial fabrication |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Structural frames for industrial plants, scaffolding systems, building support columns |
| Construction Companies | High-rise building frames, bridge components, fencing and guardrail posts |
| Machinery Manufacturers | Equipment frames, conveyor system supports, industrial platform structures |
| Infrastructure Developers | Solar farm mounting structures, warehouse purlins, highway sign gantries |
What Negative Tolerance Actually Costs on a Galvanized Tube Order
A ±1% tolerance guarantee protects your structural calculations and your budget.
I once watched a Middle East project stall for three weeks because the galvanized tubes arrived with wall thickness running 8% under nominal. The third-party inspector rejected the entire lot. The buyer had to air-freight replacement material while the original containers sat at port collecting demurrage. When you order a Galvanized Square and Rectangular Steel Tube Supplier with verified tolerance control, that scenario disappears. Thin-wall tubes below 2 mm are especially vulnerable — a 0.3 mm deviation on a 1.5 mm wall is a 20% loss of load-bearing cross-section. [NEED_CITE: EN 10219 cold-formed hollow section tolerance requirements]
Matching Galvanized Tubes to Structural and Corrosion Demands
Hot dip galvanizing at 275 g/m² zinc coating gives corrosion protection rated for 25+ years in most atmospheric environments, making these tubes suitable for outdoor scaffolding, highway structures, and coastal industrial frames. The 20 mm to 500 mm size range covers everything from furniture frames to heavy equipment supports. When your project calls for EN 10219 compliance, the Galvanized Square and Rectangular Steel Tube Supplier you choose must provide mill test certificates traceable to heat numbers — otherwise customs clearance in EU markets becomes a gamble.
Engineering Compliance and Certification Pathways
Structural hollow sections for European projects must conform to EN 10219 dimensional and tolerance requirements, with CE marking under EN 10210 for welded hollow sections. North American buyers typically specify ASTM A500 Grade B or C, while Australian projects follow AS1163. Each standard defines different chemical composition limits and mechanical property thresholds, so grade equivalence verification is essential before procurement. [NEED_CITE: steel grade equivalence between EN 10219 and ASTM A500 standards] Third-party inspection from SGS or BV provides independent verification for projects requiring dual certification.
Understanding Steel Grade Selection for Load-Bearing Applications
The Q-series (Q195 to Q690) follows Chinese GB standards where the number indicates minimum yield strength in MPa. European S-series grades like S235JR, S355JR, and S460NL offer similar yield classifications with different impact testing requirements — the JR suffix means room-temperature impact testing, while NL indicates low-temperature toughness down to -50°C. ASTM Grade 50 and Grade 65 serve similar structural roles in North American specifications. For galvanized tubes, the zinc coating process does not significantly alter base metal mechanical properties, but post-galvanizing inspection must verify coating adhesion and thickness uniformity across all surfaces including internal corners.
Hidden Costs When Certification and Tolerance Fail
Material shipped without proper mill test certificates gets held at customs — sometimes for weeks. Tubes with wall thickness below specified tolerance fail structural inspection, forcing complete replacement at double the original cost including expedited shipping. A Galvanized Square and Rectangular Steel Tube Supplier providing full documentation and verified tolerance control eliminates these risks. [NEED_CITE: consequences of non-compliant steel imports in construction projects]
Procurement Confidence Through Verified Capabilities
Our 3 dedicated production lines cover 2,800+ specifications with wall thickness up to 100 mm, including proprietary sharp-corner rectangular tube technology holding 41 patents. The in-house physical and chemical laboratory tests every batch for composition, yield strength, and coating thickness before release. CE certification under EN 10210/EN 10219, ISO 9001:2015 registration, and SGS/BV third-party verification support exports to 50+ countries. Custom non-standard sizes, special coatings, and precision cutting services reduce on-site labor and waste. Professional loading optimization maximizes container utilization for 5.8 m to 12 m lengths.
Documentation & Compliance
- Mill test certificate documenting Q345B chemical composition and yield strength per GB/T 6728
- CE certificate confirming EN 10219 compliance for structural hollow sections exported to EU markets
- ISO 9001:2015 quality management certificate covering production and inspection processes
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerance
- Material traceability by heat number linking each bundle to original mill test data
- Customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

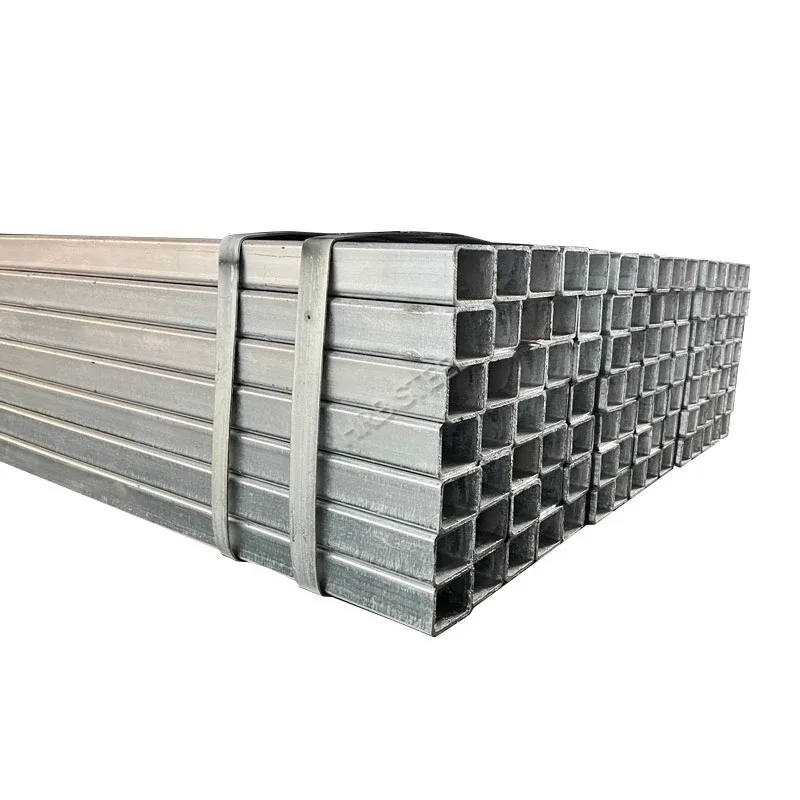

- Galvanized tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Hot dip galvanized surface protected with plastic end caps to prevent moisture ingress at tube ends
- Container loading optimized for 5.8 m and 12 m lengths to maximize payload while maintaining weight distribution
- Custom cutting to project-specific lengths available, reducing on-site waste and labor
- Heat number and steel grade stenciled on each bundle for site identification and traceability
- FOB, CIF, and DDP shipping options with real-time tracking from Jinan port to destination
Getting Your Galvanized Tube Quote Started
Submit your specifications including size, wall thickness, steel grade, quantity, and destination port to receive a detailed quotation within 12 hours. We provide mill test certificates and third-party inspection options before production begins. Custom sizes and special coating requirements are quoted separately with typical production lead times confirmed upfront.
Request Your Galvanized Tube Quotation
Send your specifications via email or WhatsApp to receive pricing, mill test certificates, and delivery confirmation.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Email: admin@sdxjysteel.com
WhatsApp: +86 188 5315 7756
Frequently Asked Questions
Q: How do Q345B, S355JR, and ASTM Grade 50 compare across different standards?
A: These grades represent similar yield strength levels in their respective standard systems — Q345B (GB), S355JR (EN), and Grade 50 (ASTM) all specify minimum yield strength around 345-355 MPa. The Galvanized Square and Rectangular Steel Tube Supplier provides grade equivalence documentation for international projects requiring cross-standard compliance.
Q: Can you provide third-party inspection reports for customs clearance?
A: Yes, SGS and BV third-party inspection reports are available for every shipment, verifying chemical composition, mechanical properties, zinc coating thickness, and dimensional tolerance. These reports support customs clearance in EU, North American, and Middle Eastern markets.
Q: What is the minimum order quantity for non-standard dimensions?
A: Custom sizes outside standard ranges are available with flexible MOQ depending on specification complexity. Contact us with your exact requirements for a tailored quotation.
Q: When should I choose hot dip galvanized versus PVC coating?
A: Hot dip galvanized coating (30-275 g/m²) provides superior corrosion protection for outdoor and industrial environments, while PVC coating offers additional chemical resistance and color coding options for specific applications. The Galvanized Square and Rectangular Steel Tube Supplier recommends hot dip galvanizing for structural applications requiring long-term atmospheric corrosion protection.
Q: Do your products meet CE EN 10219 requirements for European projects?
A: Yes, our galvanized square and rectangular tubes carry CE certification under EN 10210/EN 10219, with full documentation including mill test certificates and third-party inspection reports supporting EU market compliance.
