Description
Factory-direct NM400/NM500 plates — Every heat is verified in our in-house lab before the MTC is issued, so hardness on paper matches hardness on the mill floor.
Technical Specifications
| Parameter | Value |
|---|---|

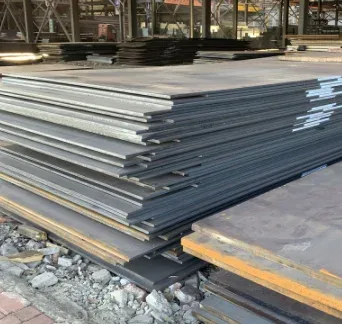

| Designation | NM400/NM500 Wear Resistant Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | NM400, NM500 |
| Standard | JIS, ASTM, DIN |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled, Coated |
| Thickness | 12mm |
| Service | Cutting Service |
| Application | Mining machinery / Construction equipment / Material handling systems / Industrial wear parts |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining & Quarrying | Excavator bucket liners, jaw crusher cheek plates, conveyor skirt boards |
| Construction Equipment | Bulldozer blade edges, loader bucket wear strips, dump truck bed liners |
| Material Handling | Hopper linings, discharge chutes, vibrating screen decks |
| Industrial Wear Parts | Feeder pans, screw conveyor flights, impact bars |
Hardness Traceability Is Where Most Wear-Plate Orders Go Wrong
A hardness gap of 40 HBW between the MTC and the actual plate means the difference between two years of service and two months.
I once watched a full container of wear plates get rejected at the destination port because the SGS recheck came back 40 HBW below what the mill certificate claimed. The root cause was never the steel chemistry — it was the quenching temperature drifting off during the night shift, with nobody resetting the furnace. When you source an NM400 NM500 wear resistant steel plate supplier who cannot show heat-by-heat hardness data tied to a physical sample, you are buying a lottery ticket on every heat. Quality uncertainty on wear plates does not show up at customs; it shows up six weeks later when a crusher liner cracks at the bolt holes [NEED_CITE: wear plate hardness testing methods per ASTM E10].
Matching Plate Hardness to Abrasion Severity in the Field
NM400 sits in the 370–430 HBW band, which handles moderate sliding abrasion in chutes and hoppers where impact energy stays low. NM500 pushes into the 470–530 HBW range, reserved for high-impact zones like jaw crusher liners and mining shovel buckets. Selecting the right grade is not about buying the hardest plate available — it is about matching the hardness to the dominant wear mechanism. An NM400 NM500 wear resistant steel plate supplier who stocks both grades lets you spec the cheaper plate for low-impact zones and the harder grade only where it actually matters, cutting material cost without sacrificing service life.
Compliance and Certification for Cross-Border Wear-Plate Procurement
Wear plates shipped under ASTM, JIS, or DIN designations must carry documentation that matches the destination country’s import and engineering codes. ASTM-referenced plates bound for North America need chemistry and hardness reported per the relevant ASTM framework; DIN-standard plates entering the EU require traceability that satisfies EN-style inspection expectations. Third-party inspection through SGS or BV closes the gap when the project spec demands independent verification beyond the mill’s own lab. Every plate we roll is stamped with its heat number, and the corresponding MTC travels with the shipment so customs clearance and site acceptance proceed without delay [NEED_CITE: mill test certificate requirements for wear-resistant steel plates].
Hot-Rolled Microstructure and Surface Protection Choices
Hot rolling produces a uniform ferrite-pearlite or tempered martensite structure depending on the post-rolling heat treatment, which directly governs both hardness and weldability. NM400 and NM500 are quenched and tempered after rolling, locking in the target hardness band while retaining enough toughness to resist cracking under impact. The mill-finish surface from hot rolling is suitable for indoor or sheltered applications; when plates face outdoor weathering or chemical exposure, a coated surface treatment adds a corrosion barrier that extends the substrate’s effective life. Thickness consistency across the plate — controlled during the hot-rolling pass schedule — matters just as much as hardness, because a 12mm plate that measures 11.2mm at the edges will wear through prematurely at the thinnest point.
The Hidden Cost of Buying Wear Plates Without Verified Hardness
Ordering wear plates based on a catalogue grade without requiring heat-specific hardness data is the most expensive shortcut in heavy-equipment maintenance. A plate that arrives 30 HBW soft will wear through in half the expected campaign, forcing an unplanned shutdown and a repeat order at emergency freight rates. A plate that arrives too hard — above the specified band — becomes prone to micro-cracking during welding or bending, creating failure points that no amount of surface hardness can compensate for. Certification gaps compound the problem: plates without proper MTC documentation get held at customs, delaying the entire maintenance window [NEED_CITE: consequences of non-conforming wear plate hardness in mining equipment].
Why Procurement Teams Source NM400 and NM500 From Our Mill
We operate three dedicated production lines with an in-house physical and chemical laboratory that tests every heat before the plate leaves the floor — the same lab that caught the hardness drift I mentioned earlier. Our 2,800-plus specification range means you can order NM400 for hopper linings and NM500 for crusher liners in a single purchase order, consolidated into one shipment. Factory-direct pricing eliminates the trading-company markup that inflates per-tonne cost on heavy plate. We hold ISO 9001:2015 certification, Lloyd’s Register EU CE marking, and accept SGS or BV third-party inspection at the buyer’s request. Custom cutting to your exact profile dimensions happens in-house, so plates arrive ready to bolt in — no secondary processing delays at the job site. Professional loading plans optimize container weight for 12mm plate, and we coordinate FOB, CIF, or DDP delivery to over 50 countries.
Documentation & Compliance
- Mill Test Certificate documenting NM400 or NM500 chemical composition and Brinell hardness per heat number, issued from our in-house laboratory
- CE certification under Lloyd’s Register for plates destined for EU engineering projects, confirming compliance with applicable European standards
- ISO 9001:2015 quality management certificate covering the full production and inspection chain from slab reheating to final hardness testing
- SGS or BV third-party inspection report available upon request for independent verification of hardness, dimensions, and surface condition
- Material traceability by heat number stamped on every plate, cross-referenced to the MTC and the production log
- Full customs documentation package including commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- 12mm hot-rolled NM400/NM500 plates bundled with high-tensile steel strips and edge protectors to prevent coating damage and edge deformation during ocean transit
- Coated-surface plates wrapped in waterproof paper and plastic film to preserve the corrosion-resistant layer through port storage and container loading
- Container loading plans optimized for 12mm plate weight distribution, maximizing payload per 20ft or 40ft container without exceeding road-weight limits at destination
- Precision cutting service delivers plates to your specified profile dimensions, eliminating on-site plasma cutting and reducing scrap at the workshop
- Heat number and steel grade stenciled on every plate for immediate visual identification during unloading and inventory staging
- FOB, CIF, and DDP shipping options with real-time tracking, coordinated from Jinan port to your project site in over 50 countries
Starting Your NM400/NM500 Procurement
Send your specification sheet — plate grade, thickness, quantity, profile dimensions if cutting is required, and destination port — and we return a detailed quotation within 12 hours, including unit price, production lead time, and the certification package applicable to your market. If your project requires non-standard dimensions or third-party inspection, we confirm feasibility and cost in the same response.
Request Your NM400/NM500 Quote and Mill Test Certificate
Submit your specifications by email or WhatsApp to receive pricing, hardness data, and delivery terms within one business day.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjysteel.com
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Frequently Asked Questions
Q: What is the hardness difference between NM400 and NM500, and how do I choose?
A: NM400 targets the 370–430 HBW range for moderate sliding abrasion, while NM500 targets 470–530 HBW for high-impact and severe abrasion zones. The choice depends on the dominant wear mechanism in your equipment — sliding wear favors NM400 for better weldability and toughness, while high-impact crushing or digging applications benefit from NM500’s higher surface resistance.
Q: What documentation is provided with each shipment of NM400/NM500 plates?
A: Every plate ships with an original Mill Test Certificate showing chemical composition and Brinell hardness tied to the heat number. We also provide CE certification for EU-bound orders, ISO 9001:2015 quality documentation, and full customs paperwork including packing list, bill of lading, and certificate of origin.
Q: Can NM400/NM500 plates be cut to custom profiles and dimensions?
A: Yes. Our in-house cutting service handles precision profile cutting to your exact drawings, including bolt-hole patterns and beveled edges for welding preparation. This eliminates secondary processing at your workshop and ensures plates arrive ready for installation.
Q: What surface treatment options are available for these wear plates?
A: We supply NM400 and NM500 plates in hot-rolled mill finish for indoor or sheltered applications, and with coated surface treatment for environments where corrosion resistance is needed alongside abrasion resistance. The coating choice depends on whether the plate will be exposed to weather, moisture, or chemical agents in service.
Q: How do you ensure hardness consistency across production heats?
A: Every heat is tested in our in-house physical and chemical laboratory before the plate is released for shipment. Hardness results are recorded on the Mill Test Certificate and cross-referenced to the heat number stamped on each plate, so the documented hardness matches the physical product you receive.
