Description
Factory-Direct Galvanized Hollow Sections — All DC51D+Z to DC53D+Z grades produced in-house with hot-dip galvanizing lines, eliminating trader markups on ASTM-certified square and rectangular tubes.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | DC51D+Z / DC52D+Z / DC53D+Z Galvanized Square Rectangular Hollow Steel Pipe |
| Product Type | Galvanized Square and Rectangular Steel Tube (Hollow Section) |
| Steel Grade | Q195, Q235, Q235B, Q345, Q345B, SS400, DC51D+Z, DC52D+Z, DC53D+Z |
| Standard | ASTM |
| Section Shape | Square / Rectangular / Round |
| Wall Thickness | 0.5–200 mm |
| Length | 12 m |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Galvanized (Zinc Coated) / Customizable |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Steel structures / Construction frames / Machinery / Scaffolding / Furniture / Petrochemicals / Fluid transport |
| MOQ | 5 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Building frames, scaffolding systems, roof trusses, column supports |
| Machinery Manufacturers | Conveyor structures, equipment frames, hydraulic support columns |
| Petrochemicals & Industrial | Pipe racks, structural supports in corrosive environments, fluid transport lines |
| Infrastructure & Civil Engineering | Bridge handrails, sound barrier frames, solar panel mounting structures |
Zinc Coating Thickness Determines Whether a Container Clears Customs or Gets Held
A galvanized square rectangular hollow steel pipe with insufficient zinc coating fails third-party inspection at destination — regardless of how good the steel grade looks on paper.
I have seen entire shipments of ASTM DC51D+Z DC52D+Z DC53D+Z galvanized square rectangular hollow steel pipe held at port because the zinc layer measured below the specified minimum. The steel itself passed every mechanical test, but the coating told a different story. Buyers who only check dimensional tolerance and steel grade on the mill test certificate often discover the coating gap too late — after the container has already crossed the ocean. [NEED_CITE: hot-dip galvanizing coating thickness requirements per ASTM A123]
Matching Galvanized Hollow Sections to Structural and Corrosive Environments

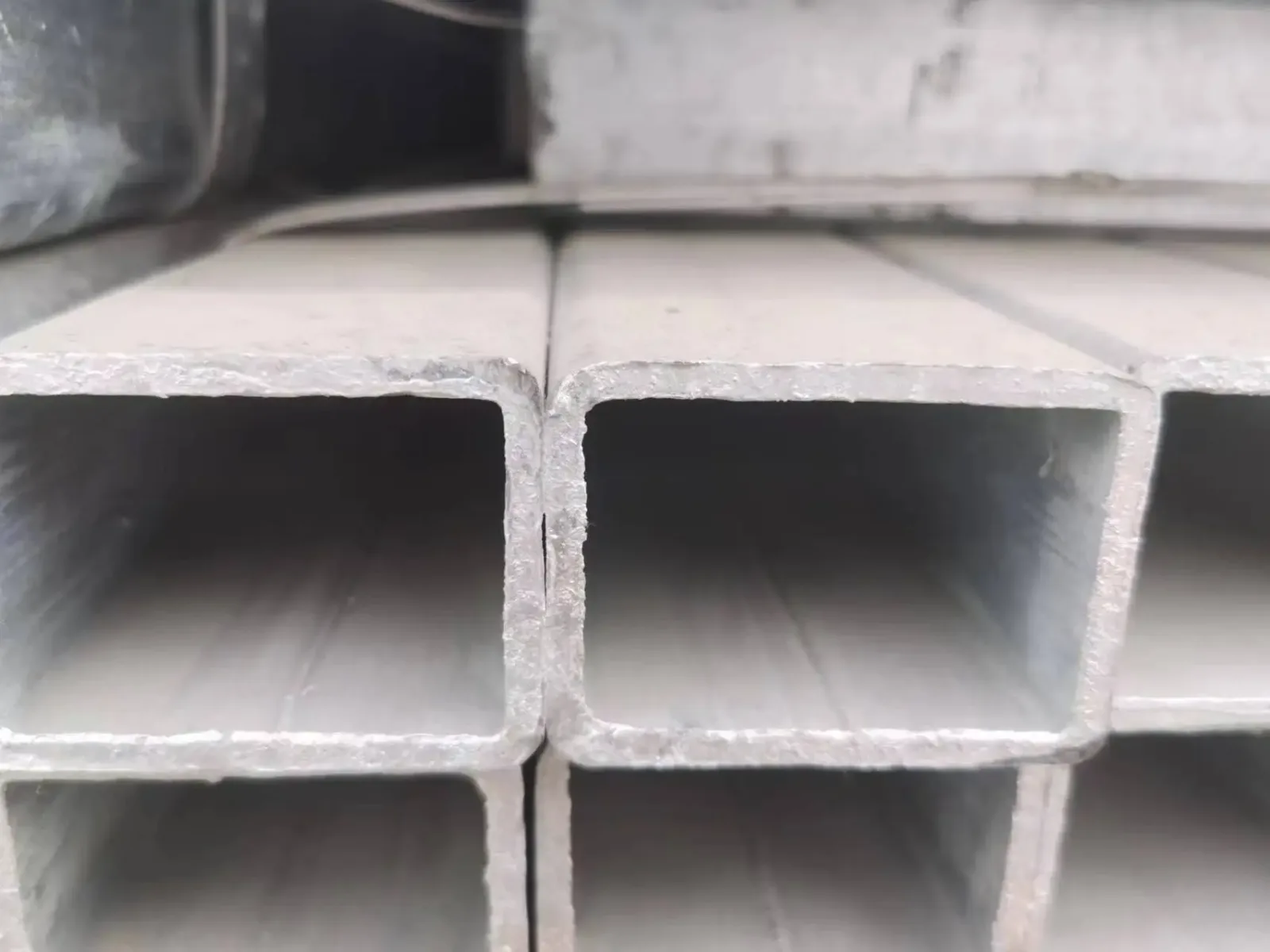

The DC51D+Z through DC53D+Z grade range covers commercial quality to deep-drawing applications, making the ASTM DC51D+Z DC52D+Z DC53D+Z galvanized square rectangular hollow steel pipe suitable for both load-bearing frames and formed components. In coastal or industrial atmospheres where corrosion attacks unprotected steel within months, the hot-dip zinc layer acts as a sacrificial barrier. Wall thickness from 0.5 mm to 200 mm means the same product family serves light-gauge furniture frames and heavy structural columns alike. Our proprietary sharp-corner rectangular tube technology ensures flat contact surfaces for bolted and welded connections — a detail that matters when field crews are assembling frames under schedule pressure.
Engineering Compliance and Certification Requirements Across Markets
Structural hollow sections used in load-bearing applications must conform to recognized engineering standards. For European projects, EN 10210 (hot-finished) and EN 10219 (cold-formed) define dimensional tolerances, mechanical properties, and marking requirements. [NEED_CITE: EN 10219 cold-formed structural hollow section requirements] North American specifiers reference ASTM A500 and A1085. The ASTM DC51D+Z DC52D+Z DC53D+Z galvanized square rectangular hollow steel pipe we produce carries CE certification under EN 10210/10219, Singapore FPC approval, and ISO 9001:2015 quality management — covering the documentation chain that customs authorities and project inspectors demand. Wall thickness tolerance of ±1% keeps theoretical weight calculations aligned with actual delivered weight, preventing disputes during final account settlement.
Understanding DC51D+Z, DC52D+Z, and DC53D+Z Grade Selection
These designations follow the EN 10346 continuous hot-dip galvanized steel flat product system, adapted here for hollow section applications. DC51D+Z offers commercial drawing quality — adequate for general structural frames where forming is minimal. DC52D+Z provides improved formability for components requiring moderate bending or flaring. DC53D+Z delivers deep-drawing capability for complex formed connections. The “+Z” suffix indicates hot-dip galvanizing with a pure zinc coating. When combined with structural grades like Q195 through Q345B and SS400, the full product range covers everything from non-load-bearing partitions to primary structural members. Hot-dip galvanizing deposits a metallurgically bonded zinc-iron alloy layer that outperforms electroplated coatings in adhesion and coverage at corners and edges. [NEED_CITE: zinc coating adhesion mechanisms in hot-dip galvanizing]
Hidden Costs of Procuring Galvanized Hollow Sections Without Verification
Ordering ASTM DC51D+Z DC52D+Z DC53D+Z galvanized square rectangular hollow steel pipe based on price alone invites three categories of hidden cost. First, zinc coating below specification means premature corrosion — particularly at cut edges and welded joints where the base steel is exposed. Second, wall thickness exceeding negative tolerance reduces load capacity and may fail structural inspection under EN 1993 or AISC frameworks. Third, missing or incomplete mill test certificates delay customs clearance and can result in container demurrage charges that exceed the original steel cost. [NEED_CITE: consequences of non-compliant steel coatings in structural applications]
Procurement Advantages of Direct Factory Supply
Every ASTM DC51D+Z DC52D+Z DC53D+Z galvanized square rectangular hollow steel pipe leaving our facility passes through in-house physical and chemical laboratories before shipment. We hold 41 invention patents — including proprietary sharp-corner rectangular tube technology that eliminates the rounded internal radius found in conventional forming. With 2,800+ specifications in our catalog and wall thickness capability up to 200 mm, non-standard sizes can be produced without the extended lead times typical of trading companies sourcing from multiple mills. Our CE certification under EN 10210/10219, ISO 9001:2015 registration, and third-party verification by SGS and BV provide the documentation trail that EPC contractors and project owners require. Exports to 50+ countries across EU, North America, Middle East, and Southeast Asia mean our logistics team understands port-specific requirements for marking, bundling, and container optimization.
Documentation & Compliance
- Mill Test Certificate documenting DC51D+Z, DC52D+Z, or DC53D+Z chemical composition and zinc coating weight per ASTM and EN 10346 standards
- CE Certificate confirming compliance with EN 10210 (hot-finished) or EN 10219 (cold-formed) structural hollow section requirements
- ISO 9001:2015 Quality Management System certificate covering production, inspection, and traceability processes
- SGS or BV Third-Party Inspection Report verifying dimensional tolerance, coating thickness, and surface quality before shipment
- Heat Number Traceability linking each ASTM DC51D+Z DC52D+Z DC53D+Z galvanized square rectangular hollow steel pipe to its original steel coil and galvanizing batch
- Customs Documentation Package including packing list, bill of lading, and certificate of origin formatted for destination port requirements
Packaging, Loading & Delivery

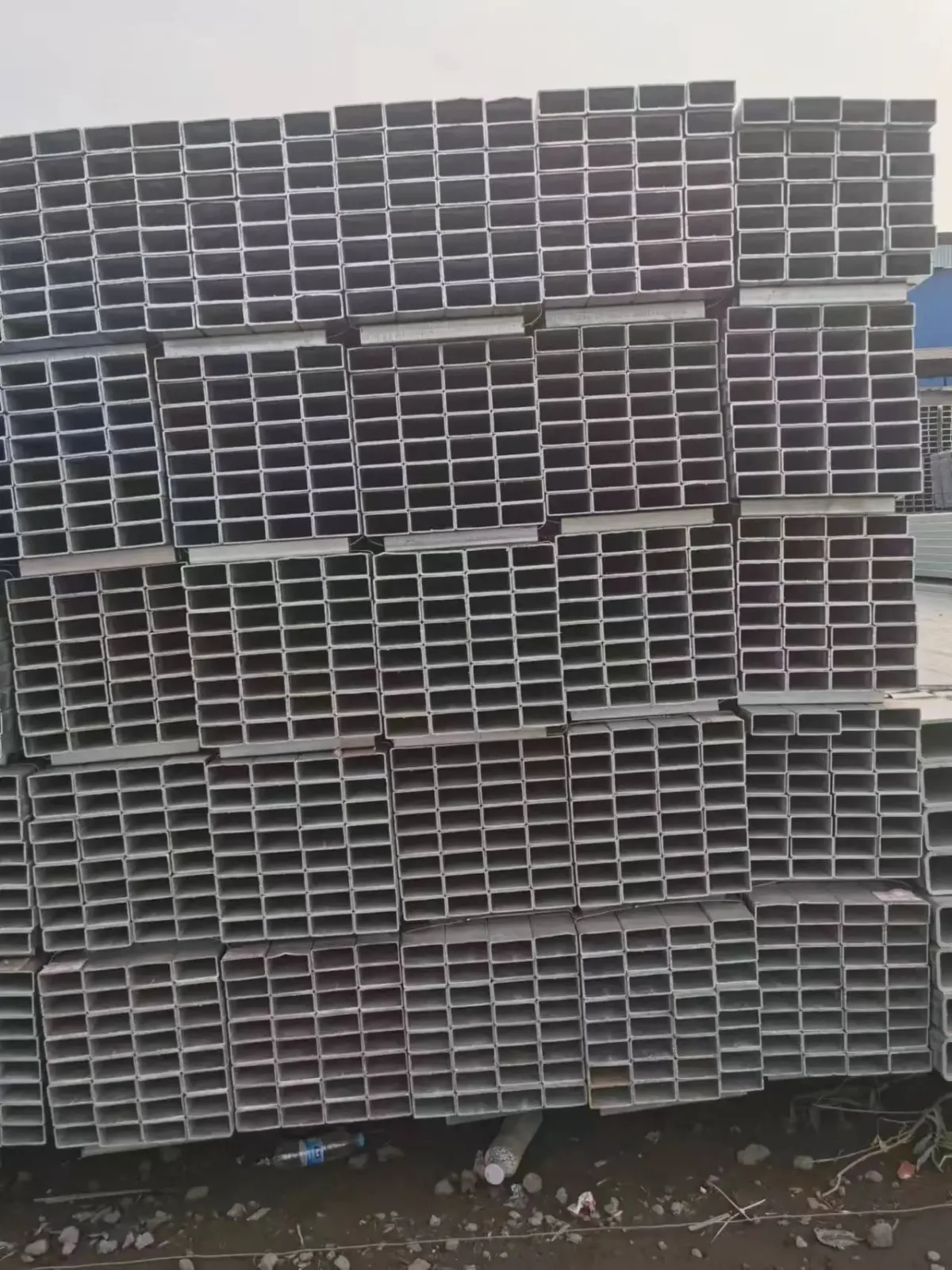

- Galvanized ASTM DC51D+Z DC52D+Z DC53D+Z galvanized square rectangular hollow steel pipe bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit
- 12-meter standard length optimized for 20ft and 40ft container loading with professional stowage plans maximizing payload per shipment
- Cut-to-length and bending services completed before galvanizing to ensure full zinc coverage on all processed surfaces
- Heat number and steel grade stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination to 50+ countries
- Seaworthy packaging with waterproof wrapping and wooden pallets for DC53D+Z deep-drawing grade products requiring surface protection
Requesting a Quotation for Your Project Requirements
Submit your specification sheet including section dimensions, wall thickness, steel grade preference (DC51D+Z, DC52D+Z, or DC53D+Z), total quantity, and destination port. We respond within 12 hours with unit pricing, production lead time, applicable certifications, and mill test certificate availability. For non-standard sizes or custom bending and cutting requirements, our engineering team provides technical drawings and feasibility confirmation before production begins.
Frequently Asked Questions
Q: What is the difference between DC51D+Z, DC52D+Z, and DC53D+Z galvanized steel grades?
A: These grades follow the EN 10346 designation system for continuous hot-dip galvanized steel. DC51D+Z provides commercial drawing quality for general structural applications. DC52D+Z offers improved formability for moderate bending operations. DC53D+Z delivers deep-drawing capability for complex formed components. The “+Z” indicates hot-dip galvanizing with pure zinc coating.
Q: Can you provide Mill Test Certificates and third-party inspection reports for customs clearance?
A: Yes. Every shipment includes a Mill Test Certificate documenting chemical composition and mechanical properties. Third-party inspection by SGS or BV is available upon request to verify coating thickness, dimensional tolerance, and surface quality before loading. All documentation is formatted for destination port customs requirements.
Q: What is the MOQ for custom non-standard sizes and special bending/cutting requirements?
A: The standard MOQ is 5 Tons. For custom non-standard dimensions or special processing including bending, cutting, and punching, we evaluate feasibility based on your technical drawings and provide a confirmed production plan before order placement.
Q: How does hot-dip galvanizing compare to other surface treatments for corrosion protection?
A: Hot-dip galvanizing creates a metallurgically bonded zinc-iron alloy layer that provides superior adhesion and coverage compared to electroplated coatings or paint systems. The zinc acts as a sacrificial anode, protecting the base steel even at cut edges and minor surface damage. This makes it the preferred choice for outdoor structural applications and corrosive environments.
Q: What certifications do you hold for EU, North America, and Middle East projects?
A: We hold Lloyd’s Register EU CE certification under EN 10210 and EN 10219 for structural hollow sections, Singapore FPC approval, ISO 9001:2015 quality management certification, and third-party verification by SGS and BV. These certifications cover documentation requirements for projects across EU, North America, Middle East, and Southeast Asia.
Get Your ASTM-Certified Galvanized Hollow Section Quote Today
Send your specifications — section size, wall thickness, steel grade, quantity, and destination port — to receive pricing, mill test certificate confirmation, and production scheduling within 12 hours.
