Description
Factory-direct Hot Dip Galvanized Square Rectangular Steel Tube ASTM supplier — Every batch verified by our in-house physical and chemical laboratory before leaving the Jinan plant.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Hot-Dip Galvanized Square/Rectangular Steel Tube |
| Product Type | Hot-Dip Galvanized Square / Rectangular Steel Tube |
| Steel Grade | Carbon Steel |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Outer Diameter or Side Length | 20×40 mm |
| Wall Thickness | 0.12–0.2 mm |
| Length | Customized |
| Technique | Hot Rolled Based / Welded |
| Surface Treatment | Hot-Dip Galvanized (Z10–Z29 coating) |
| Tolerance | ±1% / ±5% |
| Ends | Plain / Custom |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Hardness | Hard |
| Spangle Type | Regular Spangle |
| Skin Pass | Yes |
| Oiled or Non-oiled | Non-oiled |
| Application | Construction, Petrochemicals, Machinery, Pipe making, Container manufacturing, Corrugated sheets production |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction | Structural framing for warehouses, light-gauge building skeletons, curtain wall supports |
| Petrochemicals | Pipe racks, cable tray supports, non-pressure conduit systems |
| Machinery | Equipment frames, conveyor structures, machine guards |
| Container Manufacturing | Corner posts, internal partition frames, floor support beams |
| Corrugated Sheets Production | Roll-forming line guide rails, support purlins |
Why Zinc Coating Thickness Decides Whether Your Shipment Clears Customs
A 20-micron shortfall on a galvanized coating can trigger a full container rejection at destination port.
Importers across the Middle East and Southeast Asia have told me the same story: the Hot Dip Galvanized Square Rectangular Steel Tube ASTM supplier shipped on time, but the salt spray test at the receiving lab failed because the zinc layer was 45 microns instead of the contracted 65. The entire container went back. [NEED_CITE: hot-dip galvanized coating thickness standards for structural steel] When you source from fragmented suppliers who swap material without re-inspection, coating consistency becomes a gamble. Add missing mill test certificates or incomplete CE documentation, and customs brokers refuse to release the cargo. The real cost is never the tube itself — it is the idle crane, the delayed foundation pour, and the penalty clause from the main contractor.
Matching the 20×40 mm Profile to Light Structural and Framing Work
The 20×40 mm side-length range sits at the intersection of light load-bearing and ease of on-site handling. For Hot Dip Galvanized Square Rectangular Steel Tube ASTM supplier projects in warehouse purlin systems and machinery frames, this profile offers enough section modulus to span short distances while remaining light enough for manual positioning. The hot-dip zinc coating at Z10–Z29 provides continuous corrosion protection on all four faces and the internal weld seam — critical for outdoor scaffolding and petrochemical pipe racks where moisture accumulates at joints. Our production lines cover over 2,800 specifications across square, rectangular, and round profiles, so when your structural engineer calls for a non-standard width-to-thickness ratio, we pull it from existing tooling rather than forcing a minimum order that delays your schedule.
Engineering Compliance and Certification Requirements
Structural hollow sections used in load-bearing frames must conform to dimensional and mechanical tolerances defined by the governing standard — in this case ASTM. [NEED_CITE: ASTM A500 structural tubing dimensional tolerance requirements] For projects entering the European market, Lloyd’s Register EU CE certification under EN 10210 and EN 10219 becomes the gate that determines whether the material can be welded into the primary structure or relegated to temporary works. The regular spangle finish and skin pass treatment on this Hot Dip Galvanized Square Rectangular Steel Tube ASTM supplier product ensure a uniform surface that accepts field welding and powder coating without zinc flaking at the heat-affected zone. Custom cut-to-length service eliminates secondary cutting on-site, reducing labor hours and preserving the integrity of the galvanized layer at every cut face.
Carbon Steel Grade Selection and Hot-Dip Galvanizing Process
Carbon steel grades in the Q195–Q275 family form the substrate for most hot-dip galvanized structural tubes because they offer adequate formability during the roll-forming and welding stages, followed by sufficient surface reactivity for zinc-iron alloy layer formation during galvanizing. The hot-dip process immerses the welded tube in a molten zinc bath, producing a metallurgical bond that delivers coating thickness in the Z10–Z29 range — substantially heavier than electro-galvanized or pre-galvanized alternatives. [NEED_CITE: difference between hot-dip galvanized and pre-galvanized steel tube coating durability] The ±1% to ±5% tolerance band on wall thickness means buyers must distinguish between theoretical weight calculations and actual delivered weight; a 0.12 mm wall at the lower tolerance limit carries less load than the nominal drawing suggests. Our in-house laboratory tests every heat for coating adhesion and thickness before release, because a hard finish with poor zinc bonding will chip during transport and expose bare steel within weeks of installation.
Hidden Costs of Sourcing the Wrong Galvanized Specification
Ordering a Hot Dip Galvanized Square Rectangular Steel Tube ASTM supplier product without verifying the coating class against the project’s corrosion environment leads to predictable failures. Tubes with insufficient zinc thickness installed in coastal or industrial atmospheres show white rust within months, forcing full replacement at a cost that dwarfs the original purchase price. [NEED_CITE: corrosion protection requirements for galvanized steel in marine environments] Missing or forged mill test certificates trigger customs holds in the EU and North America, where importers face demurrage charges and project liquidated damages. Negative tolerance abuse — where the actual wall thickness falls below the declared minimum — compromises structural capacity and voids engineering sign-off, leaving the contractor liable for re-engineering and reinstallation.
Procurement Confidence Through Verified Factory Capability
Every Hot Dip Galvanized Square Rectangular Steel Tube ASTM supplier order leaving our Jinan facility passes through three quality gates: incoming raw material inspection, in-process dimensional checks during forming and welding, and final coating thickness verification in our physical and chemical laboratory. We hold 41 invention patents, including proprietary sharp-corner rectangular tube technology that delivers tight corner radii for flush connections in steel frames — a detail that eliminates gap-filling welds and reduces on-site labor. With 2,800+ specifications in stock across square, rectangular, and round profiles, we consolidate multi-item orders for EPC contractors who would otherwise coordinate with five separate mills. Lloyd’s Register EU CE certification, ISO 9001:2015 registration, and third-party verification by SGS and BV ensure that documentation travels with the cargo, not separately. Professional loading plans optimize container payload for the 20×40 mm profile, and door-to-door logistics coordination covers FOB, CIF, and DDP terms to 50+ countries.
Documentation & Compliance
- Mill test certificate documenting Carbon Steel chemical composition and coating thickness per ASTM, issued per heat number
- Lloyd’s Register EU CE certificate under EN 10210/EN 10219 for projects entering European customs territory
- ISO 9001:2015 quality management system certificate covering the full galvanizing and welding process
- SGS or BV third-party inspection report confirming zinc coating adhesion and spangle uniformity
- Material traceability sheet linking each bundle to its heat number, coating class Z10–Z29, and dimensional inspection record
- Customs document package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery

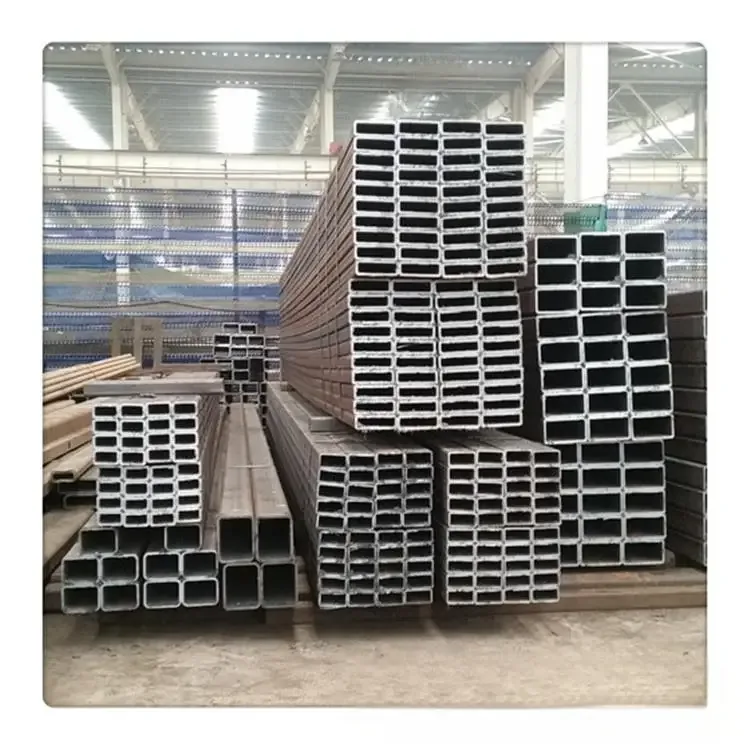

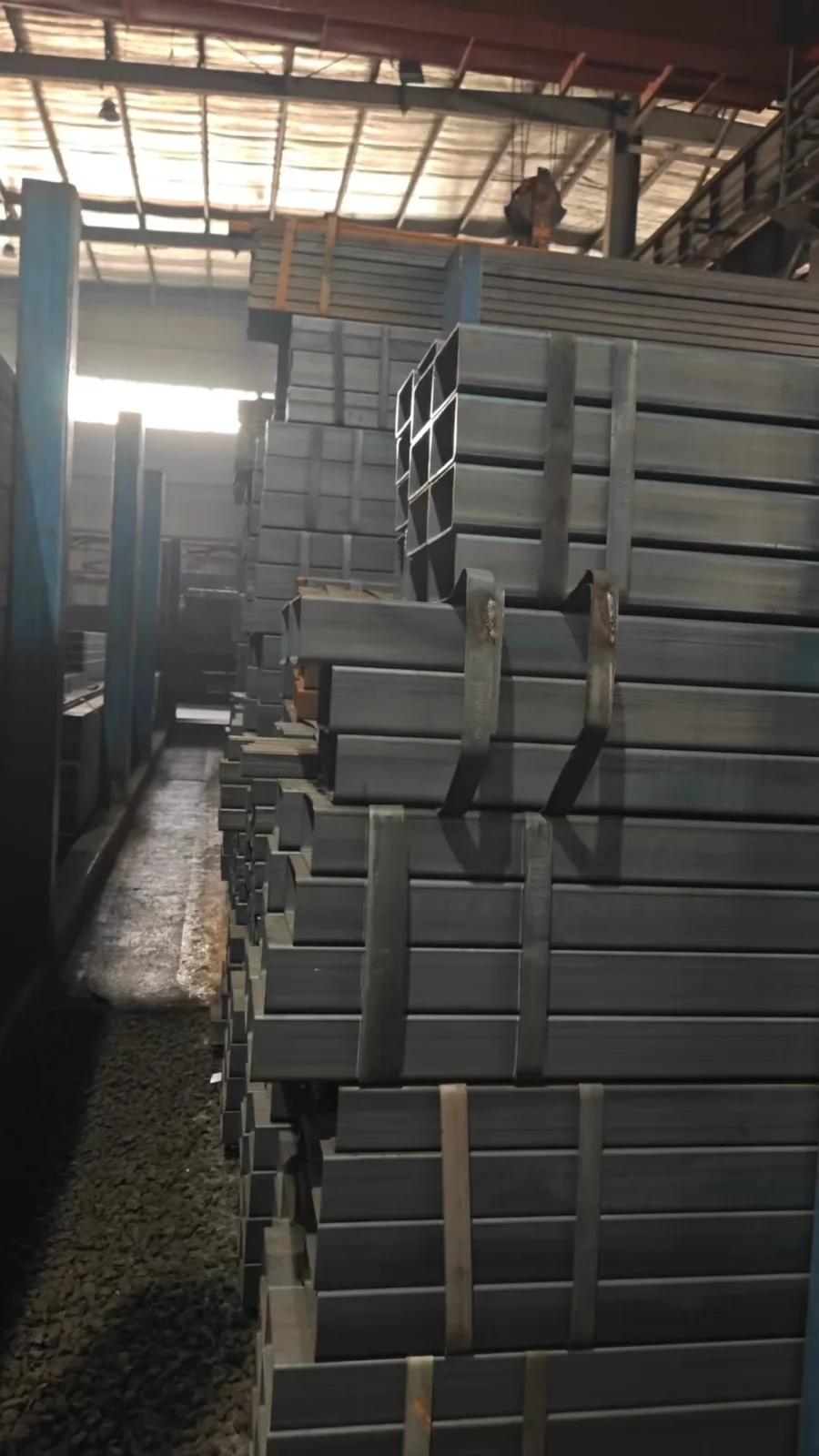

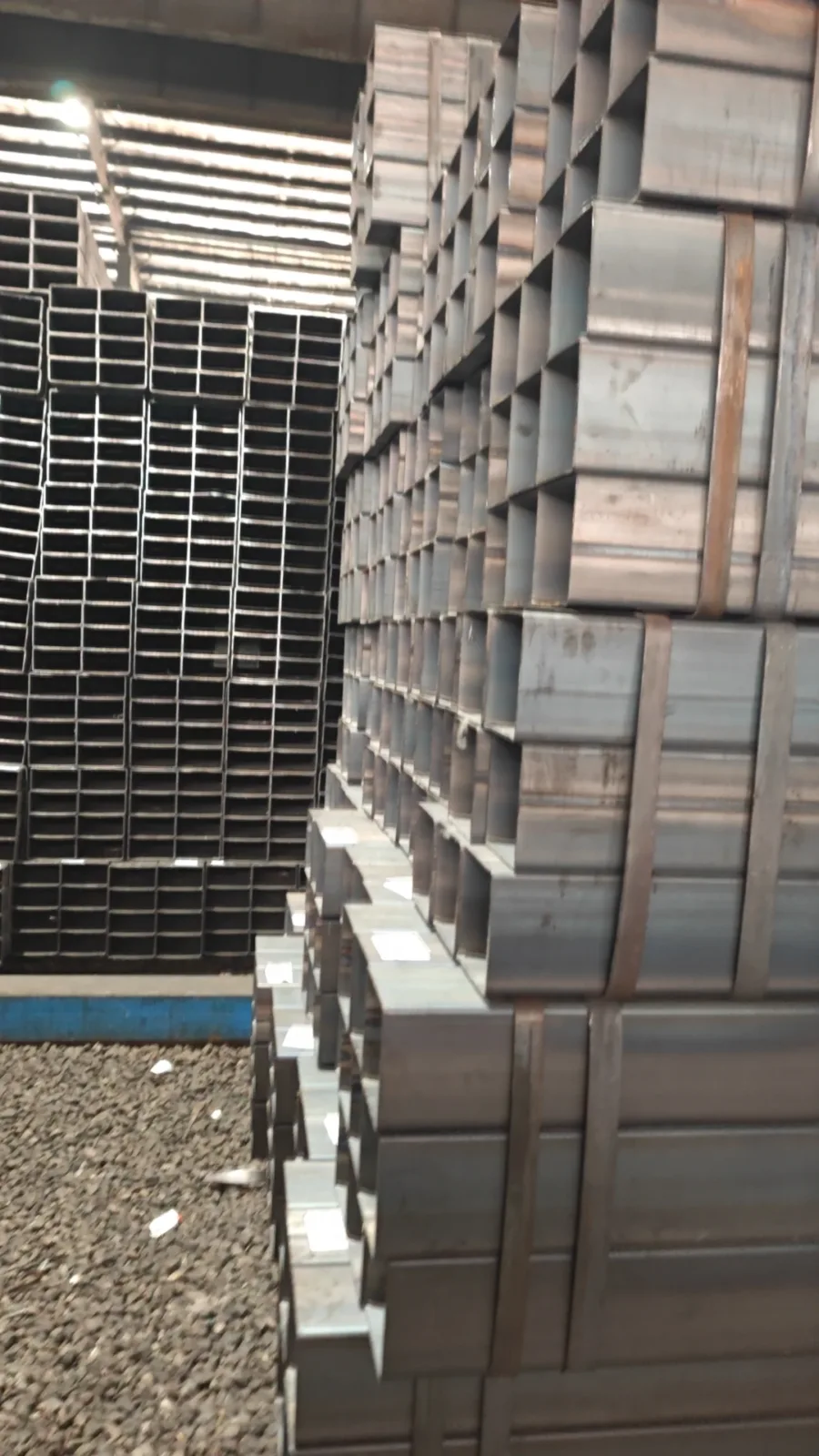

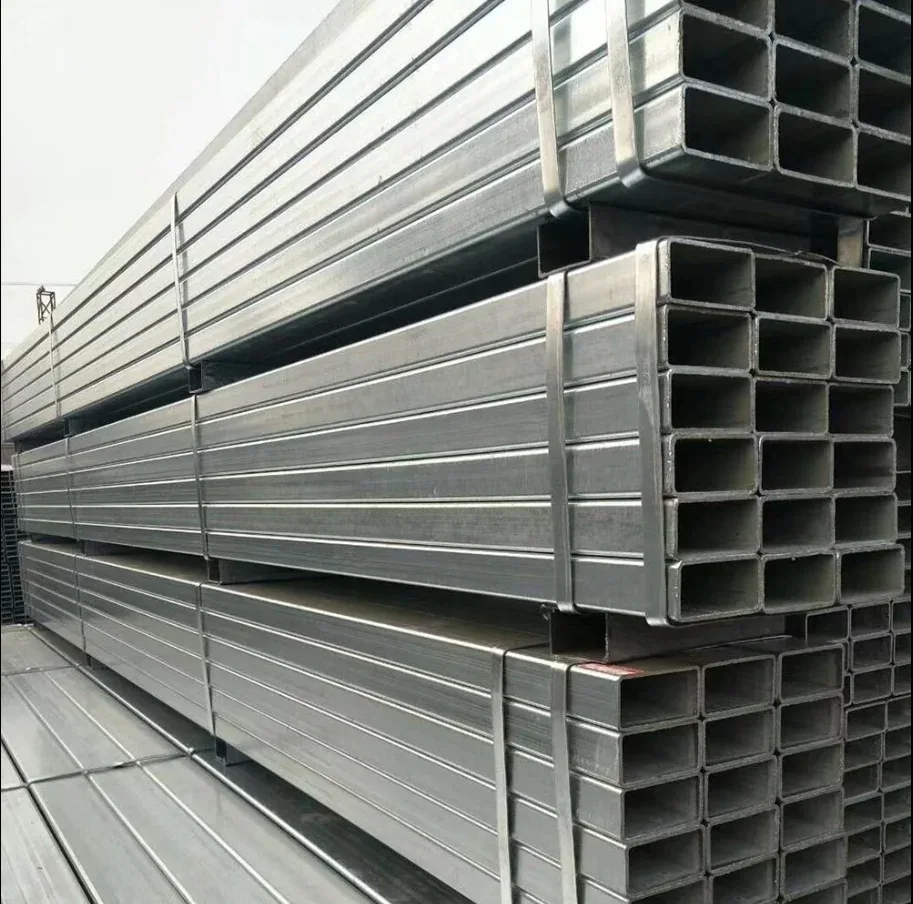

- Carbon steel Hot Dip Galvanized Square Rectangular Steel Tube ASTM supplier products bundled with high-tensile steel strips and edge protectors to prevent zinc coating damage during ocean transit
- Non-oiled, regular spangle finish shipped on seaworthy wooden pallets with waterproof wrapping for containers destined to humid tropical ports
- Custom cut-to-length service eliminates on-site cutting; 20×40 mm profiles loaded in nested layers to maximize 20ft and 40ft container payload
- Each bundle tagged with heat number, steel grade, coating class Z10–Z29, and net weight for site-level material traceability
- FOB Jinan/Qingdao, CIF, and DDP shipping terms available with real-time container tracking to 50+ countries
Securing Your Quote and Mill Test Certificate
Submit your specification sheet — including side dimensions, wall thickness, coating class, total tonnage, and destination port — and receive a detailed quotation with unit pricing, production lead time, and payment terms within 12 hours. We attach sample mill test certificates from recent Carbon Steel Hot Dip Galvanized Square Rectangular Steel Tube ASTM supplier orders so your engineering team can verify compliance before contract signature. For non-standard profiles or custom lengths outside the 20×40 mm range, our technical team provides a feasibility assessment and tooling confirmation within 48 hours.
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized steel tubes?
A: Hot-dip galvanizing immerses the finished welded tube in a molten zinc bath, producing a metallurgical zinc-iron alloy bond with coating thickness in the Z10–Z29 range. Pre-galvanized tubes are made from already-coated steel coil, leaving the weld seam and cut edges with thinner zinc protection. For outdoor structural applications, hot-dip delivers significantly longer corrosion resistance.
Q: How do you ensure coating thickness consistency across Z10–Z29 specifications?
A: Every batch passes through our in-house physical and chemical laboratory for coating thickness measurement and adhesion testing before shipment. We provide the original mill test certificate with each delivery, and third-party inspection by SGS or BV is available for buyers who require independent verification.
Q: Can you provide custom non-standard sizes with low MOQ for trial orders?
A: Yes. Our production lines cover over 2,800 specifications across square, rectangular, and round profiles. For non-standard dimensions outside the 20×40 mm range, we assess tooling availability and provide a custom quotation with realistic MOQ based on the profile complexity.
Q: What certifications are included for EU customs clearance and project compliance?
A: We provide Lloyd’s Register EU CE certification under EN 10210 and EN 10219, ISO 9001:2015 quality system certificate, mill test certificates per heat number, and complete customs documentation including packing list, bill of lading, and certificate of origin.
Q: How does theoretical weight calculation differ from actual weight with tolerance specifications?
A: Theoretical weight is calculated from nominal dimensions and standard steel density. With a ±1% to ±5% tolerance band on wall thickness, actual delivered weight may vary. We provide both theoretical and actual weight on the packing list so buyers can reconcile invoicing against physical receipt.
Get Your Hot Dip Galvanized Square Rectangular Steel Tube ASTM Quote Today
Send your specification sheet, quantity, and destination port to receive a detailed quotation with mill test certificate samples within 12 hours.
