Description

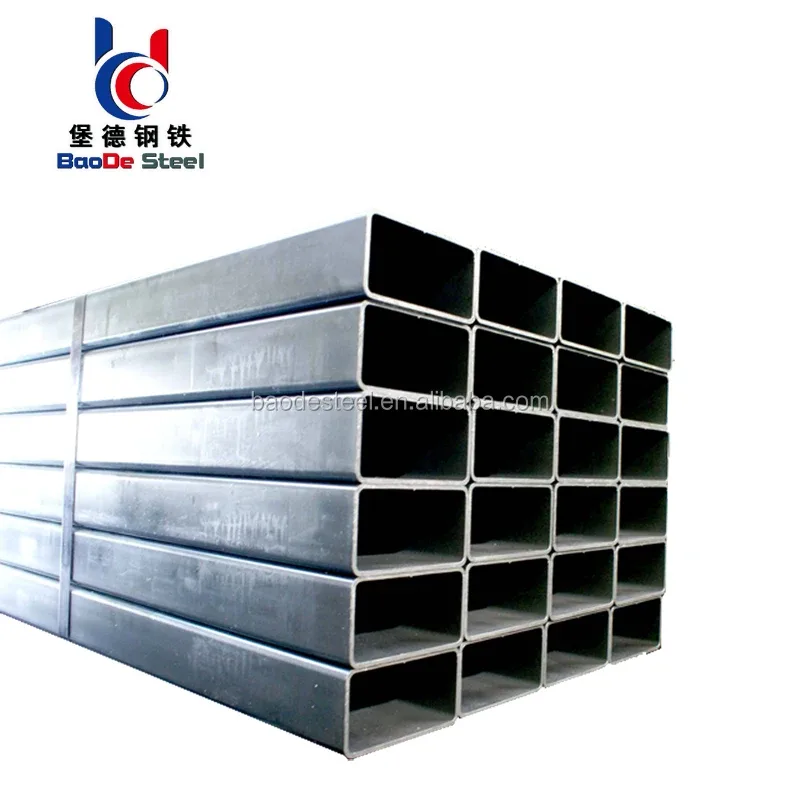

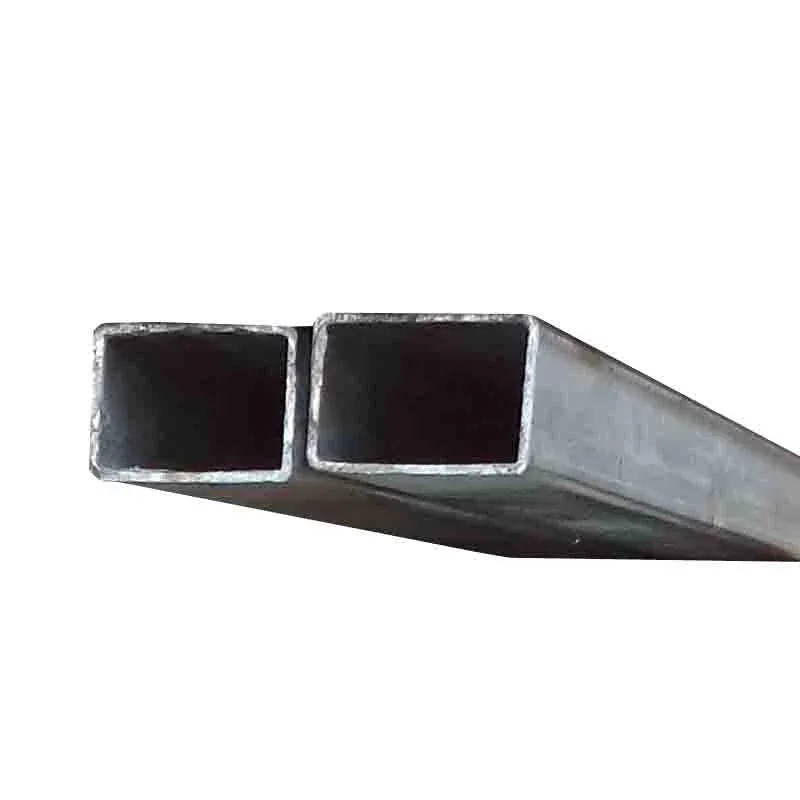

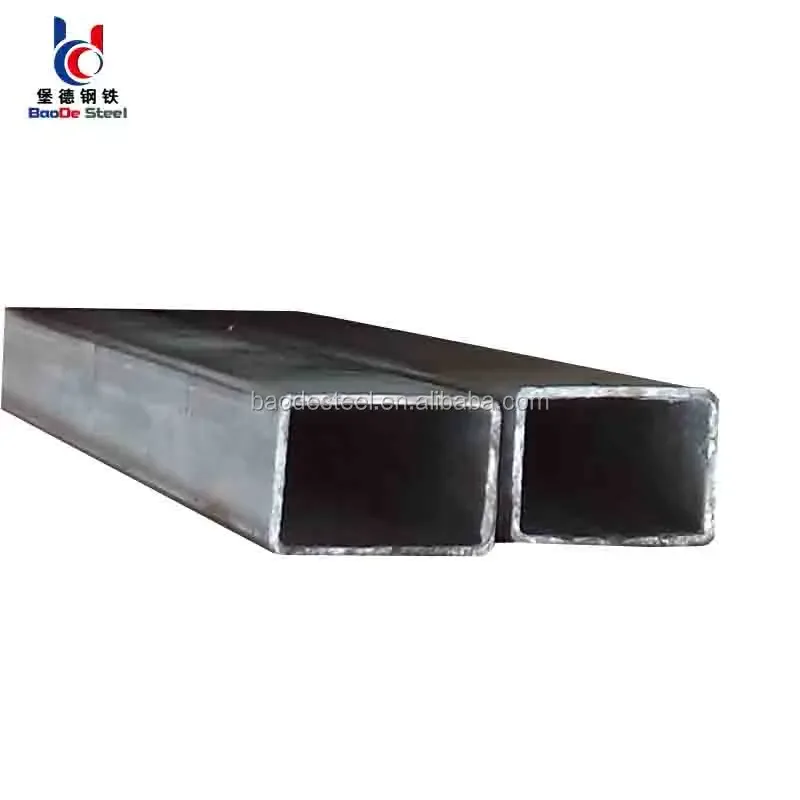

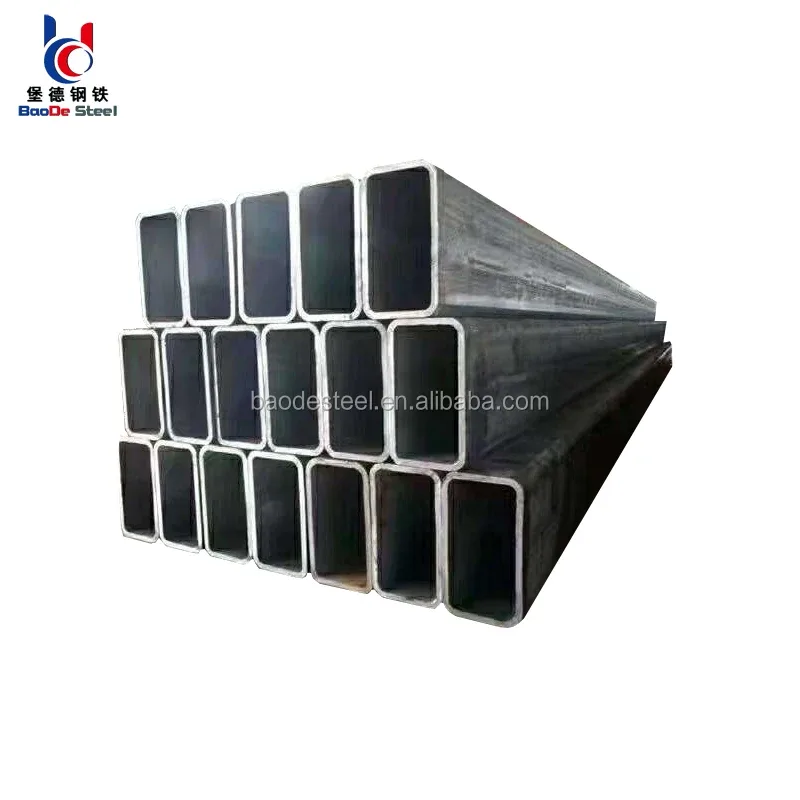

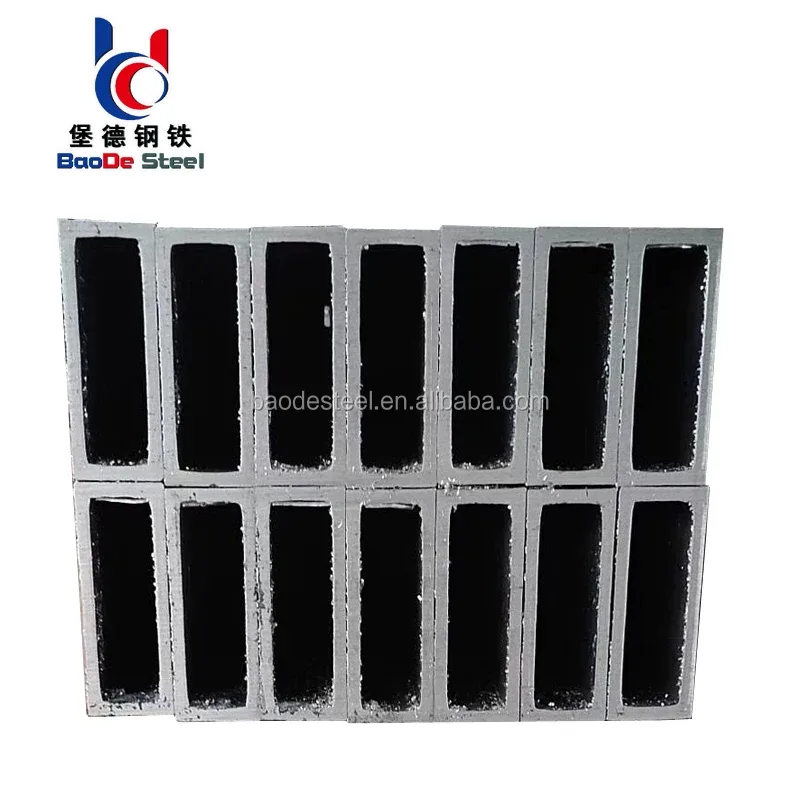

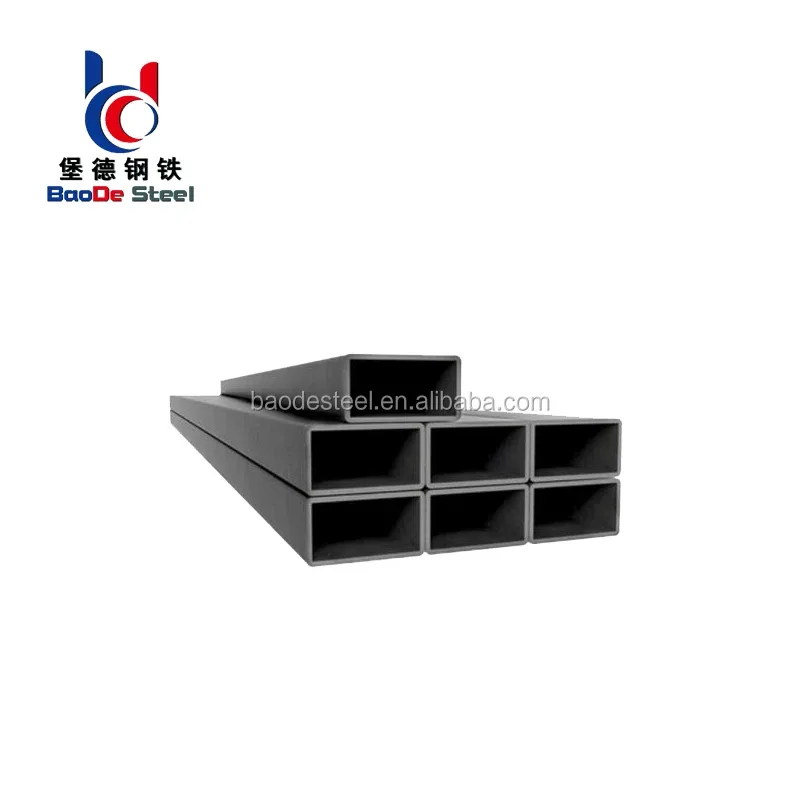

Factory-Direct ASTM A53 GRB Rectangular Galvanized Steel Pipe — No Middlemen, Every Batch Lab-Tested
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A53 GRB Rectangular Galvanized Steel Pipe |
| Product Type | Rectangular Galvanized Steel Pipe (Hollow Section) |
| Steel Grade | ASTM A53 GRB (A53 A, B) |
| Standard | ASTM A500, ASTM A53, GB/T3091 |
| Section Shape | Rectangular |
| Size Range | 15mm×20mm – 700mm×800mm |
| Wall Thickness | 1 – 30 mm |
| Length | 5.8m / 6m / 11.8m / 12m / DRL / SRL / Random Length |
| Technique | Welded / Seamless |
| Surface Treatment | Galvanized / Black Painting / Varnish / Bare |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Construction Pipe, Building Pipe, Curtain Wall Pipe, Support Tubes, Structure Pipe, Fertilizer Tube |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Steel structure frames, industrial plant supports, pipe rack systems |
| Construction Companies | Building frames, curtain wall mullions, column bracing tubes |
| Machinery Manufacturers | Equipment bases, conveyor supports, fertilizer hopper structures |
| Infrastructure Developers | Bridge handrails, sound barrier posts, solar mounting structures |
What Missing Galvanizing Thickness Costs on a West African Port
Every micrometer of zinc under-spec means rejected cargo and demurrage bills.
I once watched a full container of rectangular galvanized tubes sit in Lagos port for two weeks because a third-party re-inspection found localized galvanizing at 35μm against a 65μm contract requirement. The rework, re-dipping, and penalty ate the entire margin. [NEED_CITE: hot-dip galvanized coating thickness requirements per ASTM A123] When you source an ASTM A53 GRB rectangular galvanized steel pipe supplier, inconsistent zinc coating and unverifiable mill test certificates are the two fastest routes to customs hold and project compliance failure.
Matching Structural Frames and Curtain Wall Systems
ASTM A53 GRB rectangular galvanized hollow sections from 15×20mm up to 700×800mm cover both light-gauge curtain wall mullions and heavy structural columns in a single procurement package. The hot-dip galvanized surface delivers corrosion resistance for outdoor EPC frames and coastal infrastructure without field painting, while the ±1% wall-thickness tolerance keeps connection detailing predictable for bolted and welded joints. Our in-house physical and chemical laboratory tests every heat before galvanizing, so coating adhesion and substrate chemistry are verified before the tubes ever reach the zinc bath.
Engineering Compliance and Certification Requirements
Rectangular hollow sections conforming to ASTM A53 must carry traceable mill test certificates showing chemical composition and mechanical properties per heat number — this is the first document customs officers and site inspectors request on EU, North American, and Middle Eastern projects. [NEED_CITE: ASTM A53 GRB mechanical property requirements] For projects specifying EN 10210 or EN 10219, grade equivalence documentation between ASTM A53 GRB and S235/S275/S355 must be prepared in advance to avoid approval delays. Plain ends and ±1% tolerance support both field welding and mechanical coupling without secondary machining in most structural applications.
Decoding ASTM A53 GRB and Galvanizing Process
ASTM A53 GRB is a carbon steel grade specified for mechanical and pressure applications, with Grade B offering higher tensile and yield strength than Grade A — making it the default choice for load-bearing rectangular hollow sections in structural frames. The hot-dip galvanizing process immerses fabricated tubes in molten zinc, producing a metallurgically bonded coating that resists chipping during transport and installation far better than electroplated alternatives. Welded ASTM A53 GRB tubes suit general structural and fencing applications at lower cost, while seamless options handle higher pressure or more demanding forming operations. Wall thickness from 1mm to 30mm across the 15×20 to 700×800mm range means a single ASTM A53 GRB rectangular galvanized steel pipe supplier can furnish both thin-wall purlins and thick-wall columns without splitting orders across multiple mills. [NEED_CITE: hot-dip vs electro-galvanized coating performance comparison]
Hidden Costs of Unverified Material and Coating
Substrate steel that fails to meet ASTM A53 GRB chemistry will not pass third-party re-inspection at destination, triggering full-container rejection or costly re-melt claims. Galvanizing thickness below contract specification — even in localized areas — voids corrosion warranties and forces on-site re-dipping that no tropical port workshop can handle cleanly. Missing or non-traceable mill test certificates delay customs clearance and invalidate structural engineering sign-offs, compounding demurrage with idle crane and labor costs. [NEED_CITE: consequences of non-conforming steel in structural applications]
Why Procurement Teams Source ASTM A53 GRB Rectangular Galvanized Steel Pipe Here
Three dedicated production lines cover welded, seamless, and galvanized processing under one roof, so rectangular tubes from 15×20mm to 700×800mm ship from a single mill test certificate batch rather than three separate vendors. Our in-house physical and chemical laboratory performs incoming raw material, in-process, and final inspection — every heat number is traceable from slab to galvanized finish. CE certification under EN 10210/EN 10219, ISO 9001:2015 registration, and SGS/BV third-party inspection availability remove the certification gaps that routinely stall EU and North American customs clearance. With 2,800+ specifications in stock and custom non-standard sizes available, EPC contractors consolidate structure pipe, curtain wall tube, and support sections into one PO. Professional loading plans optimize container weight for 6m and 11.8m lengths, and FOB/CIF/DDP terms cover delivery to 50+ countries including West Africa, Southeast Asia, and the Middle East.
Documentation & Compliance
- Mill test certificate documenting ASTM A53 GRB chemical composition and mechanical properties per heat number
- CE certificate covering EN 10210/EN 10219 for European structural hollow section compliance
- ISO 9001:2015 quality management certificate for galvanizing and fabrication processes
- SGS or BV third-party inspection report verifying galvanized coating thickness and dimensional tolerance
- Material traceability report linking each bundle to its heat number and galvanizing batch
- Full customs document package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- ASTM A53 GRB rectangular galvanized tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Hot-dip galvanized surface protected by waterproof wrapping at bundle ends to prevent white rust formation in humid container environments
- Container loading plans optimized for 5.8m, 6m, and 11.8m lengths to maximize payload within 20ft and 40ft HC weight limits
- Random and fixed lengths from 15×20mm thin-wall to 700×800mm heavy sections marked with heat number and steel grade for site traceability
- FOB, CIF, and DDP terms available with door-to-door logistics coordination to 50+ countries
Starting Your ASTM A53 GRB Rectangular Galvanized Steel Pipe Inquiry
Submit your rectangular section sizes, wall thickness, ASTM A53 GRB quantity, and destination port to receive a detailed quotation including unit price, production lead time, and applicable certification package within 12 hours. Non-standard dimensions outside the 15×20 to 700×800mm catalog are quoted separately with tooling and MOQ confirmation. Mill test certificates and third-party inspection scope are confirmed before deposit, so compliance requirements are locked before production begins.
Frequently Asked Questions
Q: What is the difference between ASTM A53 Grade A and Grade B for rectangular galvanized tubes?
A: ASTM A53 Grade B offers higher minimum yield and tensile strength than Grade A, making it the standard selection for load-bearing structural frames and columns. Grade A is typically specified for non-structural or low-stress applications such as fencing and light supports.
Q: Can you provide third-party inspection for galvanized coating thickness before shipment?
A: Yes. SGS and BV third-party inspection is available to verify galvanized coating thickness, dimensional tolerance, and surface quality before container loading. Inspection scope and cost are confirmed at quotation stage.
Q: Do you supply non-standard rectangular sizes outside the 15×20 to 700×800mm range?
A: Custom non-standard rectangular hollow sections are available from our dedicated production lines. MOQ and tooling requirements for non-standard sizes are confirmed after receiving your drawing or dimension sheet.
Q: What is the difference between hot-dip galvanized and black painted surface treatment for ASTM A53 GRB tubes?
A: Hot-dip galvanizing provides a metallurgically bonded zinc coating suitable for outdoor, coastal, and high-humidity environments with long-term corrosion resistance. Black painting or varnish is specified for indoor applications or where field welding and over-coating are planned after installation.
Q: How do you optimize container loading for mixed-size rectangular galvanized tubes?
A: Professional loading plans nest smaller 15×20mm to 100×100mm tubes inside larger 300×300mm to 700×800mm sections where geometry allows, maximizing payload per 20ft or 40ft HC container while protecting galvanized surfaces with edge protectors and separators.
Ship Your Next ASTM A53 GRB Rectangular Galvanized Steel Pipe Order with Verified Mill Certificates
Email your specification sheet, quantity, and destination port to receive a quotation and sample mill test certificate within 12 hours.
