Description
Factory-Direct Hot Rolled H-Beams — Every heat tested in our in-house physical and chemical laboratory before shipment, eliminating grade mix-ups at the source.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A36 / A992 / A572-50 Hot Rolled H-Beam |
| Product Type | H-Beam (Wide Flange Beam / Structural Steel Beam) |
| Steel Grade | ASTM A36, ASTM A992, ASTM A572-50, Q235B, Q345B, S235JR, S275JR, SM490 |
| Standard | ASTM A36, ASTM A992, ASTM A572, EN 10025, JIS G3101, GB/T 11263 |
| Section Shape | H-Beam / I-Beam |
| Size Range | 100×100 mm – 1000×300 mm |
| Web Width (Flange Width) | 100 mm – 900 mm |
| Flange Thickness | 8 mm – 64 mm |
| Web Thickness | 4.5 mm – 36.5 mm |
| Length | 6 m – 12 m (customizable) |
| Technique | Hot Rolled |
| Surface Treatment | Mill Finish / Black / Custom Galvanized / Painted |
| Tolerance | ±1% |
| Ends | Plain |

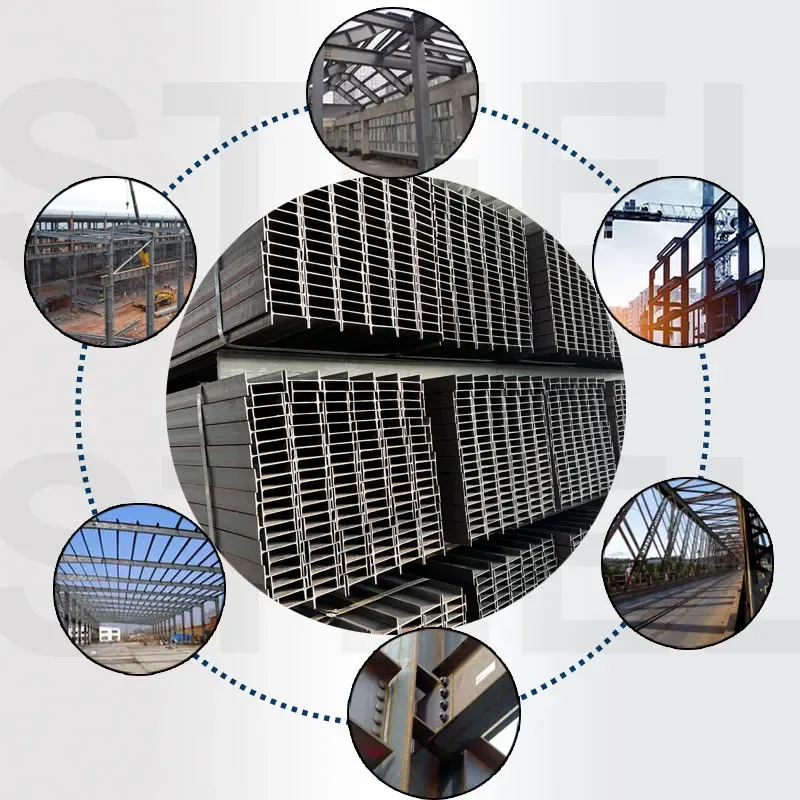

| Application | Steel building structures, industrial platforms, bridge construction, heavy equipment support frames, warehouse and factory frames |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial plant steel structures, warehouse frames, pipe rack supports |
| Construction Companies | High-rise building columns, bridge girders, infrastructure foundation supports |
| Machinery Manufacturers | Heavy equipment base frames, crane runway beams, conveyor support structures |
| Steel Distributors | Regional stock for project-based supply to local fabricators and builders |
What a Mixed-Grade Shipment Costs You at Port
A single misidentified heat number can freeze an entire container at customs for weeks.
Global EPC contractors and steel distributors frequently encounter specification gaps when sourcing structural beams — standard catalogs rarely cover non-standard flange widths or custom lengths, and fragmented sourcing from multiple suppliers multiplies coordination costs and delivery risks. Missing or incomplete mill test certificates cause customs delays and project compliance failures, especially in EU and North American markets where EN and ASTM traceability is non-negotiable. Quality uncertainty compounds the problem: inconsistent material properties and unclear steel grade traceability mean third-party inspections can fail after goods have already arrived, turning a routine delivery into a costly detention. [NEED_CITE: customs documentation requirements for structural steel imports in EU and US markets]
Matching Beam Profiles to Structural Load Paths
Hot rolled H-beams in ASTM A36, A992, and A572-50 grades cover the full spectrum of structural demand — from light warehouse purlin supports to heavy bridge girders carrying dynamic loads. The wide flange geometry distributes bending stress across both axes, making these beams suitable for columns subjected to combined compression and bending. Web widths from 100 mm to 900 mm and flange thicknesses up to 64 mm allow engineers to select sections that match calculated load requirements without over-specifying. For corrosive environments such as coastal infrastructure or chemical plant platforms, hot-dip galvanized or painted surface treatments extend service life without altering structural geometry. Our dedicated production lines and in-house laboratory testing ensure every heat meets the specified grade before it leaves the mill.
Structural Code Compliance and Certification Pathways
Structural steel beams used in load-bearing frameworks must conform to recognized engineering codes — AISC 360 for North American projects, EN 1993 (Eurocode 3) for European construction, and corresponding national adaptations elsewhere. [NEED_CITE: structural steel design code requirements for hot rolled sections] ASTM A992 is the default grade for wide flange beams in US building construction, while S275JR and S355JR serve equivalent roles in European frameworks. Certification matters at every stage: Lloyd’s Register EU CE marking under EN 10210/EN 10219 validates compliance for European customs and project acceptance, while original mill test certificates with heat number traceability satisfy third-party inspection requirements from SGS or BV. Custom cut-to-length services reduce on-site waste and welding time, particularly for repetitive frame assemblies in warehouse and industrial plant construction.
Understanding Grade Selection Across Standards Systems
ASTM A36, A992, and A572-50 represent three tiers of the American standard system — A36 serves general structural applications with moderate strength requirements, A992 is the preferred grade for building frames due to its balanced yield-to-tensile ratio and weldability, while A572-50 delivers higher yield strength for heavy-load applications such as bridge girders and crane beams. In the European system, S235JR, S275JR, and SM490 follow a similar progression, with the JR suffix indicating impact toughness at room temperature. Hot rolling produces a uniform grain structure through controlled deformation at high temperature, resulting in consistent mechanical properties across the entire cross-section — a critical advantage over cold-formed alternatives when welding and load-bearing capacity are primary concerns. Surface treatment selection depends on the service environment: mill finish black suits indoor or temporarily protected structures, hot-dip galvanizing provides long-term corrosion resistance for outdoor exposure, and painted finishes offer color matching for architectural applications. The ±1% dimensional tolerance ensures predictable fit-up during fabrication, reducing rework at the connection stage.
The Hidden Price of Unverified Material Certificates
Procuring structural beams without verified mill test certificates exposes projects to cascading failures — material that fails third-party chemical analysis after arrival triggers customs detention, demurrage charges, and project schedule delays that far exceed the original material cost differential. [NEED_CITE: consequences of non-compliant structural steel in international construction projects] Grade substitution — receiving A36 when A992 was specified — compromises structural safety margins and voids engineering calculations, potentially requiring complete replacement of installed members. Missing CE documentation blocks EU customs clearance entirely, while incomplete heat number traceability fails SGS or BV inspection protocols, forcing costly re-testing or rejection. These risks compound when sourcing from trading companies without in-house testing capability, where grade verification depends entirely on upstream mill documentation that may not survive the supply chain intact.
Why Procurement Teams Consolidate Beam Orders Here
Every heat of hot rolled H-beams undergoes incoming, in-process, and final inspection in our physical and chemical laboratory before shipment — the same lab that catches grade discrepancies before they reach the container. Factory-direct pricing eliminates intermediary markups, while our 2,800+ specification range across six product categories means beams, pipes, plates, and sections can be consolidated into single orders with unified documentation. Lloyd’s Register EU CE certification, ISO 9001:2015 quality management, and verified SGS/BV third-party inspection reports satisfy the most demanding project compliance requirements across 50+ export markets. Custom non-standard sizes and cut-to-length services address the specification gaps that standard catalogs cannot fill, reducing on-site waste and fabrication time. Professional loading plans optimize container utilization for 6 m and 12 m lengths, while door-to-door logistics coordination handles the complexity of heavy cargo shipping to project sites worldwide.
Documentation & Compliance
- Mill test certificate documenting ASTM A992 chemical composition and mechanical properties per heat number, conforming to EN 10204 3.1/3.2 format
- Lloyd’s Register EU CE certificate under EN 10210/EN 10219 for structural steel sections exported to European markets
- ISO 9001:2015 quality management system certificate covering full production and inspection processes
- SGS or BV third-party inspection report available upon request for pre-shipment verification of dimensions, surface quality, and grade compliance
- Full material traceability by heat number linking mill test certificate to physical beam markings
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Hot rolled H-beams bundled with high-tensile steel strips at regular intervals, with edge protectors preserving mill finish or galvanized coating during ocean transit
- Surface protection tailored to treatment type: oiled coating for mill finish black beams to prevent rust during shipping, zinc layer preservation protocols for galvanized sections
- Container loading optimized for 6 m and 12 m standard lengths, with professional lashing plans maximizing payload while preventing transit damage to flange edges
- Cut-to-length service available for custom lengths within the 6 m–12 m range, with bundled packaging adapted to non-standard dimensions
- Heat number and steel grade clearly marked on each beam end with weather-resistant paint, matching mill test certificate documentation
- FOB, CIF, and DDP shipping options with real-time tracking, door-to-door delivery coordination for project sites across 50+ countries
Starting Your Beam Procurement Process
Submit your specifications — including section size, steel grade, quantity, surface treatment, and destination port — via email, WhatsApp, or phone, and receive a detailed quotation within 12 hours covering unit price, delivery timeline, payment terms, and applicable certifications. Request original mill test certificates and material samples for quality confirmation before committing to production. Confirm custom cut-to-length requirements and certification needs for your target market to ensure full compliance at customs and on-site inspection.
Get Your Hot Rolled H-Beam Quote with Mill Test Certificates
Send your specifications and destination details to receive a complete quotation with material documentation within 12 hours.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjysteel.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between ASTM A36, A992, and A572-50 for structural beam applications?
A: ASTM A36 serves general structural applications with moderate strength requirements. ASTM A992 is the preferred grade for building frames due to its balanced yield-to-tensile ratio and weldability. ASTM A572-50 delivers higher yield strength for heavy-load applications such as bridge girders and crane beams. All three grades are available in our hot rolled H-beam range from 100 mm to 900 mm web width.
Q: How do you verify material quality and grade compliance before shipment?
A: Every heat undergoes incoming, in-process, and final inspection in our in-house physical and chemical laboratory. Original mill test certificates documenting chemical composition and mechanical properties are provided before shipment, with heat number traceability linking certificates to physical beam markings. Third-party inspection via SGS or BV is available for pre-shipment verification upon request.
Q: Can you supply custom non-standard sizes and cut-to-length H-beams?
A: Yes. Beyond standard 6 m and 12 m lengths, we offer cut-to-length services within the 6 m–12 m range to reduce on-site waste and fabrication time. Custom non-standard flange widths and web thicknesses can be produced based on project drawings, with typical production lead times confirmed during quotation.
Q: What surface treatment options are available for corrosive environments?
A: Hot rolled H-beams are available in mill finish black, hot-dip galvanized, or painted finishes. Mill finish black suits indoor or temporarily protected structures. Hot-dip galvanizing provides long-term corrosion resistance for outdoor exposure such as coastal infrastructure or chemical plant platforms. Painted finishes offer color matching for architectural applications.
Q: What certification and documentation is provided for EU and US market customs clearance?
A: Lloyd’s Register EU CE certification under EN 10210/EN 10219 validates compliance for European markets. ASTM grades meet North American project requirements. Complete documentation packages include mill test certificates, packing lists, bills of lading, and certificates of origin. ISO 9001:2015 certification and SGS/BV third-party inspection reports satisfy the most demanding project compliance requirements.
