Description

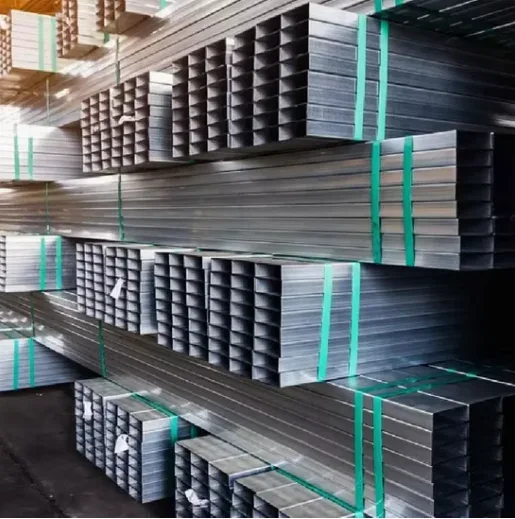

Factory-Direct Galvanized Square Steel Tube — Every 20# S235 S275 tube rolls off our ERW line with hot-dip zinc coating verified by in-house lab thickness testing before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | 20#, S235, S275 |
| Standard | JIS, ASTM A53 |
| Section Shape | Square |
| Outer Diameter or Side Length | 25×25mm |
| Length | 5.8m, 6m, 11m, 12m |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain, Beveled, Threaded, Grooved |
| Processing Service | Welding, Punching, Cutting, Bending |
| Application | Hydraulic systems, Fluid transport, Machine parts, Structural frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machinery Manufacturing | Hydraulic cylinder frames, conveyor support structures, equipment base plates |
| Construction & Infrastructure | Scaffolding uprights, handrail posts, solar panel mounting frames |
| Fluid Transport | Low-pressure water supply lines, irrigation distribution pipes |
| EPC Contractors | Structural bracing members, pipe rack supports, modular building frames |
What Missing Mill Certificates Cost on a Galvanized Tube Shipment
A container of 25×25mm galvanized square steel tube held at destination port because zinc coating thickness failed third-party re-inspection.
I watched a 25-ton shipment of small-section galvanized tubes get stuck in Dubai port for eleven days. The buyer’s spec called for 65μm minimum zinc coating; the mill’s own report said 42μm. Nobody caught it before loading. The re-inspection bill alone exceeded the profit margin on that order. [NEED_CITE: hot-dip galvanized coating thickness requirements per ASTM A123]
When you source a Galvanized Square Steel Tube without verified mill test certificates, you inherit every upstream shortcut. Coating adhesion failures show up months after installation — white rust spreading from cut edges, weld zones stripping bare. By then the structure is already up and the replacement cost dwarfs the original tube price.
How 25×25mm Hot-Dip Galvanized ERW Tubes Match Structural Frame Requirements
Small-section galvanized square tubes in 20# and S235 grades carry non-primary structural loads where corrosion resistance matters more than ultimate strength. The 25×25mm profile fits standard connector hardware used in conveyor frames, machine guards, and modular scaffolding systems. Hot-dip galvanizing coats both external and internal surfaces — critical for hollow sections exposed to condensation or washdown environments. Our ERW line holds ±1% dimensional tolerance across the full 5.8m to 12m length range, so on-site cutting waste stays predictable and connection fit-up remains consistent.
Engineering Compliance Dimensions for Galvanized Hollow Sections
Structural engineers specifying galvanized square tubes for load-bearing frames reference EN 10219 for cold-formed welded hollow sections or JIS G3466 for general structural use. The S235 grade meets minimum yield requirements for non-seismic bracing members across European and Middle Eastern building codes. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional tolerances] For projects shipping to EU markets, Lloyd’s Register CE certification under EN 10210/10219 clears customs without supplementary testing. ASTM A53 compliance covers North American fluid transport and light structural applications. End treatments — plain, beveled, threaded, or grooved — match field connection methods from welded joints to mechanical couplings, reducing on-site fabrication time.
Steel Grade Selection and ERW Weld Integrity for Galvanized Tubes
The 20# carbon steel grade offers formability for bending operations common in machinery frame fabrication, while S235 and S275 provide incrementally higher yield strength for structural applications requiring tighter deflection limits. ERW welding produces a longitudinal seam with heat-affected zone properties matching the parent metal when process parameters stay controlled — this matters because galvanizing bath temperatures can expose weld defects that cold-formed seamless alternatives avoid entirely. [NEED_CITE: ERW weld quality requirements for hot-dip galvanizing adhesion] Hot-dip galvanizing at typical bath temperatures around 450°C creates a metallurgical zinc-iron alloy bond that outperforms electroplated or pre-galvanized coatings in abrasion resistance and edge coverage. The ±1% tolerance spec ensures that 25×25mm outer dimensions stay within 0.25mm variance — tight enough for pressed-fit connector systems without secondary machining.
Hidden Costs When Galvanized Coating Fails Field Inspection
Ordering galvanized square tubes based on price alone invites three failure modes that surface after the container clears the port. First, coating thickness below specification triggers rejection at project inspection — the replacement cycle costs triple the original tube price when you factor demurrage, air freight, and idle labor. Second, poor weld seam preparation causes zinc blistering along the ERW line, creating corrosion pathways that compromise the entire section within months. Third, missing or forged mill test certificates delay customs clearance in markets requiring EN 10210 or ASTM A53 documentation — [NEED_CITE: steel product certification requirements for Middle East construction imports] — holding your cargo at port while your project schedule slips.
Why Project Procurement Teams Source Galvanized Square Steel Tube From Xin Jiyuan
Our three dedicated ERW production lines run 2,800+ specification combinations in-house, meaning your 25×25mm galvanized order ships from the same facility that produced our 41 patented sharp-corner rectangular tube technologies — no trading company markup, no specification translation errors. Every Galvanized Square Steel Tube leaving Jinan passes through our physical and chemical laboratory for coating thickness, adhesion, and base metal composition verification before the mill test certificate prints. We hold ISO 9001:2015, Lloyd’s Register CE (EN 10210/10219), and Singapore FPC certifications, with SGS and BV third-party inspection available on request. Custom lengths from 5.8m to 12m and non-standard end treatments ship in optimized container loads — our logistics team plans stowage for 25×25mm bundles to maximize 20-foot and 40-foot container capacity, cutting your per-ton freight cost.
Documentation & Compliance
- Mill Test Certificate documenting 20# S235 S275 chemical composition and mechanical properties per JIS and ASTM A53 standards
- Lloyd’s Register CE certificate under EN 10210/EN 10219 for European market structural compliance
- ISO 9001:2015 quality management certificate covering hot-dip galvanizing process control
- SGS or BV third-party inspection report verifying zinc coating thickness and adhesion test results
- Full material traceability by heat number from steel coil to finished galvanized square tube
- Customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

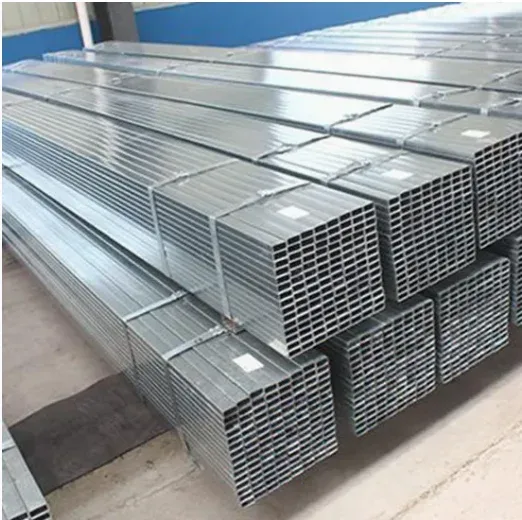

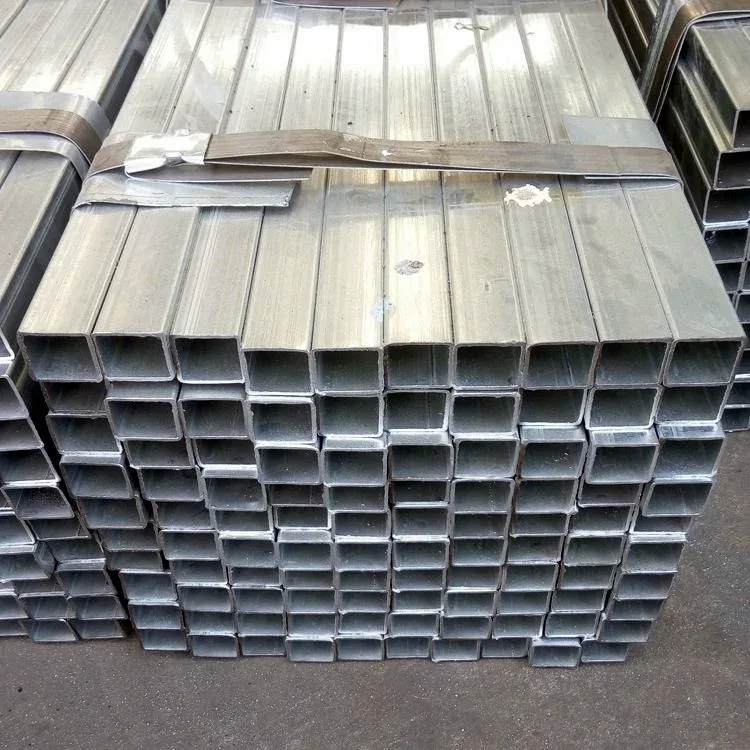

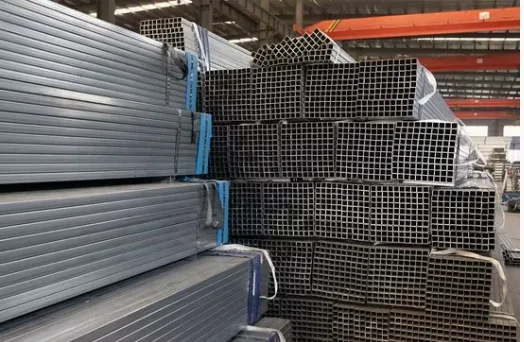

- Galvanized Square Steel Tube bundled with steel strips and edge protectors to preserve hot-dip zinc coating during ocean transit
- 25×25mm small-section tubes nested in layered bundles with wooden separators preventing surface scratching across 5.8m to 12m lengths
- Container loading plans optimized for 20# S235 S275 grade tube dimensions, maximizing 40-foot high-cube capacity for structural frame projects
- Heat number and steel grade stenciled on each bundle tag for site identification and mill test certificate cross-referencing
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination to 50+ countries
- Custom cutting to project-specific lengths available before galvanizing to ensure full zinc coverage on cut ends
How to Request a Galvanized Square Steel Tube Quotation
Send your specification sheet — steel grade, outer dimension, wall thickness, length, quantity, and destination port — and receive a detailed quotation within twelve hours including unit pricing, mill test certificate availability, and estimated production lead time. We confirm coating thickness requirements, end treatment preferences, and certification needs before locking your order into the production schedule.
Start Your Galvanized Square Steel Tube Inquiry
Submit your project specifications to receive factory-direct pricing and verified mill test certificates.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjysteel.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square steel tubes?
A: Hot-dip galvanizing immerses the finished ERW welded tube in molten zinc, creating a metallurgical bond coating both external and internal surfaces with typical thickness of 45-85μm. Pre-galvanized tubes use steel coil already coated before forming, leaving the weld seam and cut edges with thinner zinc protection. For hydraulic systems and structural frames exposed to moisture, hot-dip galvanized square steel tube provides superior corrosion resistance across the entire section.
Q: How do you ensure galvanizing coating thickness meets project specifications?
A: Our in-house physical and chemical laboratory tests zinc coating thickness on every production batch using magnetic induction gauges at multiple points per tube. We provide original mill test certificates documenting coating measurements, and third-party inspection through SGS or BV is available for pre-shipment verification. This process prevents the coating thickness discrepancies that cause port rejection and project delays.
Q: Can you provide custom lengths and end treatments for galvanized square tubes?
A: Yes. Beyond standard 5.8m, 6m, 11m, and 12m lengths, we cut to project-specific dimensions before galvanizing to ensure complete zinc coverage on all surfaces including cut ends. End treatments include plain, beveled, threaded, and grooved options to match your field connection requirements — from welded structural joints to mechanical coupling systems.
Q: What certifications do you provide for customs clearance and project compliance?
A: We supply Mill Test Certificates per JIS and ASTM A53 standards, Lloyd’s Register CE certification under EN 10210/10219 for European markets, ISO 9001:2015 quality certificates, and complete customs documentation including packing lists, bills of lading, and certificates of origin. Third-party inspection reports from SGS or BV are available upon request for projects requiring independent verification.
Q: How do you handle container loading optimization for small-section galvanized tubes?
A: Our logistics team designs stowage plans specific to 25×25mm and similar small-section bundles, nesting tubes to maximize container capacity while protecting the galvanized coating with edge protectors and wooden separators. This optimization reduces per-ton freight costs and prevents surface damage during ocean transit to destinations across Southeast Asia, Middle East, and beyond.
