Description
Factory-Direct Steel Structure Fabrication — In-house production lines and physical laboratories ensure full traceability from raw Q355 plate to finished welded H-beam components, eliminating middleman markups.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q355 Steel Structure Component Fabrication |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Q235, Q235B, Q355, Q355B |
| Standard | GB/T (Q235/Q355 equivalent to ASTM A36/A572) |
| Section Shape | Welded H-shape Steel Beam (Main Frame) |
| Technique | Welded (Beams, Columns, Trusses connected by welding, bolts, and rivets) |
| Surface Treatment | Painting / Galvanized |
| Roof | V840 PPGI Sheet |
| Wall & Roof Panel | Single Sheet |
| Door | Rolling Door |
| Window | Aluminium Window |
| Design Style | Modern |
| Installation | Engineer Guidance (Online Video / Onsite) |
| Warranty | 1 Year |
| Application | Steel Workshop / Warehouse / Hangar / Plant / Office Building / Large Factories / Stadiums / Super High-rise Buildings |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial workshop main frames, plant column-beam assemblies, hangar portal frames |
| Construction Companies | Warehouse structures, office building steel skeletons, stadium roof trusses |
| Machinery Manufacturers | Equipment support bases, conveyor system structural frames, crane runway beams |
| System Integrators | Automation line support structures, industrial platform framing, mezzanine load-bearing frames |
What Fragmented Steel Structure Procurement Costs on an EPC Project
Sourcing beams, columns, trusses, and cladding from separate vendors multiplies coordination overhead and introduces dimensional mismatches at the bolt-up stage.
I have walked through sites where H-beam flange plates arrived with bolt holes drilled two centimeters off the design grid — an entire container of fabricated members had to be gas-cut and re-drilled on the ground before erection could begin. When steel structures are procured piecemeal, material traceability breaks down: mill test certificates go missing, steel grades cannot be verified against heat numbers, and customs agents hold shipments for incomplete documentation. A Q355 steel structure component fabrication service supplier that consolidates framing, cutting, welding, surface treatment, and cladding under one roof removes these failure points before they reach the job site. [NEED_CITE: structural steel procurement coordination risks in EPC projects]
How Welded H-Beam Frames Match Industrial Building Load Paths
The welded H-shape section is the backbone of portal-frame workshops and warehouse structures because its geometry concentrates material in the flanges where bending moments peak. For a Q355 steel structure component fabrication service supplier, the critical task is ensuring that each beam and column is welded to tolerances that match the connection design — whether bolted end-plates or moment-resisting joints. Our production lines handle Q235 through Q355 grades across 2,800+ specification profiles, meaning non-standard span lengths and variable-depth haunches can be fabricated to the engineer’s drawing without splitting orders across multiple shops.
Engineering Compliance and Surface Protection for Structural Frames
Structural steel frames for industrial buildings must satisfy load-bearing codes such as EN 1993 or AISC 360, and the chosen steel grade directly determines section sizing and connection design. Q355 offers higher yield capacity than Q235, allowing lighter sections for the same span — but this advantage only holds if the mill test certificate confirms actual chemistry and mechanical properties per GB/T standards. [NEED_CITE: equivalence between GB/T Q355 and ASTM A572 Grade 50] In corrosive coastal or chemical plant environments, hot-dip galvanizing extends service life significantly over paint systems, though painting remains cost-effective for enclosed warehouse frames. For projects shipping to the EU, Lloyd’s Register CE certification under EN 10210/10219 is essential for customs clearance and on-site inspector sign-off. On-site,定尺 cutting and pre-drilled connection plates reduce secondary fabrication, but only if dimensional accuracy is verified before shipment. [NEED_CITE: hot-dip galvanizing vs painting for structural steel corrosion protection]
Steel Grade Selection and Welded Fabrication Fundamentals
The Q-series grading system (Q235, Q355) designates minimum yield strength in MPa — Q235 yields at approximately 235 MPa while Q355 reaches 355 MPa, making the latter suitable for heavier spans, crane-supporting columns, and multi-story office frames. When specifying Q355 steel structure component fabrication service supplier capabilities, the distinction between Q235B and Q355B matters: the “B” suffix indicates 20°C Charpy impact testing, essential for structures in cold climates or dynamic loading conditions. Welded H-beams are produced by flame-cutting or sawing plates to size, then joining flange and web plates via submerged arc welding — the weld quality must match the base metal grade, which is why in-house physical and chemical laboratories conduct incoming plate inspection before any cutting begins. Surface treatment choice depends on the environment: hot-dip galvanizing provides sacrificial zinc protection for outdoor or high-humidity applications, while multi-coat painting systems suit interior frames where aesthetics and moderate corrosion resistance suffice.
The Hidden Cost of Unverified Steel Grades in Structural Frames
When a fabricated steel structure arrives at site with material that does not match the specified grade, the consequences cascade: structural engineers must re-evaluate load capacity, building inspectors reject the assembly, and project handover delays follow. Missing or incomplete mill test certificates trigger customs holds at destination ports, adding demurrage charges and schedule overruns. [NEED_CITE: structural steel material certification requirements for international projects] A Q355 steel structure component fabrication service supplier that provides heat-number traceability from raw plate through finished welded member eliminates this risk — every beam carries a tag linking back to its original mill certificate, and third-party inspection by SGS or BV can be arranged before container sealing.
Why Consolidated Fabrication Reduces Project Risk
Our facility operates three dedicated production lines with in-house physical and chemical laboratories that test every incoming plate batch for chemical composition and mechanical properties before fabrication begins. We hold 41 invention patents, including proprietary sharp-corner rectangular tube technology that integrates with our structural framing systems for complete building envelope solutions. Full-range specification capability covers 2,800+ profiles in Q235 through Q355 grades, with custom non-standard sizes available — no minimum order quantity barriers for project-specific requirements. Lloyd’s Register EU CE certification under EN 10210/10219, ISO 9001:2015 quality management, and verified inspection reports from SGS and BV ensure compliance for EU, North American, and Middle Eastern destinations. Professional loading plans optimize container utilization for long-span beams and column assemblies, with FOB, CIF, and DDP logistics options covering 50+ countries.
Documentation & Compliance
- Mill test certificate documenting Q355B chemical composition (C, Mn, Si, P, S content) and yield/tensile strength per GB/T standards, linked to heat number
- Lloyd’s Register CE certificate under EN 10210/10219 for European market structural steel compliance and customs clearance
- ISO 9001:2015 quality management certificate covering the full fabrication process from plate incoming inspection to final welded assembly
- SGS or BV third-party inspection report available upon request for pre-shipment dimensional and weld quality verification
- Material traceability documentation linking each welded H-beam and column to its original plate heat number and mill test certificate
- Complete customs document package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery
- Welded H-beam columns and rafters bundled with high-tensile steel straps and timber edge protectors to prevent surface damage to painted or galvanized finishes during ocean transit
- Galvanized structural members separated by rubber spacers within bundles to preserve zinc coating integrity and prevent contact scratching
- Pre-cut and drilled components packed in steel-frame crates with detailed marking tags showing piece number, steel grade (Q235/Q355), and heat number for rapid site identification

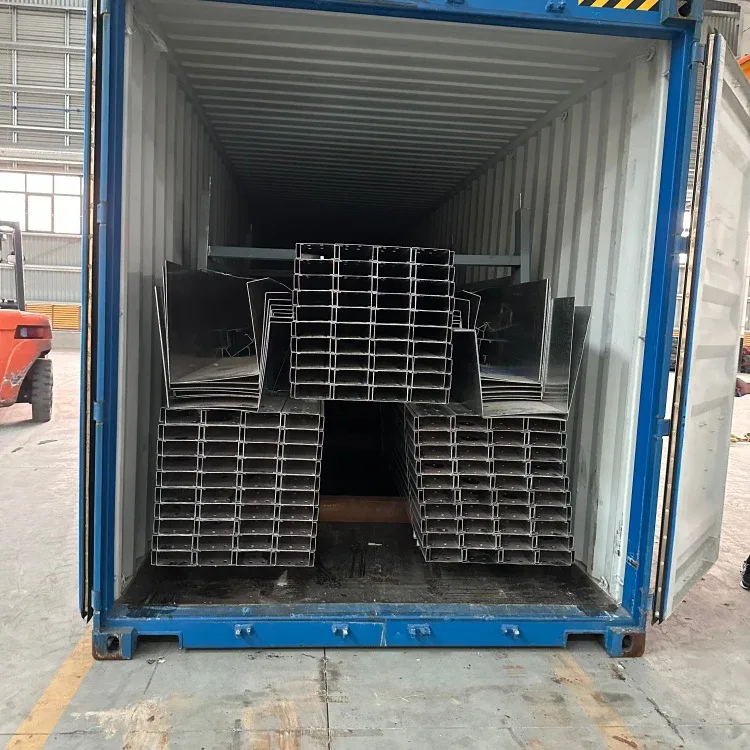

- Container loading plans optimized for long-span beams up to 12 meters, with nested column assemblies filling void spaces to maximize 40ft HC utilization
- Rolling door frames and aluminium window profiles wrapped in protective film and loaded separately to avoid contact damage from heavier structural members
- FOB, CIF, and DDP shipping terms available with real-time tracking for projects across EU, North America, Southeast Asia, Middle East, and 50+ additional countries
How to Initiate Your Steel Structure Procurement
Submit your structural drawings, bill of materials, steel grade requirements (Q235/Q355), surface treatment preference, and destination port to receive a detailed quotation including unit pricing, production timeline, and applicable certification documentation. Our engineering team reviews each inquiry within 12 hours and provides fabrication feasibility feedback, including suggestions for non-standard section optimization and connection detail refinement.
Request Your Q355 Steel Structure Fabrication Quote
Send your specifications, quantities, and destination details via email or WhatsApp to receive pricing, mill test certificates, and fabrication timelines.
Website: www.sdxjysteel.com
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Frequently Asked Questions
Q: What is the equivalence between Q235/Q355 and international steel standards like ASTM A36/A572?
A: Q235 corresponds to ASTM A36 and EN S235JR in terms of minimum yield strength, while Q355 aligns with ASTM A572 Grade 50 and EN S355JR. Our Q355 steel structure component fabrication service supplier capability includes full documentation of these equivalences on mill test certificates for international project compliance.
Q: Can non-standard beam depths and custom drilling patterns be fabricated?
A: Yes. Our production lines support custom non-standard specifications beyond the 2,800+ standard profiles, including variable-depth haunches, tapered columns, and connection plates with pre-drilled bolt holes per your structural drawings. Each custom piece undergoes dimensional verification against the approved drawing before shipment.
Q: What certifications are provided for EU market customs clearance?
A: We provide Lloyd’s Register EU CE certification under EN 10210/10219, ISO 9001:2015 quality certificates, mill test certificates with full chemical and mechanical data, and third-party inspection reports from SGS or BV upon request. These documents satisfy EU structural steel import requirements and on-site inspector verification.
Q: How are heavy welded H-beams packed for ocean shipping?
A: Structural members are bundled with steel straps and timber edge protectors, with galvanized components separated by rubber spacers to preserve coating integrity. Container loading plans are optimized for long-span beams, and detailed piece marking tags ensure rapid identification at the construction site.
Q: What is the minimum order quantity for custom fabricated steel structures?
A: There is no minimum order quantity barrier for project-specific requirements. Whether you need a single workshop frame or a multi-building industrial complex, our Q355 steel structure component fabrication service supplier capability handles orders from prototype quantities to full-scale production runs.
