Description
Factory-Direct Fabrication — Every welded frame is produced on our own lines with in-house lab verification, eliminating broker markups and traceability gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345/A36 Fabricated Steel Structure |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Q235, Q345, ASTM A36, SS400, S235JR, ST37, S355 |
| Standard | GB |
| Section Shape | Custom per client drawing |
| Length | As client’s request |
| Technique | Welding, Drilling, Cutting, Painting |
| Surface Treatment | Galvanized / Black / Painted |
| Tolerance | ±1% |
| Application | Frame Part / Steel Structure Frame |
| MOQ | 3–5 tons (customized) |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial plant steel frames, modular process pipe racks, equipment support structures |
| Construction Companies | High-rise building core frames, bridge approach structures, warehouse portal frames |
| Machinery Manufacturers | Conveyor system frames, crane girder assemblies, heavy equipment base frames |
When Tolerance Drift Turns a Frame Order Into a Site Rework Nightmare
±1% fabrication tolerance is the line between bolt-on assembly and on-site cutting.
Global buyers routinely discover — after a container lands — that hole patterns do not align, weld prep edges are off by millimeters, or member lengths force field modifications. Fragmented sourcing from separate pipe, plate, and fabrication vendors multiplies this risk: each supplier works to its own drawing revision, and no single party owns the dimensional chain. [NEED_CITE: structural steel fabrication tolerance standards per EN 1090 / AISC] For a Custom Steel Structure Fabrication Manufacturer that controls welding, drilling, cutting, and painting under one roof, the dimensional responsibility stays with one entity — and the mill test certificate traces back to a single heat number.
Matching Fabricated Frames to Structural Load Paths
A Custom Steel Structure Fabrication Manufacturer must align material selection, joint detail, and surface protection with the actual service environment. Q345 and S355 grades carry higher yield strength than Q235 or A36, making them the default choice for primary load-bearing columns and long-span beams, while S235JR and ST37 suffice for secondary bracing and non-critical platforms. When frames will sit in coastal or industrial atmospheres, hot-dip galvanizing or multi-coat paint systems extend service life without recurring maintenance. Our fabrication lines integrate laser cutting, submerged arc welding, and CNC drilling so that connection plates, gussets, and base plates arrive pre-fitted — reducing site labor and eliminating the guesswork that plagued my early procurement days in Vietnam.
Engineering Compliance and Certification Alignment
Structural frames exported to the EU must conform to EN 10210 or EN 10219 for hollow sections and EN 1090 for structural steel components; North American projects typically reference ASTM A36 or A572. [NEED_CITE: steel grade equivalence between GB, EN, and ASTM standards] A Custom Steel Structure Fabrication Manufacturer supplying multi-market projects needs CE marking documentation, ISO 9001:2015 quality system records, and the ability to arrange third-party inspection through SGS or BV before shipment. Custom non-standard lengths and drilled hole patterns must be confirmed against the latest IFC drawing revision — a single outdated PDF can send an entire batch back to the cutting table.
Steel Grade Selection and Fabrication Process Logic
Q235 and Q345 follow the Chinese GB system, where the number indicates minimum yield strength in MPa; ASTM A36 and A572 serve the same function in the US specification framework, while S235JR and S355 represent European EN grades. Cross-referencing these systems is routine work for a Custom Steel Structure Fabrication Manufacturer, but the equivalence is not always one-to-one — impact test requirements, elongation limits, and chemical composition ranges differ. Welding procedure qualification must match the specific grade: Q345 and S355 require preheat controls and low-hydrogen electrodes that Q235 or A36 do not. Surface treatment selection follows the same logic — hot-dip galvanizing provides sacrificial protection for buried or splash-zone members, while painted finishes suit indoor or controlled environments where appearance matters. Tolerance control at ±1% ensures that bolt holes, connection plates, and member lengths match the engineered drawing without field rework.
The Hidden Cost of Unverified Fabrication
Ordering fabricated frames without mill test certificates or third-party inspection creates three categories of downstream loss: customs rejection due to missing CE or material documentation, structural non-compliance discovered during engineer-of-record review, and dimensional mismatch that forces on-site cutting and rewelding. [NEED_CITE: consequences of non-conforming structural steel in construction projects] A Custom Steel Structure Fabrication Manufacturer that provides full chemical and mechanical test reports per heat number shifts the verification burden upstream — where corrections cost hours, not weeks.
Why Procurement Teams Choose Xin Jiyuan for Fabricated Structures
Our fabrication facility operates three dedicated production lines covering welding, CNC cutting, drilling, and painting, supported by an in-house physical and chemical laboratory that tests every incoming plate and every finished weld. We hold 41 invention patents — including proprietary sharp-corner rectangular tube technology — and maintain CE certification under EN 10210/EN 10219, ISO 9001:2015, and Singapore FPC. Custom Steel Structure Fabrication Manufacturer capabilities extend to 2,800+ specifications with wall thickness up to 40 mm, and we accept non-standard drawings with MOQ as low as 3–5 tons. Professional loading plans optimize container utilization for long members, and we coordinate FOB, CIF, or DDP shipment to 50+ countries with real-time tracking.
Documentation & Compliance
- Mill test certificate documenting Q345 chemical composition and mechanical properties per GB/T 1591, traceable to heat number
- CE certificate confirming conformity with EN 10210/EN 10219 for structural hollow sections exported to EU markets
- ISO 9001:2015 quality management system certificate covering fabrication, welding, and surface treatment processes
- SGS or BV third-party inspection report available for pre-shipment verification of dimensions, weld quality, and coating thickness
- Material traceability report linking each fabricated member to its source plate heat number and welding procedure specification
- Customs documentation package including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery
- Fabricated steel frames bundled with steel strips and edge protectors to prevent coating damage during ocean transit

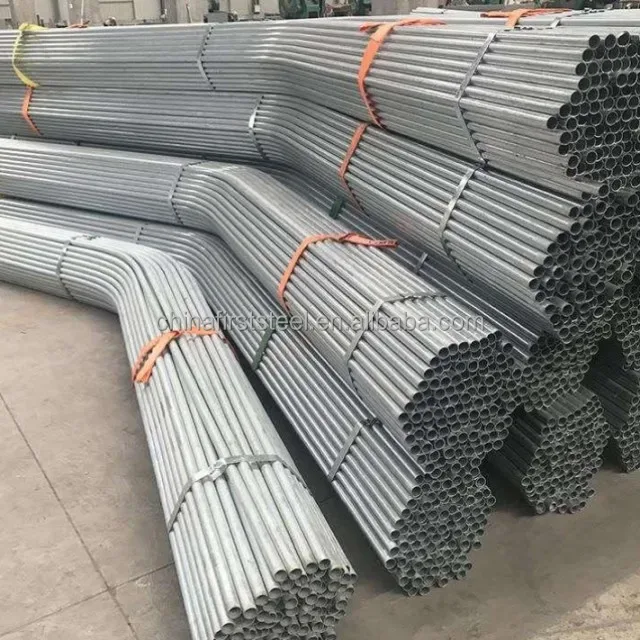

- Galvanized members wrapped with waterproof paper and separated by timber dunnage to preserve zinc layer integrity

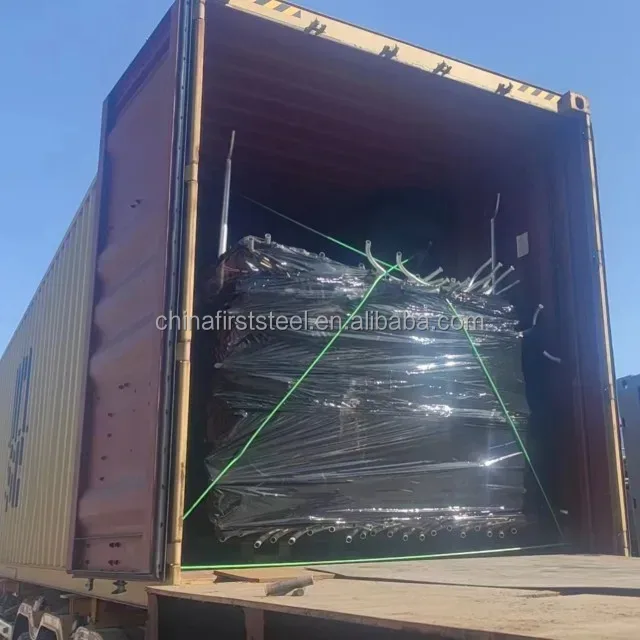

- Custom-length members loaded with professional stowage plans maximizing container utilization for 6–12 meter frames
- Cut-to-length service available per client drawing, with each piece marked by heat number and steel grade for site identification
- FOB, CIF, and DDP shipping terms coordinated through experienced logistics team with door-to-door delivery to 50+ countries
- Surface treatment (galvanized, painted, or black) selected per project environment and confirmed before production release
Getting Your Fabricated Frame Quote Started
Submit your structural drawing, steel grade requirement, quantity, and destination port — we respond within 12 hours with a detailed quotation including unit price, delivery timeline, payment terms, and applicable certification. For non-standard sizes or custom connection details, our engineering team reviews the drawing and confirms feasibility before production begins. Mill test certificates and third-party inspection reports are provided as standard documentation for every order.
Request Your Custom Steel Structure Fabrication Quote
Send your specifications and drawings to receive pricing, material certification, and delivery confirmation.
