Description

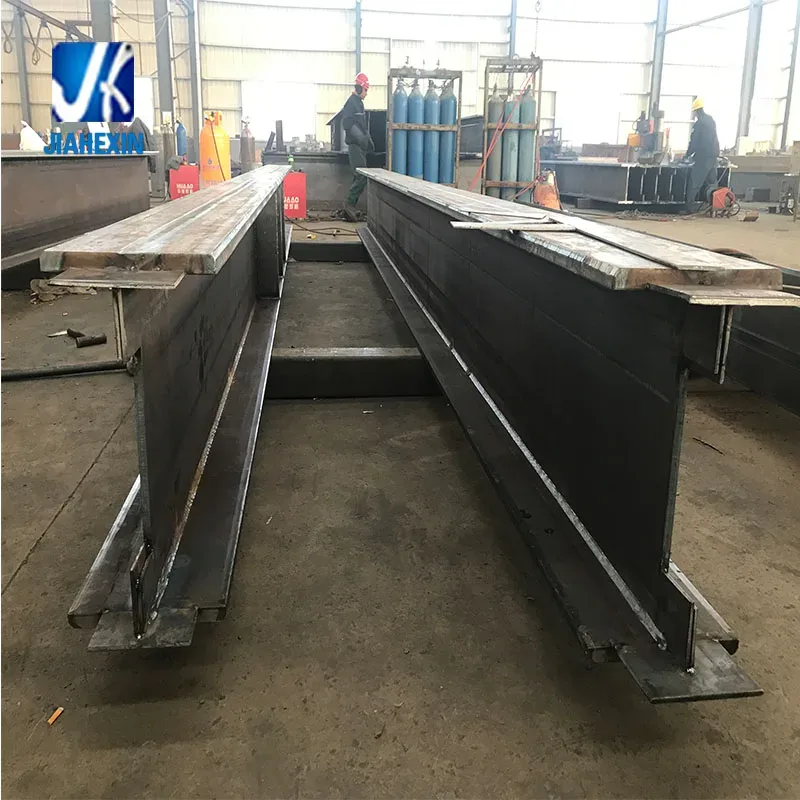

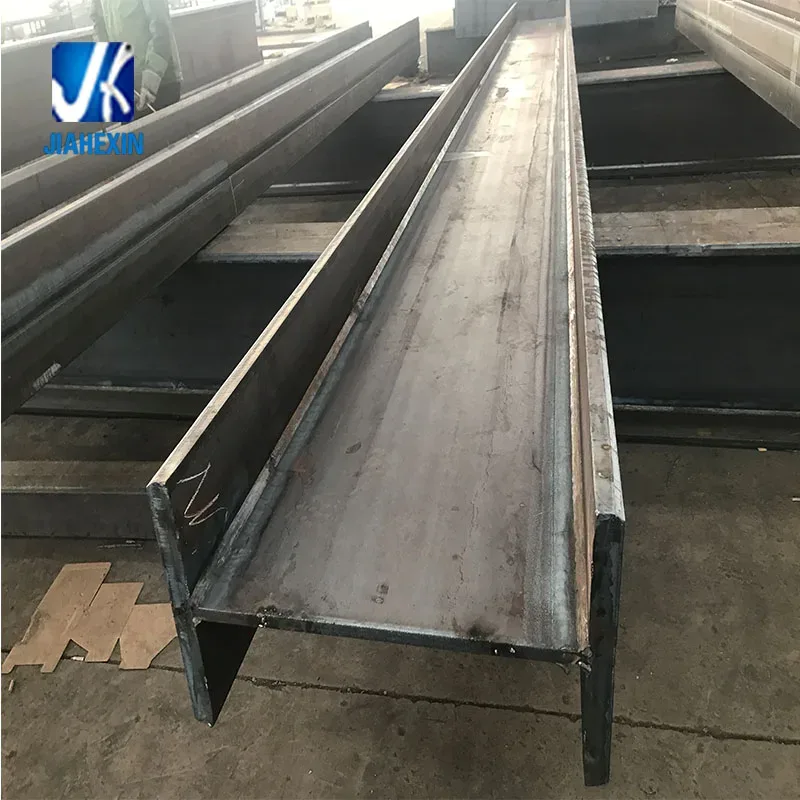

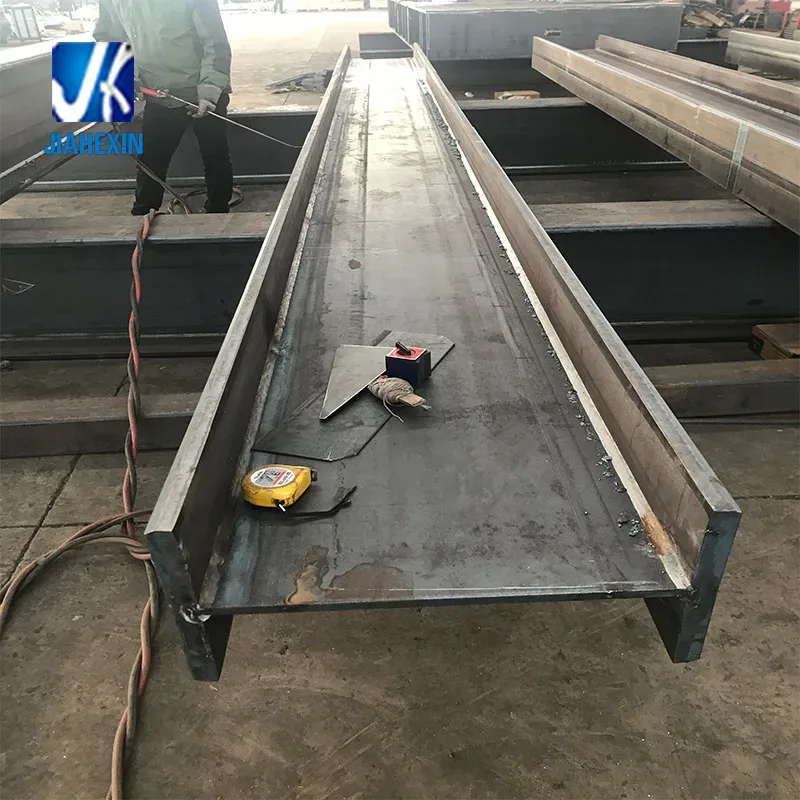

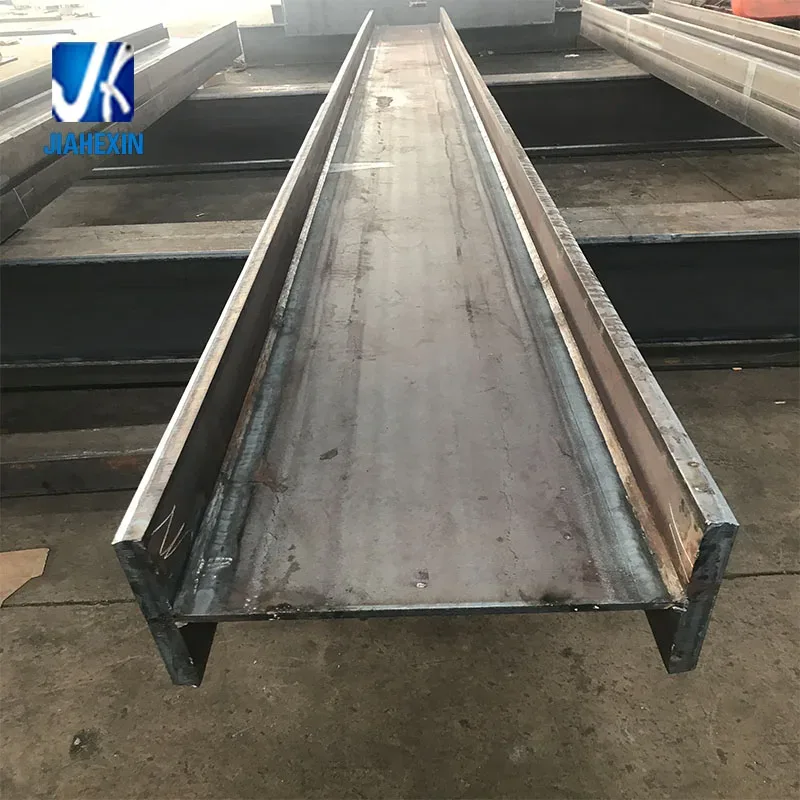

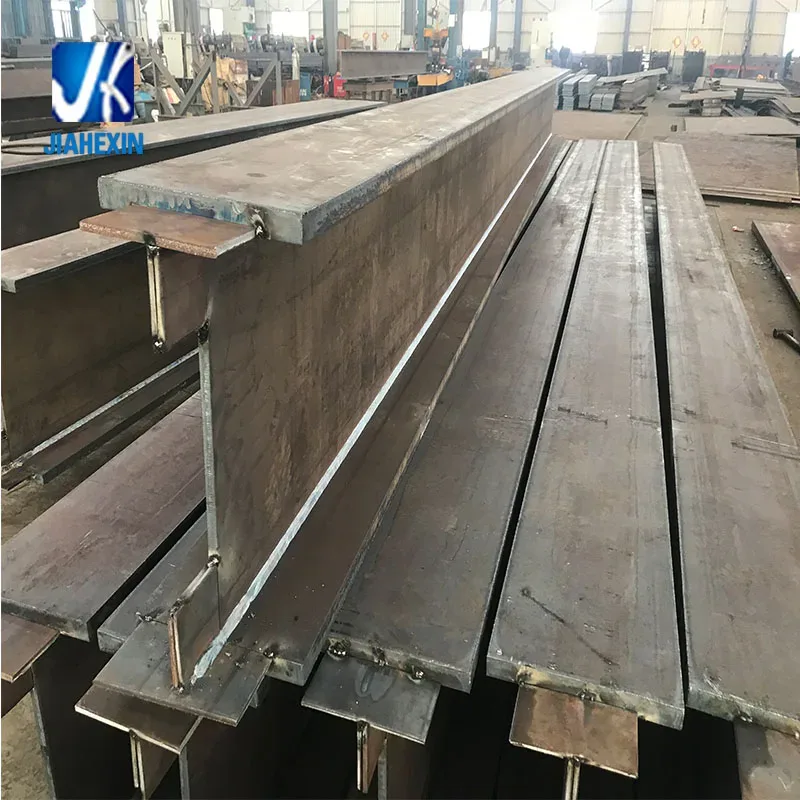

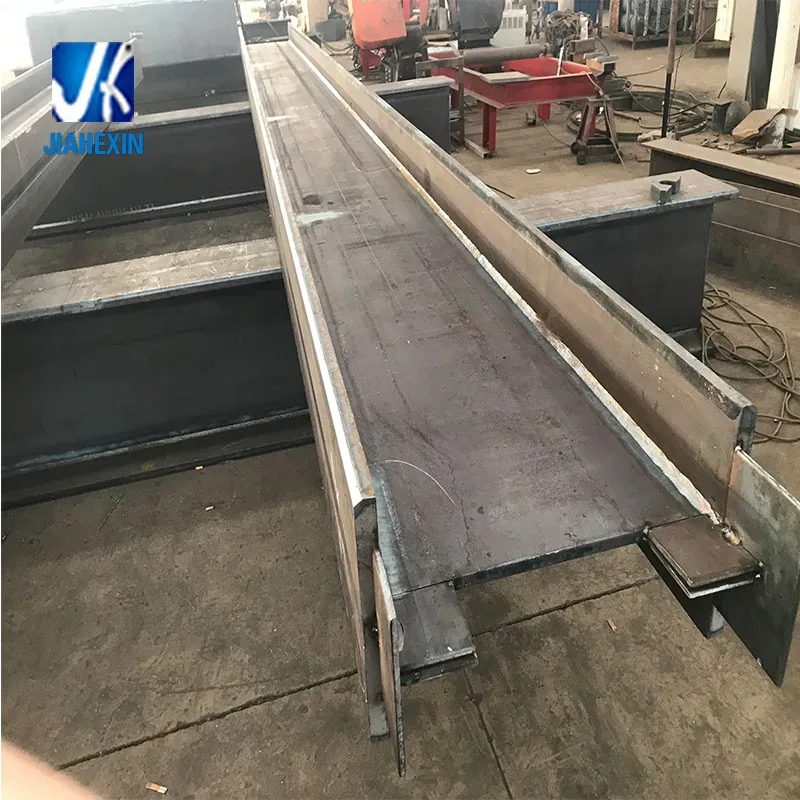

Factory-Direct Structural Fabrication — In-house physical and chemical laboratories verify every Q345B weld seam before shipment, eliminating third-party markup on certified H-beam assemblies.
Technical Specifications + Markdown 表格
| Parameter | Value |
|---|---|
| Designation | Welded H-Beam Steel Structural Fabrication |
| Product Type | Fabricated Steel Structure |
| Steel Grade | SS400, S235JR, A36, Q235B, Q345B, Q460C, 45#, 304, 316 |
| Standard | GB, JIS, ASTM, AISI, DIN, BS, ISO |
| Section Shape | H-Beam |
| Weight Range | 10 kgs – 20,000 kgs |
| Technique | Welding (TIG, MIG, Spot, CO2, Arc) |
| Surface Treatment | Powder Coating, Painted, Galvanized, or Natural |
| Tolerance | ±10% |
| Processing Service | Cutting, Drilling, Bending, Welding, Assembling, Polishing/Cleaning, Shot Blasting, Machining, Painting |
| Heat Treatment | Normalization, Annealing, Quenching and Tempering (for 45#) |
| Non-destructive Testing | PT, MT, UT, RT |
| Software Support | SolidWorks, Pro/Engineer, AutoCAD (DXF/DWG), PDF, TIF, IGS, STP |
| Packing | Iron pallets/racks or as per customer’s requirements |
| MOQ | Negotiable |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial workshop frames, power plant support structures, conveyor gantries |
| Construction Companies | High-rise building columns, bridge girders, large-span roof trusses |
| Machinery Manufacturers | Material handling equipment frames, large generator bases, construction machinery booms |
| Power Stations | Boiler support structures, turbine hall frameworks, cable tray supports |
Where Full NDT Inspection Decides Site Acceptance on a Welded H-Beam Order
Every weld seam on a Q345B H-beam must pass ultrasonic or radiographic testing before it leaves the factory floor.
Global EPC contractors routinely discover that fabricated steel arriving at port carries no verifiable weld inspection records. Missing UT or RT reports mean the entire batch fails site acceptance testing, triggering re-welding costs that dwarf the original fabrication price. Certification gaps compound the problem — without CE marking or EN-compliant mill test certificates, customs authorities hold the cargo while project timelines collapse. [NEED_CITE: EN 10219 cold-formed hollow section structural requirements]
Matching Q345B and S355JR H-Beams to Structural Load Paths
Welded H-beam steel structural fabrication in Q345B or S355JR serves projects where vertical load transfer and lateral stability demand predictable yield behavior. The H-section geometry concentrates material in the flanges where bending stress peaks, while the web resists shear. For power plant frameworks carrying dynamic equipment loads, Q345B’s higher yield strength compared to Q235B reduces section weight without sacrificing load capacity. Our fabrication facility processes client-supplied DXF files directly into CNC cutting programs, ensuring bolt-hole patterns match field connection plates within ±10% tolerance.
Engineering Compliance and Surface Protection for Corrosive Environments
Structural steel frameworks for coastal infrastructure or chemical plants face accelerated corrosion that bare mill-scale steel cannot withstand. Hot-dip galvanizing provides sacrificial zinc protection for 25+ years in moderate industrial atmospheres, while epoxy-painted systems suit indoor workshop environments where appearance matters. For EU-bound projects, CE certification under EN 10210/EN 10219 confirms that fabrication execution class meets EXC2 or EXC3 requirements — a prerequisite that customs authorities increasingly verify at import. [NEED_CITE: steel grade equivalence between EN 10219 and ASTM A500 standards] Non-standard lengths up to 18 meters reduce on-site splicing, cutting field welding costs and inspection delays.
Steel Grade Selection and Welding Process Fundamentals
Q235B and S235JR occupy the mild steel tier, offering adequate strength for non-critical secondary structures at lowest cost. Q345B and S355JR deliver higher yield strength for primary load-bearing members in workshops and bridges, while Q460C serves heavy-duty crane runways where weight reduction justifies premium pricing. Stainless grades 304 and 316 handle food processing or marine environments where corrosion resistance outweighs structural efficiency. TIG welding produces clean, porosity-free seams on thin-web H-beams, while CO2 gas-shielded welding suits thick-flange sections requiring deep penetration. Heat treatment options — normalization for Q345B, quenching and tempering for 45# — refine grain structure and relieve residual welding stresses that could otherwise cause distortion during service. [NEED_CITE: welding procedure qualification for structural steel fabrication]
The Hidden Price of Unverified Fabrication Quality
Specifying Q345B on a purchase order means nothing if the mill test certificate documents Q235B chemistry. Material substitution — whether accidental or deliberate — surfaces only during third-party inspection or structural failure, by which point the steel is already welded into place. Missing CE marking on EU-bound shipments triggers customs holds that delay project commissioning by weeks. Negative tolerance abuse on web thickness reduces load capacity below design assumptions, creating latent safety risks that structural engineers cannot detect without destructive testing. [NEED_CITE: structural steel fabrication execution classes per EN 1090]
Why Engineering Procurement Teams Source Welded H-Beam Steel Structural Fabrication Here
Our fabrication facility operates three dedicated production lines with in-house physical and chemical laboratories that verify chemistry and mechanical properties before any beam leaves the shop. Every heat number traces back to original mill certificates, providing full material documentation for project handover. We hold CE certification under EN 10210/EN 10219 and ISO 9001:2015 registration, with SGS and BV third-party inspection available for clients requiring independent verification. Custom non-standard H-beam sizes — including asymmetric sections and tapered members — ship from our Jinan facility to 50+ countries with professional container loading plans that prevent transit damage. Our international business team coordinates door-to-door logistics including export customs clearance, ocean freight booking, and destination port documentation.
Documentation & Compliance
- Mill test certificate documenting Q345B chemical composition and yield strength per GB/T 1591
- CE certificate confirming EN 10210/EN 10219 compliance for EU structural steelwork
- ISO 9001:2015 quality management system certificate covering fabrication processes
- SGS or BV third-party inspection report verifying dimensional accuracy and weld quality
- Material traceability sheet linking each H-beam to original heat number and mill test report
- Customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Shot-blasted and painted H-beams bundled with timber separators to prevent coating damage during ocean transit
- Galvanized sections wrapped with edge protectors and waterproof paper to preserve zinc coating integrity
- Custom iron pallets or steel racks for fabricated assemblies requiring protected storage at destination
- Container loading plans optimized for 20ft and 40ft open-top containers based on H-beam length and weight distribution
- Heat number and steel grade stenciled on each member for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with real-time tracking from Jinan port to destination
Request Your Fabrication Quote and Mill Test Documentation
Submit your H-beam specifications including steel grade, dimensions, quantity, and destination port to receive detailed pricing with full material certification. Our engineering team reviews DXF/DWG files within 12 hours and returns fabrication drawings for approval before production begins. Confirm CE certification requirements and third-party inspection needs at inquiry stage to ensure smooth customs clearance.
Start Your Welded H-Beam Project Today
Send specifications via email or WhatsApp to receive factory-direct pricing with complete mill test certificates.
