Description
Factory-direct Q345 plates with in-house laser processing — 41 patented technologies including proprietary sharp-corner rectangular tube methods, backed by ISO 9001:2015 and Lloyd’s Register EU CE certification for global project compliance.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q345 Carbon Steel Plate (Laser Cutting & Processing) |
| Product Type | Steel Plate (with Laser Cutting / Machining Service) |
| Steel Grade | Q195, Q215, Q235, Q345, SS490, SM400, SM490, SPHC, SPHD, SPHE, SPHF, SAE1002, SAE1006, SAE1008, SAE1010, S25C, S35C, S45C, 65Mn, SPHT1, SPHT2, SPH3, SPH4 |
| Standard | ASTM, BS, DIN, GB/T, JIS |
| Thickness Range | 0.2–18 mm |
| Width Options | 610 / 760 / 840 / 900 / 914 / 1000 / 1200 / 1250 mm |
| Thickness Tolerance | ±0.02 mm |
| Width Tolerance | ±2 mm |
| Technique | Hot Rolled |
| Surface Treatment | Galvanized / Coated / Iron gray (low carbon) / Brown (special alloy & high carbon) / Partial ochre (weather resistance) / Temperature oxidation pattern |
| Processing Service | Laser Cutting, Bending, Welding, Decoiling, Punching |
| Application | Shipbuilding / Automotive / Bridges / Buildings / Machinery / Pressure vessels / Structural steel fabrication |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Structural frames for industrial plants, bridge gusset plates, high-rise building connection nodes |
| Machinery Manufacturers | Wear-resistant liner plates (65Mn), precision-machined gear blanks (S45C), hydraulic press base plates (Q345) |
| Shipbuilding & Offshore | Deck plating, bulkhead stiffeners, hull structural panels |
| Automotive & Industrial Fabrication | Stamping blanks (SPHC/SPHD), chassis reinforcement plates, conveyor system frames |
| Pressure Vessel & Energy | Boiler end caps, heat exchanger baffles, wind tower base plates |
What Thickness Tolerance Costs on a Laser-Cut Structural Frame Order
A ±0.02 mm thickness tolerance across 0.2–18 mm Q345 plates eliminates CNC re-calibration waste and fit-up gaps.
I still remember a 20-ton batch of 45# steel plates that came back from a European client — every piece warped beyond ±1 mm after laser cutting because the hot-rolled stock had uneven internal stress and the cutting parameters were never adjusted for thickness variation. The entire order was scrapped. Since then, every plate leaving our facility goes through in-house lab verification before the laser even touches it. When you source a Q345 carbon steel plate laser cutting supplier without tight thickness control, you absorb the cost of re-machining, delayed assembly, and in worst cases, structural re-engineering. Material traceability gaps compound the problem — without heat-number-linked mill certificates, you cannot prove compliance during final inspection. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements]
Matching Q345 Plates to Structural and Machining Applications
Q345 plates in the 6–18 mm range serve as primary load-bearing elements in bridge gussets and building frames, where yield strength consistency directly affects weld joint integrity. For machinery manufacturers, the S45C and 65Mn grades in thinner sections (0.2–6 mm) deliver the surface hardness and machinability needed for gear blanks and wear liners. Our in-house laser cutting, bending, and welding services mean your plates arrive as finished components — not raw stock requiring a second vendor. A Q345 carbon steel plate laser cutting supplier that also handles forming and joining eliminates the dimensional drift that occurs when plates move between facilities.
Engineering Compliance and Certification Requirements
Structural steel fabrication for EU projects requires CE certification under EN 10210/EN 10219, while North American EPC contractors typically specify ASTM or AISC-aligned documentation. Q345 plates exported under GB/T standards must carry cross-reference certificates showing equivalence to S355JR or ASTM A572 Gr.50 — a gap that routinely causes customs holds. [NEED_CITE: steel grade equivalence between GB/T, EN, and ASTM standards] Surface treatment selection matters for corrosion environments: galvanized plates for coastal infrastructure, weather-resistant ochre finish for outdoor structural members, and hot-rolled mill finish for indoor or painted applications. Our Lloyd’s Register EU CE certification and ISO 9001:2015 quality system ensure that every Q345 carbon steel plate laser cutting supplier order ships with documentation matching destination-country requirements.
Steel Grade Selection and Hot-Rolling Process Fundamentals
The Q-series (Q195–Q345) follows China’s GB/T system where the number indicates minimum yield strength in MPa — Q345 delivers higher load capacity than Q235 for the same cross-section. The S-series (S25C, S35C, S45C) uses carbon content designation, with S45C offering superior machinability for precision components. 65Mn serves spring and wear applications requiring high surface hardness after heat treatment. Hot-rolled plates in the 0.2–18 mm range maintain consistent grain structure through controlled rolling temperatures, and the ±0.02 mm thickness tolerance ensures uniform stress distribution during laser cutting — critical because uneven stock thickness causes asymmetric heat input and edge distortion. [NEED_CITE: hot-rolled steel plate dimensional tolerance standards]
Hidden Costs of Sourcing from the Wrong Q345 Carbon Steel Plate Laser Cutting Supplier
Plates with unverified chemistry fail spectral analysis during site inspection, triggering full-batch rejection and project delays. Missing CE or ISO certificates block customs clearance in EU and Middle Eastern ports — cargo sits demurrage while paperwork is resolved. Thickness deviation beyond ±0.02 mm forces CNC operators to re-calibrate cutting parameters mid-job, wasting gas, time, and material. [NEED_CITE: structural steel procurement quality compliance requirements] A Q345 carbon steel plate laser cutting supplier without in-house physical and chemical laboratories cannot guarantee heat-to-heat consistency, leaving your engineering team to absorb the risk.
Why Global Buyers Source Q345 Plates Through Xin Jiyuan
Our Jinan facility operates three dedicated production lines with in-house physical and chemical laboratories conducting incoming, in-process, and final inspections — every Q345 carbon steel plate laser cutting supplier order ships with a full inspection report. Factory-direct pricing eliminates trading company markups while 2,800+ specifications across plates, tubes, and sections allow consolidated procurement from a single source. The 41 patented technologies include proprietary sharp-corner rectangular tube methods that fill gaps in global structural design. Lloyd’s Register EU CE (EN 10210/EN 10219), ISO 9001:2015, and third-party verification via SGS and BV ensure customs compliance across 50+ export destinations. Custom non-standard thickness and width orders are supported with professional container loading optimization and FOB/CIF/DDP logistics coordination.
Documentation & Compliance
- Mill Test Certificate documenting Q345 chemical composition (C, Mn, Si, S, P) and mechanical properties per GB/T 1591, traceable to heat number
- Lloyd’s Register EU CE certificate (EN 10210/EN 10219) for structural steel plates exported to European markets
- ISO 9001:2015 quality management system certificate covering hot-rolled plate production and laser cutting processes
- SGS or BV third-party inspection report available per client request for pre-shipment quality verification
- Material traceability sheet linking each plate to heat number, rolling date, and test results
- Customs documentation package: commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

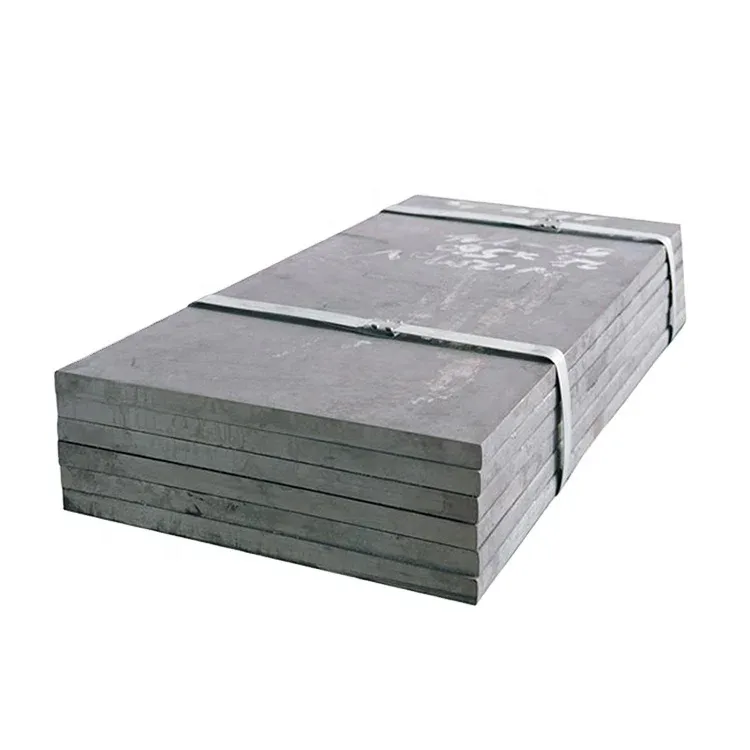

- Hot-rolled Q345 plates bundled with steel strips and edge protectors, seaworthy packaging for ocean freight
- Galvanized plate surfaces protected with interleaf paper to prevent zinc coating damage during transit
- Container loading optimized for 610–1250 mm width plates, maximizing payload per 20ft and 40ft containers
- Laser-cut parts nested and separated by protective film to prevent surface scratching during handling
- Heat number and steel grade (Q345/S45C/65Mn) stenciled on each plate for site identification
- FOB Qingdao port with CIF and DDP options available to EU, North America, Southeast Asia, and Middle East destinations
Initiating Your Q345 Plate Procurement
Submit your specifications — thickness, width, steel grade, quantity, and destination port — via email or WhatsApp, and our team responds within 12 hours with a detailed quotation including unit price, delivery timeline, payment terms, and applicable certifications. Non-standard dimensions and custom cutting drawings are reviewed by our engineering team for feasibility before production begins. Confirm your certification requirements (CE, SGS, BV) and logistics preferences early to align documentation with your project schedule.
Frequently Asked Questions
Q: How do Q345, S355JR, and ASTM A572 Gr.50 compare in chemical composition and mechanical properties?
A: Q345 (GB/T 1591) is broadly equivalent to S355JR (EN 10025) and ASTM A572 Gr.50 in yield strength range. We provide cross-reference certificates and mill test reports showing chemistry and mechanical data per the standard you specify.
Q: Can you provide third-party inspection (SGS/BV) and original mill test certificates for customs clearance?
A: Yes. Every Q345 carbon steel plate laser cutting supplier order includes original mill test certificates traceable to heat number. SGS and BV third-party inspections are arranged per client request before shipment.
Q: What is the MOQ for custom non-standard thickness or width, and what is the typical lead time?
A: The standard MOQ is 1 Ton. Custom non-standard dimensions are accepted, and typical production lead times depend on specification complexity and order volume — confirmed at quotation stage.
Q: Which surface treatment suits outdoor structural applications — galvanized, hot-rolled, or weather-resistant?
A: Galvanized plates provide active zinc-layer corrosion protection for coastal and humid environments. Weather-resistant ochre finish forms a stable patina for outdoor structural members without painting. Hot-rolled mill finish is suitable for indoor or painted applications.
Q: How do you handle container loading optimization and logistics for heavy plate shipments?
A: Our logistics team prepares professional loading plans based on plate dimensions and weight, maximizing container payload. We offer FOB, CIF, and DDP terms with real-time shipment tracking to 50+ countries.
Get Your Q345 Carbon Steel Plate Laser Cutting Quote Today
Send your specifications — steel grade, thickness, width, quantity, and destination — to receive a detailed quotation with mill test certificate and delivery timeline within 12 hours.
