Description
Factory-Direct Cold Rolled Galvanized Plates — Every Q235B coil is tested in-house before shipment, with chemical and mechanical reports issued per batch.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Cold Rolled Galvanized Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q235B / SS400 |
| Standard | GB / ASTM / DIN |
| Section Shape | Flat Plate |
| Thickness | 1.4mm / 1.45mm |
| Width | 1250mm |
| Length | 2500mm |
| Tolerance | ±1% |
| Technique | Cold Rolled |
| Surface Treatment | Galvanized |
| Processing Service | Bending, Cutting, Decoiling, Punching, Welding |
| Planeness | Flat |
| Material Science | Carbon Steel |
| Application | Shipbuilding / Boiler plates / Container plates / Pipe making / Building Construction |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Shipbuilding & Marine Engineering | Deck plating, bulkhead liners, container frame skins |
| Pressure Equipment Manufacturing | Boiler outer casings, heat exchanger housings |
| Container Fabrication | Corrugated side panels, roof sheets, floor supports |
| Pipe Making | ERW pipe blanks for structural and fluid conveyance |
| Building Construction | Roof purlins, wall cladding substrates, light gauge framing |
What Thin-Gauge Tolerance Actually Costs on a Galvanized Plate Order
A ±1% cold rolled tolerance on 1.4mm Q235B plates prevents weight miscalculation and fit-up rejection at the fabrication stage.
When buyers source thin-gauge galvanized sheets from fragmented suppliers, coating thickness often drifts below specification — a Z80 label that measures Z60 on arrival triggers third-party rejection and weeks of port demurrage. Dimensional inconsistency across plates of the same order forces re-cutting on site, wasting labor and delaying crane schedules. For a Q235B cold rolled galvanized steel plate supplier operating at ±1% tolerance, every plate ships with verified thickness data tied to the heat number, eliminating the guesswork that turns a routine delivery into a project liability. [NEED_CITE: cold rolled sheet thickness tolerance standards for structural applications]
Matching Thin-Gauge Galvanized Plates to Marine and Container Fabrication
Cold rolled Q235B and SS400 plates at 1.4mm–1.45mm thickness serve as substrate material for container side panels and shipboard non-structural cladding, where flatness and consistent zinc adhesion matter more than load-bearing capacity. The cold rolling process produces a smooth, uniform surface that accepts galvanizing evenly — critical when plates will be exposed to salt spray during ocean transit or in coastal installation environments. As a Q235B cold rolled galvanized steel plate supplier with in-house coating verification, we check zinc layer continuity before each shipment, ensuring the corrosion protection specified on paper matches what arrives at the port.
Engineering Compliance for Galvanized Carbon Steel in Structural Environments
Galvanized Q235B plates used in building construction and pipe making must conform to the chemical composition limits defined in GB/T 700 for Q235B or JIS G 3101 for SS400 — both are carbon steel grades with equivalent forming and welding characteristics. For EU-bound shipments, CE marking under applicable EN standards confirms that the material meets traceability and testing requirements for customs clearance. [NEED_CITE: steel grade equivalence between GB Q235B and international standards] The ±1% thickness tolerance aligns with cold rolled sheet production norms, and each plate is supplied with full processing capability — bending, punching, and cut-to-length — so fabricators receive ready-to-assemble components rather than raw coils requiring secondary handling.
Understanding Q235B and SS400 in the Carbon Steel Grade Family
Q235B is a Chinese standard carbon structural steel defined in GB/T 700, widely used in general fabrication where moderate strength and good weldability are required. SS400, defined in JIS G 3101, is its Japanese counterpart — both grades share similar carbon content ranges and are interchangeable in most non-critical structural applications. The “B” in Q235B indicates room-temperature Charpy impact testing at 20°C, distinguishing it from Q235A which carries no impact requirement. Cold rolling produces a tighter dimensional profile than hot rolling, making 1.4mm–1.45mm plates suitable for precision blanking and forming operations. Galvanizing adds a zinc sacrificial layer that protects the carbon steel substrate from atmospheric corrosion — the coating weight and adhesion depend on the galvanizing process parameters, which is why batch-level testing matters.
The Hidden Price of Unverified Coating and Missing Mill Certificates
Ordering galvanized plates without verified coating weight or original mill test certificates creates compounding risks: customs authorities in EU and Middle Eastern markets routinely detain steel shipments lacking proper CE documentation or traceable MTCs. [NEED_CITE: customs documentation requirements for galvanized steel imports] A plate that measures below-specification on zinc thickness will fail third-party inspection at destination — the cost of rejection includes return freight, replacement production, and project schedule penalties that far exceed the original material price difference between verified and unverified suppliers.
Why Procurement Teams Choose Xin Jiyuan for Galvanized Plate Orders
Every Q235B cold rolled galvanized steel plate leaving our Jinan facility passes through an in-house physical and chemical laboratory that tests coating adhesion, thickness uniformity, and base metal composition before release. We operate three dedicated production lines covering over 2,800 specifications, meaning thin-gauge plates at 1.4mm–1.45mm are standard inventory rather than custom mill runs with extended lead times. Our facility holds ISO 9001:2015 certification, Lloyd’s Register EU CE marking, and Singapore FPC approval — documents that travel with each shipment to prevent customs delays in destination countries. With exports to 50+ countries across EU, North America, Southeast Asia, and the Middle East, our logistics team optimizes container loading for 1250mm × 2500mm plates to maximize payload per shipment.
Documentation & Compliance
- Mill Test Certificate documenting Q235B chemical composition and mechanical properties per GB/T 700, issued per heat number
- CE certificate confirming compliance with applicable EN standards for carbon steel plates exported to European markets
- ISO 9001:2015 quality management certificate covering cold rolling and galvanizing production processes
- SGS or BV third-party inspection report available upon request for independent coating thickness and surface quality verification
- Material traceability documentation linking each plate to its original heat number and production batch
- Full customs document package including packing list, Bill of Lading, and Certificate of Origin for destination-country clearance
Packaging, Loading & Delivery

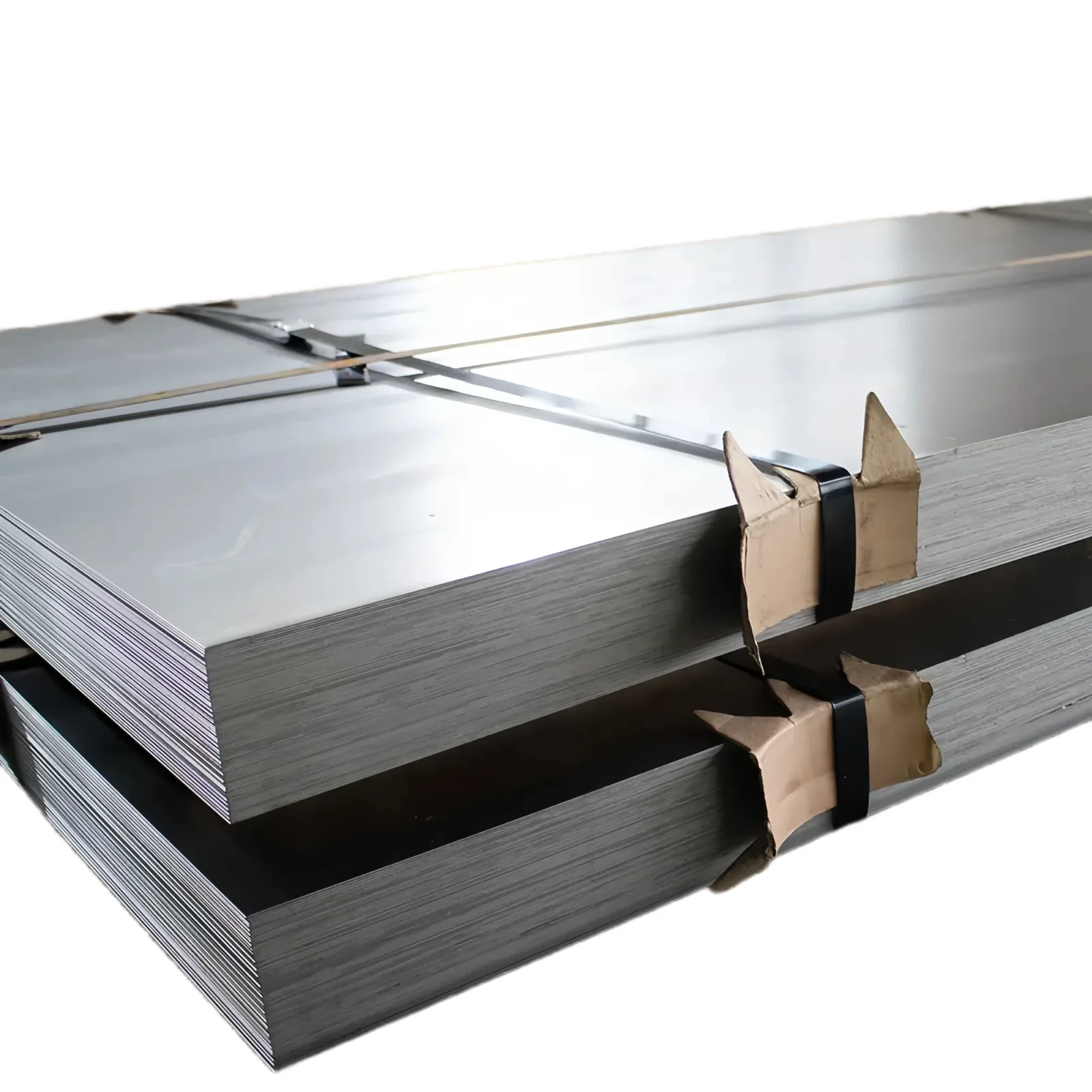

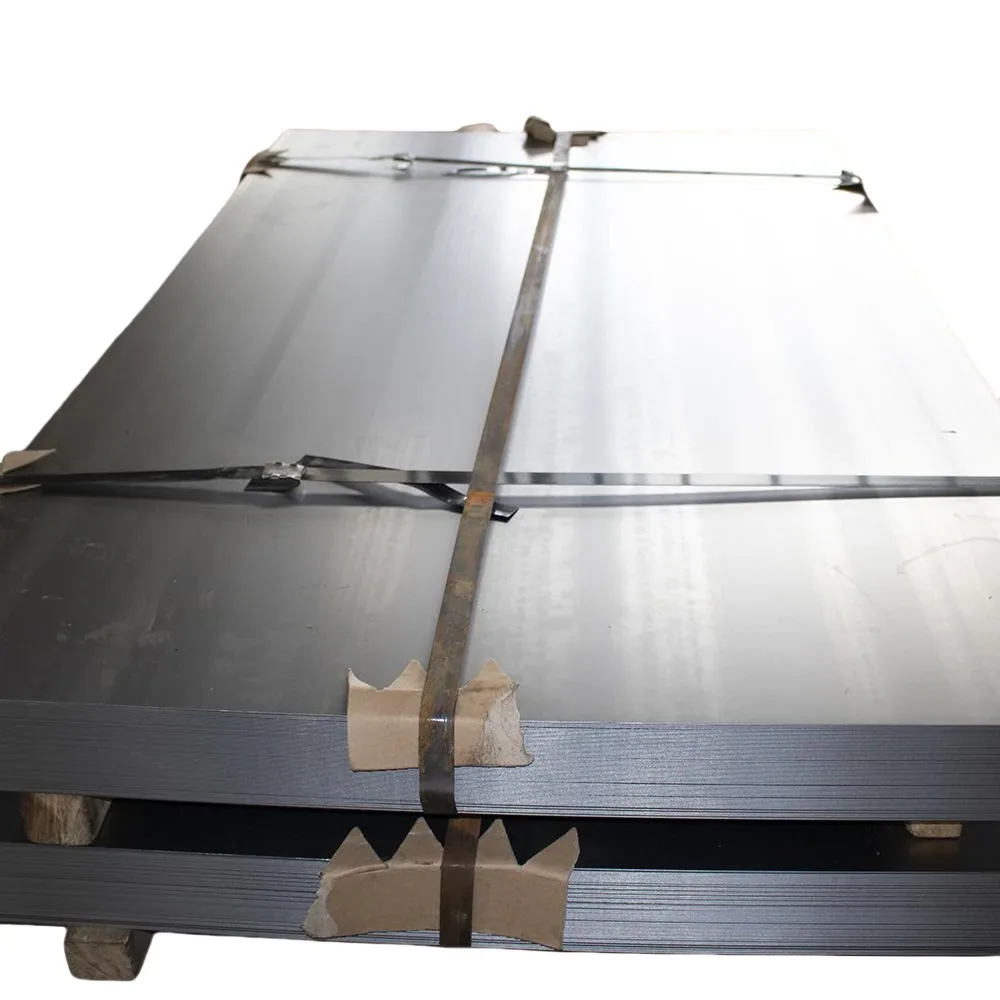

- Q235B galvanized plates bundled with steel straps and edge protectors to preserve zinc coating integrity during ocean freight
- Surface protected with anti-fingerprint passivation or light oiling to prevent white rust formation during transit and storage
- Container loading optimized for 1250mm × 2500mm plates in 20ft and 40ft units, with weight distribution calculated for road transport limits at destination
- Cut-to-length service available for custom lengths beyond standard 2500mm, with kerf allowance confirmed before production
- Each bundle marked with heat number, steel grade Q235B or SS400, thickness, and purchase order reference for site identification
- Shipping terms available as FOB, CIF, or DDP with real-time tracking and door-to-door coordination for project sites
Securing Your Galvanized Plate Quote with Verified Specifications
Submit your required thickness, width, length, steel grade preference between Q235B and SS400, and destination port to receive a detailed quotation including unit pricing, production lead time, and applicable certification documents. We provide original mill test certificates and accept third-party inspection requests before shipment confirmation.
Request Your Q235B Galvanized Plate Quotation Today
Send your specifications via email or WhatsApp to receive pricing, mill test certificate samples, and container loading plans within one business day.
