Description

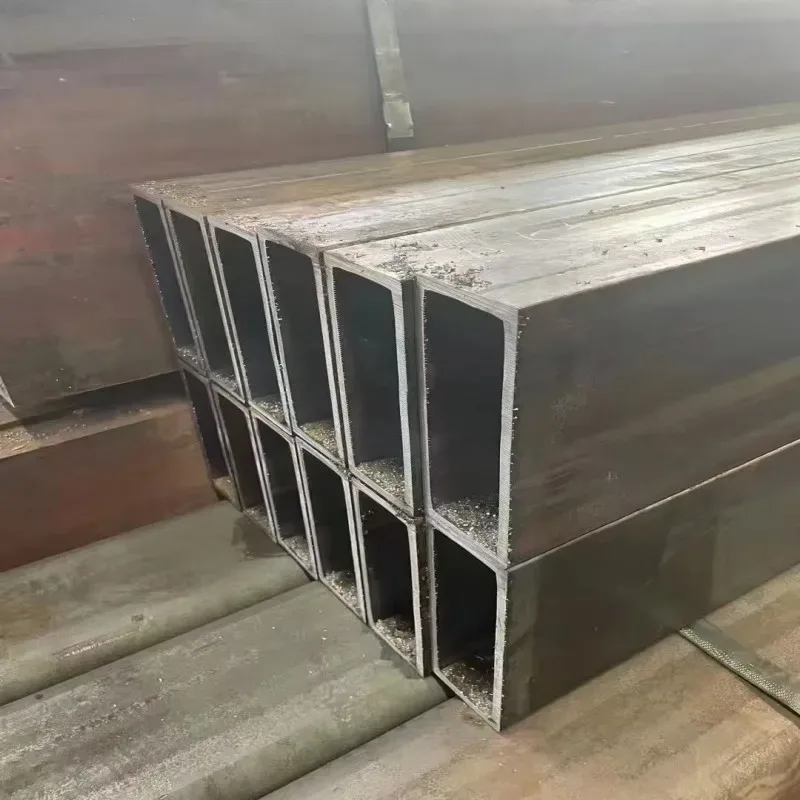

Factory-Direct HDG Sharp-Corner Tubes — Every Q235B/Q345B hot-dip galvanized sharp-corner square and rectangular steel tube ships with corner-by-corner coating thickness photos and EN 10219 mill certificates, eliminating third-party rejection at site.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B / Q345B Hot-Dip Galvanized Sharp-Corner Square & Rectangular Steel Tube |
| Product Type | Square and Rectangular Steel Tube (SHS / RHS) |
| Steel Grade | Q235B, Q345B |
| Standard | GB (GB/T 6728 implied) |
| Section Shape | Square / Rectangular (Special-Shaped, Right-Angle) |
| Size Range | Width 150–625 mm |
| Wall Thickness | Up to 40 mm |
| Length | 5–15 m (standard 5.8 m / 6 m / 12 m available) |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot-Dip Galvanized (HDG) |
| Tolerance | ±1% |
| Processing Service | Cutting, Bending, Welding, Punching, Decoiling |
| Application | Construction building, Steel structures, Structural frames, Machinery, EPC projects |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Bridge framework members, industrial platform supports, conveyor gantry structures |
| Construction Companies | High-rise building frames, warehouse portal frames, corrosion-exposed facade mullions |
| Machinery Manufacturers | Equipment base frames, automation gantries, heavy-duty roller housings |
| System Integrators | Material handling racks, modular scaffolding uprights, solar mounting substructures |
Where Galvanization Rejection Happens on Sharp-Corner Tubes
Inner-corner zinc thickness below 65 μm is the single most common cause of HDG tube rejection on EPC sites.
I watched an entire container of HDG rectangular tubes get turned away at a Nigerian bridge project because the third-party inspector found the galvanizing layer thin on the inner corners of the right-angle sections. The mill certificate looked clean, but the zinc had drained away from the tight internal radii during dipping. Re-stripping and re-galvanizing cost thousands and delayed the bridge framework by three weeks. That is the kind of loss a Q235B HDG sharp-corner square steel tube supplier must prevent before loading — not after the container reaches the port.
Buyers sourcing sharp-corner profiles from multiple vendors often face inconsistent corner radii, missing galvanization certificates, and customs delays caused by incomplete CE documentation. A single factory-direct source with in-house physical and chemical laboratories removes that fragmentation risk entirely [NEED_CITE: hot-dip galvanizing coating thickness requirements for structural hollow sections].
How Sharp-Corner Geometry Meets Structural Connection Demands
True 90-degree right-angle geometry on a Q235B HDG sharp-corner square steel tube allows gusset plates and moment connections to sit flush without shimming — something standard radius-corner tubes cannot guarantee. On EPC bridge frameworks and industrial warehouse portals, this eliminates field rework and keeps bolt patterns aligned under load. Our proprietary sharp-corner forming process, covered under 41 patented technologies, holds the internal radius tight enough for direct bearing while the hot-dip galvanized coating delivers long-term corrosion resistance in outdoor and marine environments.
Engineering Compliance Across CE, EN, and GB Frameworks
Structural designers specifying EN 1993 for European projects or GB 50017 for domestic builds need material traceability that survives customs inspection. The Q235B and Q345B grades used in these tubes align with international equivalence tables, but only Lloyd’s Register EU CE certification under EN 10210 and EN 10219 guarantees smooth clearance into European ports [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series standards]. Hot-dip galvanizing adds another compliance layer: coating thickness must meet ISO 1461 or EN ISO 10240 depending on destination, and every heat number must trace back to the original mill chemistry. Wall thickness tolerance of ±1% keeps theoretical weight calculations reliable for structural load sheets, while standard lengths of 5.8 m, 6 m, and 12 m reduce on-site cutting waste.
Steel Grade, ERW Process, and HDG Logic Explained
Q235B delivers adequate yield strength for general structural framing where extreme load-bearing is not the primary driver, while Q345B steps up for heavier portal frames and bridge members requiring higher section modulus. Both grades are produced through the ERW (Electric Resistance Welded) process, which forms the tube from coil and welds the seam through electrical resistance — a cost-efficient route for square and rectangular hollow sections where seamless manufacturing would add unnecessary expense. The hot-dip galvanized surface treatment immerses the finished tube in molten zinc, creating a metallurgical bond that outperforms pre-galvanized or painted finishes in outdoor exposure. Sharp-corner forming is the critical differentiator: standard cold-forming leaves large internal radii that compromise connection fit-up, while proprietary tooling achieves near-zero internal radius, giving the Q235B HDG sharp-corner square steel tube its structural and aesthetic advantage. Wall thickness up to 40 mm covers heavy structural demands, and the ±1% tolerance ensures dimensional consistency across long production runs.
Hidden Costs of Buying the Wrong Grade or Unverified Coating
Specifying Q235B when the structural engineer actually required Q345B means the frame fails load testing on site — and replacement tubes must ship internationally at emergency freight rates. Ordering HDG tubes without verified corner coating thickness invites third-party rejection, as zinc drainage on tight internal radii is invisible until the inspector probes with a magnetic gauge. Missing EN 10219 or CE documentation does not just delay customs; it can halt an entire project delivery if the main contractor cannot prove material compliance to the project owner [NEED_CITE: structural steel certification requirements for EU construction product regulation]. Negative tolerance abuse on wall thickness looks like a price saving on paper but reduces actual load capacity and voids the engineer’s design assumptions.
Why Procurement Teams Choose Xin Jiyuan for HDG Sharp-Corner Tubes
Every Q235B HDG sharp-corner square steel tube leaves our Jinan factory under direct supervision — no trading company markup, no middleman relaying specifications. Our in-house physical and chemical laboratories test every heat for composition and mechanical properties before galvanizing begins, and we photograph zinc thickness on every critical corner before loading. With 2,800+ specifications spanning wall thicknesses up to 40 mm, buyers consolidate square tubes, rectangular tubes, plates, and beams into a single shipment rather than coordinating five separate suppliers. Our proprietary sharp-corner rectangular tube technology — a domestic and international first among 41 patents — solves the internal radius problem that generic ERW producers cannot address. Lloyd’s Register EU CE certification under EN 10210 and EN 10219, Singapore FPC, ISO 9001:2015, and SGS/BV third-party inspection coverage mean the documentation package clears customs in EU, North America, and Middle Eastern ports without follow-up requests. Custom non-standard sizes and cut-to-length processing eliminate secondary fabrication costs at the destination yard.
Documentation & Compliance
- Mill Test Certificate documenting Q235B and Q345B chemical composition and mechanical properties per GB/T 6728, traceable by heat number
- Lloyd’s Register EU CE certificate covering EN 10210 and EN 10219 for structural hollow sections exported to European markets
- ISO 9001:2015 quality management certificate covering the full production and galvanizing process
- SGS or BV third-party inspection report verifying zinc coating thickness on inner and outer corners before shipment
- Material traceability sheet linking each bundle to its heat number, chemistry report, and galvanizing bath record
- Customs document package including packing list, Bill of Lading, and Certificate of Origin for destination-port clearance
Packaging, Loading & Delivery

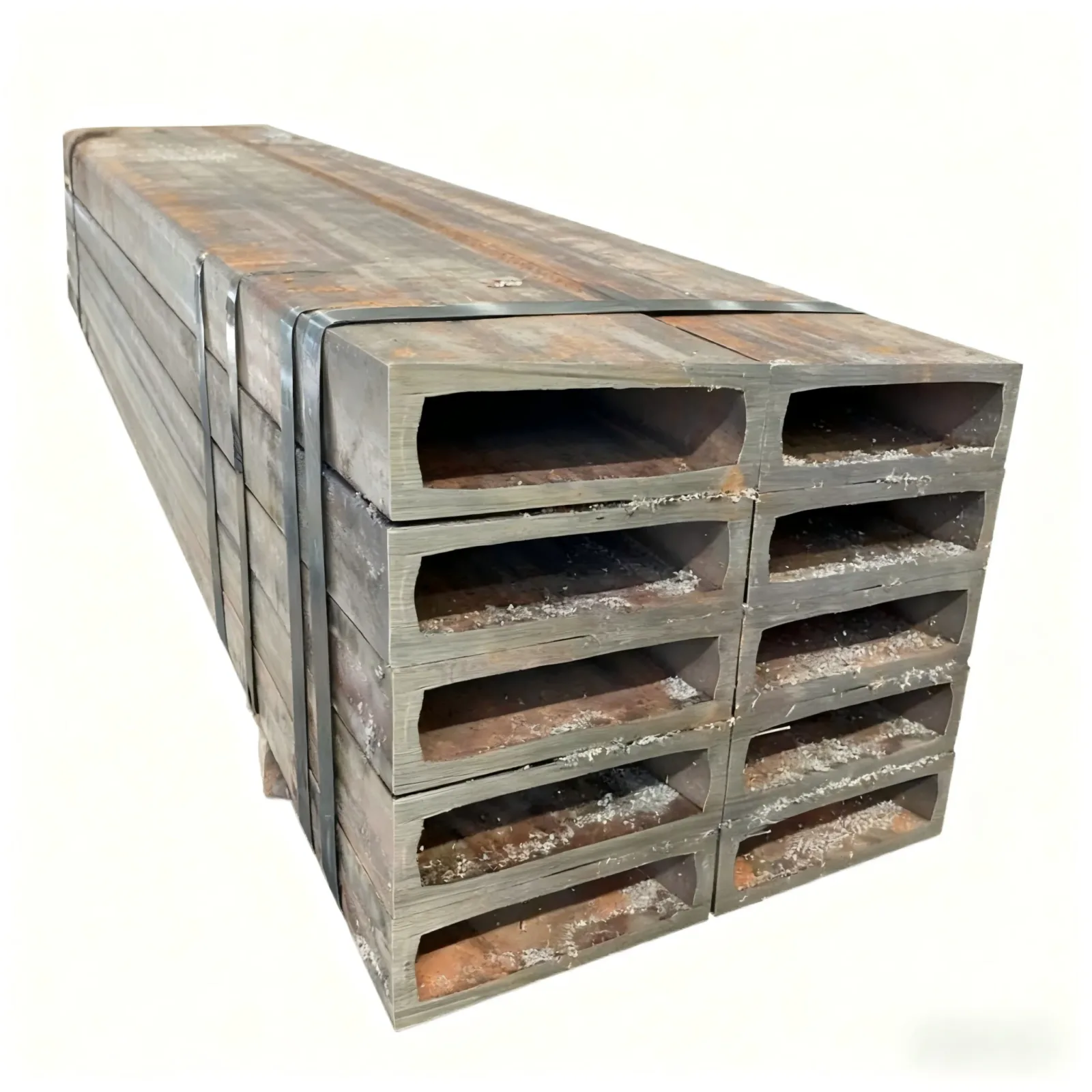

- Q235B and Q345B HDG sharp-corner tubes bundled with steel strips and edge protectors to prevent zinc coating damage during ocean transit
- Hot-dip galvanized surface protected by waterproof wrapping at tube ends to avoid white rust formation during container shipping
- Container loading optimized for 5.8 m, 6 m, and 12 m standard lengths to maximize payload per 20ft and 40ft open-top or flat-rack units
- Cut-to-length and custom sizing available for width 150–625 mm sections, reducing on-site cutting waste for EPC bridge and warehouse projects
- Heat number and steel grade stenciled on each bundle for site traceability and inspector verification
- FOB, CIF, and DDP shipping options with door-to-door logistics coordination to 50+ countries across EU, North America, Middle East, and Southeast Asia
Getting Your HDG Sharp-Corner Tube Quote Moving
Submit your section dimensions, steel grade (Q235B or Q345B), total tonnage, and destination port — our team responds within 12 hours with unit pricing, production lead time, and the applicable CE and mill test documentation package. For non-standard widths or wall thicknesses outside the 150–625 mm range, we provide custom forming feasibility feedback and sampling options before you commit to a production order.
Request Your HDG Sharp-Corner Tube Quotation
Send your specification sheet via email at admin@sdxjysteel.com or reach us on WhatsApp at +86 188 5315 7756 to receive pricing, mill test certificates, and container loading plans within one business day.
Frequently Asked Questions
Q: How does Q235B compare to S235JR or ASTM A36 for my structural project?
A: Q235B is the Chinese national standard grade widely used in general construction and industrial framing. It aligns closely with S235JR under EN 10025 and ASTM A36 under American standards in terms of yield strength class. We supply mill test certificates showing full chemical composition and mechanical properties so your engineer can verify equivalence for your specific design code.
Q: Can you provide third-party inspection before shipment for HDG coating thickness?
A: Yes. Every HDG order can be inspected by SGS or BV before loading. We photograph zinc coating thickness on every critical inner and outer corner of the sharp-corner tubes and include these records in the shipment documentation. This prevents the type of site rejection caused by zinc drainage on tight internal radii.
Q: What is the minimum order quantity for custom non-standard sharp-corner sizes?
A: We produce custom non-standard dimensions across our 2,800+ specification range. MOQ depends on the specific width, wall thickness, and length requested. Contact us with your drawing or specification sheet and we will confirm feasibility, tooling requirements, and minimum quantity within one working day.
Q: What documents do I need for EU customs clearance on galvanized structural tubes?
A: EU customs requires a valid CE certificate under EN 10210 or EN 10219, a Declaration of Performance, mill test certificates per EN 10204 3.1, and a complete shipping document package. Our Lloyd’s Register EU CE certification and Singapore FPC cover these requirements, and we provide the full documentation set with every shipment.
Q: How does hot-dip galvanizing compare to pre-galvanized for outdoor structural use?
A: Hot-dip galvanizing immerses the finished tube in molten zinc, creating a metallurgical zinc-iron alloy layer that provides significantly longer corrosion protection than pre-galvanized (sheet-coil galvanized) tubes. For outdoor structures, bridge frameworks, and marine environments, HDG is the specified standard. Pre-galvanized tubes are suitable only for indoor or mild environments where coating damage during fabrication is not a concern.
