Description

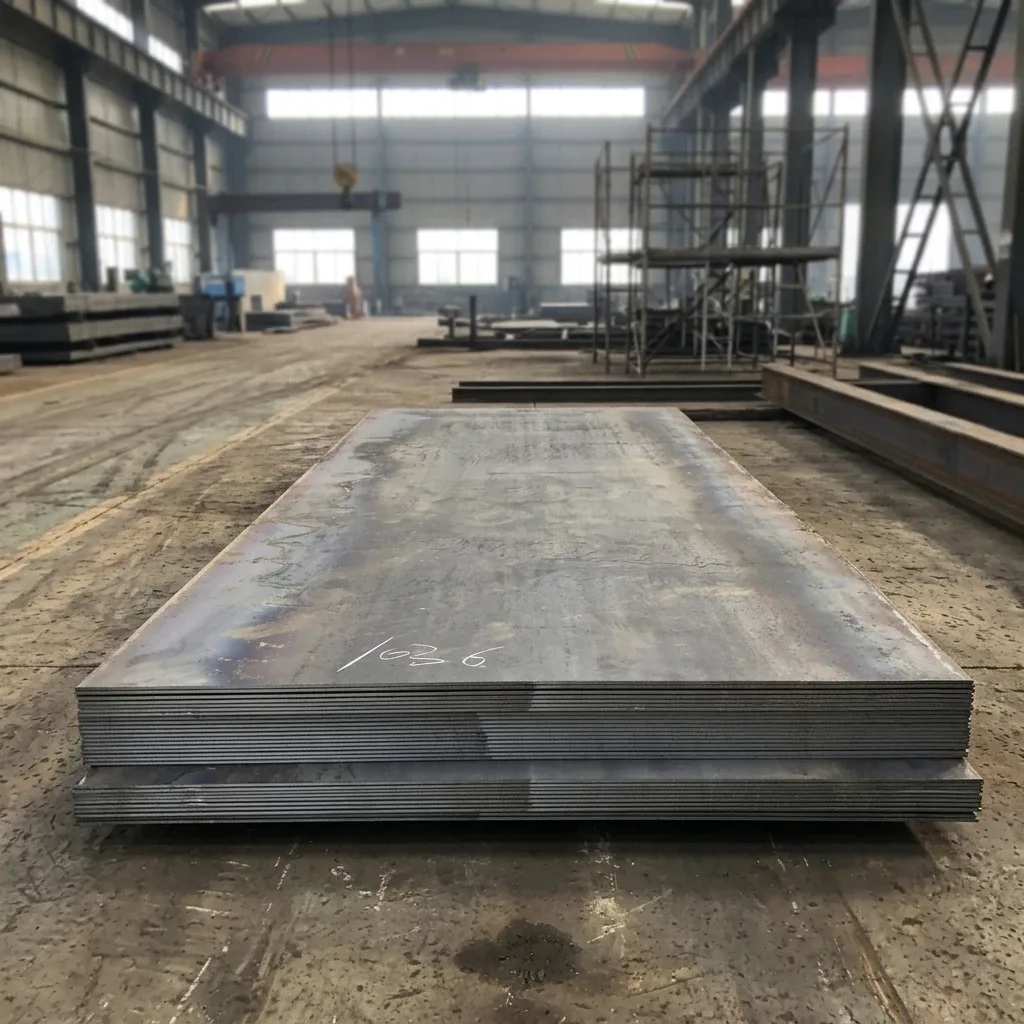

Factory-direct Q235B Q355B carbon steel plate processing supplier — every plate rolled, cut, and inspected in-house with original mill test certificates shipped before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B / Q355B Carbon Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q235B, Q355B |
| Standard | AISI, ASTM, BS, DIN |
| Section Shape | Flat Sheet / Plate |
| Thickness | 3mm, 6mm, 8mm, 10mm, 20mm |
| Width | 600–1100mm |
| Length | 1000–12000mm |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Coated / Nature |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Application | Building Construction, Heavy-Duty Structures, Boiler Plate |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Structural base plates, gusset plates, and connection brackets for industrial frames |
| Construction Companies | Building column base plates, boiler support plates, heavy-duty floor grating |
| Machinery Manufacturers | Precision-cut machine base plates, conveyor frame gussets, equipment mounting plates |
What Dimensional Tolerance Actually Costs on a Structural Frame Order
A ±1% tolerance on a 20mm Q355B plate means ±0.2mm — tight enough to pass ultrasonic thickness checks at site, loose enough to avoid premium pricing on every sheet.
When procurement teams source Q235B Q355B carbon steel plate processing supplier services from fragmented vendors, thickness variance compounds across dozens of plates. A batch arriving at -3% instead of the stated ±1% triggers rejection during structural inspection, forcing re-order and weeks of delay. [NEED_CITE: EN 10029 tolerance classes for hot rolled steel plates] Missing or incomplete mill test certificates compound the problem — customs holds the container while the importer scrambles for traceable documentation.
Matching Q235B and Q355B Plates to Structural Load Requirements
Q235B serves general construction frames where moderate strength suffices — scaffolding, non-load-bearing partitions, and light structural brackets. Q355B steps in when higher yield capacity is needed: crane runway beams, heavy-duty equipment bases, and bridge connection plates. As a Q235B Q355B carbon steel plate processing supplier, we cut, bend, and punch both grades to exact project drawings in-house, so plates arrive on-site ready to weld without secondary fabrication delays.
Engineering Compliance and Certification Pathways
Structural plates for EU-bound projects must carry CE marking under EN 10210 or EN 10219 frameworks, while North American EPCs typically require ASTM conformance documentation. Boiler plate applications demand verified chemical composition and traceable heat numbers for pressure vessel compliance. [NEED_CITE: EN 10025 structural steel plate delivery conditions] Our in-house physical and chemical laboratory tests every heat before rolling, and third-party SGS or BV inspection is available for projects requiring independent verification. Custom lengths up to 12000mm reduce on-site welding joints, cutting both labor cost and structural weak points.
Understanding Q-Series Steel Grade Designations
Q235B and Q355B follow the Chinese GB/T 700 and GB/T 1591 designation systems, where the “Q” prefix indicates yield point and the number represents minimum yield strength in MPa at room temperature. The “B” suffix denotes quality grade, covering impact testing temperature and chemical composition limits. Q355B offers higher strength-to-weight ratio than Q235B, allowing thinner sections for equivalent load capacity — a critical factor when shipping weight drives freight cost. Hot rolled plates suit structural applications where surface finish is secondary, while cold rolled options provide tighter surface quality for visible architectural elements. [NEED_CITE: GB/T 700 and GB/T 1591 steel grade comparison]
The Hidden Cost of Unverified Plate Sourcing
Plates sourced without original mill test certificates risk failing structural audits — inspectors cannot verify chemical composition or mechanical properties without traceable heat documentation. Negative tolerance exceeding stated limits reduces actual load-bearing capacity, creating safety liability that no amount of cost savings justifies. Certification gaps delay customs clearance for weeks, demurrage charges accumulate at port, and project timelines slip. [NEED_CITE: structural steel plate inspection requirements for construction projects]
Why Source Q235B Q355B Plates from Our Facility
Every plate rolls through our three dedicated production lines with real-time quality monitoring from our in-house laboratory. We hold 41 invention patents and produce over 2800 specifications, meaning your non-standard width or custom length request likely matches an existing die rather than requiring new tooling. Factory-direct pricing eliminates trading company margins, while CE, ISO 9001:2015, and SGS/BV certifications clear customs across 50+ destination countries. Our professional loading team optimizes container weight distribution for plates up to 12000mm, reducing transit damage and port handling costs.
Documentation & Compliance
- Mill test certificate documenting Q235B and Q355B chemical composition and mechanical properties per GB/T 700 and GB/T 1591
- CE certificate covering EN 10210/EN 10219 compliance for EU market structural plate applications
- ISO 9001:2015 quality management certificate validating production process controls
- SGS or BV third-party inspection report available for project-specific material verification
- Full material traceability by heat number linking each plate to original chemistry and rolling records
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Hot rolled Q235B and Q355B plates bundled with high-tensile steel strips and edge protectors to prevent coating damage during ocean transit
- Nature finish plates receive anti-rust oil coating before seaworthy wrapping with waterproof paper and plastic sheeting
- Container loading optimized for plates ranging from 3mm to 20mm thickness, with heavier gauges positioned at bottom to distribute weight evenly
- Custom cutting to exact project lengths up to 12000mm reduces on-site waste and welding requirements
- Each bundle marked with heat number, steel grade, thickness, and length for immediate site identification
- FOB, CIF, and DDP shipping options with door-to-door logistics coordination to 50+ countries
Start Your Q235B Q355B Plate Inquiry
Submit your plate specifications — including steel grade, thickness, width, length, quantity, and destination port — and receive a detailed quotation within 12 hours. Request original mill test certificates and third-party inspection options upfront to confirm compliance with your project standards. Our engineering team reviews custom cutting and bending drawings to provide fabrication timelines alongside material pricing.
Get Your Q235B Q355B Carbon Steel Plate Quote with Mill Test Certificates
Send your specifications via email or WhatsApp to receive factory-direct pricing, certification options, and delivery timelines for your next structural steel plate order.
