Q235B Q345B Fabricated Steel Structure Custom H-Beam Frame Supplier

Description

Factory-direct fabrication, no trading markup — Every Q235B and Q345B H-beam frame is welded, painted, and inspected in our own facility before container loading, eliminating intermediary margins from your structural steel budget.

Technical Specifications

Application Suitability

What Fragmented Sourcing Costs on a Structural Frame Order

Buying H-beams from one mill, purlins from another, and brackets from a third adds coordination overhead that no spreadsheet captures until the container arrives short.

Global EPC contractors routinely source main frames, C/Z purlins, and connection plates from separate suppliers — then discover on-site that bolt-hole patterns do not align, surface treatments mismatch, or mill test certificates are missing for customs clearance at the destination port [NEED_CITE: procurement fragmentation risks in structural steel supply chains]. A Custom Structural Steel Fabrication Supplier that handles the full frame — from H-beam columns to purlin clips — eliminates these gaps before steel leaves the factory floor.

Matching H-Beam Frames to Industrial Building Loads

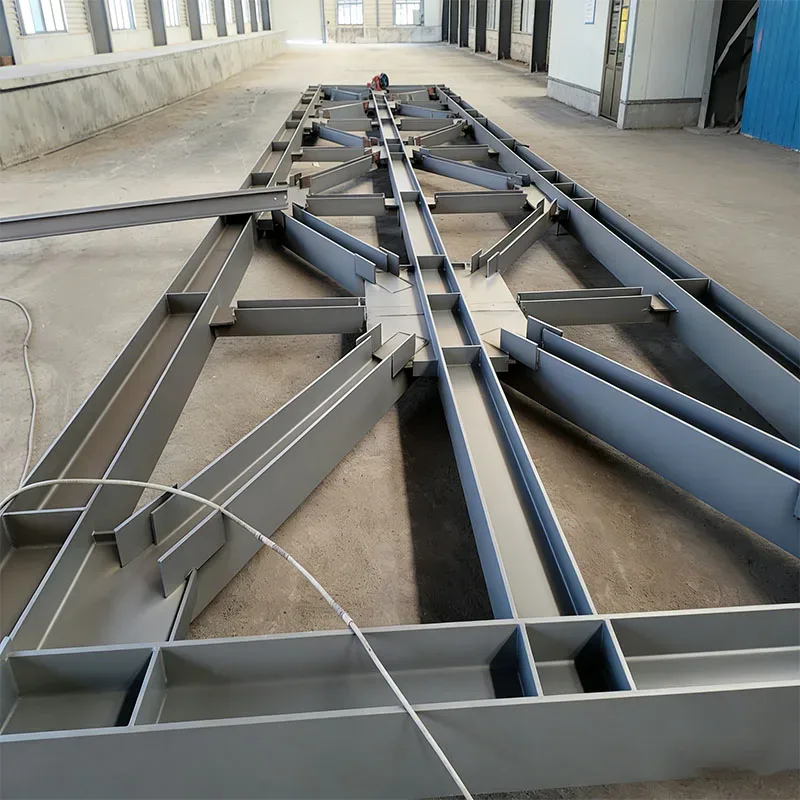

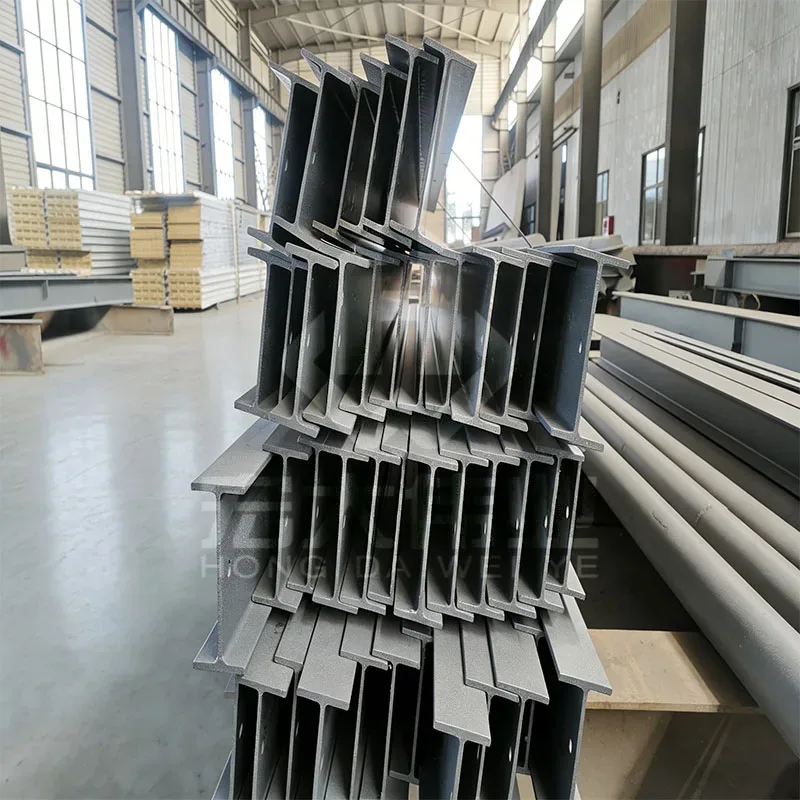

A Q345B H-beam main frame carries higher point loads than Q235B at the same section modulus, making it the default choice for crane-runway workshops and heavy-equipment warehouses. C and Z purlins span between rafters to transfer roof and wind loads into the primary frame — their orientation (Z-purlins lapped at overlaps, C-purlins for single-span bays) determines lateral restraint effectiveness. A Custom Structural Steel Fabrication Supplier that fabricates both the main frame and purlin system in-house ensures connection plates, bolt holes, and splice positions match before galvanizing or painting, so erection crews bolt rather than re-cut on site.

Engineering Compliance and Surface Protection for Harsh Environments

Structural steel for EU-bound projects must conform to EN 1993 design rules, and the CE mark under EN 10210/EN 10219 is often the document customs authorities request first [NEED_CITE: EN 10219 cold-formed hollow section requirements]. For workshops in coastal or chemical-processing zones, hot-dip galvanizing provides decades of corrosion resistance without maintenance, while painting systems (epoxy primer + polyurethane topcoat) suit indoor or moderate environments at lower cost. Steel grade selection — Q235B for general construction, Q345B for higher load-bearing demands — directly affects section weight and foundation design, making early material confirmation essential for project cost control.

Steel Grade Selection and Fabrication Process Fundamentals

Q235B and Q345B belong to China’s GB/T 700 and GB/T 1591 standards respectively; Q345B offers higher yield strength, allowing smaller cross-sections for the same load capacity. In cross-reference terms, Q235B roughly corresponds to S235JR under EN 10025 and ASTM A36 under US standards, while Q345B aligns with S355JR and ASTM A572 Grade 50 — though exact equivalence depends on chemical composition and impact testing requirements [NEED_CITE: steel grade equivalence between EN and ASTM standards]. H-beam main frames are typically fabricated by welding cut-to-size flange and web plates, while C/Z purlins are cold-formed from coil — each process demands different quality checkpoints. Surface treatment choice between painting and galvanizing depends on the project’s corrosion environment: galvanizing suits outdoor, humid, or industrial-atmosphere conditions, while painting offers color customization and lower upfront cost for sheltered applications.

The Hidden Cost of Unverified Steel Grades in Structural Projects

When mill test certificates are missing or chemistry does not match the stamped grade, the entire batch may fail third-party inspection at destination — triggering re-smelting costs, project delays, or worst-case, structural rejection by the local building authority [NEED_CITE: consequences of non-compliant structural steel in international construction projects]. A Custom Structural Steel Fabrication Supplier that provides heat-number traceability from raw plate to finished H-beam eliminates this risk. Negative tolerance abuse — where actual wall or flange thickness falls below the ordered specification — reduces load capacity silently; only in-house physical and chemical laboratory testing at each production stage catches this before shipment.

Why Procurement Teams Choose Xin Jiyuan for Structural Fabrication

Every H-beam frame and purlin set is fabricated on our own three production lines, so pricing reflects factory cost with no trading company margin layered on top. Our in-house physical and chemical laboratory tests every heat of incoming steel plate and issues mill test certificates before fabrication begins — no batch leaves without verified chemistry and mechanical properties. With over 2,800 specifications across our product range and 41 patented technologies including proprietary sharp-corner rectangular tube solutions, non-standard dimensions and custom connection details are handled without the long lead times typical of outsourced fabrication. CE certification under EN 10210/EN 10219, Lloyd’s Register EU compliance, ISO 9001:2015, and third-party verification by SGS and BV ensure documentation clears customs in EU, North American, and Middle Eastern ports. Professional container loading plans — developed from years of shipping heavy structural components to over 50 countries — prevent warping, coating damage, and port re-handling costs.

Documentation & Compliance

• Mill test certificate documenting Q235B/Q345B chemical composition and mechanical properties per GB/T 700 and GB/T 1591, traceable by heat number
• CE certificate under EN 10210/EN 10219 for structural steel components exported to European Union markets
• ISO 9001:2015 quality management system certificate covering the full fabrication and inspection process
• SGS or BV third-party inspection report available upon request for pre-shipment quality verification
• Material traceability report linking each H-beam and purlin piece to its original heat number and mill test record
• Full customs documentation package including packing list, bill of lading, and certificate of origin for destination port clearance

Packaging, Loading & Delivery

• H-beam main frames bundled with high-tensile steel strips and timber edge protectors to prevent coating damage during ocean transit
• Galvanized components wrapped with waterproof film and separated by rubber spacers to preserve the zinc layer under container condensation
• Painted surfaces protected with interleaving paper and corner guards; color-coded markings identify each piece per guided installation drawings
• Container loading optimized by our logistics team — H-beams nested with C/Z purlins to maximize 40ft high-cube utilization and reduce freight cost per ton

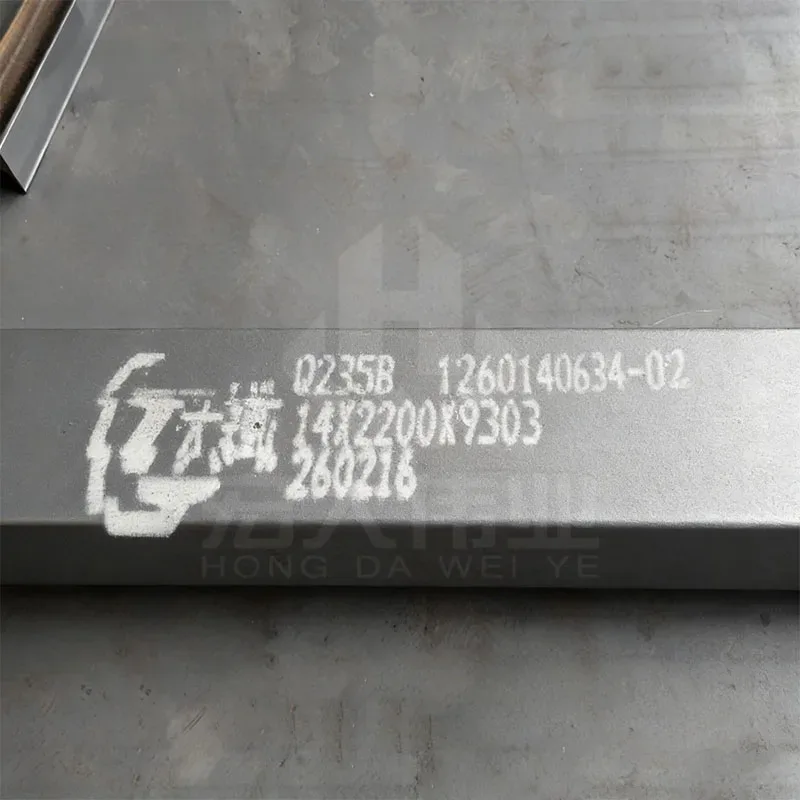

• Heat number and steel grade stenciled on each member for on-site identification and inspection traceability
• FOB, CIF, and DDP shipping options available with real-time tracking from Jinan factory to destination port or project site

Starting Your Structural Steel Procurement

Submit your fabrication drawings, steel grade requirements (Q235B or Q345B), quantity, and destination port — our engineering team responds within 12 hours with a detailed quotation, production timeline, and applicable certification list. Request non-standard dimension proposals, surface treatment recommendations, or mill test certificate samples before committing to production.

Get Your Fabrication Quote and Mill Test Certificate

Send specifications via email to admin@sdxjysteel.com or WhatsApp at +86 188 5315 7756 to receive pricing, material documentation, and container loading plans for your Custom Structural Steel Fabrication Supplier order.
