Description

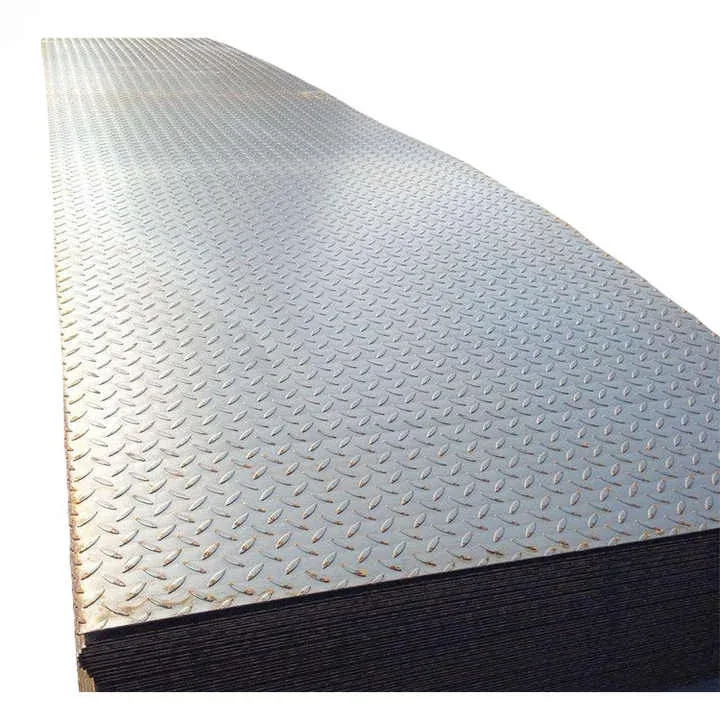

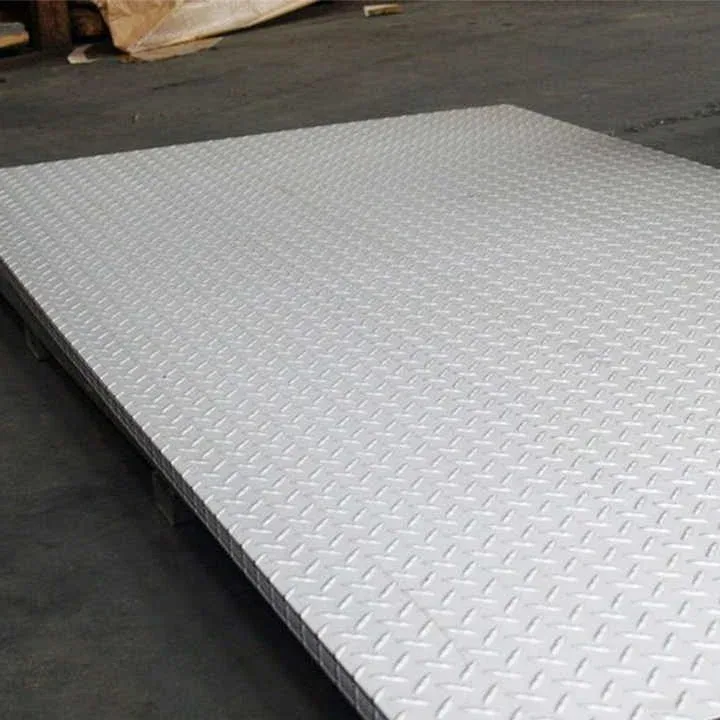

Factory-direct Q235B checkered plate — Hot rolled diamond pattern stock held in our Jinan warehouse, shipped with original mill test certificates for every heat number.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Checkered Steel Plate |
| Product Type | Steel Plate (Checkered / Diamond Plate) |
| Steel Grade | Q235B |
| Standard | GB/T (Q235B) |
| Technique | Hot Rolled |
| Thickness | 1 – 100mm |
| Surface | Plain / Raised Pattern (Diamond) |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Alloy Or Not | Non-Alloy |
| Application | Building construction / Industrial flooring / Stair treads / Anti-slip platforms / Machinery covers |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction Companies | Industrial flooring, stair treads, anti-slip platforms for high-rise and infrastructure projects |
| EPC Contractors | Walkway plates and machinery covers for petrochemical and power plant facilities |
| Machinery Manufacturers | Equipment guards and work platforms requiring durable anti-slip surfaces |
What Diamond Pattern Height Costs You at Site Inspection
Inconsistent pattern height and negative tolerance exceedance trigger full-container rejection at project handover.
I watched a container of Q235B checkered plate get sent back from a Riyadh housing project because the supervisor measured diamond height with a caliper and found it below spec. The thickness tolerance had also drifted beyond acceptable limits. Every plate had to be re-rolled, and the project timeline slipped by weeks. When you source a Q235B hot rolled checkered steel plate supplier without in-house quality verification, you inherit that risk. [NEED_CITE: hot rolled checkered plate dimensional tolerance standards]
Matching Q235B Diamond Plate to Structural Flooring Demands
Hot rolled Q235B checkered steel plate delivers the anti-slip traction that industrial flooring and stair tread applications demand. The raised diamond pattern provides foot grip under wet or oily conditions while the Q235B carbon steel base offers adequate load-bearing capacity for pedestrian and light equipment traffic. Our in-house physical and chemical laboratory tests every heat before release, so pattern height and base thickness stay within tolerance — the kind of control that prevents the caliper-test rejection I witnessed overseas.
Engineering Compliance and Certification Requirements
Structural flooring plates must conform to dimensional standards for thickness and pattern height, and project specifications often require traceable material documentation. For EU-bound shipments, CE certification under relevant EN standards ensures customs clearance and site compliance. Q235B meets general structural carbon steel requirements under GB/T, and buyers in regions referencing ASTM or EN frameworks should confirm grade equivalence before ordering. [NEED_CITE: carbon steel grade equivalence between GB/T and ASTM/EN standards] Third-party inspection through SGS or BV provides independent verification that satisfies most EPC contractor procurement protocols.
Understanding Q235B Grade and Hot Rolling Process
Q235B is a Chinese standard carbon structural steel where “Q” denotes yield strength and “235” indicates the minimum yield value in MPa, with “B” specifying the quality grade and impact test temperature. This grade offers good weldability and formability, making it suitable for flooring, platforms, and general structural applications where extreme strength is not required. The hot rolling process forms the raised diamond pattern directly on the plate surface during the final rolling pass, creating an integral anti-slip feature that does not delaminate or wear off like applied coatings. Thickness tolerance of ±1% applies to the base plate measurement excluding the pattern height, which is a critical distinction buyers must clarify with any Q235B hot rolled checkered steel plate supplier.
Hidden Costs of Sourcing Without Verified Tolerance
Plates with pattern height below specification fail site inspection and require replacement at the supplier’s cost — if the supplier accepts responsibility. Negative tolerance beyond acceptable limits reduces actual load-bearing capacity and triggers structural engineer rejection. Missing or incomplete mill test certificates cause customs delays and project compliance failures, particularly in regulated markets. A Q235B hot rolled checkered steel plate supplier without in-house laboratory testing transfers all quality risk to the buyer. [NEED_CITE: structural steel plate inspection and rejection protocols]
Procurement Confidence Through Verified Manufacturing
We operate three dedicated production lines with physical and chemical laboratories conducting incoming, in-process, and final inspections before any plate leaves the mill. Factory-direct pricing eliminates middleman margins while maintaining full traceability from raw material to finished plate. Our quality management system holds ISO 9001:2015 certification, and we provide CE, SGS, and BV verification for international shipments. Custom cutting, bending, and punching services allow you to receive fabrication-ready plates rather than paying for secondary processing at destination. Professional loading plans optimize container utilization for plate shipments, and we coordinate door-to-door logistics to 50+ countries with real-time tracking.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition and mechanical properties per GB/T standard for each heat number
- CE certificate confirming compliance with applicable EN standards for EU customs clearance and project acceptance
- ISO 9001:2015 quality management system certificate covering the full production and inspection process
- SGS or BV third-party inspection report available for independent verification of dimensional and material compliance
- Material traceability documentation linking each plate to its heat number for full supply chain transparency
- Complete customs document package including packing list, Bill of Lading, and certificate of origin for smooth import clearance
Packaging, Loading & Delivery

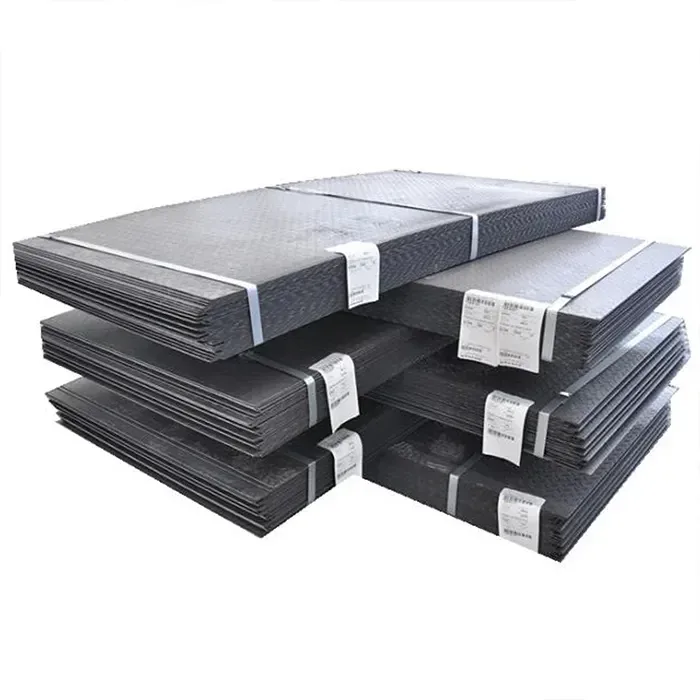

- Q235B checkered plates bundled with steel strips and edge protectors to prevent pattern damage during ocean transit
- Surface protection through anti-rust oil coating applied before bundling to preserve plate condition during extended shipping
- Container loading plans optimized for plate dimensions to maximize weight utilization while maintaining safe weight distribution
- Custom cutting-to-length and width services available to reduce on-site waste and secondary processing costs
- Heat number and Q235B grade clearly marked on each plate and bundle tag for site identification and traceability
- FOB, CIF, and DDP shipping terms available with professional port coordination and door-to-door delivery options
Initiating Your Q235B Checkered Plate Inquiry
Submit your specifications including thickness, dimensions, quantity, and destination port to receive a detailed quotation with delivery timeline and applicable certification options. Our team responds within hours with pricing, mill test certificate availability, and loading plan confirmation. For non-standard dimensions or fabrication requirements, we provide custom processing options based on your project drawings.
Frequently Asked Questions
Q: What is the difference between Q235B and other carbon steel grades like SS400 or A36?
A: Q235B is a Chinese standard carbon structural steel with minimum yield strength of 235 MPa, while SS400 is a Japanese standard and A36 is an American standard. These grades are broadly equivalent for general structural applications, but chemical composition and testing requirements differ slightly. We recommend confirming grade equivalence with your project engineer based on the specific standard referenced in your specifications.
Q: Can you provide third-party inspection certificates in addition to mill test certificates?
A: Yes, we arrange SGS or BV third-party inspection for independent verification of dimensional accuracy, surface quality, and material properties. The third-party inspection report supplements our in-house mill test certificate and satisfies most EPC contractor procurement requirements for quality assurance.
Q: What is the MOQ for custom sizes and can you provide cutting-to-length services?
A: Our standard MOQ is 5 Tons for Q235B hot rolled checkered steel plate. We provide cutting, bending, punching, and other fabrication services to your required dimensions, reducing on-site processing costs and material waste. Custom sizes are available subject to minimum order quantities based on production efficiency.
Q: How do you ensure the diamond pattern height and anti-slip performance meet standards?
A: Our in-house physical and chemical laboratory conducts dimensional inspections including pattern height measurement and base plate thickness verification before shipment. Each production batch undergoes incoming, in-process, and final inspection with full documentation provided. This quality control process prevents the tolerance issues that cause site rejection.
Q: What documentation do you provide for EU/US customs clearance and project compliance?
A: We provide a complete documentation package including original mill test certificates, CE certification for EU shipments, packing list, Bill of Lading, and certificate of origin. Third-party inspection reports from SGS or BV are available upon request. All documents support smooth customs clearance and project compliance verification.
Request Your Q235B Checkered Plate Quotation
Send your specifications, quantity, and destination to receive pricing with mill test certificates and delivery confirmation.
