Description

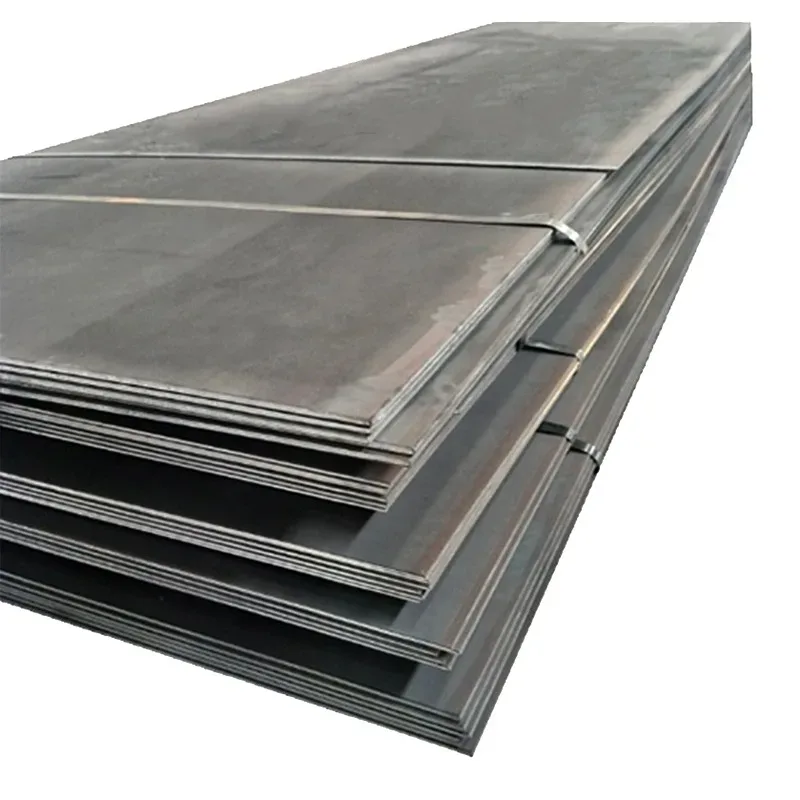

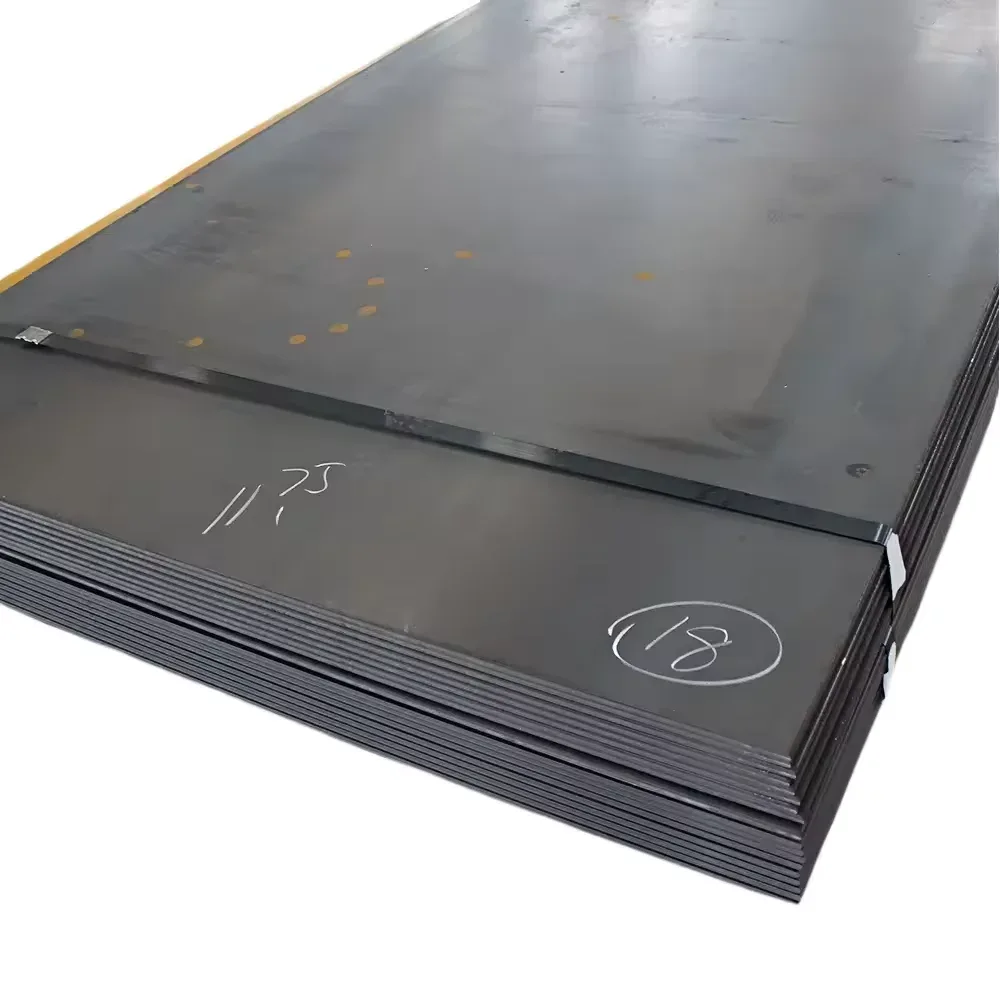

Factory-Direct Q235 Carbon Steel Plate — Every plate rolled, tested, and shipped from our own mill with original mill test certificates, eliminating middleman markups and specification guesswork.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Carbon Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q195, Q215, Q235, Q345, SAE1002, SAE1008, S25C, S35C, S45C, 65Mn, SS490, SM400, SM490, SPHC, SPHD, SPHE, SPHF, SPHT1, SPHT2, SPHT3, SPHT4, QstE, St37, St42, St37-2, St35.4, St52.4, St35 |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Section Shape | Flat plate |
| Thickness (Cold Rolled) | 0.3–6 mm |
| Thickness (Hot Rolled) | 3–80 mm |
| Width | 610–1250 mm (or custom) |
| Length | 1.2–12 m (or custom) |
| Technique | Cold Rolled / Hot Rolled |
| Surface Treatment | Coated / Galvanized / Embossed / Iron gray (low carbon) / Brown (high carbon/alloy) / Partial ochre (weather resistance) |
| Tolerance | Thickness ±0.02 mm, Width ±2 mm |
| Processing Service | Punching, Cutting, Decoiling, Welding, Bending |
| Application | Building construction, shipbuilding, containers, boiler plates, flange plates |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Structural frames, building skeletons, scaffolding platforms, infrastructure support bases |
| Machinery Manufacturers | Equipment base plates, pressure vessel end caps, custom machined flanges |
| Shipbuilding & Container Fabrication | Hull plates, deck panels, container corner castings, flange plates |
| Boiler & Pressure Equipment | Boiler shell plates, heat exchanger baffles, flange sealing plates |
What Thickness Deviation Really Costs on a Construction Site
A Q235 carbon steel plate supplier who cannot guarantee ±0.02 mm tolerance will cost you far more than the price difference on paper.
I once watched a Southeast Asian contractor reject an entire container because caliper readings showed 10.8 mm instead of the certified 12 mm — sheet after sheet. The replacement cost plus emergency air freight wiped out the margin on that project and two more after it. When plates arrive thinner than declared, structural engineers recalculate load-bearing capacity, inspectors halt acceptance, and project timelines collapse. Fragmented sourcing makes it worse: buying plates from one vendor and having them cut elsewhere means nobody owns the tolerance chain. [NEED_CITE: EN 10025 hot-rolled structural steel tolerance requirements]
Matching Q235 Carbon Steel Plate to Structural and Pressure Applications
A Q235 carbon steel plate performs reliably in building frames, container bodies, and general structural work where moderate yield strength and good weldability matter. Hot rolled plates from 3 mm to 80 mm cover everything from base plates under column loads to thick flange plates in pressure systems. Cold rolled options down to 0.3 mm serve light-gauge enclosures and formed sections. The ±0.02 mm thickness tolerance ensures that when your engineer specifies 12 mm, the plate arriving on site actually measures 12 mm — not a theoretical number from a distant trader’s spreadsheet.
Engineering Compliance and Certification Requirements
Structural projects in the EU require CE marking under EN 10210 or EN 10219, and customs authorities will hold shipments without proper documentation. North American projects reference ASTM standards, while Southeast Asian and Middle Eastern EPC contractors often accept GB or JIS equivalents. A Q235 carbon steel plate supplier must provide original mill test certificates with heat number traceability, and third-party inspection from SGS or BV should be available before loading. Surface treatment choice — galvanized for coastal exposure, coated for indoor structural work, or weather-resistant finish for outdoor infrastructure — directly affects service life and maintenance cycles. [NEED_CITE: CE marking requirements for structural steel under EU Construction Products Regulation]
Steel Grade Selection and Rolling Process Explained
Q235 belongs to the Chinese GB standard system, roughly equivalent to S235JR in EN or A36 in ASTM — all general-purpose structural grades with similar yield behavior. The Q-series (Q195 through Q345) increments yield strength upward, letting engineers specify higher load capacity without changing plate geometry. Hot rolling produces plates from 3 mm to 80 mm with mill scale surface, suitable for structural frames and machinery bases where appearance is secondary. Cold rolling delivers thinner gauges down to 0.3 mm with tighter surface finish and dimensional accuracy, ideal for formed sections and precision machined parts. Surface treatments like galvanizing add corrosion resistance for marine and outdoor environments, while embossed or weather-resistant finishes serve architectural and infrastructure applications. Thickness tolerance of ±0.02 mm on cold rolled plates means the theoretical weight calculation matches actual delivered weight — no hidden shortfalls on tonnage-based pricing.
Hidden Costs of Buying from the Wrong Q235 Carbon Steel Plate Supplier
Material substitution is the most expensive mistake in steel procurement. A plate stamped Q235 that actually contains off-grade chemistry will fail mill test certificate verification at the port, triggering customs holds and project delays. Negative tolerance abuse — where plates are consistently rolled 5–10% thinner than declared — reduces structural capacity and voids engineering calculations. Missing or forged certificates mean re-inspection costs and potential rejection by third-party surveyors. [NEED_CITE: consequences of non-conforming steel in structural engineering projects]
Why Global Buyers Choose Our Mill for Carbon Steel Plates

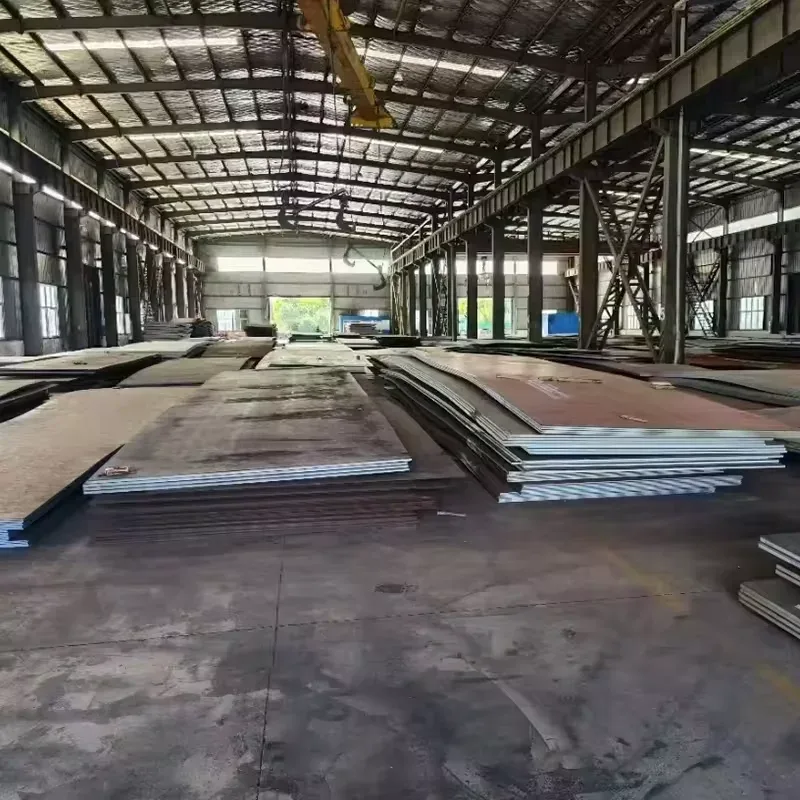

We operate three dedicated production lines with in-house physical and chemical laboratories, so every plate is tested before it leaves the factory — not just paper-certified. Our catalog covers over 2,800 specifications across square tubes, round pipes, plates, coils, and section steel, meaning you can consolidate your entire steel procurement into one shipment instead of coordinating five vendors. We hold ISO 9001:2015, Lloyd’s Register EU CE, and Singapore FPC certifications, with SGS and BV third-party verification available on request. Custom non-standard sizes and thicknesses are produced in-house, with typical lead times matching standard catalog items. Our professional loading team optimizes container weight distribution for plates up to 12 m length, and we handle door-to-door logistics to 50+ countries including EU, North America, India, Southeast Asia, and the Middle East.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition (C, Mn, Si, S, P) and mechanical properties per GB/T 700, with heat number traceability
- CE certificate per EN 10210/EN 10219 for structural steel plates exported to European Union markets
- ISO 9001:2015 quality management system certificate covering full production and inspection process
- SGS or BV third-party inspection report available upon request, covering dimensional verification and visual surface check
- Material traceability report linking each plate to its original heat number and rolling batch
- Complete customs document package: commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

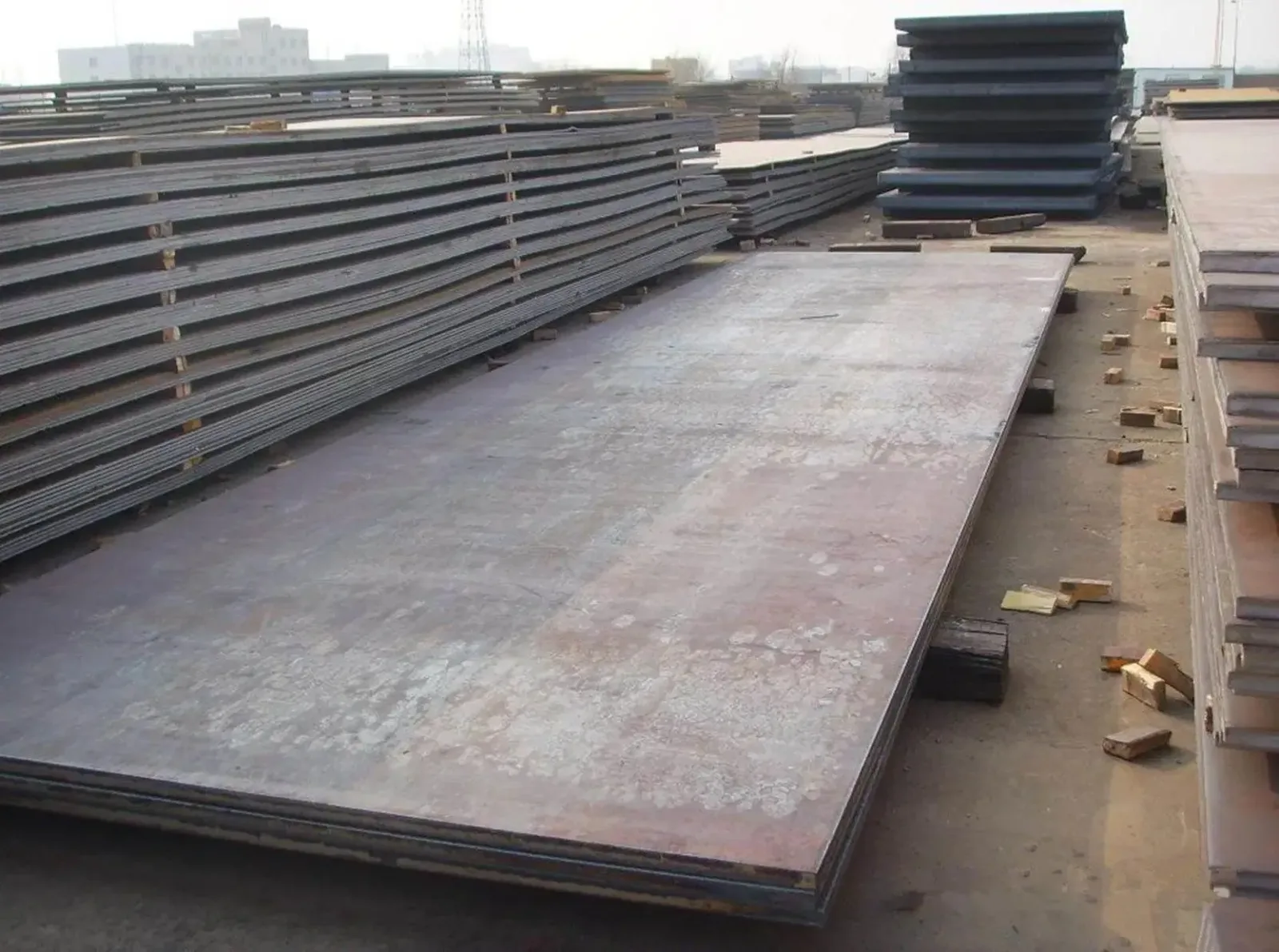

- Hot rolled Q235 plates bundled with steel strips and edge protectors, seaworthy packaging for ocean transit up to 12 m length
- Cold rolled plates wrapped in moisture-proof paper and plastic film to preserve surface finish and prevent oxidation during shipping
- Container loading optimized by our professional team, combining multiple thicknesses and widths to maximize weight utilization within 20GP and 40GP limits
- Custom cutting to exact project dimensions available before shipment, reducing on-site waste and handling for construction contractors
- Each plate marked with heat number, steel grade Q235, thickness, and length for on-site identification and traceability
- Logistics options include FOB, CIF, and DDP terms with real-time tracking to ports across EU, North America, Southeast Asia, and the Middle East
Start Your Q235 Carbon Steel Plate Procurement
Submit your specifications — thickness, width, length, steel grade, quantity, and destination port — and receive a detailed quotation within 12 hours, including unit price, delivery timeline, payment terms, and applicable certification documents. Request non-standard sizes or custom cutting services, and confirm third-party inspection arrangements before production begins.
Request Your Q235 Carbon Steel Plate Quote with Mill Test Certificate
Send your specifications via email or WhatsApp to receive factory-direct pricing and full documentation package.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjysteel.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between Q235, Q345, and equivalent ASTM or EN grades?
A: Q235 is a Chinese GB standard structural grade with minimum yield strength of 235 MPa, roughly equivalent to S235JR in EN 10025 or A36 in ASTM A36. Q345 offers higher yield strength at 345 MPa, comparable to S355JR in EN or A572 Grade 50 in ASTM. We supply both grades along with SAE, JIS, and DIN equivalents from the same production line.
Q: Can you provide third-party inspection and original mill test certificates?
A: Yes. Every shipment includes an original mill test certificate with chemical composition and mechanical properties. SGS and BV third-party inspection is available upon request before loading, covering dimensional verification, surface quality, and certificate authentication.
Q: What is the MOQ for custom non-standard sizes and thicknesses?
A: The standard MOQ is 1 Ton. Custom non-standard widths, lengths, and thicknesses outside the regular catalog are produced in-house with typical lead times comparable to standard items. Contact us with your specific drawing or specification for exact pricing and delivery.
Q: What surface treatment options are available for corrosion protection?
A: We offer galvanized coating for marine and outdoor environments, painted or coated finishes for indoor structural work, embossed surfaces for architectural applications, and weather-resistant treatments for infrastructure projects exposed to atmospheric corrosion. Surface choice depends on your service environment and design life requirements.
Q: What are the delivery terms and logistics options?
A: We support FOB, CIF, and DDP shipping terms. Our loading team optimizes container weight distribution for plates up to 12 m length. We export to 50+ countries including EU, North America, India, Southeast Asia, and the Middle East, with real-time tracking available throughout transit.
