Description
Factory-Direct Carbon Steel Plates — Hot rolled plates from 3mm to 300mm thickness cut and shipped directly from our Jinan production facility without intermediary markups.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Plate (Hot Rolled) |
| Product Type | Steel Plate |
| Steel Grade | 10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52, Grade A, Grade B, Grade C |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Section Shape | Flat plate |
| Width | 600-2000mm |
| Thickness | 3mm-300mm |
| Length | 6-12m |
| Technique | Hot Rolled |
| Surface Treatment | Coated, Galvanized |
| Tolerance | ±1% to ±5% |
| Processing Service | Punching, Cutting, Decoiling, Welding, Bending |
| Special Use | Wear Resistant Steel |
| Application | Ship Plate, Boiler Plate, Container Plate, High-strength Steel Plate |
| MOQ | 25 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Shipbuilding | Hull plating, deck structures, bulkhead fabrication |
| Boiler Manufacturing | Pressure vessel shells, heat exchanger plates, steam drum components |
| Container Fabrication | Corner castings, side wall panels, floor cross members |
| Heavy Machinery | Wear plates for excavator buckets, crusher liners, conveyor frames |
| Construction & Infrastructure | Bridge gusset plates, building column base plates, crane runway beams |
What Thickness Tolerance Costs on a Structural Frame Order
A 0.8mm deviation on a 12mm plate changes load calculations and triggers re-inspection.
I watched a Jakarta warehouse project stall for three weeks because the 12mm carbon steel plates arrived at 11.2mm actual thickness. The structural engineer’s bearing calculations assumed nominal dimensions. When ultrasonic testing confirmed the negative tolerance exceeded acceptable limits, the entire batch sat on-site while the main contractor faced daily penalties. Fragmented sourcing between plate suppliers and processing shops compounds this risk — you receive plates from one source, send them to another for cutting, and discover dimensional inconsistencies only after fabrication begins. Hot Rolled Carbon Steel Plate Cutting Processing Service from a single certified manufacturer eliminates this coordination gap. [NEED_CITE: hot rolled steel plate thickness tolerance standards per ASTM A6]
Matching Plate Thickness to Structural Load Requirements
Carbon steel plates from 3mm to 300mm cover the full spectrum from light gauge enclosure panels to heavy machinery base plates. For shipbuilding applications, Grade A and Grade B plates meet classification society requirements for hull integrity under dynamic sea loads. Boiler manufacturing demands Q345 or 16Mn grades for pressure containment at elevated temperatures. Our Hot Rolled Carbon Steel Plate Cutting Processing Service delivers plates cut to exact project dimensions with tolerance documentation that satisfies structural engineering verification.
Engineering Compliance and Certification Pathways
Structural projects referencing EN 1993 or AISC specifications require documented material traceability back to heat numbers. Plates destined for European markets need CE marking per EN 10210/10219 standards, while North American projects typically specify ASTM A53-A369 grades. Galvanized surface treatment extends service life in marine environments or chemical processing facilities where corrosion resistance is critical. Custom cutting to non-standard dimensions reduces on-site welding and secondary machining costs. [NEED_CITE: CE marking requirements for structural steel plates under EU Construction Products Regulation]
Understanding Hot Rolled Carbon Steel Grade Systems
The Q-series (Q195-Q345) follows Chinese GB standards where the number indicates minimum yield strength in MPa. Q235 remains the most specified grade for general structural applications, while Q345 provides higher strength for heavy-load scenarios. ASTM A53-A369 covers American standard equivalents — A36 for general construction, A572 for high-strength low-alloy requirements. The 10#-45# designation indicates carbon content percentage, with 45# offering superior machinability for precision components. Hot rolling produces mill scale surface that requires removal before painting or galvanizing. Thickness tolerance of ±1% to ±5% applies depending on plate dimensions and rolling mill capabilities.
Hidden Costs of Unverified Plate Procurement
Purchasing plates without mill test certificates creates downstream liabilities. Material substitution — receiving Q195 when Q345 was specified — compromises structural integrity and voids engineering warranties. Customs authorities in the EU and Middle East increasingly reject shipments lacking proper CE documentation or chemical composition reports. Negative tolerance abuse reduces actual load-bearing capacity below design specifications, creating safety hazards that only surface during inspection or structural failure. [NEED_CITE: material certification requirements for structural steel imports]
Procurement Assurance from Direct Manufacturer
Our Jinan facility operates three dedicated production lines covering 2,800+ plate specifications with thickness up to 300mm. In-house physical and chemical laboratories conduct incoming material verification, in-process monitoring, and final inspection before shipment. We hold 41 invention patents including proprietary processing technologies. Every order includes original mill test certificates documenting chemical composition and mechanical properties. Third-party inspection by SGS and BV is available for projects requiring independent verification. Our CE certification (EN 10210/10219), ISO 9001:2015 quality management system, and Singapore FPC approval satisfy international compliance requirements. Professional loading optimization maximizes container utilization for 6-12m plates, reducing per-ton shipping costs.
Documentation & Compliance
- Mill test certificate documenting Q345B chemical composition (C, Mn, Si, S, P content) and mechanical properties (yield strength, tensile strength, elongation) per GB/T 1591
- CE certificate confirming compliance with EN 10210/10219 for hot rolled structural steel plates exported to European Union markets
- ISO 9001:2015 quality management certificate covering hot rolling, cutting, and quality control processes
- SGS or BV third-party inspection report verifying dimensional accuracy, surface quality, and material grade conformity
- Material traceability documentation linking each plate to specific heat number and production batch
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

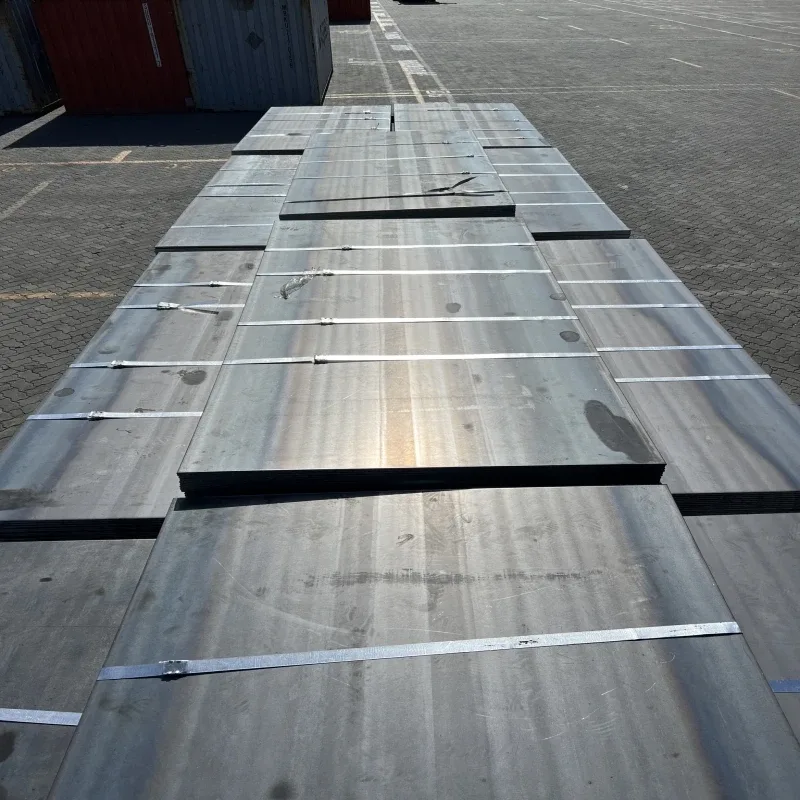

- Hot rolled carbon steel plates bundled with high-tensile steel strips at 1.5m intervals, wrapped in waterproof kraft paper for ocean transit protection
- Galvanized plates separated by plastic interleaving to prevent zinc coating damage during transport and handling
- Container loading optimization for 6m and 12m plates maximizes payload per 20ft and 40ft containers, reducing freight costs per ton
- Custom cutting to project-specific lengths eliminates on-site cutting waste and reduces secondary processing requirements
- Each plate marked with heat number, steel grade (Q345B/A36), and thickness for on-site identification and traceability
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination to 50+ countries
Initiating Your Plate Procurement Process
Submit your project specifications including plate dimensions, steel grade requirements, quantity, and destination port to receive detailed pricing with mill test certificate confirmation. Our technical team reviews non-standard cutting requirements and provides optimized nesting layouts within 12 hours. Certification and customs documentation needs are confirmed before production begins to prevent clearance delays.
Frequently Asked Questions
Q: What steel grades are available for hot rolled plates across different international standards?
A: We supply Q195-Q345 per Chinese GB standards, ASTM A53-A369 for American specifications, and equivalent grades meeting AISI, BS, DIN, and JIS requirements. Grade equivalence documentation is provided for projects requiring cross-standard verification.
Q: Can you provide custom cutting and processing to specific dimensions, and what is the MOQ?
A: Our Hot Rolled Carbon Steel Plate Cutting Processing Service includes laser cutting, plate cutting, punching, bending, and welding to your exact specifications. Minimum order quantity is 25 tons, with custom non-standard dimensions available beyond the 600-2000mm width and 3-300mm thickness range.
Q: What quality certifications and mill test documents are provided for customs and project compliance?
A: Every shipment includes original mill test certificates with chemical composition and mechanical properties. CE certification (EN 10210/10219) is available for European markets, with ISO 9001:2015 quality management covering all production processes. SGS and BV third-party inspection reports are available upon request.
Q: What surface treatment options are available for different environmental conditions?
A: Hot rolled plates are supplied with standard mill scale surface. Galvanized coating provides corrosion resistance for marine and outdoor applications. Additional coated options are available for specific environmental requirements.
Q: How do you handle international shipping and container optimization for heavy steel plates?
A: Professional loading plans optimize container utilization for 6m and 12m plate lengths. We coordinate FOB, CIF, and DDP shipping terms with real-time tracking. Door-to-door logistics service covers 50+ countries including EU, North America, Southeast Asia, and Middle East destinations.
Request Your Hot Rolled Carbon Steel Plate Quote
Provide plate specifications, steel grade, quantity, and destination to receive pricing with mill test certificate confirmation within 12 hours.
