Description
Factory-Direct Wear Plates — Each JFE EH360 EH400 EH500 NM400 NM500 wear resistant steel plate rolls through our in-house rolling and heat-treatment lines, eliminating trading markups before global shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | JIS JFE EH360/EH400/EH500 & NM400/NM500 Wear Resistant Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | JIS JFE EH360, JIS JFE EH400, JIS JFE EH500, NM400, NM500 |
| Standard | JIS (JFE EH series) |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled |
| Tolerance | ±1% |
| Application | Construction, Petrochemical, Machinery Manufacturing |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining & Aggregate | Excavator buckets, jaw crusher liners, vibrating screen panels, conveyor skirting |
| Construction Machinery | Bulldozer blades, loader bucket cutting edges, grader moldboards |
| Petrochemical | Hopper liners, chute wear plates, silo discharge gates |
| Industrial Material Handling | Dump truck bed liners, scraper conveyor troughs, feeder pans |
Hardness Consistency Decides Whether Your Bucket Edge Survives First Shift
A single soft spot on a wear plate turns a scheduled liner swap into an unplanned machine shutdown.
When hardness varies across the same plate, cutting edges chip unpredictably and weld seams crack under impact. Procurement teams often discover this only after the plate reaches the job site — at which point return freight and re-machining cost multiples of the original material price [NEED_CITE: Brinell hardness uniformity requirements for abrasion resistant steel]. Fragmented sourcing from multiple traders compounds the risk, since each batch carries its own rolling and quenching history with no cross-referenced traceability.
Matching Plate Hardness to Abrasion Severity in Heavy Equipment
Selecting the right JFE EH360 EH400 EH500 NM400 NM500 wear resistant steel plate supplier means aligning Brinell hardness class with the abrasion mechanism your equipment faces. Low-stress sliding abrasion in conveyor chutes calls for EH360-class plates where formability matters more than peak hardness, while high-stress grinding in crusher liners demands EH500 or NM500 grades that resist micro-cutting and plastic deformation. Our production lines quench and temper each plate to target hardness bands, then the in-house laboratory verifies Brinell readings sheet by sheet before release — a practice adopted after an early export batch failed third-party hardness复检 and returned from Southeast Asia at our expense.
Engineering Compliance and Fabrication Requirements for Wear Plates
Heavy machinery and construction projects specify wear plates under JIS, ASTM, or proprietary OEM material calls, and customs authorities increasingly demand that mill certificates match the declared steel grade character by character [NEED_CITE: JIS G 0571 ultrasonic testing for wear resistant plates]. The ±1% thickness tolerance on our hot-rolled plates keeps machined weight predictions accurate, which matters when loader bucket counterbalance calculations depend on exact liner mass. Weldability varies by grade — EH360 accepts standard fillet welds with minimal preheat, while EH500 and NM500 require controlled preheating and low-hydrogen consumables to avoid heat-affected zone cracking. Third-party inspection by SGS or BV is available on request for projects that mandate independent verification before container sealing.
Hot Rolling, Quenching, and the Hardness Bands Behind JFE EH and NM Grades
The JFE EH series and NM series achieve their abrasion resistance through controlled hot rolling followed by direct quenching or quenching-and-tempering heat treatment. JFE EH360, EH400, and EH500 are designated by their nominal Brinell hardness ranges under JIS classification, with each step up delivering higher resistance to material loss at the cost of reduced bendability. NM400 and NM500 follow the Chinese GB/T 24188 naming convention, where the number similarly indicates the target Brinell hardness band. The hot-rolled surface scale provides baseline corrosion protection during storage, while the ±1% dimensional tolerance ensures that CNC-cut blanks from the same plate stack fit without secondary grinding. Thickness uniformity across the plate width depends on rolling mill gauge control — a factor that separates consistent suppliers from those whose center-to-edge variation forces machinists to leave excess material as a safety margin.
The Hidden Cost of Ordering Wear Plates Without Verified Hardness Data
Plates shipped without original mill test certificates or with hardness values that drift below the grade minimum pass visual inspection but fail within weeks of service. Bucket edges chip, chute liners develop pinholes, and project teams trace the failure back to material that never met the specified JFE EH or NM grade in the first place [NEED_CITE: abrasion resistance correlation with Brinell hardness in quenched and tempered steel]. Customs holds add weeks when certificates show grade mismatches, and reordering from an unverified source repeats the cycle. The real cost is never the plate price — it is the idle excavator, the missed construction milestone, and the re-machining bill that arrives long after the supplier’s invoice is paid.
Procurement Confidence Built on In-House Testing and Direct Mill Access
Every JFE EH360 EH400 EH500 NM400 NM500 wear resistant steel plate we ship passes through our own physical and chemical laboratory, where hardness, composition, and dimensional checks happen before the plate ever reaches the stacking yard. Factory-direct pricing means no trading layer inflates your unit cost, and our 2,800+ specification range covers non-standard thicknesses and cut-to-size blanks that standard catalog traders cannot fulfill. ISO 9001:2015 certification, Lloyd’s Register EU CE marking, and SGS/BV third-party verification travel with each shipment, so your project compliance file closes without follow-up requests. Professional loading plans optimize container weight for heavy plate, and our export team coordinates door-to-door logistics to 50+ countries with real-time tracking from Jinan port to your job site.
Documentation & Compliance
- Mill Test Certificate documenting JFE EH400 chemical composition and Brinell hardness per JIS classification, traceable by heat number
- CE certificate confirming compliance with applicable European pressure equipment and structural directives for NM500 plates
- ISO 9001:2015 quality management system certificate covering the full hot-rolling and heat-treatment process
- SGS or BV third-party inspection report verifying surface quality, dimensional tolerance, and hardness uniformity before shipment
- Material traceability linking each plate to its heat number, rolling batch, and quenching furnace record
- Customs document package including packing list, Bill of Lading, and Certificate of Origin for import clearance in EU, North America, and Southeast Asian ports
Packaging, Loading & Delivery

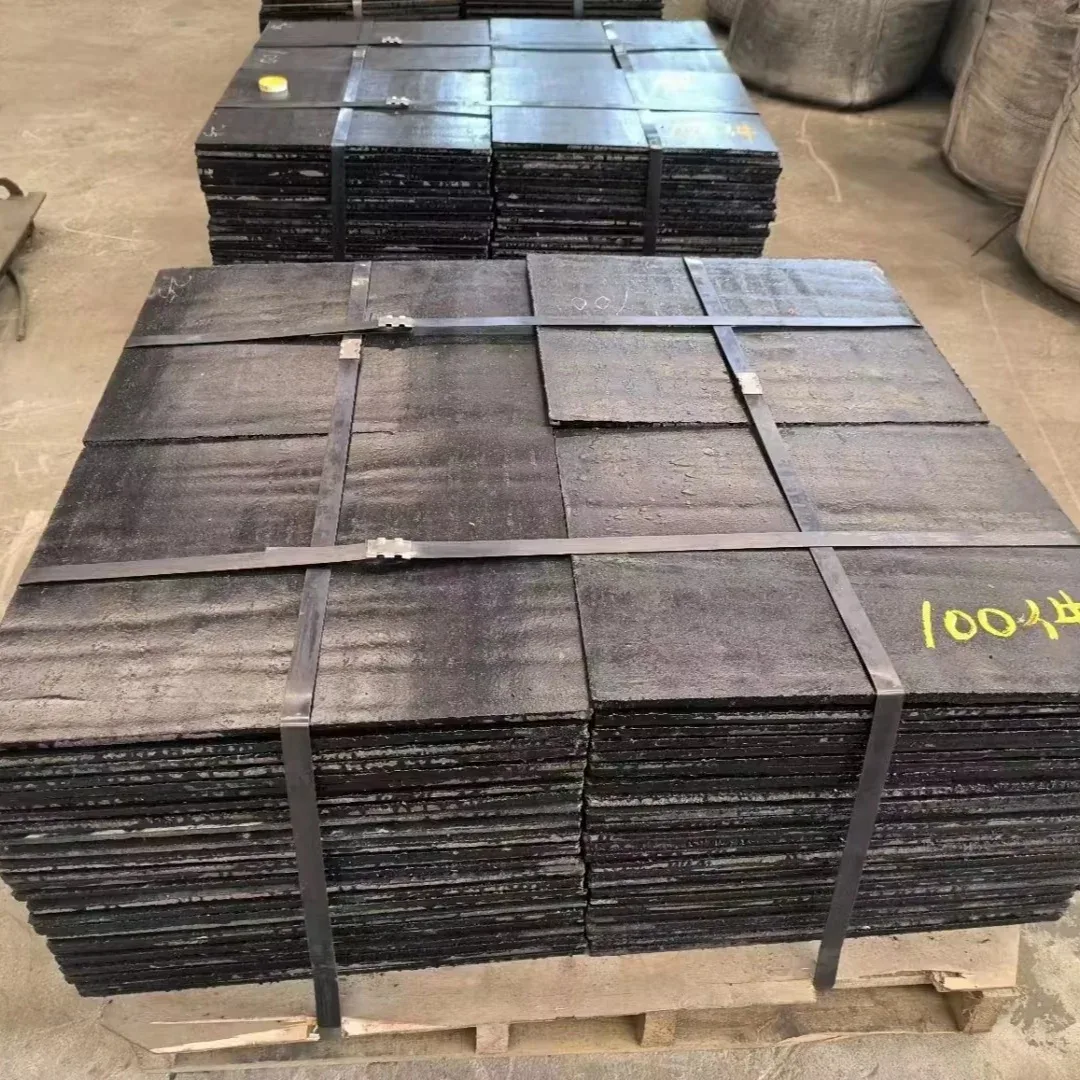

- Hot-rolled JFE EH and NM series plates bundled with steel straps and edge protectors to prevent coating damage and edge deformation during ocean transit
- Surface protected by mill-applied rust-inhibitive oil suitable for hot-rolled finish, preserving plate condition through tropical humidity during Southeast Asia and Middle East delivery

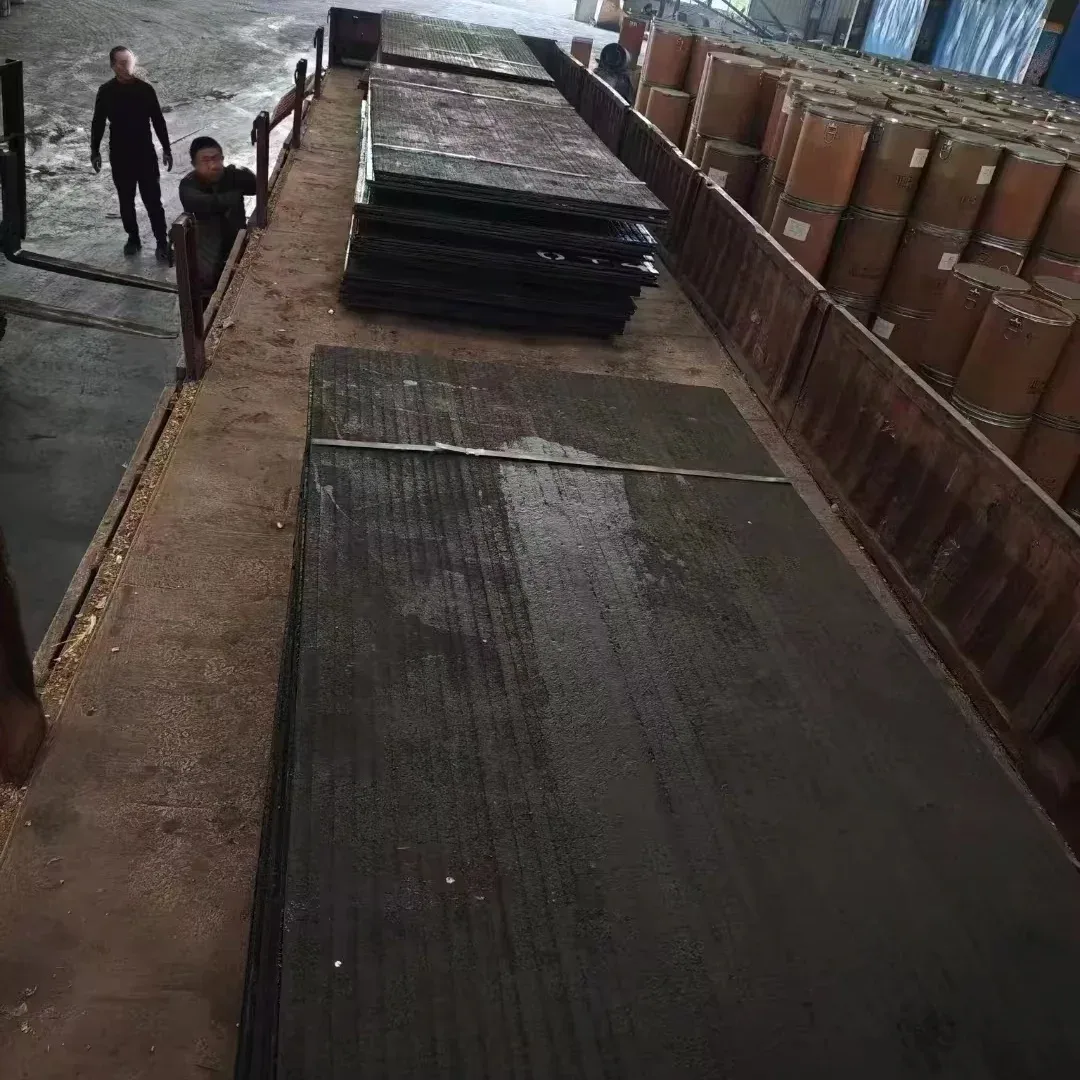

- Container loading plans optimized for heavy plate weight distribution, maximizing payload per 20ft and 40ft open-top or flat-rack containers for NM400 and EH500 thickness ranges
- Custom cutting to project-specific blanks available before shipment, reducing on-site plasma cutting waste and labor for excavator bucket liner fabrication
- Each plate marked with heat number, steel grade, and dimensional identification for on-site traceability during machinery assembly
- FOB, CIF, and DDP shipping terms available with door-to-door coordination to construction and mining sites across 50+ countries
Start Your Wear Plate Procurement With Verified Data
Send your thickness, width, length, grade preference, and destination port to receive a detailed quotation with mill test certificate samples and container loading options. Our team confirms non-standard sizes, cutting requirements, and certification needs within one business day, so your project timeline stays on track.
Request a Quote with Mill Test Certificate
Submit your JFE EH or NM grade specifications, quantities, and destination to receive factory-direct pricing and compliance documentation.
Tel: +86 531 8573 6315 | Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@sdxjysteel.com
Frequently Asked Questions
Q: What is the difference between JFE EH360 EH400 EH500 and NM400 NM500 wear resistant grades?
A: JFE EH series follows JIS classification where the number indicates nominal Brinell hardness, while NM series follows Chinese GB/T naming with the same hardness-band convention. Both deliver comparable abrasion resistance at equivalent hardness levels, with selection often driven by project specification requirements and regional availability preferences.
Q: How do you verify hardness uniformity across each wear resistant plate?
A: Every plate undergoes Brinell hardness testing at multiple positions in our in-house physical laboratory before shipment. Original mill test certificates document the actual readings alongside chemical composition, ensuring the delivered material matches the specified JFE EH or NM grade without soft spots that cause premature failure.
Q: Can you supply custom-cut blanks for excavator buckets and crusher liners?
A: Yes, our plate cutting and laser processing services produce project-specific blanks from JFE EH360 EH400 EH500 NM400 NM500 wear resistant steel plate stock, reducing on-site fabrication waste and accelerating machinery repair turnaround.
Q: What welding precautions are required for higher hardness grades like EH500 and NM500?
A: Higher hardness grades require controlled preheating and low-hydrogen welding consumables to prevent heat-affected zone cracking. We provide welding procedure guidance based on the specific grade and thickness, and our technical team supports fabricators through joint design and post-weld heat treatment decisions.
Q: Which third-party inspections are available before shipment?
A: SGS and BV independent inspections are available upon request, covering surface quality, dimensional tolerance verification, hardness testing witness, and documentation review before container sealing for projects requiring external quality confirmation.
