Description
Factory-Direct Laser Machining — In-house physical and chemical laboratories verify every heat number before shipment, eliminating middleman markup on custom steel plate and pipe parts.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Laser Cut Steel Plate & Pipe Machined Parts |
| Product Type | Machined Steel Product (Laser Cutting for Pipes / Steel Plate Cutting) |
| Steel Grade | Stainless Steel, Carbon Steel, Aluminum, Brass |
| Standard | OEM / Custom per client drawings |
| Technique | Laser Cutting, Bending, Welding, Stamping, Punching |
| Tolerance | ±0.2 mm |
| Surface Treatment | Powder Coated, Anodizing, Electroplating, Painting, Polishing, Brushing |
| Drawing Format | PDF, DWG, IGS, STP |
| Micro Machining | Yes |
| Application | Medical Equipment, Electronic Instruments, Testing Equipment, Automotive Manufacturing, Textiles, Papermaking, Photovoltaics, Lithium Batteries, Non-Standard Equipment, Welded Construction |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|

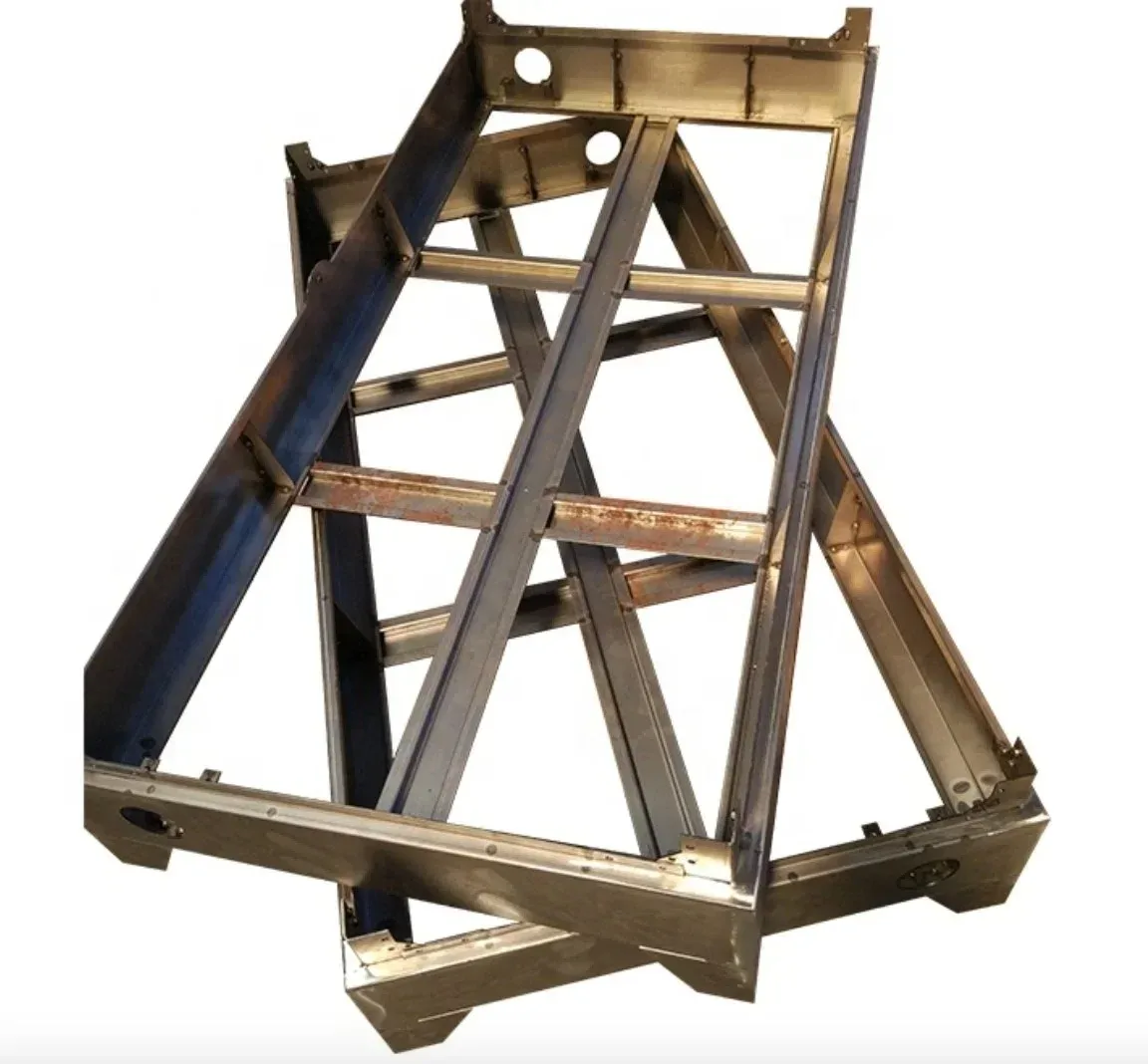

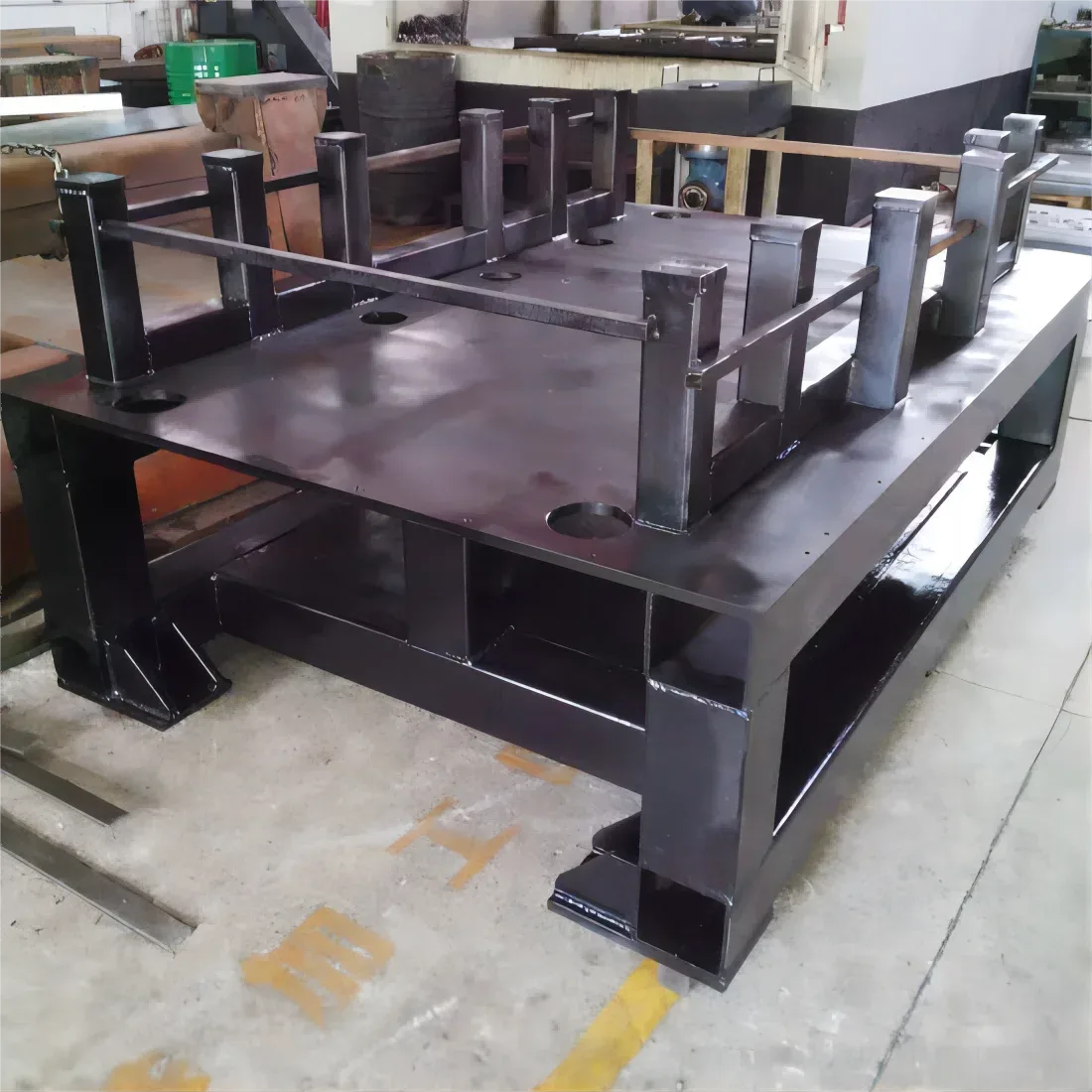

| Machinery Manufacturing | Precision structural frames, equipment housings, conveyor supports, automation brackets |
| Medical & Electronic Equipment | High-tolerance stainless steel enclosures, aluminum instrument chassis, testing rig components |
| EPC Contractors & Construction | Custom welded steel structures, non-standard connection plates, photovoltaic mounting brackets |

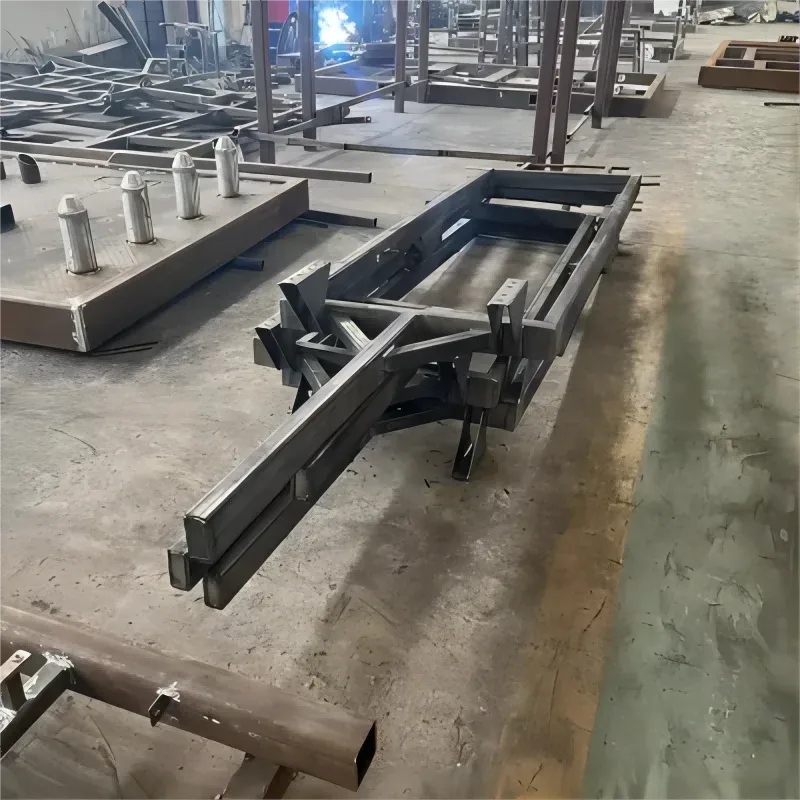

| Automotive & Industrial | Laser-cut pipe assemblies, stamped brackets, welded sub-frames for production lines |
Why Tolerance Precision Determines Structural Assembly Costs
A ±0.2 mm deviation on a laser-cut flange plate can force on-site rework across an entire steel frame.
Global EPC contractors and machinery manufacturers frequently encounter specification gaps when ordering custom machined steel parts from fragmented suppliers. One factory cuts the plate, another bends the bracket, a third welds the assembly — and nobody takes responsibility when tolerances stack up beyond acceptable limits. Material traceability becomes unclear, mill test certificates go missing, and customs clearance stalls at the destination port. With custom laser cutting steel plate and pipe machining services supplier capabilities consolidated under one roof, coordination risks drop significantly because every process step — from laser cutting to bending, welding, and surface treatment — is controlled within a single production flow. [NEED_CITE: EN 10219 cold-formed hollow section requirements]
Matching Precision Machined Parts to Engineering Environments

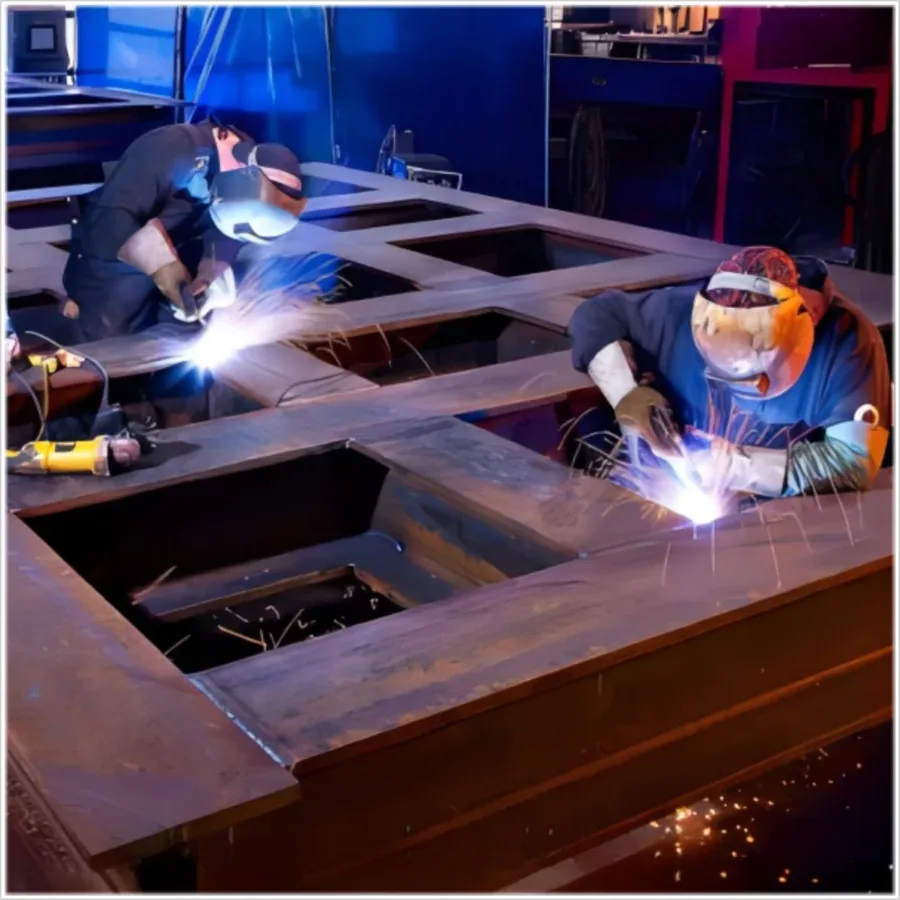

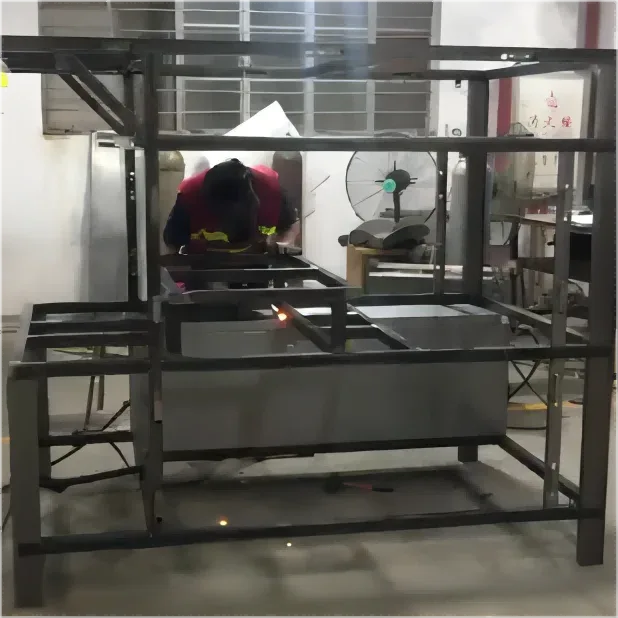

When structural frames for industrial equipment demand tight geometric accuracy, laser-cut carbon steel plates with ±0.2 mm tolerance ensure that bolt-hole patterns align without field drilling. For corrosive environments in photovoltaic or chemical processing applications, stainless steel machined components receive powder coating or electroplating directly after cutting, preserving surface integrity. EPC contractors procuring custom laser cutting steel plate and pipe machining services supplier solutions benefit from having welding and bending completed in the same facility, so weld deformation is compensated during the cutting stage rather than discovered during assembly.
Engineering Compliance and Certification Requirements
Structural steel fabrication for construction projects in the EU must comply with EN 10219 cold-formed hollow section requirements, and machined connection plates must carry traceable mill test certificates showing chemical composition and mechanical properties. For North American projects, ASTM material equivalence documentation becomes critical at customs. Surface treatment selection — whether anodizing for aluminum components in electronic instruments or powder coating for carbon steel structural brackets — directly affects long-term corrosion resistance and must be specified against the service environment. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
Steel Grade Selection and Process Fundamentals
Carbon steel grades from Q195 through Q690 offer yield strength progression suited to load-bearing structural frames, while stainless steel variants serve medical and electronic equipment where corrosion resistance and surface finish take priority. Aluminum and brass are selected for weight-sensitive applications in testing equipment and automotive assemblies. Laser cutting achieves clean edges with minimal heat-affected zones, making it suitable for parts that undergo subsequent bending and welding without cracking. Micro machining capability allows production of small-batch, high-precision components that conventional punching or stamping cannot achieve economically. Surface treatment options — from brushing for decorative architectural elements to electroplating for industrial fastener assemblies — are applied after all forming operations to ensure uniform coverage. [NEED_CITE: laser cutting tolerance standards for structural steel]
Hidden Costs of Incorrect Material Procurement
Ordering machined parts without verified mill test certificates creates a cascade of downstream failures: material composition does not match the specified grade, welds crack under load testing, and entire batches fail third-party inspection at the destination port. Customs authorities in the EU and Middle East routinely hold shipments lacking proper CE documentation or traceable heat numbers, generating storage fees and project delays that far exceed the original price difference between verified and unverified suppliers. Tolerance deviations beyond ±0.2 mm force on-site re-machining, which compromises surface treatment integrity and delays project handover. [NEED_CITE: customs clearance requirements for steel products in EU markets]
Procurement Confidence Through Verified Capabilities
Every batch of machined steel parts undergoes incoming, in-process, and final inspection in our in-house physical and chemical laboratories before shipment, with full mill test certificates documenting chemical composition and mechanical properties. Our facility holds ISO 9001:2015 certification alongside Lloyd’s Register EU CE (EN 10210/10219) and Singapore FPC, ensuring compliance across multiple destination markets. We accept client drawings in PDF, DWG, IGS, and STP formats for full OEM customization, covering over 2,800 specifications across square and rectangular tubes, round pipes, plates, and section steel — all from a single production source. Our proprietary sharp-corner rectangular tube technology, backed by 41 invention patents, fills gaps that standard catalogs cannot address. Professional loading plans optimize container utilization for heavy machined assemblies, and door-to-door logistics coordination covers FOB, CIF, and DDP terms to 50+ countries.
Documentation & Compliance
- Mill test certificate documenting chemical composition and mechanical properties for each carbon steel or stainless steel heat number per client drawing specifications
- CE certificate (EN 10210/EN 10219) for structural steel machined parts exported to EU member states
- ISO 9001:2015 quality management system certificate covering the full laser cutting, bending, and welding production process
- SGS or BV third-party inspection report available upon request for projects requiring independent verification
- Material traceability by heat number linking each machined part to its original mill test certificate
- Complete customs documentation package including packing list, Bill of Lading, and certificate of origin
Packaging, Loading & Delivery
- Laser-cut stainless steel plates separated by protective interleaving and bundled with steel strips to prevent surface scratching during ocean transit
- Powder coated and electroplated components wrapped in shrink film with edge protectors to preserve surface treatment integrity
- Custom machined pipe assemblies nested and secured in wooden crates sized to optimize 20ft and 40ft container loading
- Parts labeled with heat number, steel grade, and drawing reference for traceability at the destination site
- FOB, CIF, and DDP shipping terms available with professional loading plans for heavy steel assemblies
- Typical production lead times confirmed at quotation stage based on drawing complexity and surface treatment requirements
Initiating Your Custom Machining Inquiry
Submit your drawings in PDF, DWG, IGS, or STP format along with steel grade, quantity, and destination port to receive a detailed quotation including unit pricing, delivery timeline, and applicable certification documentation. Our engineering team reviews each drawing for manufacturability and provides feedback on tolerance feasibility and surface treatment recommendations within 12 hours. For non-standard specifications or micro machining requirements, we confirm production capability and provide material samples with original mill test certificates before contract execution.
Request Your Custom Laser Cutting Quotation
Send your drawings and specifications to receive pricing, mill test certificates, and certification documentation within 12 hours.
