Description

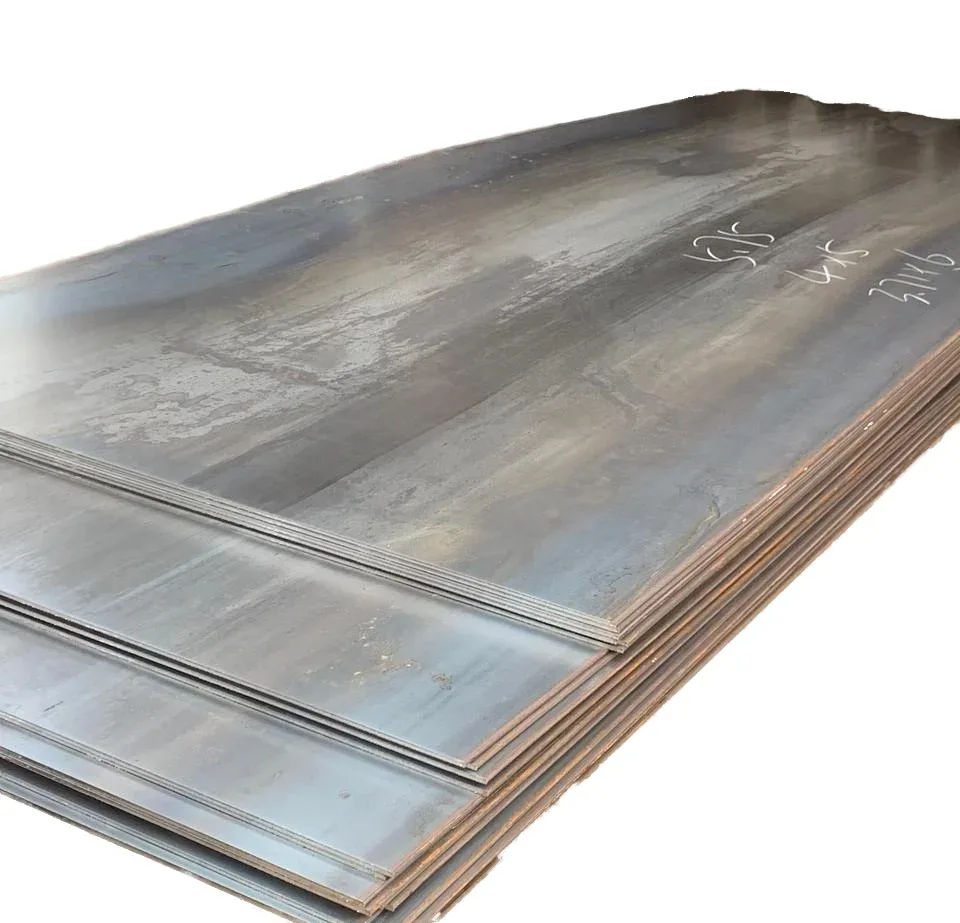

Factory-Direct 4140 Plates — Every 0.3–80mm plate is lab-measured before loading with full dimensional reports attached.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Plate 4140 |
| Product Type | Steel Plate |
| Steel Grade | 4140, SPHC, SPHD, SPHE, SPHF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Section Shape | Flat Plate |
| Thickness Range | 0.3mm – 80mm |
| Width | 1000mm / 1200mm / 1500mm |
| Length | 3m – 6m (customizable up to 12m) |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Coated |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching, Laser Cutting |
| Application | Shipbuilding, Container manufacturing, Structural fabrication, Machinery, Laser-cut custom parts |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Structural brackets, base plates, gusset connections for industrial frames |
| Machinery Manufacturers | High-strength equipment components, shaft supports, gear blanks requiring 4140 tensile properties |
| Shipbuilding & Marine | Deck stiffeners, bulkhead panels, hull reinforcement using SPHC/SPHD grades |
| Container Manufacturing | Floor cross-members, corner castings, side-wall reinforcement plates |
What Dimensional Tolerance Costs on a Laser-Cut Structural Order
A 0.8mm thickness deviation on a 6mm plate turns a clean laser nest into a rejected batch.
I once ordered 4140 carbon steel plates at 6mm for laser-cut structural brackets on a Riyadh infrastructure job. The mill certs looked perfect. When the plates landed at Jebel Ali, our third-party inspector flagged wall thickness at 5.2mm across the batch. The brackets failed load testing on site. We air-freighted replacements — tripled the cost and delayed the project two months. That kind of failure does not come from bad intentions; it comes from suppliers shipping without in-house dimensional verification. A Carbon Steel Plate 4140 Laser Cutting Manufacturer that measures every plate before loading eliminates this risk at the source. [NEED_CITE: EN 10029 tolerance classes for hot rolled steel plates]
Matching 4140 and SPHC Grades to Structural and Machined Applications
The 4140 grade sits in the medium-carbon alloy category, offering higher tensile strength and hardenability than low-carbon SPHC series plates. For laser-cut structural brackets and machinery components that must withstand dynamic loading, 4140 delivers the required core strength after heat treatment. SPHC through SPHF grades serve forming-intensive applications — container floor members and shipbuilding panels — where weldability and ductility matter more than through-hardness. A Carbon Steel Plate 4140 Laser Cutting Manufacturer that stocks both families lets engineers select by function rather than compromise on a single grade.
Engineering Compliance and Certification for Plate Procurement
Structural fabrication for EU-bound projects requires CE marking under EN 10210 or EN 10219 frameworks, with chemical composition and mechanical traceability tied to heat numbers. North American EPC specifiers typically call for ASTM A500 or A53 compliance with mill test certificates conforming to EN 10204 3.1 or 3.2. The coated surface treatment on these plates provides baseline corrosion protection during transit and fabrication; for marine environments, buyers should confirm whether additional galvanizing or painting is needed post-processing. In-house physical and chemical laboratories verify each heat before release, ensuring that the Carbon Steel Plate 4140 Laser Cutting Manufacturer ships material that clears customs and passes site inspection without re-testing delays. [NEED_CITE: EN 10204 inspection document types for steel products]
Steel Grade Selection and Rolling Process Fundamentals
4140 is a chromium-molybdenum alloy steel whose carbon content (approximately 0.40%) provides a balance of strength and machinability. It responds well to quenching and tempering, making it suitable for shafts, gears, and high-stress brackets. SPHC, SPHD, SPHE, and SPHF represent progressively deeper drawing qualities in the low-carbon family — SPHC for general forming, SPHF for the deepest drawing operations. Hot rolled plates offer cost efficiency at thicknesses above 3mm with acceptable surface finish for structural use; cold rolled plates deliver tighter tolerances and smoother surfaces for precision laser-cut parts. The ±1% tolerance on these plates keeps dimensional variation within bounds that CNC laser cutters can compensate for without nest failures. Coated surface treatment adds a protective layer that prevents flash rust during the typical 4–8 week ocean transit window.
Hidden Costs of Procuring Plates Without Verified Tolerances
Ordering steel plates based on catalog thickness without confirming actual rolling tolerances leads to three failure modes. First, laser-cut parts from undersized plates fail engineering load calculations, triggering full batch rejection and re-procurement. Second, missing or incomplete mill test certificates cause customs holds at destination ports — particularly in the EU where CE documentation is mandatory. Third, material without heat-number traceability cannot be certified for pressure or structural applications, voiding project insurance coverage. A Carbon Steel Plate 4140 Laser Cutting Manufacturer that provides original mill test certificates with chemical and mechanical data per EN 10204 3.1 prevents all three cost traps. [NEED_CITE: consequences of non-compliant steel documentation in EU construction projects]
Procurement Confidence from a Vertically Integrated Plate Supplier
Every plate in this range is produced on dedicated lines with in-house physical and chemical laboratories that test incoming raw material, monitor rolling temperature, and verify final dimensions before bundling. The facility holds 41 invention patents and participates in drafting national cold-formed steel industry standards, reflecting deep process control rather than assembled inventory. ISO 9001:2015 certification, Lloyd’s Register EU CE marking, Singapore FPC, and third-party verification by SGS and BV cover the documentation requirements for EU, North American, and Middle Eastern projects. With 2,800+ specifications across six product families, buyers sourcing plates alongside tubes, beams, and fabrication services consolidate procurement through a single factory-direct channel — eliminating the coordination overhead of managing multiple vendors. Professional loading plans optimize container utilization for plates up to 12m length, and door-to-door logistics support covers FOB, CIF, and DDP terms to 50+ countries.
Documentation & Compliance
- Mill test certificate documenting 4140 chemical composition (C, Cr, Mo content) and mechanical properties per ASTM A29 / A519
- CE certificate covering steel plate products under EN 10210 / EN 10219 for EU market customs clearance
- ISO 9001:2015 quality management certificate covering the full plate production and laser cutting process
- SGS or BV third-party inspection report available upon request for destination-port verification
- Material traceability by heat number stamped on each plate, linked to corresponding mill test certificate
- Customs document package including packing list, Bill of Lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery

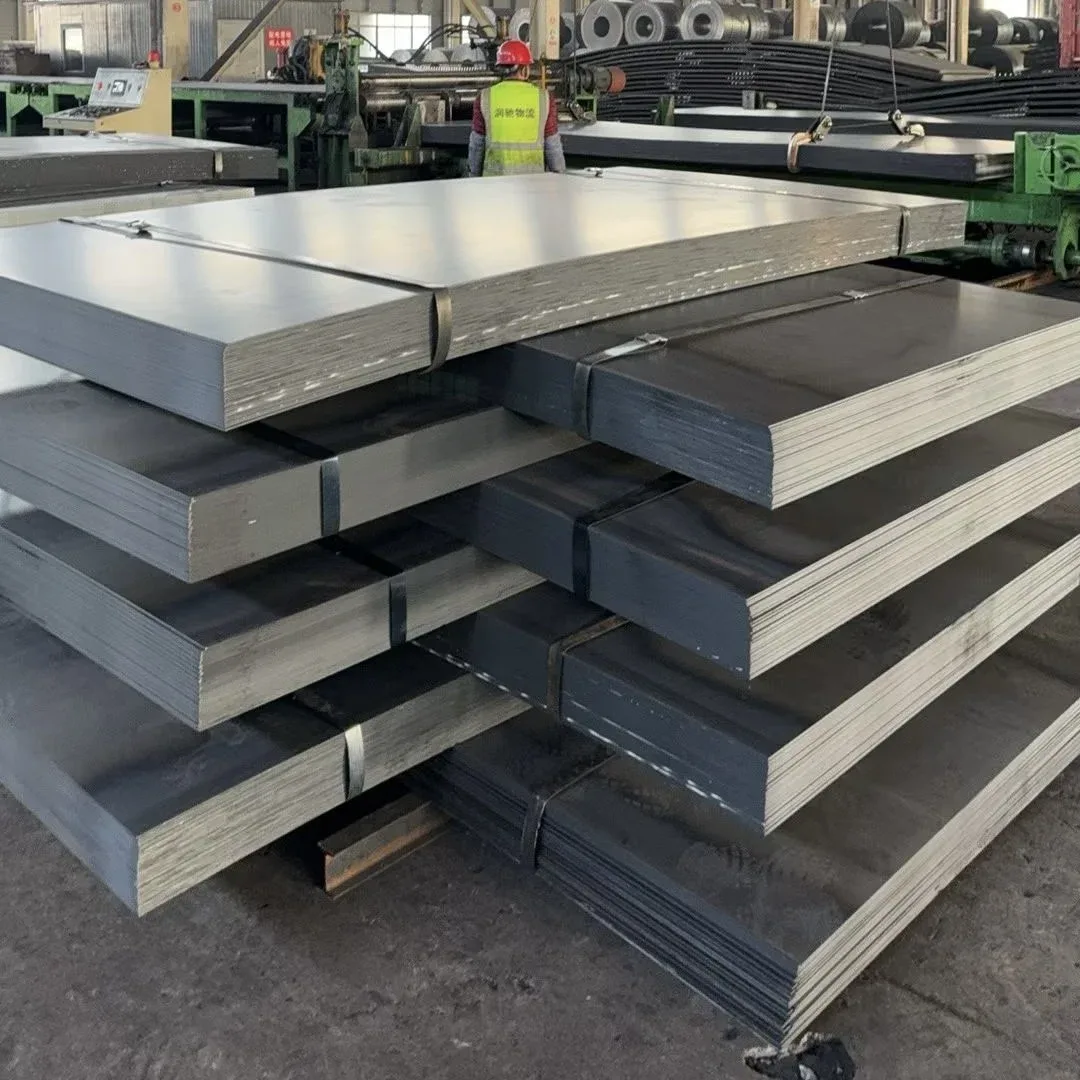

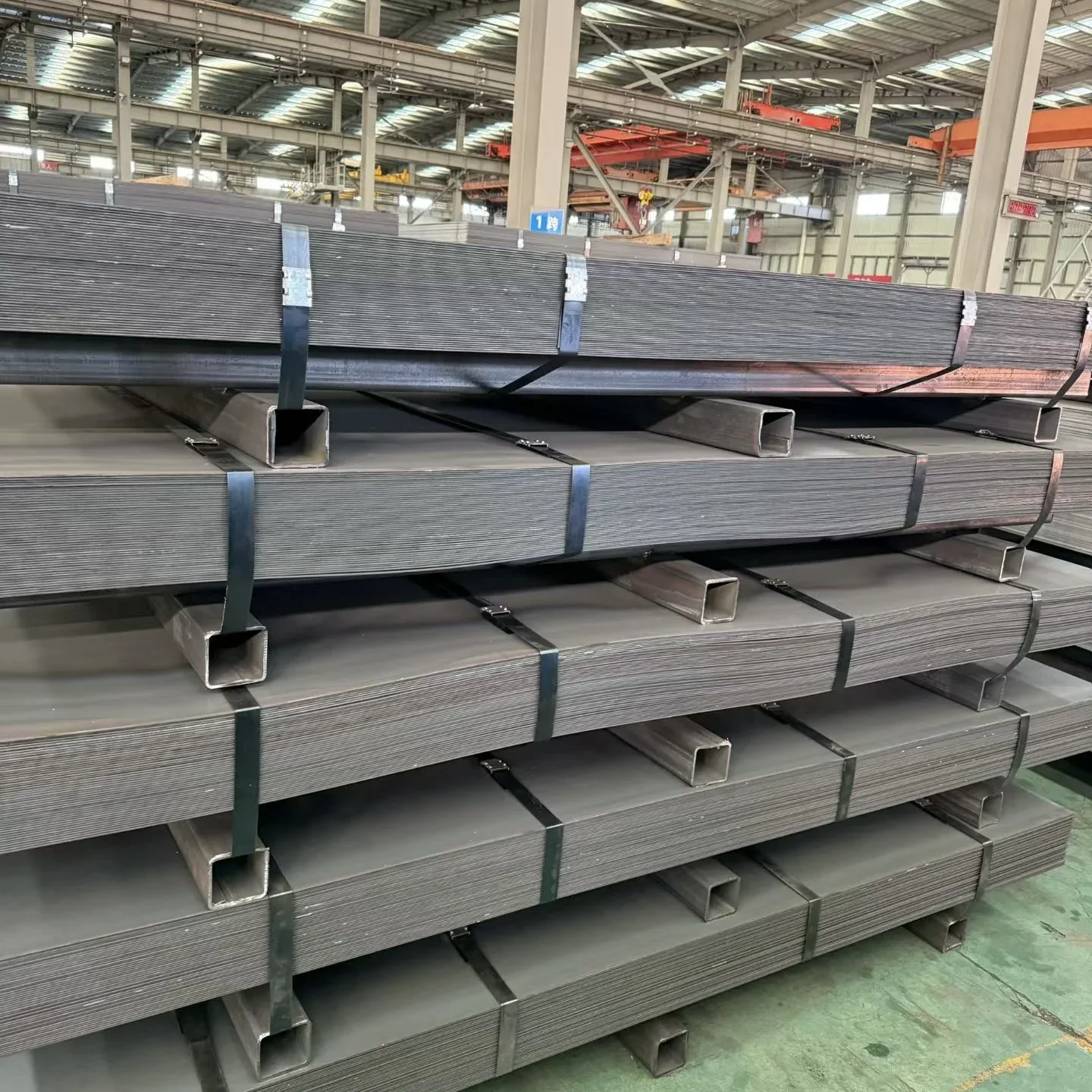

- Hot rolled 4140 and SPHC plates bundled with steel strips and edge protectors to prevent coating damage during ocean transit
- Coated surface plates wrapped in waterproof paper and plastic film to preserve surface treatment through humidity exposure
- Custom-length plates up to 12m loaded with professional container optimization plans maximizing 20ft and 40ft GP utilization
- Laser-cut processed parts separated by protective interleaving and labeled with heat number, steel grade, and dimensional drawing reference
- Each bundle marked with heat number, steel grade (4140 / SPHC / SPHD), thickness, and purchase order reference for site identification
- FOB, CIF, and DDP shipping terms available with real-time tracking and door-to-door delivery coordination to 50+ countries
Requesting a Plate Quotation with Mill Test Documentation
Submit your plate thickness, width, length, steel grade (4140 or SPHC–SPHF), quantity, and destination port to receive a detailed quotation including unit price, production lead time, and applicable certification scope. For laser-cut custom parts, attach your drawing file to receive a processed-part quote with tolerance confirmation and nesting efficiency notes. All inquiries receive a response within 12 hours, with sample plates and original mill test certificates available for quality confirmation before contract signing.
Frequently Asked Questions
Q: What is the difference between 4140 and SPHC steel grades, and which suits my application?
A: 4140 is a medium-carbon chromium-molybdenum alloy steel suited for high-strength machined components and structural brackets requiring heat treatment. SPHC is a low-carbon commercial quality grade suited for general forming, container manufacturing, and shipbuilding panels where weldability and ductility take priority over through-hardness.
Q: Can you provide laser cutting to custom drawings, and what is the MOQ for processed parts?
A: Yes, in-house laser cutting, bending, welding, and punching services are available for custom profiles. The MOQ for processed parts remains 1 Ton, matching the raw plate minimum.
Q: How do you ensure thickness tolerance and material traceability across large orders?
A: Every plate undergoes dimensional measurement in the in-house physical laboratory before bundling. Each plate is stamped with its heat number, which links to the corresponding mill test certificate documenting chemical composition and mechanical properties.
Q: What certifications are included for EU and international customs clearance?
A: The facility holds CE certification under EN 10210/10219, ISO 9001:2015, Singapore FPC, and third-party verification by SGS and BV. Mill test certificates conform to EN 10204 3.1 or 3.2 as specified by the buyer.
Q: What are the available surface treatment options and delivery terms?
A: Plates are supplied with coated surface treatment for baseline corrosion protection. Delivery terms include FOB, CIF, and DDP with professional container loading and door-to-door logistics to 50+ countries.
Get Your Carbon Steel Plate 4140 Quote with Full Mill Test Documentation
Send your thickness, width, length, steel grade, quantity, and destination port to receive a detailed quotation and sample mill test certificate within 12 hours.
