Description
Factory-Direct Laser Cutting — every plate verified by our in-house lab before dispatch
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A36 / S235 / S355 Laser Cut Carbon Steel Plate |
| Product Type | Steel Plate (Laser Cutting Service) |
| Steel Grade | A36, S235, S355, Q235, Q345B, 20#, 45# |
| Thickness Range | 1mm–50mm |
| Cutting Process | Laser Cutting, Flame Cutting, Water-jet Cutting |
| Secondary Processing | Bending, Welding, Stamping |
| Surface Treatment | Powder Coating, Zinc Plating, Painting, Polishing, Sand Blasted |
| Material Options | Carbon Steel, Galvanized Steel, Stainless Steel, Aluminium, Iron, Brass, Copper |
| Drawing Format Accepted | 3D, CAD, DWG, STEP, PDF |
| Service Type | OEM, ODM, CNC Machining |
| Application | Structural steel fabrication, Machinery manufacturing, Construction frames, Industrial equipment, Custom steel components |
| MOQ | 1 piece |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|

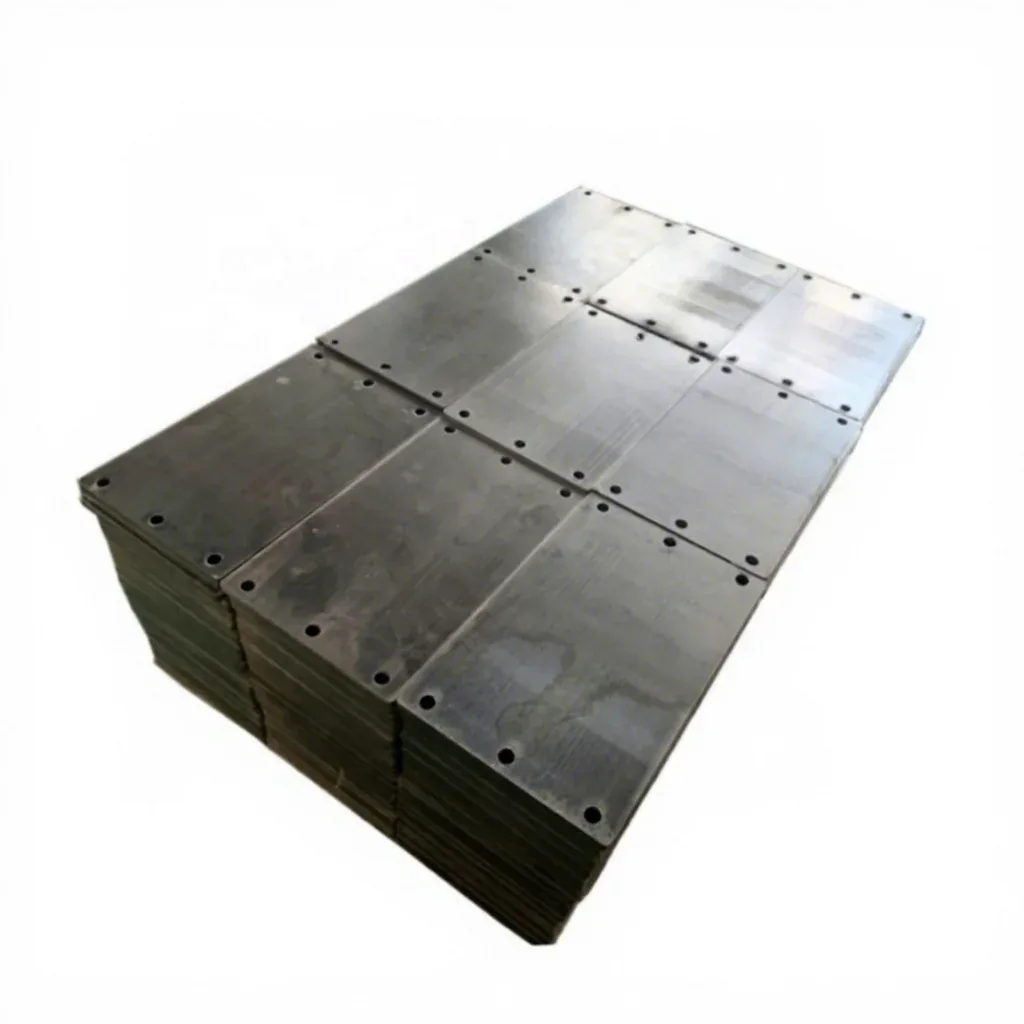

| EPC Contractors & Construction | Column base plates, gusset plates, beam end connections, bridge gussets |
| Machinery Manufacturing | Machine base frames, gear housings, conveyor brackets, press components |
| Steel Distributors | Cut-to-size blanks for regional resale, welded assembly kits |
| Industrial Equipment | Tank flanges, hopper liners, structural brackets, support saddles |
What Thickness Tolerance Costs on a Structural Frame Order
A 0.2mm deviation on a 1.5mm plate can void an entire batch under third-party inspection.
On a Lagos warehouse project I supervised, a container of hot-rolled plates arrived with mill certs claiming S235 compliance. The third-party inspector pulled out a caliper and found actual thickness running 0.2mm below nominal across nearly every sheet — negative tolerance far beyond what EN 10210 or ASTM A568 permits. The whole lot was rejected, the project slipped two months, and replacement material had to be air-freighted at triple the cost. That is the hidden price of unverified sourcing. When you order A36 S235 S355 carbon steel plate laser cutting service supplier material for structural frames, every sheet must carry traceable chemistry and measured thickness backed by a real lab, not a forwarded PDF. [NEED_CITE: thickness tolerance standards for hot-rolled carbon steel plates per EN 10051 and ASTM A568]
Matching Cut Profiles to Structural and Mechanical Loads

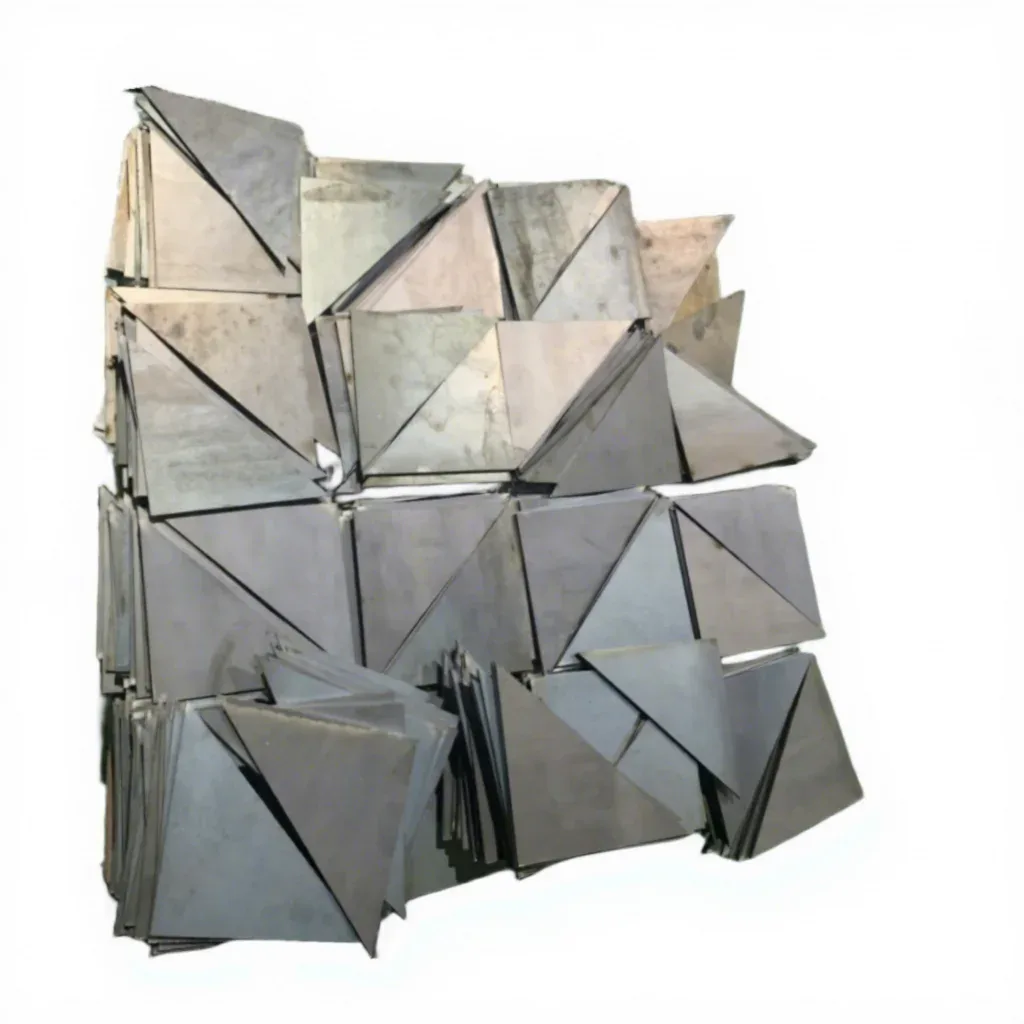

Laser cutting delivers kerf widths narrow enough to hold dimensional accuracy on complex gusset shapes and bracket geometries used in portal frames and conveyor structures. For EPC contractors assembling portal frames on-site, receiving pre-cut base plates and connection nodes in A36 or S355 eliminates field cutting delays and reduces weld prep time. Machinery builders ordering A36 S235 S355 carbon steel plate laser cutting service supplier components for gear housings and press bases benefit from edge quality that requires minimal grinding before welding. Our CNC nesting software optimizes material yield from each plate, and every cut piece is deburred and dimension-checked against the submitted drawing before packing.
Engineering Compliance and Certification Pathways
Structural steel plates used in load-bearing frames must comply with design codes such as EN 1993 for European projects or AISC 360 for North American builds — and the material certification must match the specified grade without substitution. S235 plates shipped to EU ports require CE marking under EN 10210 or EN 10219 to clear customs without delay, while A36 material destined for the US must carry ASTM-compliant mill test certificates. [NEED_CITE: CE marking requirements for structural steel under EN 1090-1] Surface treatment selection also affects compliance: sand-blasted and painted plates suit indoor structural frames, while zinc-plated or powder-coated finishes are specified for outdoor or corrosive environments. Our in-house physical and chemical laboratory tests every heat before cutting begins, ensuring grade consistency from first piece to last.
Steel Grade Selection and Cutting Process Fundamentals
A36, S235, and Q235 occupy roughly equivalent positions across ASTM, EN, and GB systems — all are mild carbon steels suited to general structural fabrication with good weldability and formability. S355 and Q345B step up in yield strength for heavier load paths such as crane beams and bridge girders, while 20# and 45# serve machined components where hardness and wear resistance matter more than weldability. [NEED_CITE: steel grade equivalence between EN, ASTM, and GB standards] Laser cutting handles the full 1mm–50mm range effectively: thin gauges (1–6mm) achieve mirror-smooth edges ideal for visible architectural brackets, while thicker sections (20–50mm) may require flame or water-jet assistance for cost efficiency. Surface treatment applied after cutting — whether powder coating for indoor frames or zinc plating for outdoor exposure — must be specified at inquiry stage so edge preparation matches the coating system.
Hidden Costs of Unverified Plate Procurement
Ordering plates without independent thickness verification invites negative-tolerance material that passes visual inspection but fails structural load calculations — the discrepancy only surfaces during third-party testing, triggering batch rejection and project delays. Missing or mismatched mill test certificates cause customs holds at destination ports, particularly in the EU where CE documentation is mandatory for structural steel. [NEED_CITE: customs clearance requirements for CE-marked structural steel in EU member states] Material substitution — receiving Q235 when S355 was specified — compromises load-bearing capacity and creates liability exposure that no amount of rework can fix. The true cost is never the price difference between grades; it is the crane rental, the idle crew, and the redesign that follows.
Why Source Laser-Cut Plates from Xin Jiyuan
We operate three dedicated production lines with in-house physical and chemical laboratories, meaning every plate is verified for grade and thickness before it reaches the cutting table — no forwarded certificates, no blind trust in upstream mills. Our 2,800+ specification range covers the full 1mm–50mm thickness span across A36, S235, S355, Q235, Q345B, 20#, and 45#, so EPC contractors sourcing mixed-grade plate packages deal with a single factory rather than coordinating multiple suppliers. Factory-direct pricing eliminates trading margins, and our 41 patented technologies — including proprietary sharp-corner rectangular tube processes — reflect a manufacturing culture that prioritizes precision over volume. CE certification under EN 10210/EN 10219, ISO 9001:2015 registration, and SGS/BV third-party inspection capability ensure your material clears customs in the EU, North America, and 50+ export destinations. Custom non-standard shapes and sizes are produced from your 3D, CAD, DWG, STEP, or PDF files with no minimum order beyond one piece, and our logistics team handles professional container loading with weight distribution optimized for ocean transit.
Documentation & Compliance
- Mill test certificate documenting A36, S235, or S355 chemical composition and mechanical properties per heat number
- CE certificate confirming compliance with EN 10210 / EN 10219 for structural steel plates exported to EU markets
- ISO 9001:2015 quality management certificate covering the full laser cutting and fabrication process
- SGS or BV third-party inspection report available upon request for destination-country compliance verification
- Full material traceability linking each cut piece to its parent plate heat number and original mill certificate
- Export customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Laser-cut plates stacked on steel pallets with edge protectors to prevent coating damage during ocean transit
- Surface-treated plates (powder-coated, zinc-plated, or painted) wrapped in waterproof film with desiccant packs to prevent condensation damage
- Container loading plans optimized by our logistics team to maximize payload within weight limits for 1mm–10mm thin plates and 20mm–50mm heavy sections
- Cut-to-size pieces bundled by drawing number and heat number for fast site identification and inventory control
- FOB, CIF, and DDP shipping options available to ports across the EU, North America, Southeast Asia, Middle East, and 50+ countries
- Each bundle marked with steel grade, thickness, heat number, and purchase order reference for traceability at destination
Start Your Laser Cutting Inquiry
Submit your drawing files (3D, CAD, DWG, STEP, or PDF) along with steel grade, thickness, quantity, and destination port — we respond within 12 hours with a detailed quotation including unit price, delivery timeline, and applicable certification documents. For non-standard shapes or mixed-grade orders, our engineering team will confirm nesting yield and lead time before production begins.
Request Your Laser Cutting Quote Today
Send your specifications and drawings to receive a detailed quotation with mill test certificate confirmation within 12 hours.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjysteel.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between A36, S235, and Q235 — which grade should I specify?
A: A36 (ASTM), S235 (EN), and Q235 (GB) are all mild carbon structural steels with comparable yield strength and weldability. The correct choice depends on your project design code: A36 for ASTM-specified builds, S235 for EN 1993 European projects, and Q235 for GB-standard domestic Chinese construction. We supply all three and can provide grade equivalence documentation for cross-standard substitution approval.
Q: Can you laser cut non-standard shapes from my own drawings?
A: Yes. We accept 3D, CAD, DWG, STEP, and PDF files and produce custom shapes with no minimum order beyond one piece. Our CNC nesting software optimizes material yield, and each piece is dimension-checked against your drawing before dispatch. Lead time depends on complexity and quantity — typical production timelines are confirmed at quotation stage.
Q: What surface treatment options are available after laser cutting?
A: We offer powder coating, zinc plating, painting, polishing, and sand blasting. Surface treatment should be specified at inquiry stage so edge preparation matches the coating system — for example, sand-blasted edges suit painted finishes, while zinc plating requires clean, oxide-free surfaces for proper adhesion.
Q: Do your plates carry CE marking for EU customs clearance?
A: Yes. Our structural steel plates are produced under ISO 9001:2015 quality management and carry CE certification per EN 10210 and EN 10219. Mill test certificates, third-party SGS/BV inspection reports, and full customs documentation are provided with every shipment to ensure smooth clearance at EU ports.
Q: How do you ensure thickness accuracy on thin-gauge plates?
A: Every plate is measured by our in-house physical laboratory before cutting begins, with results recorded on the mill test certificate linked to the heat number. Third-party inspection by SGS or BV is available for buyers who require independent verification before shipment.
