Description
Factory-Direct Laser Fabrication — Every custom laser cutting steel sheet fabrication service order is processed in-house from raw plate to finished component, eliminating middleman markups and coordination gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Laser Cut Steel Sheet Fabrication |
| Product Type | Machined Steel Product |
| Steel Grade | Carbon steel sheet/profile/pipe (specific grades per customer drawing) |
| Standard | GB / AISI / ASTM / BS / DIN / JIS |
| Processing | Laser cutting, bending, punching, welding, slotting, stamping |
| Surface Treatment | Galvanizing / Powder Coating / Painting |
| Drawing Format | CAD / DWG / STEP / PDF |
| Tolerance | +/-5% |
| Service | ODM/OEM |
| Application | Structural steel fabrication / Industrial equipment components / Construction projects / Custom machinery parts |
| MOQ | 1 PCS |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|

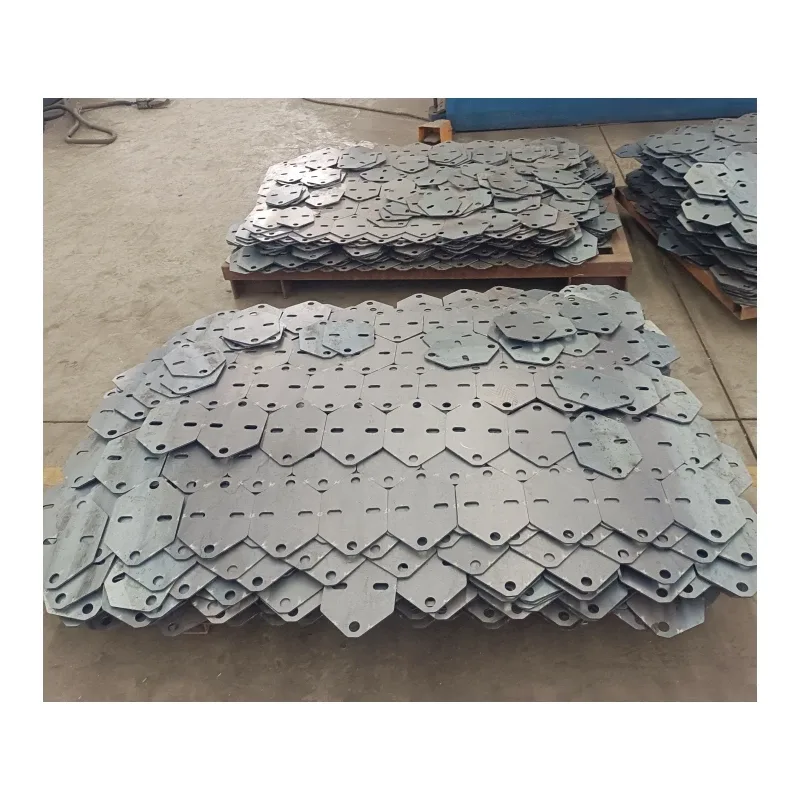

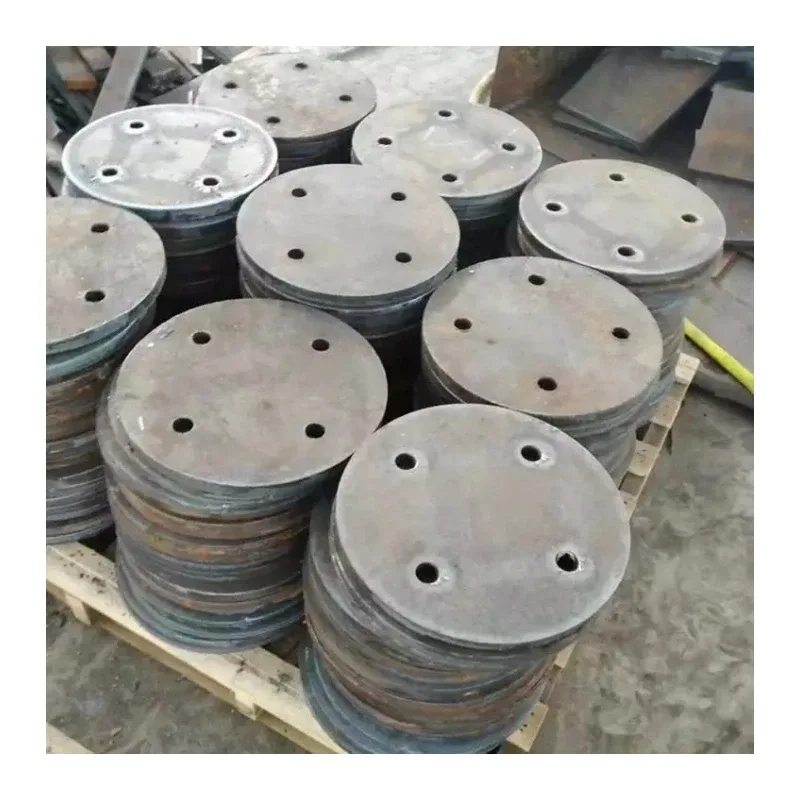

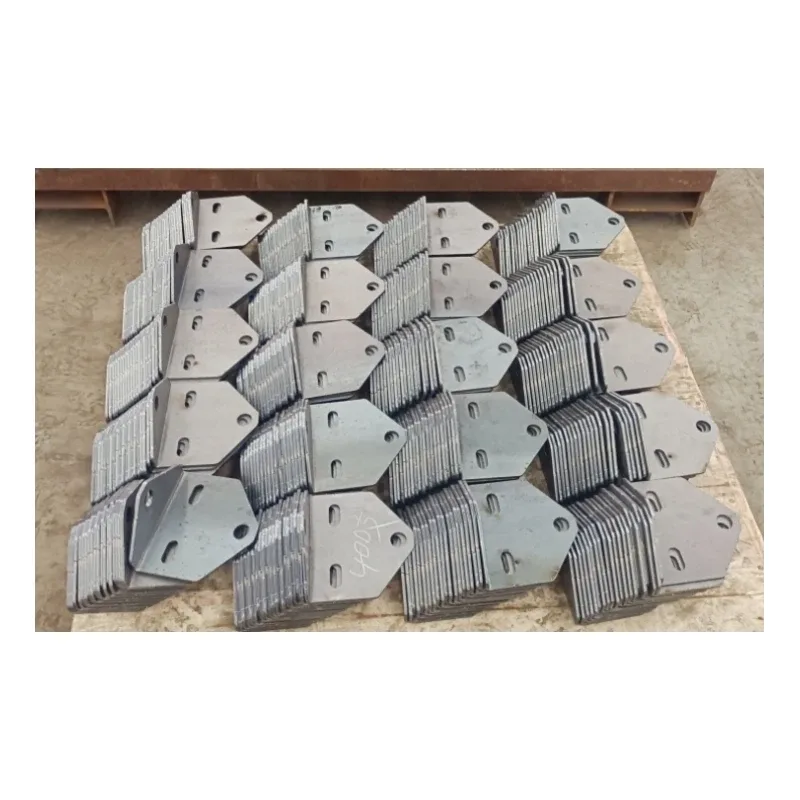

| EPC Contractors | Structural steel brackets, base plates, and gusset plates for industrial plant frames |
| Machinery Manufacturers | Precision-cut machine guards, conveyor brackets, and equipment housings |

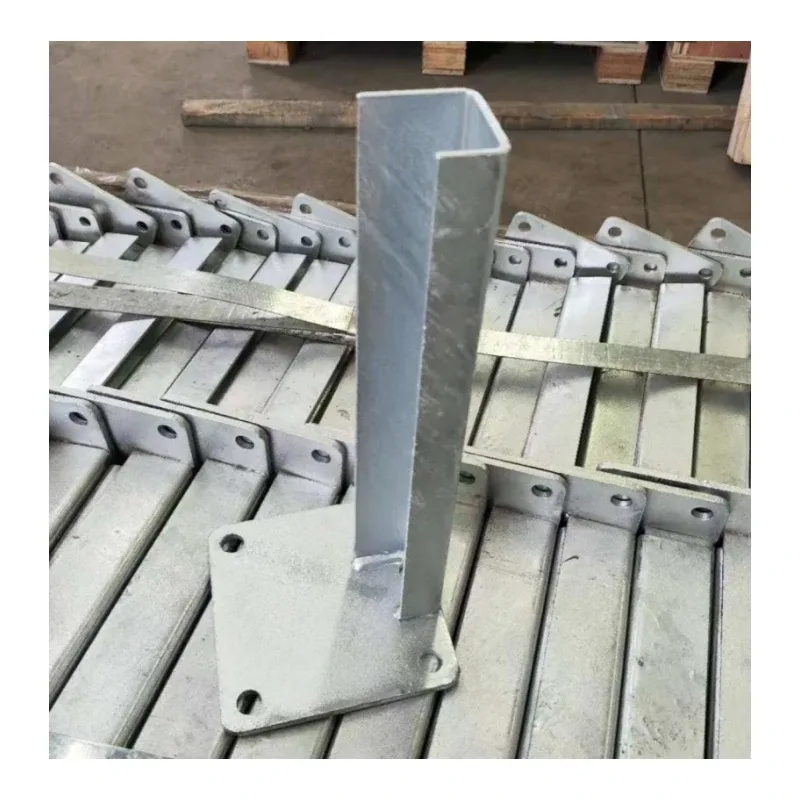

| Construction Companies | Non-standard connection plates, anchor plates, and embedded steel components |
| System Integrators | Automation frame joints, sensor mounting plates, and conveyor support brackets |
What Tolerance Drift Costs on a Structural Fabrication Order
A 2mm deviation on a laser-cut gusset plate can stall an entire steel erection sequence.
I once oversaw a laser-cutting batch for a Middle East client — the workshop skipped the second drawing confirmation, and the cut dimensions drifted by 2mm across a full 20-ton container. Every plate had to be scrapped and re-produced, delaying the client’s site schedule by two months. Since then, I personally verify every drawing before the laser head touches the first sheet. On a custom laser cutting steel sheet fabrication service order, tolerance control is not a spec-sheet number; it is the difference between a clean site weld and a costly re-cut. [NEED_CITE: tolerance requirements for structural steel fabrication per EN 1090]
Matching Non-Standard Geometry to Structural Connection Points
When an EPC contractor needs a base plate with bolt holes offset by irregular distances, off-the-shelf blanks simply will not work. Our custom laser cutting steel sheet fabrication service accepts CAD, DWG, STEP, or PDF drawings and translates them directly into machine code — no intermediate re-drawing step that introduces human error. Bending, punching, and welding are completed in the same facility, so a single component goes from flat sheet to finished assembly without leaving the production floor. That integrated workflow is what keeps dimensional accuracy within +/-5% even on complex multi-operation parts.
Engineering Compliance and Surface Protection for Harsh Environments

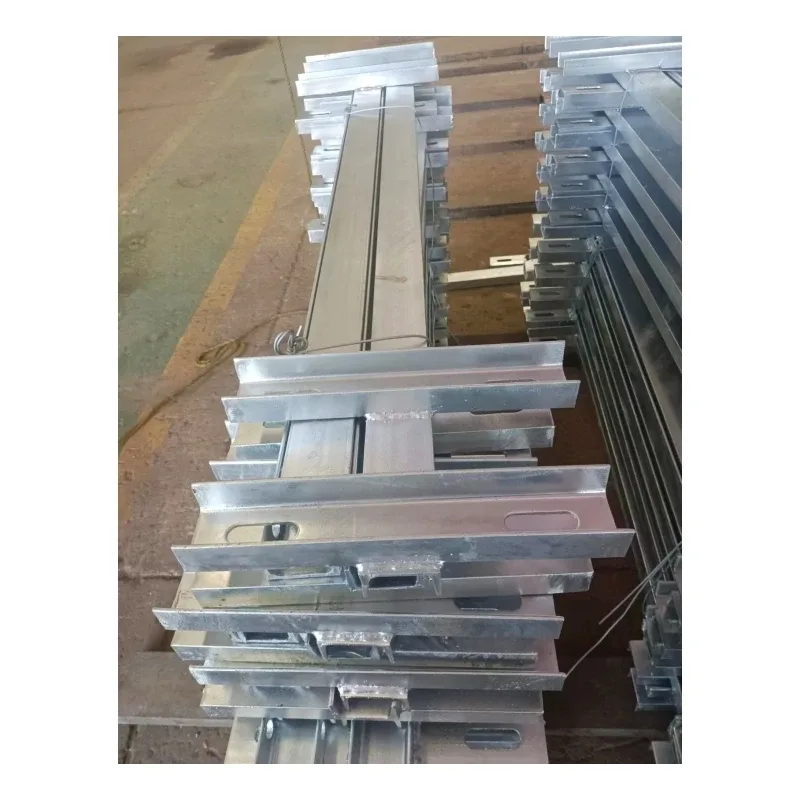

Structural steel components fabricated for outdoor or industrial environments must meet load-bearing codes and resist corrosion over their design life. Depending on the destination market, our fabrication service conforms to GB, AISI, ASTM, BS, DIN, or JIS standards, and we supply full material traceability by heat number. For corrosive atmospheres — coastal construction sites, chemical plants, or mining conveyors — we apply hot-dip galvanizing, powder coating, or industrial painting after fabrication is complete, ensuring the zinc or coating layer covers every cut edge and weld seam. [NEED_CITE: surface treatment standards for fabricated structural steel per ISO 12944]
How Steel Grade Selection Shapes Load-Bearing Capacity
Carbon steel sheets used in our custom laser cutting steel sheet fabrication service span grades from Q195 through Q690, as well as ASTM A36, A572, and equivalent S-series designations. The grade you specify determines yield strength, weldability, and suitability for dynamic versus static loading. For example, a Q235 plate works well for general structural brackets, while a Q345 or A572 Grade 50 plate is preferred when the component must carry higher point loads or resist fatigue in machinery frames. We advise on grade substitution across standards — for instance, matching a JIS G3101 SS400 request to an equivalent ASTM or EN grade — so procurement teams avoid delays when local supply runs short. [NEED_CITE: steel grade equivalence between ASTM, EN, and JIS standards]
Wall Thickness and Negative Tolerance: The Hidden Weight Trap
Sheet and plate thickness directly affects both theoretical weight and actual load capacity. If a supplier ships material at the lower end of the negative tolerance band without disclosure, the buyer pays for nominal weight but receives less steel. On a custom laser cutting steel sheet fabrication service order, we cut to the specified thickness and disclose the actual measured values on the mill test certificate — no hidden weight shortcuts. This transparency matters especially for galvanizing orders, where coating adhesion and thickness depend on the base metal dimension being consistent.
The Real Price of Unverified Fabrication Sources
Buying laser-cut components from an unverified workshop might save a few percent on unit price, but the downstream costs multiply quickly. Material without a mill test certificate cannot pass engineering inspection on arrival. Missing CE or ISO documentation triggers customs holds in the EU and other regulated markets. And tolerance drift on bolt-hole patterns forces on-site reaming or full component replacement — costs that dwarf the original price difference. [NEED_CITE: EN 1090 execution class requirements for structural steel components]
Why Engineering Buyers Source Fabrication Through Our Facility
Our factory operates dedicated laser-cutting lines alongside bending, punching, and welding stations, so a single order moves through every process under one roof. We maintain an in-house physical and chemical laboratory that tests every incoming plate before fabrication begins, and we issue original mill test certificates with heat-number traceability on every shipment. With over 2,800 specifications in our raw material inventory, we can source the exact grade and thickness your drawing calls for without waiting for external mill delivery. Our facility holds CE certification under EN 10210 and EN 10219, ISO 9001:2015, and we arrange SGS or BV third-party inspection when your project requires it. We hold 41 invention patents, including proprietary sharp-corner rectangular tube technology, and our professional loading team optimizes every container to minimize freight cost per piece. Exports reach over 50 countries across the EU, North America, the Middle East, and Southeast Asia.
Documentation & Compliance
- Mill test certificate documenting the specific carbon steel grade’s chemical composition and mechanical properties per the applicable ASTM, GB, or EN standard
- CE certificate under EN 10210/EN 10219 for structural steel fabrication components destined for European markets
- ISO 9001:2015 quality management system certificate covering the full fabrication and inspection process
- SGS or BV third-party inspection report available upon request for project-specific material verification
- Full material traceability by heat number from raw plate through laser cutting, welding, and surface treatment
- Customs document package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Laser-cut carbon steel sheets stacked with interleaved separators and secured by steel strip bundles to prevent edge damage during transit
- Galvanized or powder-coated components wrapped with edge protectors and moisture-resistant film to preserve the surface finish during ocean shipping
- Container loading plans optimized by our logistics team to maximize payload for heavy plate orders and reduce per-piece freight cost
- Custom cut-to-length service available per drawing, with each piece labeled by heat number, steel grade, and drawing reference
- FOB, CIF, and DDP shipping terms supported, with door-to-door delivery coordinated to over 50 countries
Getting a Fabrication Quote That Reflects Your Real Drawing
Send your CAD, DWG, STEP, or PDF drawing along with the required steel grade, quantity, surface treatment preference, and destination port. Our engineering team responds within 12 hours with a detailed quotation including unit price, production lead time, applicable certifications, and shipping terms. For non-standard shapes or multi-process orders combining laser cutting with bending and welding, we provide a step-by-step fabrication plan before production begins.
Frequently Asked Questions
Q: What is the minimum order quantity for a custom laser cutting steel sheet fabrication service order?
A: The MOQ is 1 piece. We accept single-piece prototype orders as well as batch production runs, with the same quality control process applied to every quantity level.
Q: Which drawing file formats do you accept for custom fabrication?
A: We accept CAD, DWG, STEP, and PDF files. Our engineering team reviews each drawing for manufacturability and confirms dimensions with the client before the first cut.
Q: Can you provide material certification for traceability?
A: Yes. Every order is accompanied by an original mill test certificate showing chemical composition and mechanical properties, with full traceability by heat number from raw plate to finished component.
Q: What surface treatment options are available after fabrication?
A: We offer hot-dip galvanizing, powder coating, and industrial painting. The choice depends on the operating environment — galvanizing for outdoor or corrosive exposure, powder coating for aesthetic and moderate protection, and painting for heavy industrial conditions.
Q: Do you support third-party inspection before shipment?
A: Yes. SGS and BV third-party inspection reports can be arranged upon request. We also conduct in-house incoming, in-process, and final inspections at every production stage.
