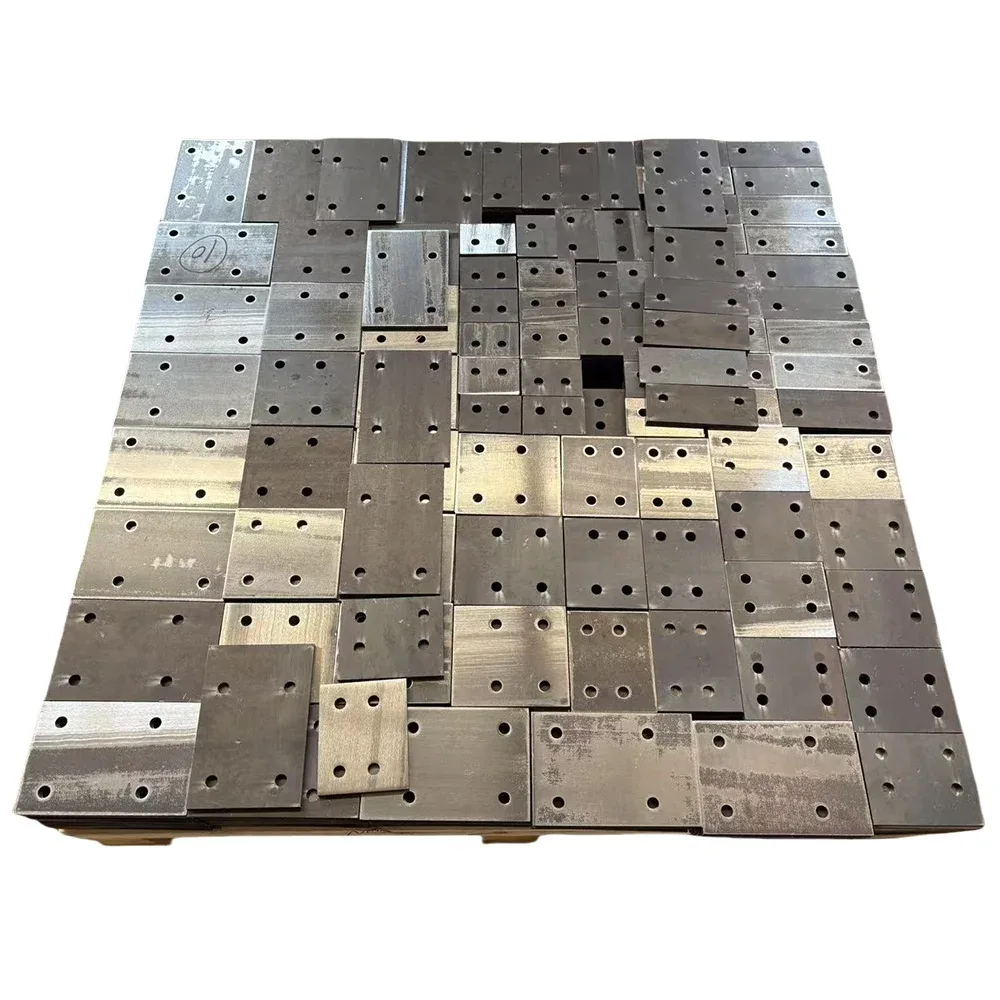

Description
Factory-Direct Laser Cutting — Every carbon steel plate is cut, inspected, and shipped from our own production lines with full mill test traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Fabricated Plate with Laser Cutting Service |
| Product Type | Machined Steel Product (Steel Plate Laser Cutting & Fabrication) |
| Steel Grade | Carbon Steel (Q195–Q690 available) |
| Standard | ISO, GB, JIS, ASTM, ANSI, AISI, DIN, BS, NF, BA |
| Section Shape | Plate / Sheet |
| Size Range | 150×150×8mm (customizable to client drawings) |
| Length | As Clients’ Request |
| Technique | Laser cutting, CNC machining, stamping, welding, bending, forming, milling, casting, forging |
| Surface Treatment | Black, Galvanized, Powder coating, Painting, Electroplating, Anodising, Chrome plating, Brushing, Polishing, Silk-screen, Printing |
| Application | Steel construction, automatic machine, medical device, industrial machine, automobile, electric appliance, public equipment, pressure vessel tanks, steel transmission towers |
| MOQ | 100 PCS |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Construction & EPC | Structural connection plates, gusset plates, base plates for column anchoring, transmission tower brackets |
| Industrial Machinery | Conveyor frame brackets, automation system mounting plates, pressure vessel end closures |
| Automobile & Electric Appliance | Chassis reinforcement brackets, equipment housing panels, appliance mounting flanges |
| Public Infrastructure | Bridge bearing plates, signage support brackets, utility pole base plates |
Why Bolt-Hole Accuracy Decides Your Project Timeline
A 3mm deviation on a laser-cut plate can shut down an entire erection sequence on-site.
When structural connection plates arrive with bolt holes shifted even slightly, field crews face a brutal choice: re-cut locally at multiplied cost, or halt the project and wait for replacements. Global buyers sourcing machined steel plates from fragmented suppliers often discover tolerance gaps only after containers reach the job site. Material traceability gaps compound the problem — without verifiable mill test certificates tied to heat numbers, customs holds and inspection rejections become routine. [NEED_CITE: dimensional tolerance requirements for structural steel fabrication per EN 1090] A Carbon Steel Plate Laser Cutting Service Supplier that controls the full process from raw plate selection through final inspection eliminates these coordination failures before shipment.
Matching Structural Connection Plates to Engineering Demands
Carbon steel fabricated plates serve as the critical interface between structural members — column bases, beam splices, and bracket connections all depend on flatness, hole precision, and material consistency. For EPC contractors working on transmission towers and steel frames, the Carbon Steel Plate Laser Cutting Service Supplier must deliver plates that align with both the fabrication drawings and the governing structural code. Our in-house physical and chemical laboratory verifies each heat against the specified grade before any cutting begins, ensuring that Q355 plates meet the chemical composition and mechanical requirements your engineer signed off on.
Compliance Across Standards and Surface Environments
Engineering specifications for carbon steel plates vary significantly by region and exposure condition. European projects require CE marking under EN 10210/EN 10219 with documented traceability, while North American tenders reference ASTM material specifications. Surface treatment selection — black, galvanized, powder coated, or painted — must account for the corrosion environment the plate will face in service. [NEED_CITE: surface preparation and coating standards for structural steel per ISO 12944] Our production supports multiple international standards including ISO, GB, JIS, ASTM, ANSI, AISI, DIN, BS, NF, and BA, allowing a single order to satisfy mixed-standard project requirements without splitting procurement across vendors.
Understanding Carbon Steel Grades and Laser Cutting Behavior
Carbon steel grades from Q195 through Q690 represent a range of yield strength levels, where higher designations indicate greater load-bearing capacity for structural applications. The carbon content and manganese ratio in each grade directly affect laser cutting behavior — higher-strength grades require adjusted cutting parameters to maintain edge quality and dimensional accuracy. Surface treatment choices follow the service environment: black plates suit indoor or painted applications, while galvanized coatings provide corrosion resistance for outdoor exposure and industrial atmospheres. [NEED_CITE: carbon equivalent and weldability considerations for laser-cut structural plates] Wall thickness directly influences cutting speed and kerf width; our multi-process capability spanning laser cutting, CNC machining, stamping, welding, bending, forming, milling, casting, and forging ensures that plates of varying thickness receive appropriate processing attention.
The Hidden Cost of Unverified Fabrication
Ordering laser-cut plates without independent quality verification introduces risks that surface only during installation. Material substitution — where the delivered grade does not match the specified chemistry — can trigger structural safety concerns and force complete replacement under engineering inspection protocols. Missing or incomplete mill test certificates cause customs delays at destination ports, particularly for EU and North American shipments requiring CE documentation. [NEED_CITE: EN 1090 execution class requirements for structural steel components] Tolerance drift on hole positioning and edge straightness generates field rework that multiplies the original plate cost many times over, while delivery delays from uncoordinated multi-supplier sourcing push entire project schedules past completion deadlines.
Procurement Confidence Through Integrated Capability
Our factory operates three dedicated production lines with in-house physical and chemical laboratories conducting incoming material inspection, in-process dimensional checks, and final verification before shipment. Every Carbon Steel Plate Laser Cutting Service order includes original mill test certificates documenting chemical composition and mechanical properties per the specified grade. We hold ISO 9001:2015 certification, Lloyd’s Register EU CE marking under EN 10210/EN 10219, and Singapore FPC accreditation, with third-party inspection available through SGS and BV. Custom non-standard sizes beyond our standard catalog are supported with no restrictive minimum order penalties, and our professional loading team optimizes container utilization for plates of varying dimensions to reduce per-unit freight costs. Exports reach over 50 countries across the EU, North America, India, Southeast Asia, and the Middle East with complete documentation packages for smooth customs clearance.
Documentation & Compliance
- Mill test certificate documenting Q195–Q690 carbon steel chemical composition and mechanical properties per specified grade standard
- CE certificate under EN 10210/EN 10219 for structural steel plate fabrication supplied to European project sites
- ISO 9001:2015 quality management system certificate covering the full laser cutting and fabrication production process
- SGS or BV third-party inspection report available upon request for independent quality verification before shipment
- Material traceability by heat number linking each fabricated plate to its original mill test record
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery
- Carbon steel plates bundled with steel strips and edge protectors to prevent surface damage to black or galvanized finishes during ocean transit
- Surface protection applied according to treatment type — galvanized plates receive moisture barrier wrapping while painted plates use interleaving separators
- Container loading plans optimized for mixed-size plate orders to maximize payload within standard 20ft and 40ft shipping containers
- Custom length cutting available per client request, with plates sorted and labeled by heat number and specification for efficient site identification
- Shipping marks applied showing steel grade, heat number, size, and purchase order reference for traceability at destination
- Delivery terms available including FOB, CIF, and DDP with professional logistics coordination to over 50 countries
Start Your Fabrication Quote with Verified Specifications
Submit your cutting drawings or specification list including steel grade, dimensions, surface treatment, and destination port to receive a detailed quotation with production timeline and applicable certification documentation. Our team responds within 12 hours with pricing, mill test certificate availability, and container loading recommendations for your Carbon Steel Plate Laser Cutting Service order.
Request Your Laser Cutting Quote with Mill Test Documentation
Send your specifications via email at admin@sdxjysteel.com or contact us at +86 188 5315 7756 (WhatsApp/WeChat) to begin your procurement process.
Frequently Asked Questions
Q: What carbon steel grades are available for laser cutting and plate fabrication?
A: We supply carbon steel plates across the Q195–Q690 grade range, with material selection based on your structural load requirements and applicable project standards including ISO, GB, JIS, ASTM, ANSI, AISI, DIN, BS, NF, and BA.
Q: Can you produce custom non-standard plate sizes and what is the minimum order quantity?
A: Yes, we support full customization of dimensions, thickness, and finish beyond our reference sizes, with a minimum order quantity of 100 pieces per specification.
Q: What surface treatment options are available for fabricated steel plates?
A: Available treatments include black finish, hot-dip galvanizing, powder coating, painting, electroplating, anodising, chrome plating, brushing, polishing, silk-screen, and printing — selected based on your service environment and corrosion protection requirements.
Q: Do you provide mill test certificates and third-party inspection for customs clearance?
A: Every shipment includes original mill test certificates documenting chemical composition and mechanical properties, with SGS and BV third-party inspection available, plus complete customs documentation for EU, North American, and other destination requirements.
Q: What delivery terms and production lead times do you offer?
A: We support FOB, CIF, and DDP delivery terms with professional container loading optimization, and provide typical production lead times based on your order specifications and destination logistics requirements.
