Description

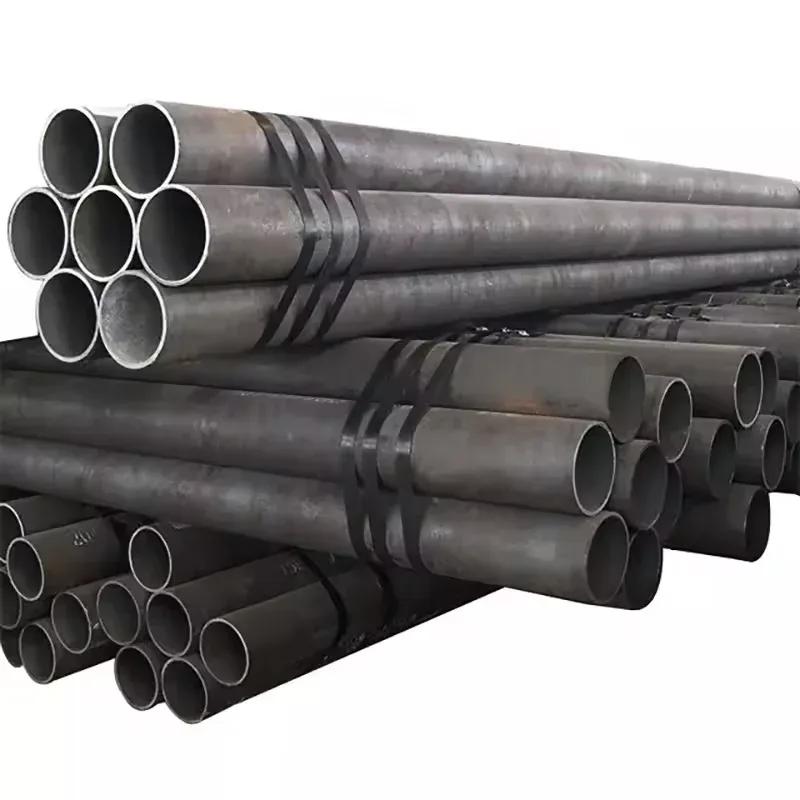

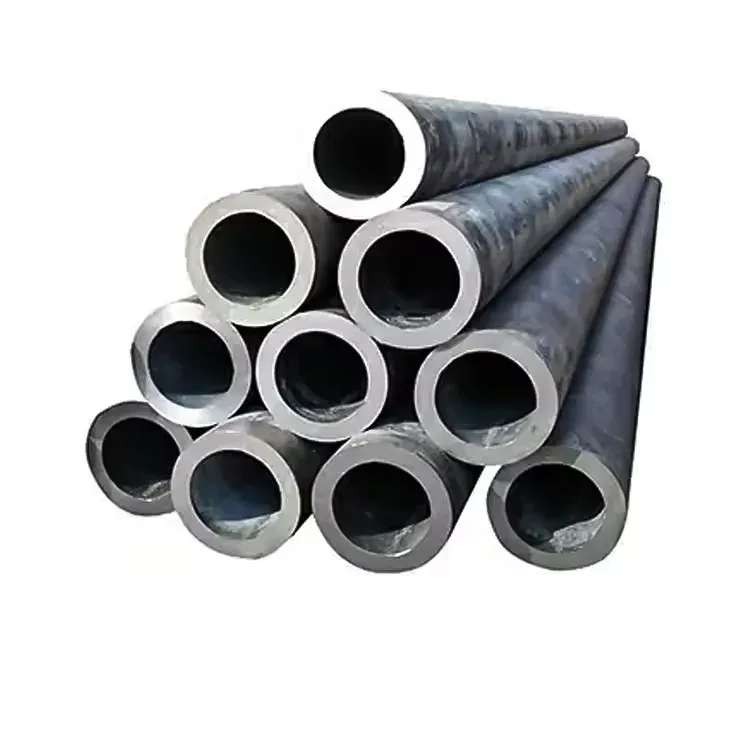

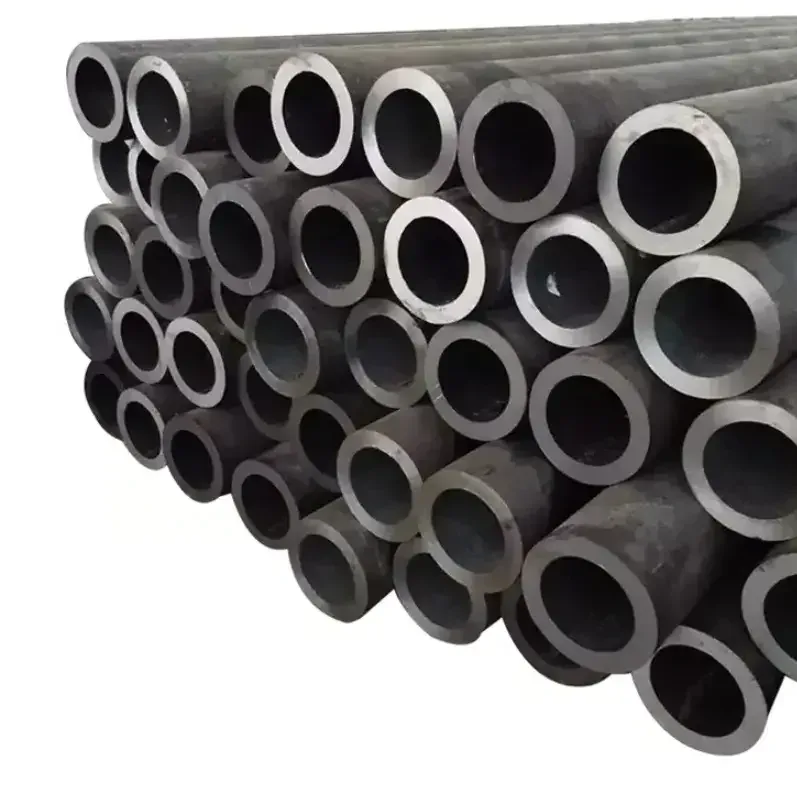

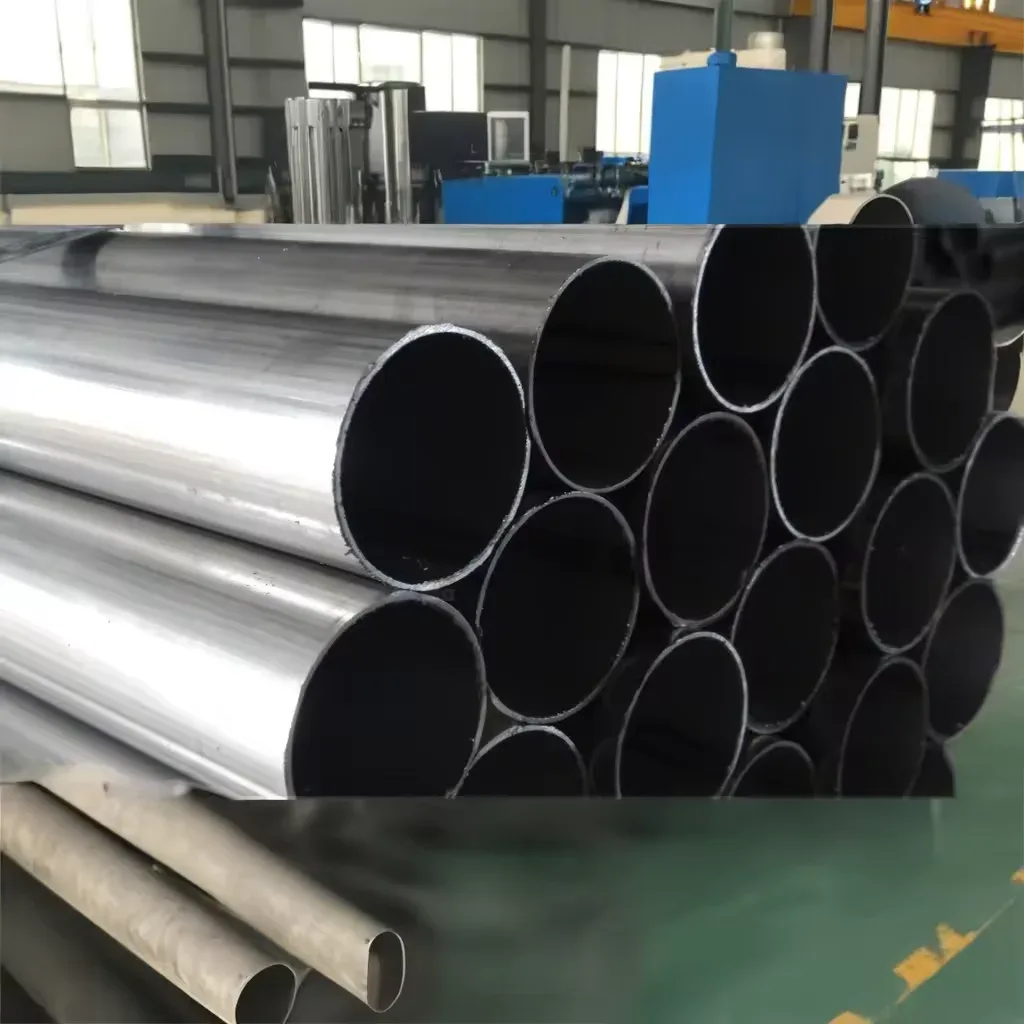

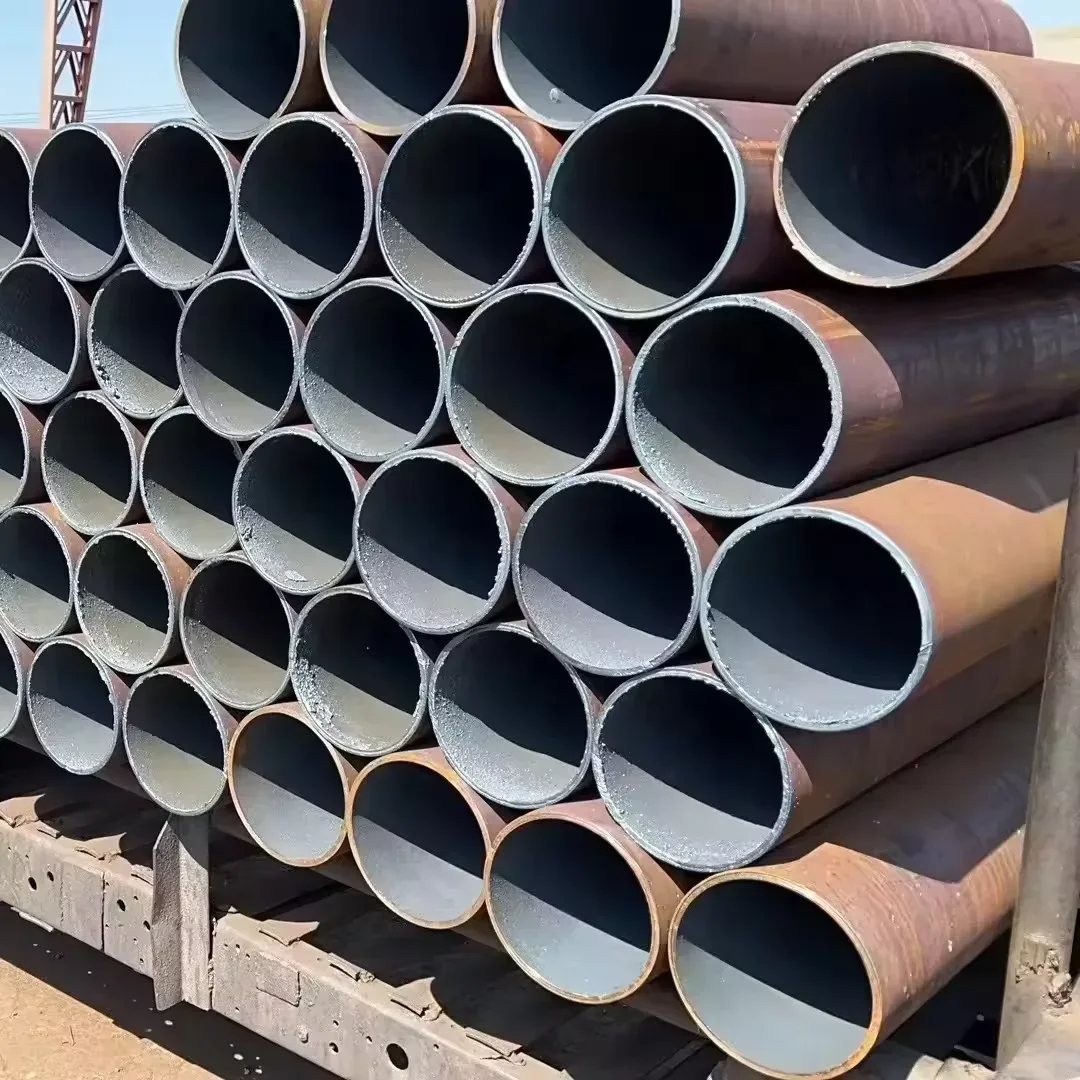

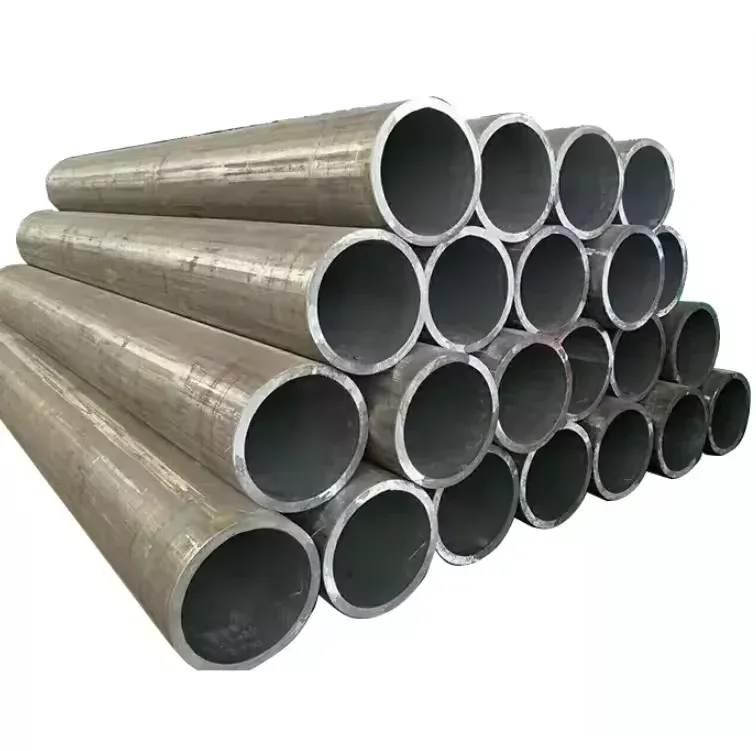

Factory-Direct ASTM A106 Seamless Pipes — Every heat number tested in our in-house lab before shipment, eliminating third-party markup and certification gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A106 / A53 Carbon Seamless Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | A53-A369, A53(A.B), A106(B.C), A269, API 5L (Gr. A, Gr. B, X42, X52, X60, X70), S235JR, S275JR, S355J2, Q195, Q235, Q345 |
| Standard | ASTM A53, ASTM A106, ASTM A213, API 5L, EN 10217-1, DIN EN 10217-1, JIS G3466, GB/T 8163 |
| Section Shape | Round |
| Size Range | OD 10mm – 1200mm |
| Wall Thickness | 1mm – 50mm |
| Length | 6000mm, 12000mm or Customized |
| Technique | Seamless (SMLS) |
| Surface Treatment | Black Painted, Varnished, Galvanized (Hot-Dip / Electro), 3LPE/3LPP Coated, Oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded |
| Tensile Strength | 350 – 850 MPa |
| Yield Strength | 205 – 700 MPa |
| Elongation | 10% – 35% |
| Hardness | ≤ 200 HB |
| Application | Oil & Gas, Petrochemical, Boiler, Automotive, Machinery, Shipbuilding, Construction |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Pipeline transmission, drilling casing, petrochemical cracking lines |
| Power & Boiler | High-temperature steam lines, superheater tubes, boiler headers |
| Machinery Manufacturing | Hydraulic cylinders, pneumatic systems, precision structural components |
| Shipbuilding & Offshore | Marine piping, platform structural members, ballast lines |
| Construction & Infrastructure | Structural frameworks, scaffolding uprights, pile casings |
What Happens When Wall Thickness Tolerance Drifts on a High-Pressure Order
A ±1% tolerance on a 50mm WT API 5L X70 pipe means the difference between passing hydrostatic test and failing it at the commissioning stage.
When EPC contractors source ASTM A106 seamless steel pipe from fragmented suppliers, the mill test certificates often look flawless on paper — until a third-party inspector pulls random samples at the destination port and finds carbon content drifting beyond the A106 Grade B limit. One rejected container at Jebel Ali costs more in demurrage than the pipe itself. The real cost is not the replacement shipment; it is the two-week delay that pushes the entire pipeline commissioning past the contractual milestone. [NEED_CITE: API 5L hydrostatic testing requirements for line pipe]
Matching ASTM A106 Seamless Steel Pipe to High-Pressure and High-Temperature Environments
Seamless manufacturing eliminates the weld seam that becomes the weakest point under internal pressure cycling. For oil and gas transmission lines operating at pressures above 10 MPa, the homogeneous grain structure of an ASTM A106 seamless steel pipe provides consistent burst resistance across the entire circumference. In boiler applications where temperatures exceed 400°C, the carbon content control within A106 Grade B prevents graphitization that would otherwise degrade long-term creep strength. Our in-house lab verifies every heat number against the specified chemical composition before the pipe leaves the mill floor — the same check that prevents the port rejection scenario I witnessed years ago.
Engineering Compliance: From ASTM to EN and API Across Markets
Different procurement specifications demand different certification pathways. European EPC projects require CE marking under EN 10210 or EN 10219, which means the ASTM A106 seamless steel pipe must carry documentation traceable to the declared steel grade and production batch. Middle East oil field developments typically mandate API 5L certification for line pipe, with PSL2 requirements adding impact testing at specified temperatures. Southeast Asian infrastructure projects often accept GB/T 8163 or JIS G3466 equivalents, but customs authorities in Singapore and Malaysia increasingly request SGS or BV third-party inspection reports alongside the mill certificates. [NEED_CITE: CE marking requirements for steel pressure equipment under PED 2014/68/EU] Selecting the correct standard upfront avoids the scenario where pipes arrive at site but cannot be legally welded into the structure.
Steel Grade Selection: Why A106 Grade B Dominates Medium-Pressure Applications
ASTM A106 Grade B remains the default choice for process piping in refineries and chemical plants because its yield strength of 240 MPa minimum provides adequate margin for pressures up to Class 600, while its weldability remains straightforward with common SMAW and GTAW procedures. When the operating pressure climbs into Class 900 and above, A106 Grade C pushes yield strength to 275 MPa minimum, reducing wall thickness requirements and therefore material weight per meter. For sour service environments where hydrogen sulfide is present, API 5L X42 and X52 grades with SSC resistance testing become mandatory — the seamless structure eliminates weld-line susceptibility to sulfide stress cracking. Surface treatment selection follows the environment: 3LPE coating for buried offshore lines, hot-dip galvanizing for atmospheric exposure in coastal structures, and black painted with oil for indoor mechanical applications where corrosion protection is secondary. [NEED_CITE: NACE MR0175 material requirements for sour service applications]
The Hidden Cost of Accepting Negative Tolerance Beyond Specification
When a supplier delivers ASTM A106 seamless steel pipe with wall thickness consistently at the lower end of the ±1% tolerance band, the theoretical weight per meter drops — and so does the price per ton. But the engineering calculation was based on nominal dimensions. The structure passes visual inspection, yet under hydrostatic proof testing, the thinner sections reach yield stress first. The failure does not appear as a burst; it appears as a permanent deformation that voids the pressure rating. Beyond the physical risk, customs authorities in the EU and GCC countries increasingly reject shipments where measured dimensions fall outside the declared standard tolerance, regardless of what the mill certificate states. [NEED_CITE: EN 10210 dimensional tolerance verification for structural hollow sections]
Why Procurement Teams Choose Our Facility for ASTM A106 Seamless Steel Pipe
We operate three dedicated seamless pipe production lines covering over 2,800 specifications, meaning your ASTM A106 seamless steel pipe order for OD 325mm × WT 12.7mm does not get queued behind a completely different product family. Every pipe undergoes chemical composition analysis and tensile testing in our on-site physical and chemical laboratory before packaging — the same lab that catches carbon drift before the container is sealed. For projects requiring API 5L or CE certification, we prepare the complete documentation package in-house: mill test certificates organized by heat number, CE declarations conforming to EN 10210, and third-party inspection coordination with SGS or BV at our loading bay. We ship to over 50 countries and handle the loading optimization that prevents pipe damage during ocean transit — a detail that matters when a 12-meter length of X70-grade pipe arrives with dented ends and the welder on site refuses to bevel it.
Documentation & Compliance
- Mill Test Certificate documenting A106 Grade B chemical composition (C, Mn, Si, P, S) and mechanical properties (yield strength, tensile strength, elongation) per ASTM A106, organized by individual heat number
- CE Certificate of Conformity under EN 10210-1 for structural seamless pipes exported to EU member states, confirming compliance with essential safety requirements
- ISO 9001:2015 Quality Management System certificate covering the full production process from raw material incoming inspection to final dimensional verification
- SGS or BV Third-Party Inspection Report available upon request, covering dimensional check, visual inspection, and witness testing at our facility prior to container loading
- Material Traceability Report linking each pipe to its heat number, chemical analysis, and mechanical test results — required for API 5L line pipe applications
- Customs Documentation Package including packing list, bill of lading, certificate of origin, and commercial invoice formatted for destination-country clearance requirements
Packaging, Loading & Delivery
- ASTM A106 seamless pipes bundled with steel strips and padded at contact points to prevent surface damage to black painted or galvanized finishes during transit
- Oiled ends capped with plastic protectors on beveled or threaded pipe ends to preserve thread integrity and prevent moisture ingress during ocean shipment
- Container loading plans optimized for 6m and 12m lengths, maximizing weight utilization within the 20ft or 40ft heavy-test container limits while maintaining balanced weight distribution
- Cut-to-length service available for non-standard project requirements, with lengths from 6000mm to 12000mm or customized per engineering drawing
- Heat number stenciled on each pipe end alongside steel grade identification (e.g., A106-B), enabling on-site traceability verification before welding
- Shipping terms available as FOB, CIF, or DDP to major ports across the Middle East, Southeast Asia, EU, and North America, with professional logistics coordination for heavy cargo
Start Your ASTM A106 Seamless Steel Pipe Inquiry
Submit your specification sheet — including OD, wall thickness, steel grade, quantity, and destination port — and receive a detailed quotation with unit pricing, production timeline, and applicable certification documentation within 12 hours. For non-standard dimensions or custom surface treatment requirements, our engineering team provides a feasibility assessment and lead-time confirmation before you commit.
Request Your Quotation and Mill Test Certificate Today
Send your specifications via email or WhatsApp to receive pricing, available stock confirmation, and sample mill test certificates for your review.
Email: admin@sdxjysteel.com
Mobile / WhatsApp / WeChat: +86 188 5315 7756
Tel: +86 531 8573 6315
Frequently Asked Questions
Q: What is the difference between ASTM A106 and A53 seamless pipes?
A: ASTM A106 covers seamless carbon steel pipe specifically intended for high-temperature service, with stricter chemical composition controls on carbon and manganese for weldability. ASTM A53 covers both seamless and welded pipe for general mechanical and pressure applications at normal temperatures. For boiler and high-temperature process lines, A106 is the standard choice; for structural and low-temperature water lines, A53 Grade B is typically specified.
Q: Can you provide third-party inspection and CE certificates for EU customs clearance?
A: Yes. We coordinate SGS or BV inspection at our facility before shipment, covering dimensional verification, visual examination, and witness testing. CE certification under EN 10210-1 or EN 10219 is available for structural seamless pipes exported to European markets, with full documentation traceable to each heat number.
Q: What surface treatment is recommended for offshore versus indoor applications?
A: For offshore and buried environments, 3LPE or 3LPP anti-corrosion coating provides long-term protection against saltwater and soil corrosion. Hot-dip galvanizing suits atmospheric exposure in coastal structures and outdoor scaffolding. For indoor mechanical applications where pipes will be machined or welded without corrosion concerns, black painted with light oiling is sufficient and most cost-effective.
Q: Do you accept custom non-standard OD and wall thickness orders?
A: Yes. Our production lines cover OD 10mm to 1200mm and wall thickness up to 50mm, with custom non-standard dimensions available beyond the standard catalog. Cut-to-length service is provided per project requirements. Please submit your drawing or specification for feasibility confirmation and lead-time assessment.
Q: How do you handle loading optimization for heavy seamless pipe shipments?
A: We prepare professional container loading plans based on your pipe dimensions and total weight, maximizing payload within container limits while ensuring balanced weight distribution. For 12m lengths, 40ft heavy-test containers are standard; for shorter lengths, mixed loading with other steel products optimizes freight cost. Loading supervision photos are provided before container sealing.
