Description

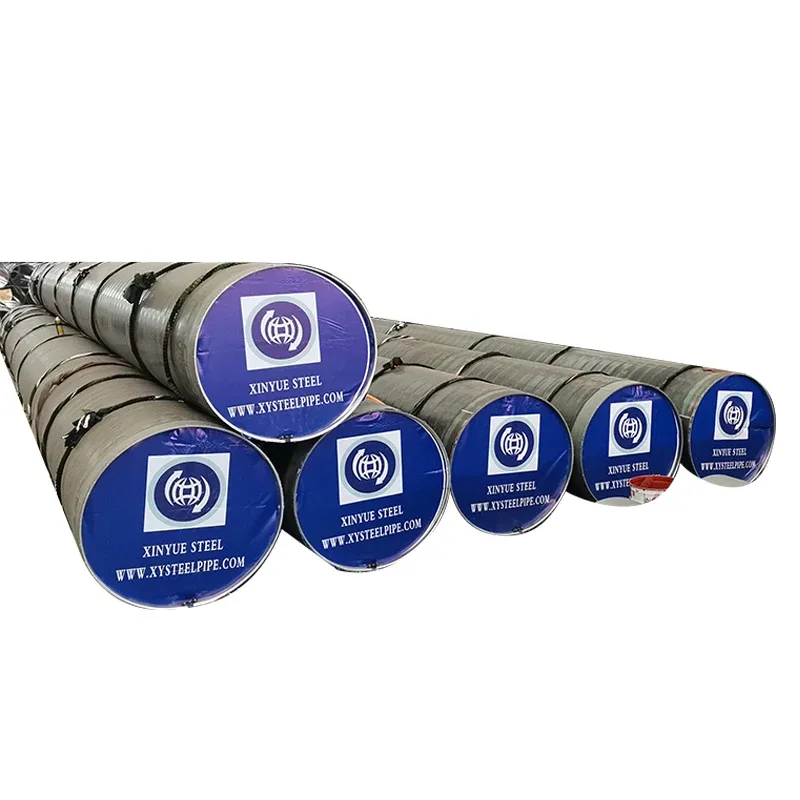

Factory-Direct API 5L X65 PSL2 LSAW Line Pipe — Every heat is tested in our in-house physical and chemical laboratory before shipment, eliminating the gap between paper certificates and actual material properties.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L X65 PSL2 LSAW Carbon Steel Line Pipe |
| Product Type | LSAW Welded Steel Pipe / Line Pipe |
| Steel Grade | API 5L PSL1/PSL2 (GR B, X42, X46, X52, X56, X60, X65, X70, X80), ASTM A53 (GR A, GR B, GR C), EN (S275, S275JR, S355JRH, S355J2H), GB (Q195, Q215, Q235, Q345, L175–L555) |
| Standard | API 5L (PSL1/PSL2), API 5CT, ASTM A53, EN 10217, DIN 2458, IS 3589, GB/T 3091, GB/T 9711 |
| Section Shape | Round |
| Outer Diameter | 355.6 mm – 1626 mm |
| Wall Thickness | 8 – 50 mm |
| Length | Up to 12 m (6 m / 6.4 m available) |
| Technique | LSAW – UO(UOE) / JCO(JCOE) / RB(RBE), DSAW |
| Surface Treatment | Bare / Oiled / FBE / Coal Tar Epoxy / 3PE / 3PP / Bitumen / Varnish / Hot-dipped Galvanized |
| Ends | Plain / Beveled (as per customer requirement) |
| Application | Oil & gas pipeline transmission / Low-pressure liquid delivery / Steel structure / Power plant / Ship manufacturing / Foundation and piling projects |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Oil and gas trunkline transmission systems, industrial plant piping networks, refinery process pipelines |
| Construction Companies | Foundation piling for high-rise buildings, bridge substructure casings, port and wharf pile driving |
| System Integrators | Fluid transport manifolds, cooling water circulation lines, fire protection riser systems |
| Machinery Manufacturers | Hydraulic cylinder barrels, crane boom sections, heavy equipment structural supports |
Why a Clean Mill Certificate Does Not Guarantee Customs Clearance
A paper certificate means nothing if the actual heat does not match PSL2 requirements.
On a pipeline project in Abu Dhabi, we loaded a batch of API 5L X-65 PSL2 LSAW line pipes — mill certs looked clean on paper, but the client’s third-party inspector at Khalifa Port found the low-temperature impact values did not hold up to PSL2 requirements. Two containers sat grounded for weeks. The root cause was not the pipe itself but a mismatch between the test coupon heat and the shipped heat. This is a recurring pain point across oil and gas procurement: quality uncertainty, specification gaps, and certification inconsistencies that lead to customs delays and project compliance failures [NEED_CITE: API 5L PSL2 impact testing requirements for sour service pipelines]. When you source an API 5L X65 PSL2 LSAW steel pipe supplier, the factory must verify every heat against PSL2 Charpy impact criteria in a real laboratory — not just stamp a certificate.
Matching Large-Diameter LSAW Pipe to Pipeline and Piling Demands
LSAW line pipes in the OD 355.6–1626 mm range serve two distinct engineering worlds. In oil and gas transmission, the JCOE forming process delivers consistent ovality and weld integrity across long joints, which matters when field welding crews join kilometers of pipe under tight schedule pressure. For foundation piling, the same diameter range provides the section modulus needed to resist lateral soil loads during driving — and the 8–50 mm wall thickness band covers everything from light retaining structures to deep marine pile casings. Our API 5L X65 PSL2 LSAW steel pipe supplier capability spans both worlds because we run dedicated production lines with in-house hydrostatic testing and ultrasonic weld inspection before any pipe leaves the mill.
Engineering Compliance Across Standards and Corrosive Environments
Pipeline projects governed by API 5L PSL2 demand full chemical composition control, mandatory Charpy impact testing at specified temperatures, and hydrostatic proof testing on every length [NEED_CITE: API 5L PSL2 supplementary requirements for sour service]. For European infrastructure, EN 10217 covers the equivalent welded hollow section requirements, and CE certification under EN 10210/10219 is non-negotiable for structural applications in EU member states. Corrosion environment dictates surface treatment selection: 3PE coating for buried onshore pipelines, FBE for high-temperature service, and hot-dipped galvanizing for above-ground structural exposure. Beveled ends per API 5L or customer drawing ensure field welding readiness, while plain ends suit mechanical coupling or piling connections.
Decoding API 5L PSL2 and LSAW Process Selection
The jump from PSL1 to PSL2 is not incremental — PSL2 adds mandatory Charpy impact testing, stricter chemical composition limits on carbon and sulfur, and full-length ultrasonic inspection. For X65 grade specifically, PSL2 requires verified low-temperature toughness that PSL1 does not, making it essential for sour service and cold-climate pipelines. The LSAW process itself offers three forming routes: UOE produces the highest dimensional accuracy for large-diameter, thick-wall pipe; JCOE provides flexibility for medium batches and non-standard sizes; and the plate is formed progressively through a J-C-O sequence that minimizes residual stress in the weld zone. DSAW (double submerged arc welding) on both inner and outer seams ensures full-penetration weld quality verified by X-ray and ultrasonic testing.
The Hidden Cost of Wrong-Grade Pipe in Critical Service
Ordering PSL1 when the engineering spec calls for PSL2 means no verified impact toughness data — and a failed third-party inspection at destination port. Shipping 50 mm wall thickness pipe with incorrect end preparation forces on-site re-beveling, which adds days to the schedule and introduces weld-prep quality risks. Missing CE documentation on an EU-bound structural order triggers customs holds that cost more than the pipe itself [NEED_CITE: EN 10219 cold-formed hollow section compliance for structural steelwork]. The real cost is never the unit price difference — it is the idle rig, the delayed foundation pour, or the re-inspection fee that erodes the margin you saved by choosing a cheaper source.
Procurement Confidence Backed by Verified Factory Capability
We operate three dedicated LSAW production lines with in-house physical and chemical laboratories that perform incoming raw material analysis, in-process weld monitoring, and final inspection on every heat — not just sample coupons. Our 41 patented technologies include proprietary sharp-corner rectangular tube processes, and our full product range covers over 2,800 specifications across square, rectangular, round, and section steel categories. Every API 5L X65 PSL2 LSAW steel pipe supplier order ships with original mill test certificates traceable to heat number, and we hold ISO 9001:2015, Lloyd’s Register EU CE (EN 10210/10219), and Singapore FPC certifications verified by SGS and BV. We export to 50+ countries with professional loading plans that optimize container utilization for heavy-wall, large-diameter pipe, and we offer door-to-door DDP logistics for projects where customs complexity is a concern.
Documentation & Compliance
- Mill Test Certificate documenting API 5L X65 PSL2 chemical composition, yield strength, tensile strength, and Charpy impact values per heat number
- CE Certificate under EN 10210/EN 10219 for structural hollow sections exported to EU member states
- ISO 9001:2015 quality management system certificate covering full production and inspection process
- SGS or BV third-party inspection report available upon request for destination port verification
- Material traceability report linking each pipe length to its heat number, chemical analysis, and mechanical test results
- Full customs documentation package including packing list, Bill of Lading, and Certificate of Origin
Packaging, Loading & Delivery
- Bare or oiled LSAW pipe bundled with galvanized steel strips at intervals suited to 12 m joint length, with wooden cradles to prevent coating damage during ocean transit
- 3PE or FBE coated pipe wrapped with protective sleeves at both ends and spaced with rubber separators to preserve coating integrity under container stacking loads
- Container loading plans optimized for OD 355.6–1626 mm diameter range, maximizing weight utilization within 20ft and 40ft open-top or flat-rack configurations
- Cut-to-length service available for 6 m or 6.4 m joints with beveled or plain ends per customer drawing, reducing on-site cutting waste
- Heat number and steel grade stenciled on each pipe end with waterproof marking for traceability through customs and site receiving
- FOB, CIF, and DDP shipping options with real-time tracking from Jinan port to destination across 50+ countries
Start Your API 5L X65 Procurement with Verified Documentation
Submit your pipe specifications — outer diameter, wall thickness, steel grade, quantity, and destination port — and receive a detailed quotation including unit price, production lead time, payment terms, and applicable certification scope within 12 hours. Request original mill test certificates and arrange SGS or BV third-party inspection before shipment to confirm compliance with your project specification.
Get Your API 5L X65 PSL2 Quote with Mill Test Certificate
Send your specifications via email or WhatsApp to receive pricing, certification details, and delivery schedule.
Email: admin@sdxjysteel.com | WhatsApp: +86 188 5315 7756
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2 for X65 grade?
A: PSL2 adds mandatory Charpy impact testing at specified low temperatures, stricter limits on carbon and sulfur content, and full-length ultrasonic inspection of the weld seam. For sour service or cold-climate pipeline projects, PSL2 is typically required by the engineering specification, while PSL1 suits standard transmission applications.
Q: Can you supply API 5L X65 in EN or ASTM equivalent grades?
A: Yes. Our steel grade coverage includes API 5L PSL1/PSL2 from GR B through X80, ASTM A53 grades, EN 10217 series including S275 and S355 variants, and GB/T 9711 equivalents. We provide cross-reference documentation to support material substitution approval with your project engineer.
Q: What surface treatment options are available for buried pipeline service?
A: For buried onshore pipelines, we offer 3PE (three-layer polyethylene) and FBE (fusion-bonded epoxy) coatings that provide corrosion protection and mechanical damage resistance. Coal tar epoxy and bitumen coatings are available for specific soil conditions, while hot-dipped galvanizing suits above-ground structural exposure.
Q: What is the minimum order quantity for non-standard wall thickness?
A: Our MOQ is 1 Ton. We produce over 2,800 specifications across our product range, and our three dedicated LSAW lines can accommodate custom non-standard outer diameter and wall thickness combinations within the 355.6–1626 mm OD and 8–50 mm WT range.
Q: How do you ensure mill test certificates match the shipped material?
A: Every pipe length is traceable to its heat number through our in-house physical and chemical laboratory. We perform incoming material analysis, in-process weld monitoring, hydrostatic testing, and final inspection on every heat. Original mill test certificates documenting chemical composition and mechanical properties are provided with each shipment, and SGS or BV third-party inspection is available for destination verification.
