Description

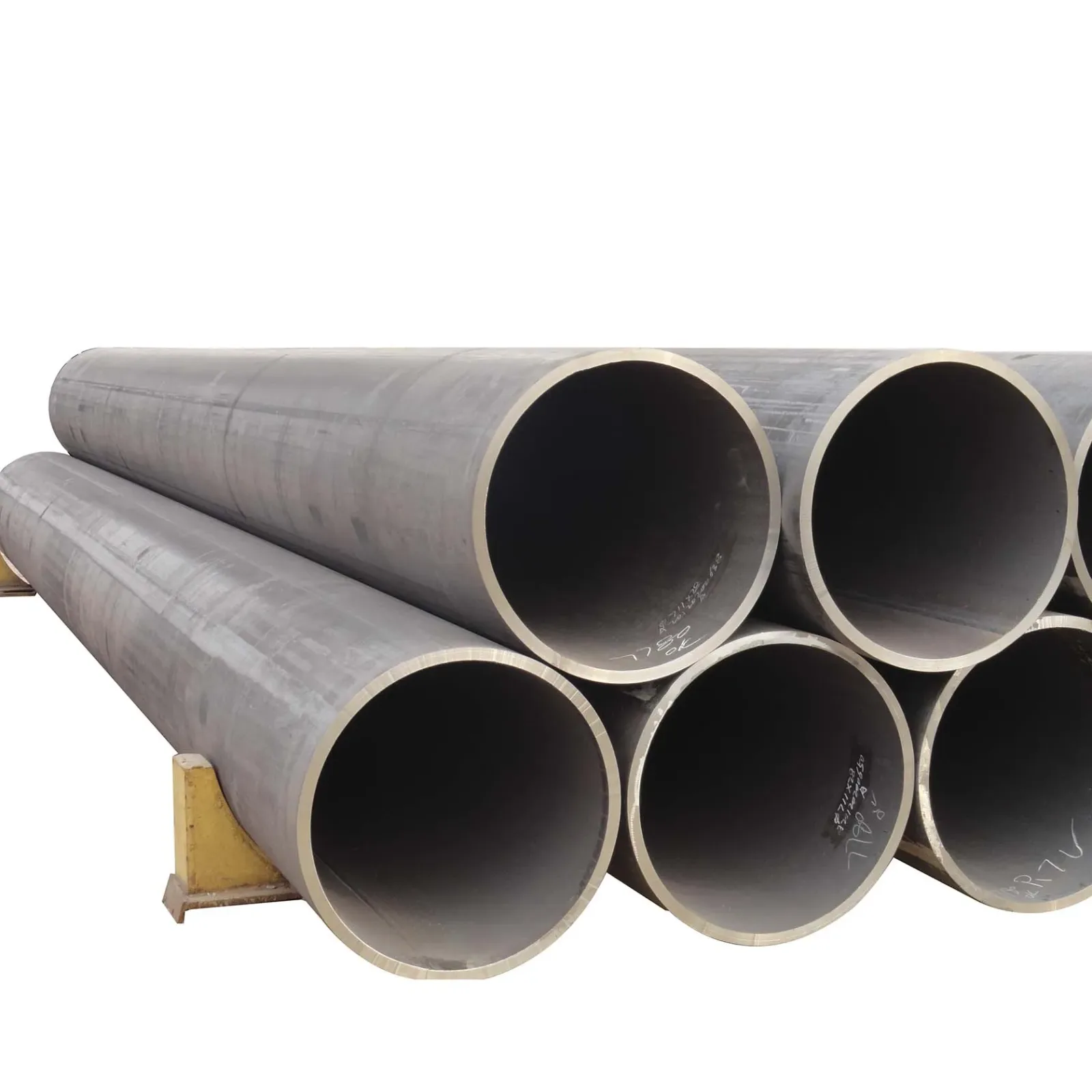

Factory-direct JCOE pipe piles — Three dedicated forming lines producing OD 325–5500mm with in-house physical and chemical laboratories verifying every heat.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | JCOE Welded Steel Pipe Pile |
| Product Type | JCOE Longitudinal Welded Steel Pipe |
| Steel Grade | Q235B, Q275B, Q345B, Q195, ST37, 15CrMo, 15Mo3, STPA25, 1Cr13Mn9Ni1N, API 5L (Grade B–X70), EN10219 (S235–S460), ASTM A572 (Grade 42–65), ASTM A690, ASTM A252 (Grade 1/2/3), AS1163 (C250/C350/C450) |
| Standard | GB/T 700, GB/T 1591, API 5L, EN10219, EN10025, ASTM A572, ASTM A690, ASTM A252, AS1163 |
| Section Shape | Round |
| Size Range | Outer Diameter 325–5500 mm |
| Wall Thickness | 2–22 mm |
| Length | Up to 120 m |
| Technique | JCOE / Longitudinal Welded |
| Surface Treatment | Galvanized, 3PE Coat, FBE Coat, Marine Paint |
| Tolerance | ±1% |
| Ends | Bevelled Ends, Plain Ends |
| Application | Foundation piling, marine structures, port and harbour construction, bridge foundations, land reclamation, industrial infrastructure |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Deep foundation piling for industrial plants and power stations |
| Construction Companies | Bridge pier foundations and high-rise building pile supports |
| Port and Marine Engineering | Quay walls, jetty structures, and breakwater reinforcement |
| Infrastructure Developers | Land reclamation pipe pile walls and coastal protection barriers |
| System Integrators | Conveyor support foundations and heavy equipment mounting bases |
What Negative Wall-Tolerance Overshoot Costs on a Port Piling Contract
A single batch rejected at port inspection can erase an entire project margin through emergency re-production and air-freight replacement.
When JCOE welded steel pipe piles arrive at a marine construction site with wall thickness falling below the specified negative tolerance threshold, third-party surveyors will flag the entire lot. The EPC contractor faces a choice: accept non-conforming material and risk structural review rejection, or halt driving operations while replacement sections are manufactured and shipped. Coordination across multiple vendors — pipe mill, coating applicator, accessory fabricator — multiplies the delay. Documentation gaps compound the problem: missing or inconsistent mill test certificates trigger customs holds, leaving heavy cargo sitting at the port with daily demurrage accumulating. [NEED_CITE: EN 10219 dimensional tolerance requirements for structural hollow sections]
How Large-Diameter JCOE Forming Matches Deep Foundation Loads
The JCOE forming process — progressive die pressing followed by submerged arc welding — enables production of JCOE welded steel pipe pile sections in outer diameters reaching 5500mm, far beyond the practical limits of ERW or seamless methods. This diameter range directly serves port quay walls and bridge pier foundations where pile driving resistance demands substantial section modulus. Wall thickness up to 22mm accommodates both compression and bending moments in marine environments, while the longitudinal weld seam undergoes 100% ultrasonic examination per API 5L requirements.
Structural Compliance and Corrosion Protection Selection
Marine piling environments require simultaneous attention to load-bearing compliance and corrosion resistance. Design to EN 1993 or AISC standards dictates minimum wall thickness and steel grade selection — Q345B or S355 equivalents provide higher yield strength for reduced pile counts in deep foundations. For submerged or splash-zone exposure, 3PE coating or FBE systems deliver long-term protection exceeding 25 years, while marine paint systems suit atmospheric zones. CE certification under EN 10210/EN 10219 remains mandatory for European project acceptance, with ASTM A252 grades governing North American piling specifications. [NEED_CITE: ASTM A252 specification for welded and seamless steel pipe piles]
Steel Grade Equivalence Across International Standards
Procurement teams sourcing JCOE welded steel pipe pile for international projects must navigate grade equivalence between Chinese GB, European EN, American ASTM, and API systems. Q235B corresponds roughly to S235JR and ASTM A252 Grade 2; Q345B aligns with S355JR and ASTM A572 Grade 50. API 5L grades B through X70 serve pressure-containing applications, while ASTM A690 addresses high-strength low-alloy requirements for marine splash zones. The 15CrMo and 15Mo3 chromium-molybdenum grades provide elevated-temperature creep resistance for industrial infrastructure. Our physical laboratory verifies chemical composition and mechanical properties against each standard’s specific requirements before release.
Hidden Costs When Material Certification Falls Short
Specifying Q345B but receiving material with sub-standard manganese content reduces weldability and impact toughness at driving temperatures. Missing EN 10219 certification blocks EU customs clearance regardless of physical conformity. Negative tolerance exceeding the permitted ±1% range reduces actual section modulus below design assumptions, triggering structural engineer rejection during pile driving inspection. Re-driving rejected piles or supplementing with additional foundations multiplies mobilization costs far beyond the original material price differential. [NEED_CITE: EN 10204 inspection document types 3.1 and 3.2 requirements]
Why Global EPC Contractors Source JCOE Pipe Piles Through Our Facility
Three dedicated JCOE forming lines cover outer diameters from 325mm to 5500mm without subcontracting to satellite mills. Our in-house physical and chemical laboratories conduct incoming material verification, in-process weld inspection, and final dimensional checks — every shipment carries original mill test certificates traceable to heat numbers. The factory fabricates piling shoes, interlocks, L-T and P-T connectors, and waling struts to project drawings, eliminating coordination across multiple accessory vendors. Anti-corrosion coating — 3PE, FBE, galvanizing, or marine paint systems — applies in our own coating facility rather than outsourcing. CE certification under EN 10210/EN 10219 and ISO 9001:2015 quality management satisfy European and international compliance requirements. Professional loading plans optimize container utilization for long-length piles, with FOB, CIF, and DDP logistics to over 50 countries.
Documentation & Compliance
- Mill test certificate documenting Q345B chemical composition and yield strength per GB/T 1591, traceable to heat number
- CE certificate confirming EN 10210/EN 10219 compliance for European structural hollow section applications
- ISO 9001:2015 quality management system certificate covering JCOE forming and welding processes
- SGS or BV third-party inspection report verifying dimensional tolerance and coating thickness before shipment
- Material traceability documentation linking each pipe section to original plate heat number and welding parameters
- Customs document package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery
- JCOE welded steel pipe pile sections bundled with high-tensile steel strips, separated by timber dunnage to prevent coating damage during ocean transit
- 3PE and FBE coated piles wrapped with protective sleeves at bevelled ends, preserving coating integrity at weld-preparation zones
- Large-diameter pipes above 1500mm loaded in open-top containers or breakbulk vessels with professional lashing plans maximizing payload per shipment
- Piling shoes and interlock accessories packed separately in steel-framed crates, marked with heat numbers matching parent pipe sections
- Custom cutting to project-specific lengths between 6m and 12m available, with bevelled ends prepared per approved welding procedure specifications
- FOB, CIF, and DDP delivery terms with real-time tracking from Shandong ports to destination job sites across 50+ countries
Submit Specifications for JCOE Pipe Pile Quotation
Provide outer diameter, wall thickness, steel grade, total tonnage, and destination port to receive detailed pricing with mill test certificate preview. Non-standard dimensions and custom accessory fabrication drawings receive technical review within typical response windows. Confirm required certification package — CE, SGS, or BV inspection — and coating specification before contract execution.
Request JCOE Welded Steel Pipe Pile Pricing and Mill Test Certificates
Submit your specifications via email or mobile contact to receive a detailed quotation with material certification preview and production lead time confirmation.
