Description

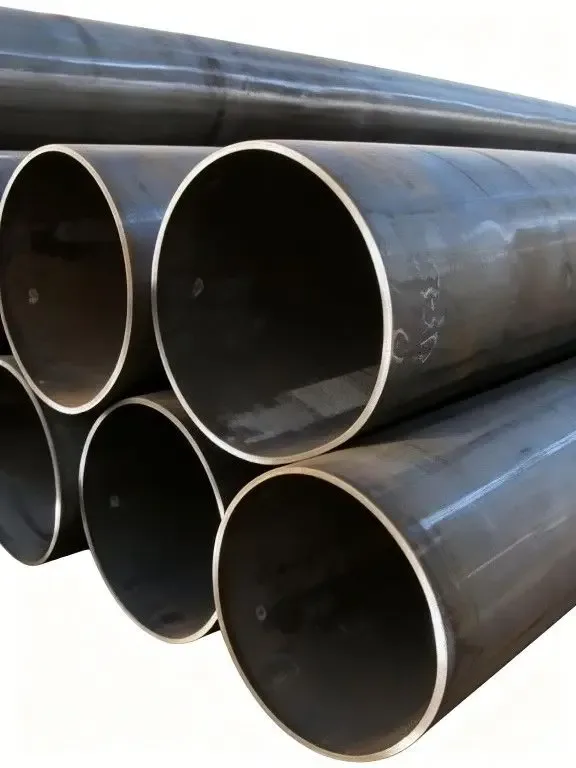

Factory-Direct API 5L LSAW Pipes — Each heat is tested in our in-house physical and chemical laboratory before release, with original mill test certificates issued per API 5L and EN 10219 requirements.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L X60/X42 LSAW Steel Pipe |
| Product Type | Round Steel Pipe (LSAW) |
| Steel Grade | API 5L X60, API 5L X42, ASTM A252, EN10219 |
| Standard | API 5L, ASTM A252, EN10219, EN10210, JIS, BS |
| Section Shape | Round |
| Wall Thickness | 9–500 mm |
| Length | 6 m / 12 m / Customized |
| Technique | LSAW (Straight Seam Submerged Arc Welded) |
| Surface Treatment | Galvanized / 3LPP / 3LPE / FBE / Customized |
| Tolerance | ±10% |
| Ends | Plain / Beveled |
| Oiled or Non-oiled | Non-oiled |
| Application | Fluid transport / Oil & gas pipelines / Boiler / Hydraulic systems / Structural / Fertilizer industry |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore transmission pipelines, gathering lines, flow lines |
| Industrial Construction | Structural piling, foundation caissons, bridge bearing columns |
| Machinery & Equipment | Hydraulic cylinder bodies, heavy-duty roller frames, conveyor support columns |
| Energy & Utilities | Boiler feed lines, cooling water circuits, fertilizer plant process piping |
| Municipal Infrastructure | Large-diameter water transmission mains, drainage outfall pipes |
What Missing 3LPE Coating Specs Cost on a Pipeline Order
Coating specification gaps at the inquiry stage trigger customs holds and on-site rework that dwarf the pipe unit price.
When EPC contractors source heavy-wall LSAW pipes for buried or submerged pipeline segments, the surface treatment requirement — 3LPE, 3LPP, or FBE — must be locked before production begins. I have seen containers held at destination ports because the coating type on the mill certificate did not match the project specification, forcing the client to choose between expensive re-coating locally or air-freighting replacement sections. [NEED_CITE: 3LPE coating adhesion requirements for buried steel pipelines]
Beyond coating, wall thickness tolerance on API 5L X60 LSAW steel pipe matters more than most buyers realize at the inquiry stage. A ±10% tolerance is standard, but if the mill runs at the lower bound across every joint, the total tonnage shipped drops while the project still needs the designed pressure rating. The cost of that shortfall only surfaces during hydrostatic testing or third-party inspection at the job site.
Matching Heavy-Wall LSAW Pipes to Pipeline and Piling Environments
API 5L X60 LSAW steel pipe in the 9–500 mm wall thickness range covers everything from standard transmission lines to extra-heavy structural piling. The submerged arc welding process produces a longitudinal seam with full-penetration fusion, which is essential when the pipe will face external soil loading, hydrostatic pressure, or cyclic bending during pile driving. For corrosive burial environments, 3LPE or 3LPP multi-layer coating systems provide cathodic disbondment resistance that single-layer FBE cannot match over decades of service. Our production lines handle custom lengths up to 12 m and beyond, reducing the number of field weld joints on long pipeline runs — each joint saved is a potential leak point eliminated.
Engineering Compliance and Certification Requirements
Pipeline projects governed by API 5L require full chemical and mechanical traceability per heat number, with mill test certificates conforming to EN 10204 3.1 or 3.2 format. For European market delivery, CE marking under EN 10210 (hot-finished) or EN 10219 (cold-formed welded) is mandatory for customs clearance, and the certificate must reference the actual production standard — not a generic equivalent. [NEED_CITE: EN 10219 cold-formed welded hollow section compliance for structural use] ASTM A252 grade selections apply primarily to structural piling in North American projects, where driving stress and soil bearing capacity dictate minimum wall thickness. Beveled ends per API 5L are standard for field welding on pipeline jobs, while plain ends suit mechanical coupling or piling applications.
Understanding API 5L X42 vs X60 and LSAW Process Characteristics
API 5L X42 and X60 differ primarily in minimum yield strength — X60 demands higher yield and tensile values, making it suitable for higher-pressure transmission segments, while X42 serves lower-pressure gathering and distribution lines. Both grades require controlled rolling or normalized delivery conditions to ensure weldability and toughness at the seam and heat-affected zone. The LSAW submerged arc welding process uses a flux-covered electrode that creates a protected arc beneath a granular flux blanket, producing deep penetration and low hydrogen inclusion in the weld metal. This makes LSAW the preferred choice for heavy-wall pipes where seam integrity under high pressure or low temperature is critical. [NEED_CITE: API 5L steel grade mechanical property requirements for pipeline service] Surface treatment selection follows the service environment: hot-dip galvanizing suits above-ground or splash-zone exposure, FBE provides excellent adhesion for single-layer buried service, and 3LPE combines FBE adhesion with polyethylene mechanical protection for aggressive soil conditions.
Hidden Costs of Incorrect Grade Selection and Tolerance Drift
Specifying API 5L X60 but receiving X42-grade material — even with valid-looking certificates — means the pipe will fail hydrostatic testing at the designed pressure, requiring full segment replacement. Negative tolerance drift across a batch reduces the actual wall thickness below the engineering minimum, which may pass visual inspection but fails ultrasonic thickness measurement during commissioning. Missing or mismatched coating specifications lead to premature corrosion under insulation or soil contact, turning a twenty-year design life into a five-year failure. [NEED_CITE: consequences of wall thickness tolerance deviation in pressure pipeline applications]
Why Global Buyers Source API 5L LSAW Pipe From Us
Every pipe leaving our facility carries a mill test certificate generated from our own physical and chemical laboratory — not a forwarded document from a trading desk. We produce API 5L X60 LSAW steel pipe across wall thicknesses from 9 mm to 500 mm on three dedicated lines, covering over 2,800 specification combinations without subcontracting. Our CE certification under EN 10210 and EN 10219 is verified by Lloyd’s Register, and third-party inspection by SGS or BV is arranged before shipment at the buyer’s request. Custom non-standard lengths, beveled or plain ends, and multi-layer coating systems are handled in-house, eliminating the coordination risk of splitting orders across multiple vendors. Professional loading plans optimize container weight for heavy-wall sections, and we manage FOB, CIF, and DDP logistics to ports across the EU, North America, Middle East, and Southeast Asia.
Documentation & Compliance
- Mill test certificate documenting API 5L X42/X60 chemical composition, yield strength, tensile strength, and elongation per heat number
- CE certificate under EN 10210 / EN 10219 for European market customs clearance and project compliance
- ISO 9001:2015 quality management system certificate covering full production and inspection workflow
- SGS or BV third-party inspection report available before shipment upon buyer request
- Full material traceability from slab heat number through welding, coating, and final dimensional inspection
- Export customs documents including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Heavy-wall API 5L X60 LSAW pipes bundled with high-tensile steel strips and rubber-padded cradle supports to prevent coating damage during ocean transit
- 3LPE / 3LPP / FBE coated ends fitted with plastic protectors to preserve bevel geometry and coating edge integrity
- 12 m and custom-length pipes loaded with optimized weight distribution plans for 20ft and 40ft open-top or flat-rack containers
- Galvanized surface pipes separated by timber battens to prevent zinc coating abrasion between adjacent lengths
- Each bundle tagged with heat number, steel grade, wall thickness, and length for on-site identification and traceability
- FOB Qingdao port standard, with CIF and DDP logistics arranged to destination ports across 50+ countries
Ready to Lock In Your Pipeline Specification
Submit your required steel grade, wall thickness, length, coating type, and destination port — we return a detailed quotation with unit pricing, production lead time, applicable certifications, and a sample mill test certificate format within 12 hours. Non-standard dimensions and custom coating specifications are confirmed against our production schedule before contract signing.
Request Your API 5L LSAW Pipe Quotation Today
Send your specifications via email to admin@sdxjysteel.com or contact us on WhatsApp at +86 188 5315 7756 to receive pricing and mill test documentation.
Frequently Asked Questions
Q: What is the difference between API 5L X42 and API 5L X60 for pipeline use?
A: API 5L X60 has a higher minimum yield strength than X42, making it suitable for higher-pressure transmission pipelines. X42 is typically specified for lower-pressure gathering and distribution lines. Both grades require controlled manufacturing conditions to ensure weldability and seam integrity.
Q: Can you provide third-party inspection before shipment?
A: Yes. SGS and BV third-party inspections are arranged at our facility before shipment. The inspection covers dimensional checks, visual examination, coating thickness measurement, and verification of mill test certificates against the actual heat production records.
Q: What surface treatment options are available for buried pipeline service?
A: We offer 3LPE (three-layer polyethylene), 3LPP (three-layer polypropylene), FBE (fusion-bonded epoxy), and hot-dip galvanizing. 3LPE is the most common choice for buried onshore pipelines due to its combination of adhesion and mechanical protection. 3LPP is preferred for high-temperature service, while FBE suits single-layer buried applications.
Q: What is the wall thickness tolerance for API 5L LSAW pipes?
A: The standard tolerance is ±10% of the nominal wall thickness, in accordance with API 5L requirements. For projects requiring tighter control, we conduct ultrasonic thickness measurement on every pipe and provide the actual measured values in the inspection report.
Q: Do you handle logistics to remote project sites?
A: We manage FOB, CIF, and DDP shipping terms. For DDP deliveries, we coordinate inland transport from the discharge port to the project site, including customs clearance documentation and heavy-lift handling for large-diameter pipes.
